/Products/Electric Motors/Single Phase/Leeson/TEFC - Resilient Base/110026.00 Leeson 3/4HP Electric Motor, 1800RPM
Click Image to Expand

Product ID: 110026.00

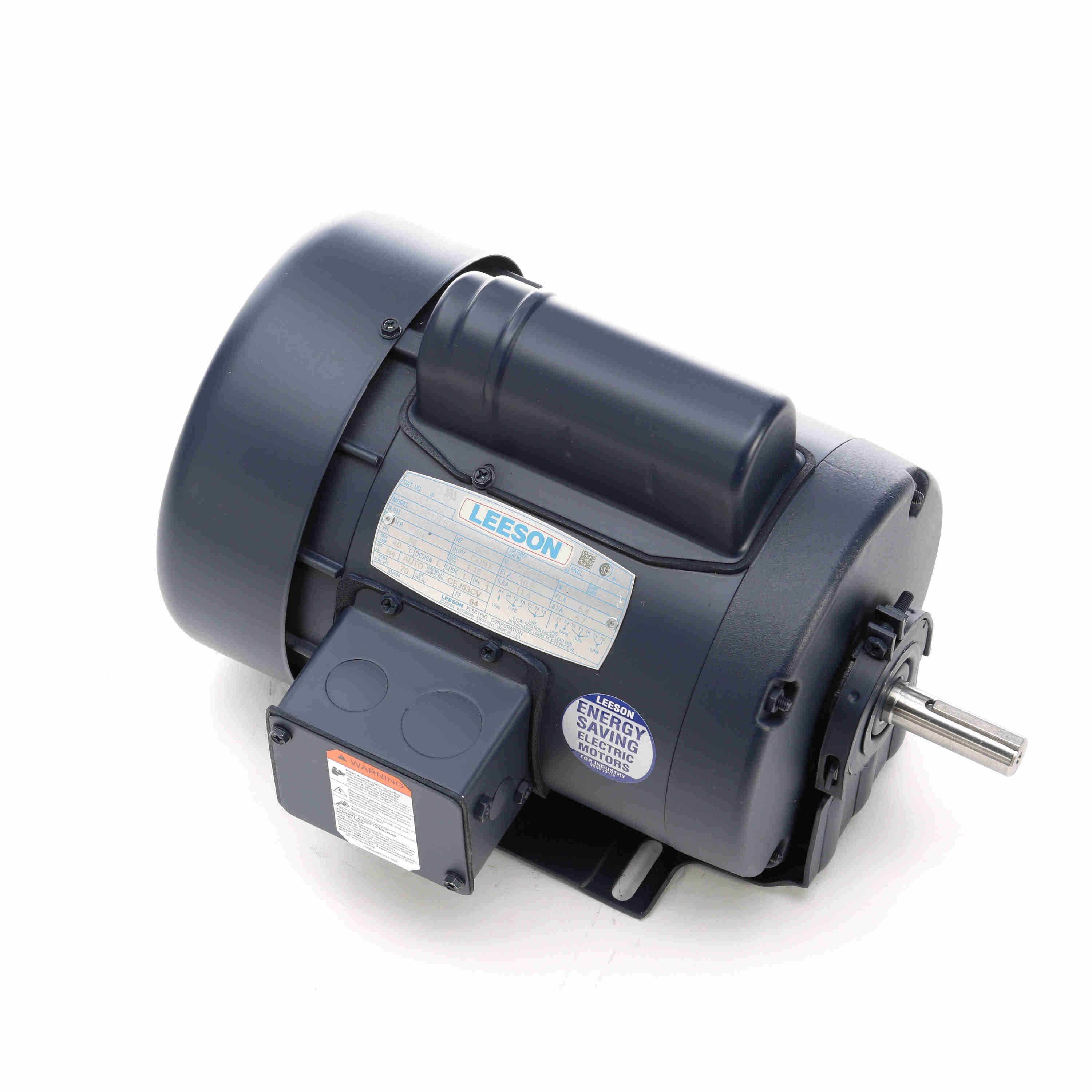

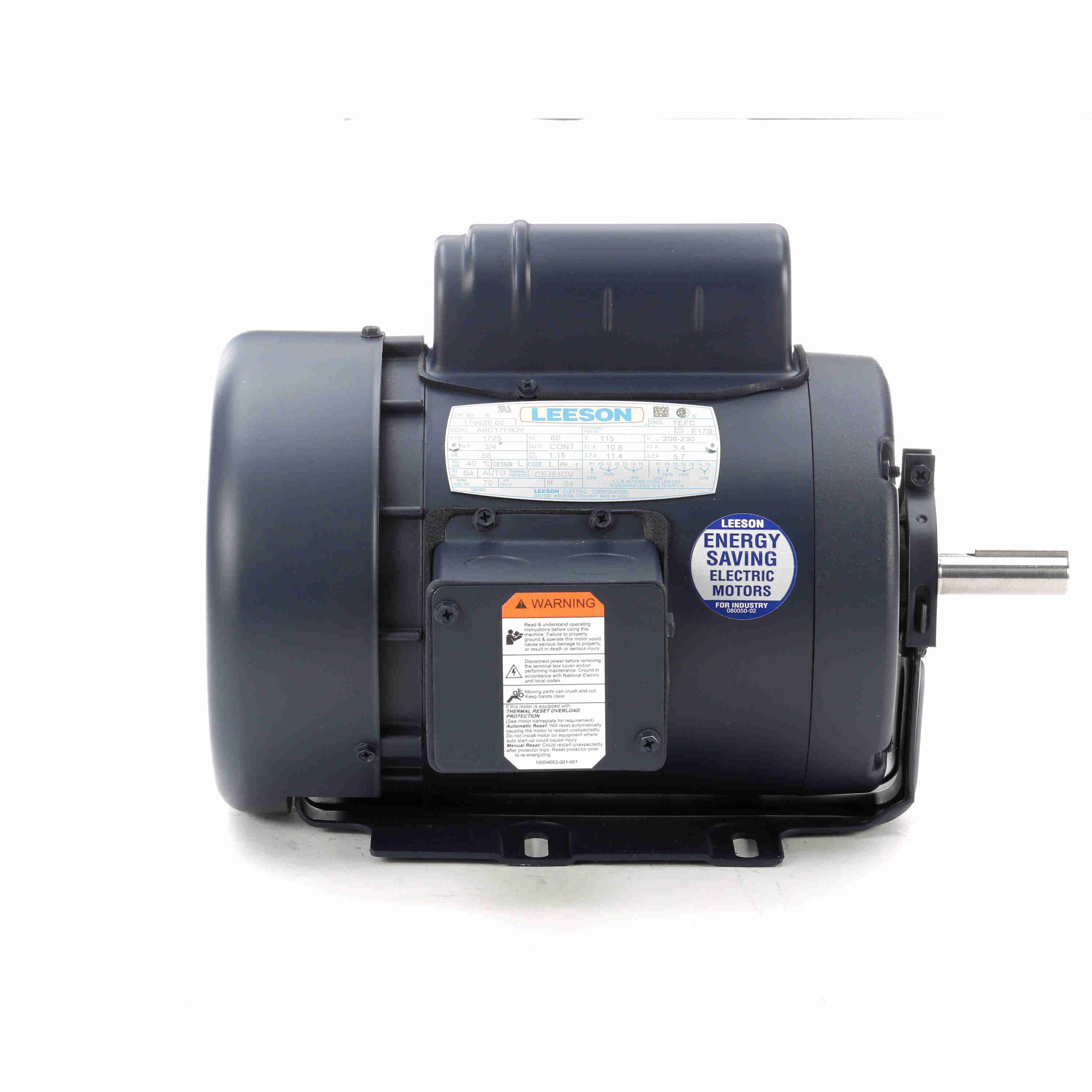

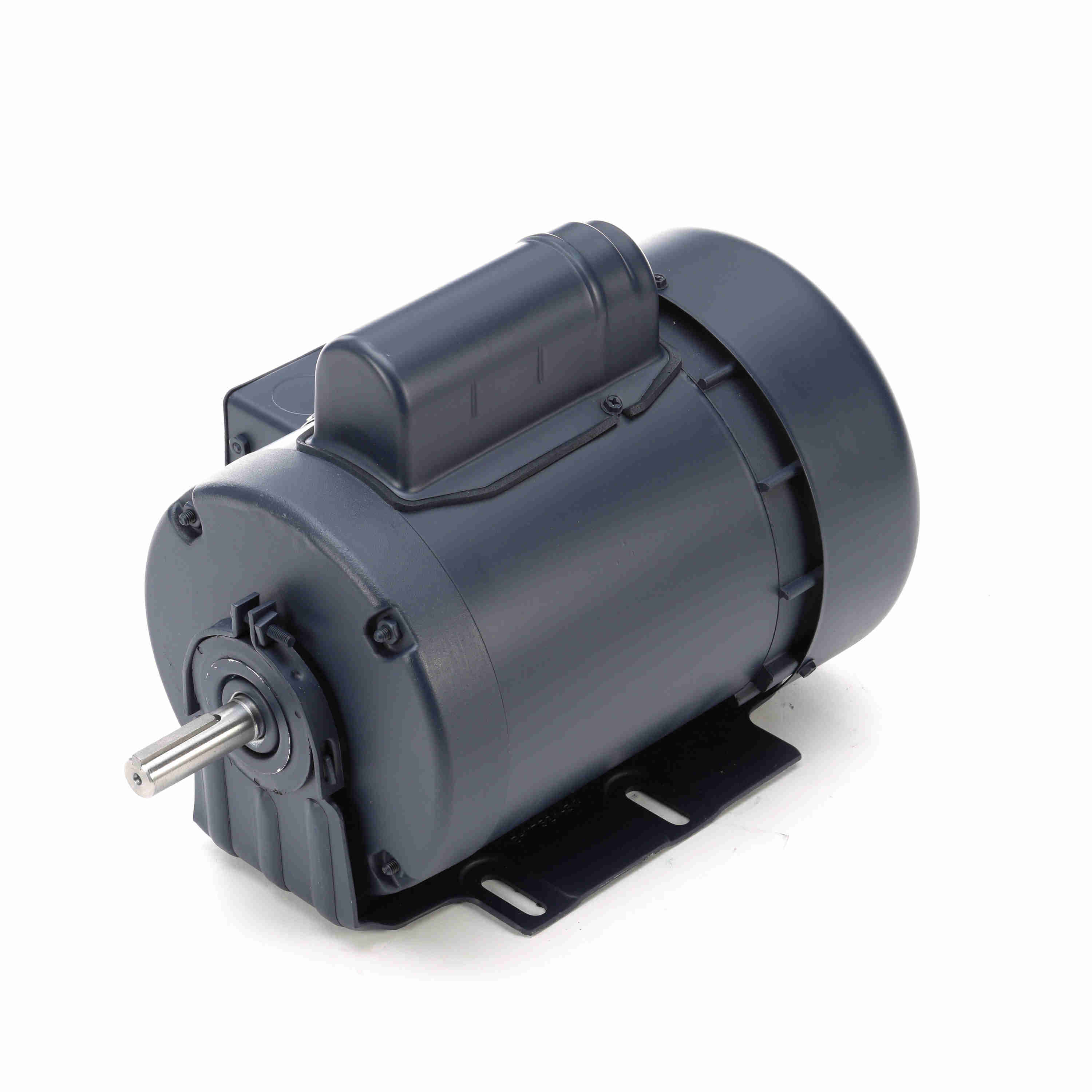

110026.00 Leeson 3/4HP Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 110026.00

Selected accessories will also be added to cart
$612.01 / Each
Quantity:
A6C17FR2F, 56 Frame, 115/208-230V
Features
  • Double shielded ball bearings
  • Dynamically balanced rotors
  • Manual rest overload protection
  • NEMA ® Design B performance
  • Continuous Duty
  • Meets or exceeds NEMA service factors
General Specifications
Model : A6C17FR2F Catalog No : 110026.00
Part Description : 3/4HP..1725RPM.56.TEFC./V.1PH.60HZ.CONT.AUTOMATIC.40C.1.15SF.RESIL.GENERAL PURPOSE.A6C17FR2F Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No
Nameplate Specifications
Output HP : 0.75 Hp Output KW : 0.56 kW
Frequency : 60 Hz Voltage : 115/208-230 V
Current : 10.8/5.4 A Speed : 1725 rpm
Service Factor : 1.15 Phase : 1
Efficiency : 70 % Duty : CONTINUOUS
Insulation Class : B Design Code : L
KVA Code : L Frame : 56
Enclosure : TEFC Overload Protector : AUTOMATIC
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 43
Technical Specifications
Electrical Type : CAP START IND RUN Starting Method : ACROSS THE LINE
Poles : 4 Rotation : SELECTIVE CCW
Mounting : RESILIENT BASE Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL Shaft Type : STANDARD 56
Overall Length : 12.46 in Frame Length : 5.5 in
Shaft Diameter : 0.63 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720007457
Weight : 31.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 19.20 0.0 84.19 0.0 1,314 3.20 0.0 0.75
Locked-Rotor 30.10 0.0 114.48 0.0 0 6.00 0.0 0.75
Break-Down 15.20 0.0 98.47 0.0 1,536 2.80 0.0 0.75
Full Load 5.46 0.0 35.95 0.0 1,753 0.80 64.0 0.75
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.13
  • 0.172
  • 0.0
  • 18.1
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 4.20
  • 0.306
  • 46.0
  • 31.6
  • 1,786
  • 0.0
  • 8.85
  • 50 %
  • 4.45
  • 0.456
  • 61.3
  • 44.6
  • 1,777
  • 0.0
  • 17.72
  • 75 %
  • 4.86
  • 0.519
  • 67.8
  • 55.3
  • 1,766
  • 0.0
  • 26.79
  • 100 %
  • 5.42
  • 0.792
  • 70.7
  • 63.6
  • 1,754
  • 78.0
  • 35.94
  • 125 %
  • 6.11
  • 0.978
  • 71.5
  • 69.6
  • 1,740
  • 90.0
  • 45.30
  • 150 %
  • 6.97
  • 1.191
  • 70.8
  • 74.3
  • 1,723
  • 0.0
  • 55.09
  • 175 %
  • 7.97
  • 1.421
  • 88.9
  • 77.4
  • 1,703
  • 0.0
  • 64.75
