/Products/Electric Motors/Single Phase/Leeson/High Torque TEFC C-Face No Base/113290.00 Leeson 1/3HP Hi-Torque Farm/Agriculture Duty Electric Motor
Click Image to Expand

Product ID: 113290.00

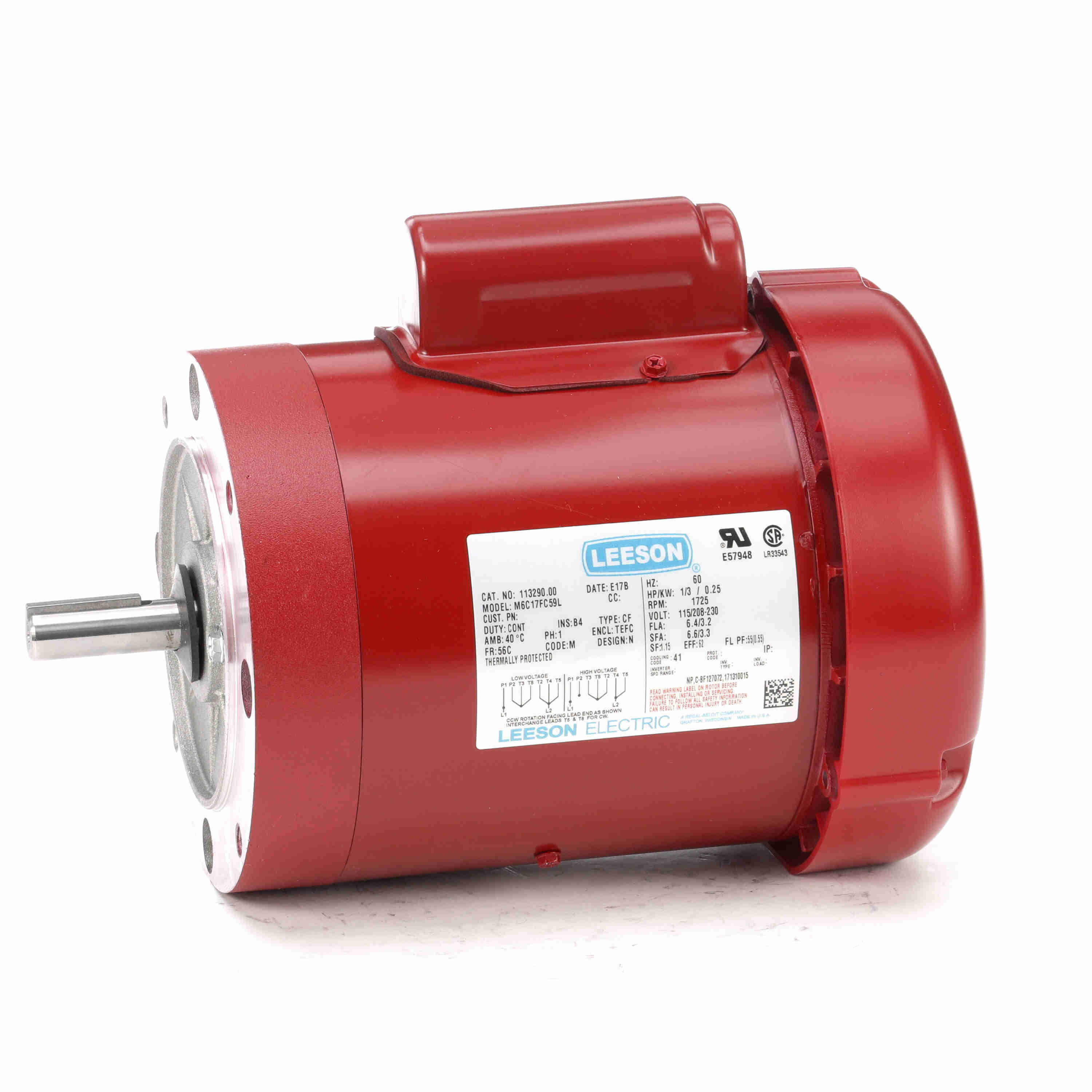

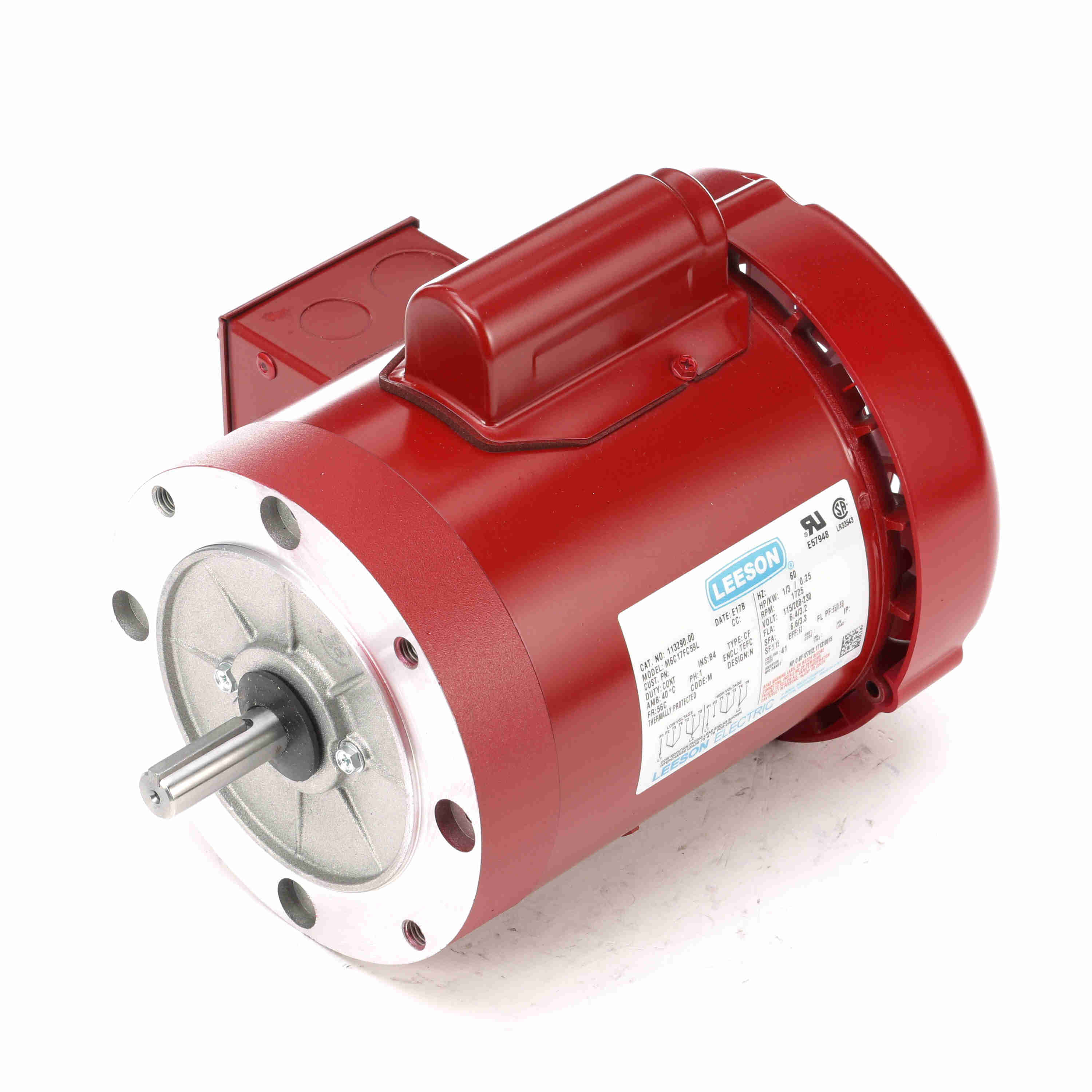

113290.00 Leeson 1/3HP Hi-Torque Farm/Agriculture Duty Electric Motor

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: M6C17FC59

Selected accessories will also be added to cart
$288.47 / Each
Quantity:
TEFC, 1800RPM, 56C Frame, 115/208-230V Single Phase 60Hz, C-Face, No Base, M6C17FC59L, 5/8" Shaft

Features

Features
  • Gasketed capacitor cases and conduit box covers
  • Meets or exceeds NEMA ® service factors
  • Manual rest overload protection
  • UL recognized component listing and CSA certified
  • 1 year warranty

General Specifications

General Specifications
Model :M6C17FC59L Catalog No :113290.00
Part Description :1/3HP..1725RPM.56.TEFC./V.1PH.60HZ.CONT.MANUAL.40C.1.15SF.C FACE.AG - FARM DUTY/GENERAL PURPOSE.M6C17FC59L Category :Agricultural
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.33 HP Output KW :0.25 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :6.4/3.4-3.2 A Speed :1725 RPM
Service Factor :1.15 Phase :1
Efficiency :62 % Duty :Continuous
Insulation Class :B Design Code :N
KVA Code :M Frame :56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :Manual
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Round Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :10.98 in Frame Length :5.50 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720011843
Weight :26.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down7.58240.049.60310.001.380.00.33
Locked-Rotor15.40487.060.50378.003.040.00.33
Pull-Up8.10256.046.00288.001.460.00.33
Full Load3.16100.016.00100.01,7560.4156.60.33
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.68
  • 0.149
  • 0.0
  • 24.2
  • 1,792
  • 0.0
  • 0.00
  • 25 %
  • 2.69
  • 0.200
  • 31.7
  • 32.3
  • 1,785
  • 0.0
  • 4.00
  • 50 %
  • 2.79
  • 0.266
  • 47.4
  • 41.5
  • 1,776
  • 0.0
  • 8.00
  • 75 %
  • 2.91
  • 0.328
  • 57.3
  • 49.0
  • 1,765
  • 0.0
  • 12.00
  • 100 %
  • 3.10
  • 0.399
  • 62.5
  • 56.0
  • 1,755
  • 61.0
  • 16.00
  • 125 %
  • 3.32
  • 0.472
  • 65.6
  • 61.8
  • 1,743
  • 0.0
  • 20.00
  • 150 %
  • 3.57
  • 0.551
  • 66.9
  • 67.1
  • 1,729
  • 0.0
  • 24.00
  • 175 %
  • 3.90
  • 0.633
  • 67.3
  • 70.6
  • 1,714
  • 0.0
  • 28.00
  • 200 %
  • 4.27
  • 0.723
  • 66.6
  • 73.6
  • 1,695
  • 0.0
  • 32.00
