/Products/Electric Motors/3 Phase/Leeson/TEFC, Rigid Base/114618.00 Leeson 1/2HP General Purpose Electric Motor, 850RPM
Click Image to Expand

Product ID: 114618.00

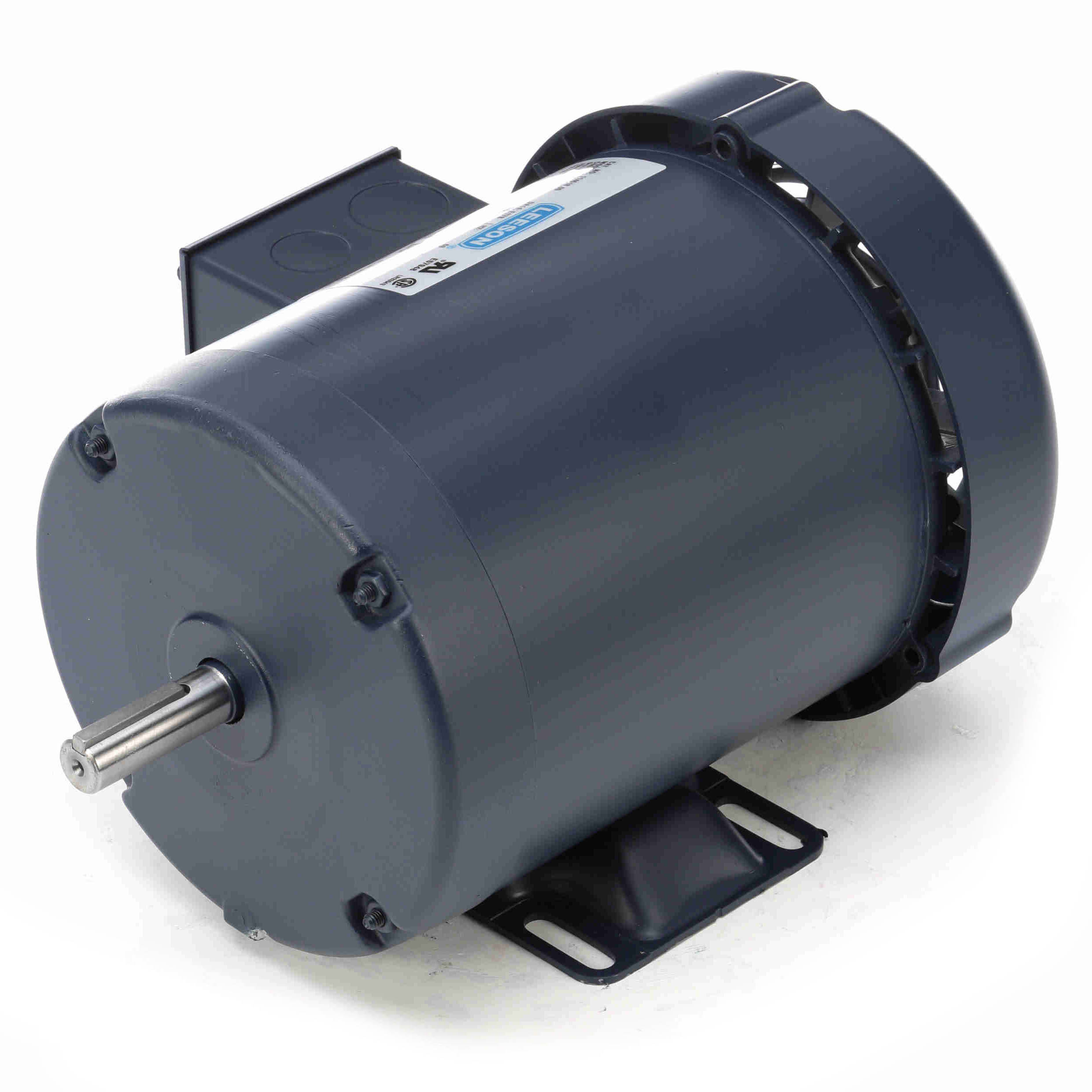

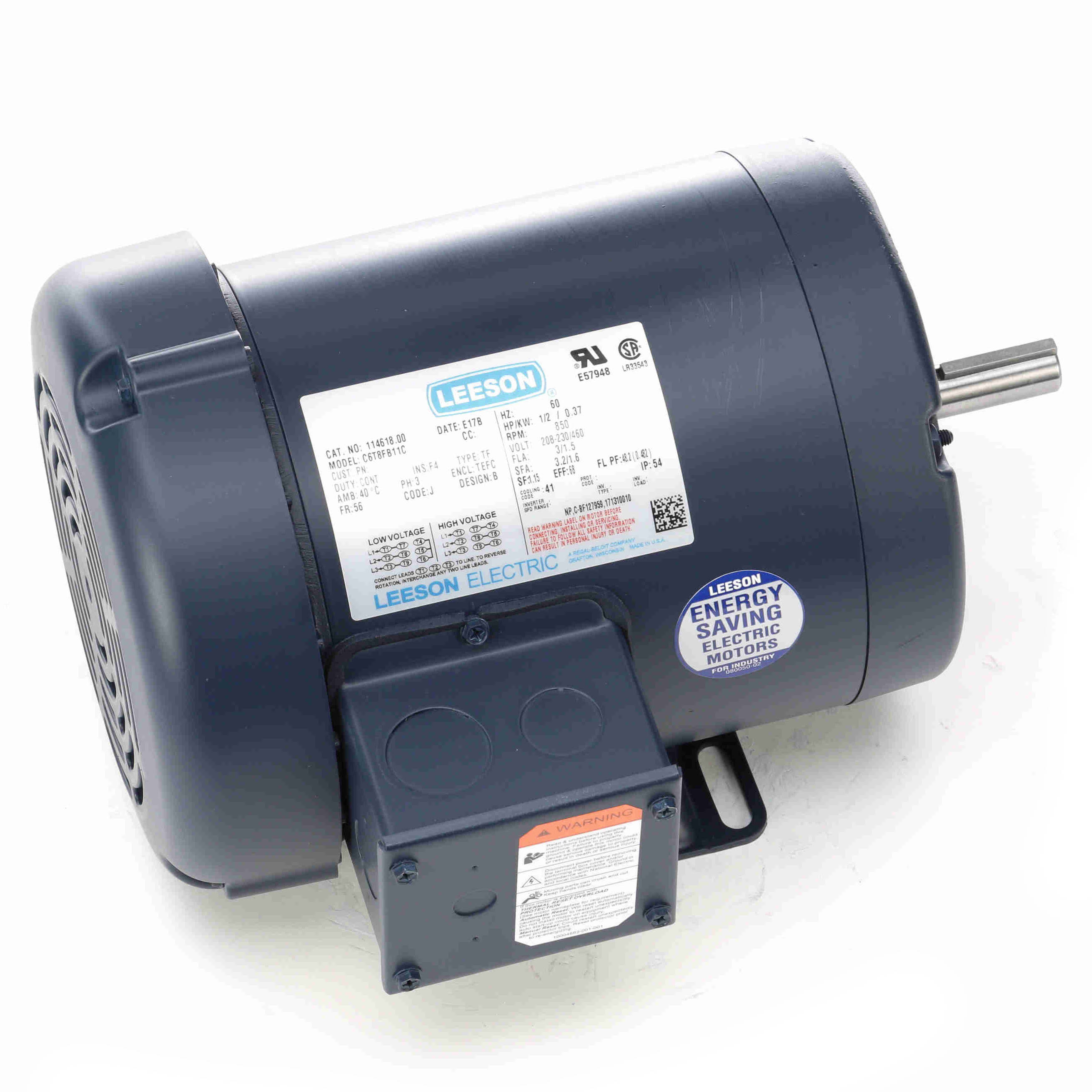

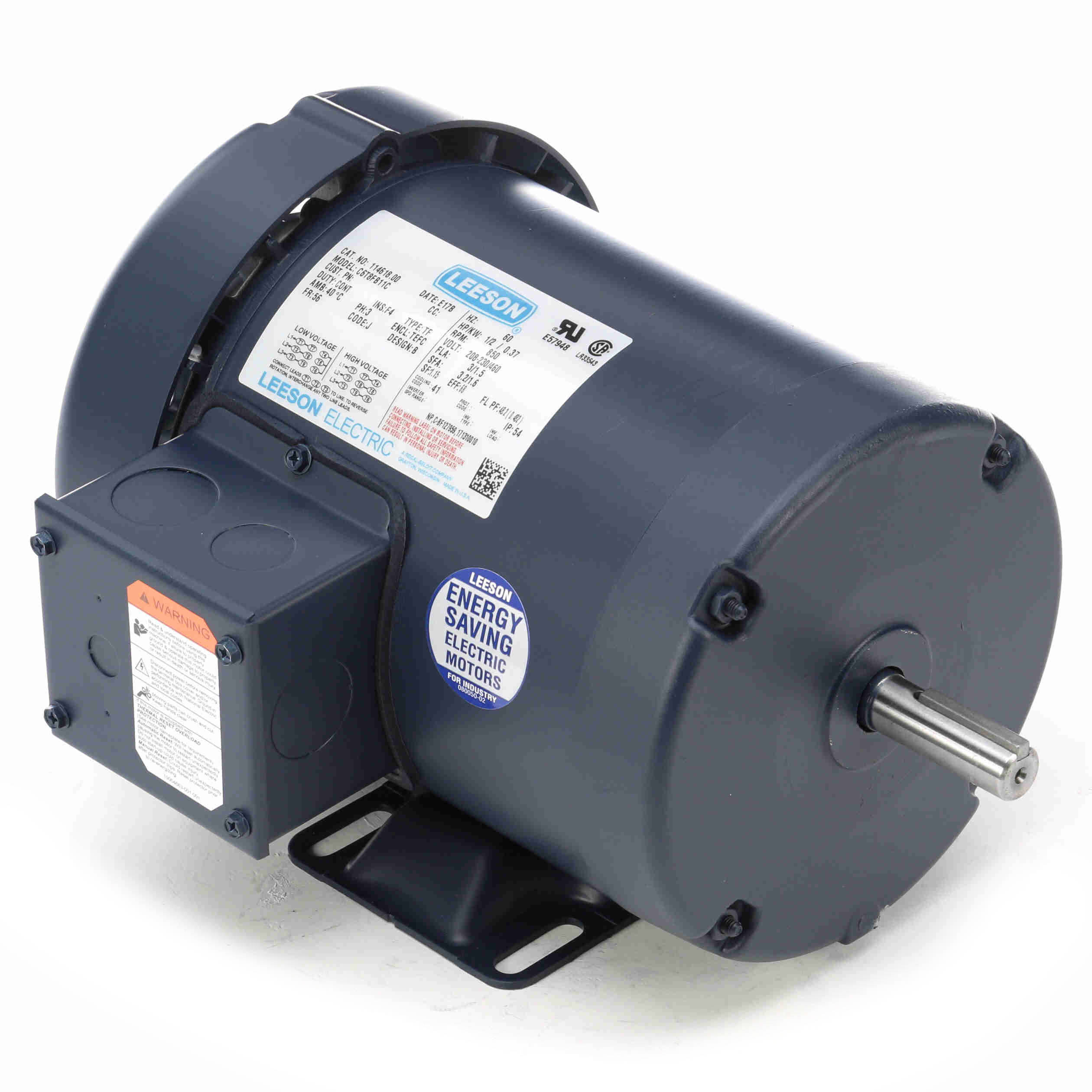

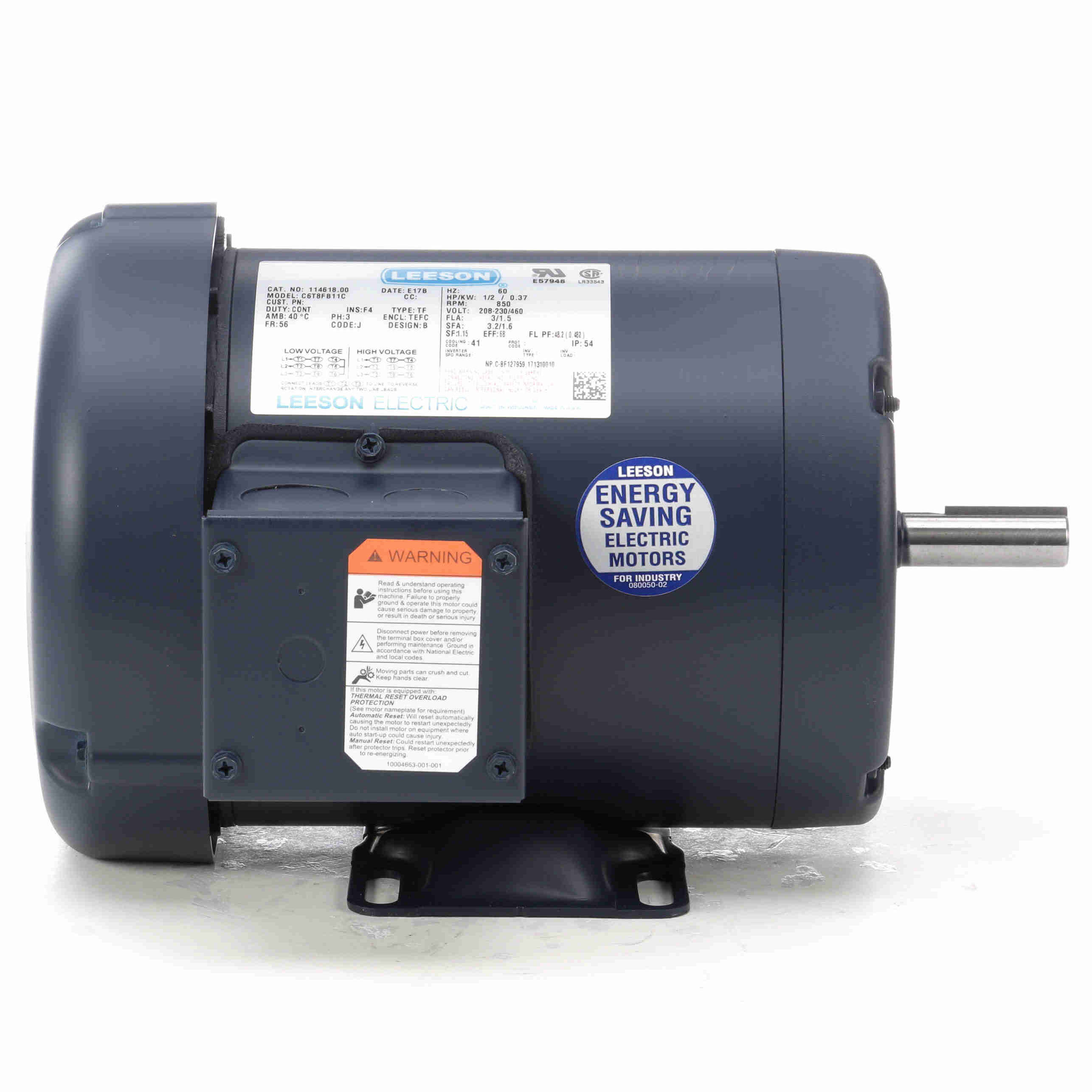

114618.00 Leeson 1/2HP General Purpose Electric Motor, 850RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 114618.00

Selected accessories will also be added to cart
$879.97 / Each
Quantity:
TEFC, 56 Frame, 208-230/460VAC 3-Phase 60Hz, C6T8FB11C, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Features

Features
  • Standard, EPAct efficient ratings
  • Inverter-rated; Continuous duty
  • Class B insulation systems – 42, 48 and 56 frames
  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
  • Dynamically balanced rotors
  • Torques exceed NEMA performance standards; UL recognized and CSA certified

General Specifications

General Specifications
Model : C6T8FB11C Catalog No : 114618.00
Part Description : 1/2HP..850RPM.56.TEFC.208-230/460V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.GENERAL PURPOSE.C6T8FB11C Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 0.50 HP Output KW : 0.37 kW
Frequency : 60 Hz Voltage : 208-230/460 V
Current : 3.0/1.5 A Speed : 850 RPM
Service Factor : 1.15 Phase : 3
Efficiency : 68 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : J Frame : 56
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 54

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 8 Rotation : Reversible
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 11.48 in Frame Length : 6.00 in
Shaft Diameter : 0.625 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720014080
Weight : 30.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 4.50 6.50 217.0 0 0.50
Pull-Up 0.00 6.00 200.0 100 0.50
Break-Down 0.00 8.50 283.0 600 0.50
Full Load 1.50 3.00 100.0 858 0.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.15
  • 0.115
  • 0.0
  • 12.6
  • 899
  • 0.0
  • 0.00
  • 25 %
  • 1.16
  • 0.211
  • 45.0
  • 22.8
  • 891
  • 0.0
  • 0.75
  • 50 %
  • 1.21
  • 0.315
  • 59.6
  • 32.7
  • 881
  • 0.0
  • 1.50
  • 75 %
  • 1.28
  • 0.425
  • 65.4
  • 41.7
  • 870
  • 0.0
  • 2.25
  • 100 %
  • 1.40
  • 0.538
  • 68.0
  • 48.2
  • 858
  • 80.0
  • 3.00
  • 115 %
  • 1.60
  • 0.594
  • 67.6
  • 52.4
  • 851
  • 90.0
  • 3.40
  • 125 %
  • 1.50
  • 0.668
  • 67.3
  • 55.9
  • 844
  • 0.0
  • 3.75
  • 150 %
  • 1.65
  • 0.798
  • 66.4
  • 60.7
  • 829
  • 0.0
  • 4.50
