/Products/Electric Motors/Single Phase/Leeson/Instant Reversing/114932.00 Leeson 3/4HP Instant Reversing Electric Motor, 1725RPM
Click Image to Expand

Product ID: 114932.00

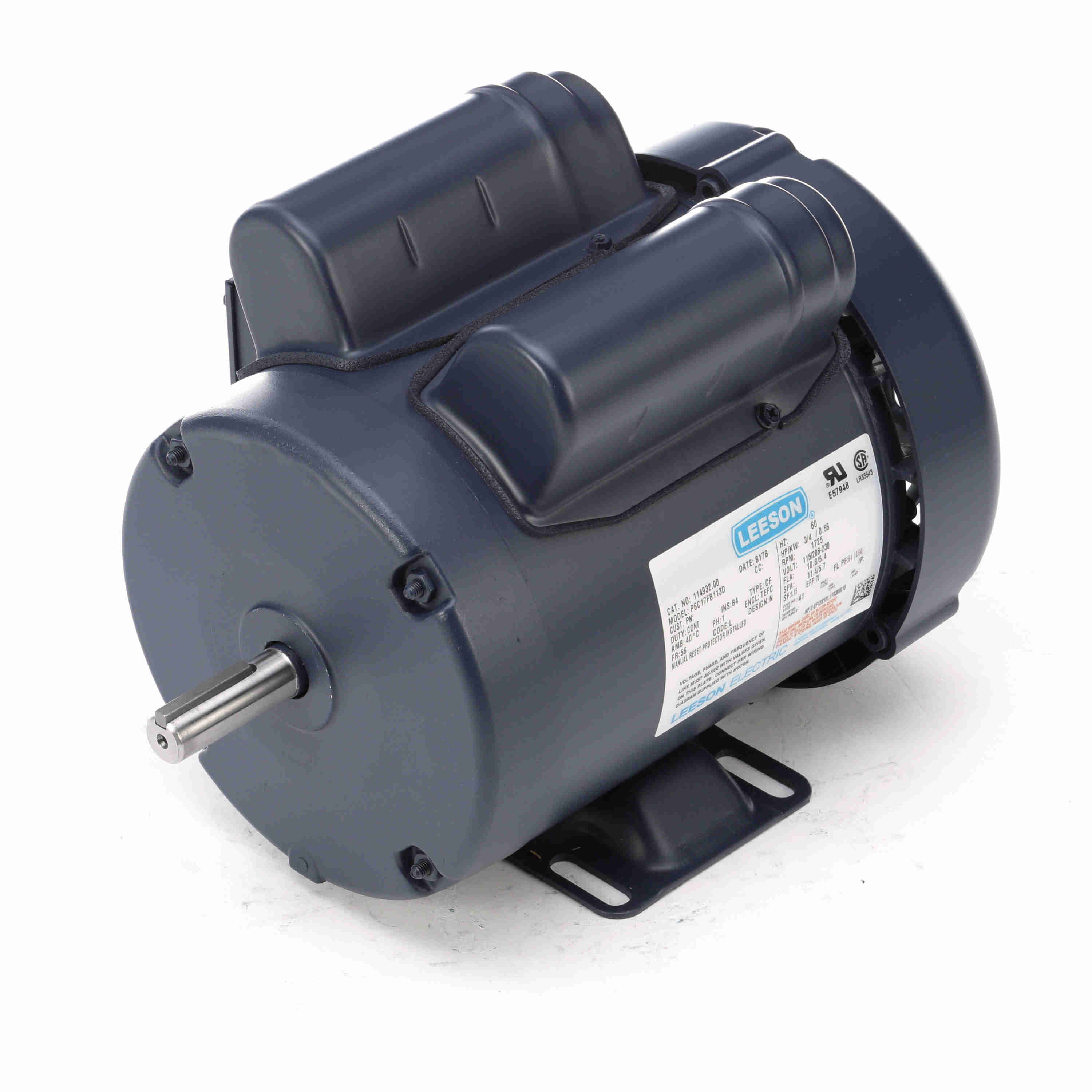

114932.00 Leeson 3/4HP Instant Reversing Electric Motor, 1725RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 114932.00

Temporarily out of stock
Selected accessories will also be added to cart
$231.58 / Each
TEFC, 56 Frame, 115/208-230VAC Single Phase 60Hz, P6C17FB113D, Rigid Base, Rolled Steel, 5/8" Shaft

Features

Features
  • Manual overload protected
  • Capacitor start, induction run motors with solid state , instant reversing switch

General Specifications

General Specifications
Model :P6C17FB113D Catalog No :114932.00
Part Description :3/4HP..1725RPM.56.TEFC./V.1PH.60HZ.CONT.MANUAL.40C.1.15SF.RIGID.INSTANT REVERSING.P6C17FB113D Category :Instant Reversing
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.75 HP Output KW :0.56 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :10.8/5.4 A Speed :1725 RPM
Service Factor :1.15 Phase :1
Efficiency :70 % Duty :Continuous
Insulation Class :B Design Code :N
KVA Code :L Frame :56
Enclosure :Totally Enclosed Fan Cooled Overload Protector :Manual
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :11.24 in Frame Length :5.75 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720014370
Weight :33.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up19.200.084.190.01,3143.200.00.75
Full Load5.460.035.950.01,7530.8064.00.75
Locked-Rotor30.100.0114.480.006.000.00.75
Break-Down15.200.098.470.01,5362.800.00.75
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.13
  • 0.172
  • 0.0
  • 18.1
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 4.20
  • 0.306
  • 46.0
  • 31.6
  • 1,786
  • 0.0
  • 8.85
  • 50 %
  • 4.45
  • 0.456
  • 61.3
  • 44.6
  • 1,777
  • 0.0
  • 17.72
  • 75 %
  • 4.86
  • 0.519
  • 67.8
  • 55.3
  • 1,766
  • 0.0
  • 26.79
  • 100 %
  • 5.42
  • 0.792
  • 70.7
  • 63.6
  • 1,754
  • 78.0
  • 35.94
  • 125 %
  • 6.11
  • 0.978
  • 71.5
  • 69.6
  • 1,740
  • 90.0
  • 45.30
  • 150 %
  • 6.97
  • 1.191
  • 70.8
  • 74.3
  • 1,723
  • 0.0
  • 55.09
  • 175 %
  • 7.97
  • 1.421
  • 88.9
  • 77.4
  • 1,703
  • 0.0
  • 64.75
