/Products/Electric Motors/Single Phase/Leeson/Air Compressor/116523.00 Leeson 5HP Compressor Duty Electric Motor, 3600 RPM
Click Image to Expand

Product ID: 116523.00

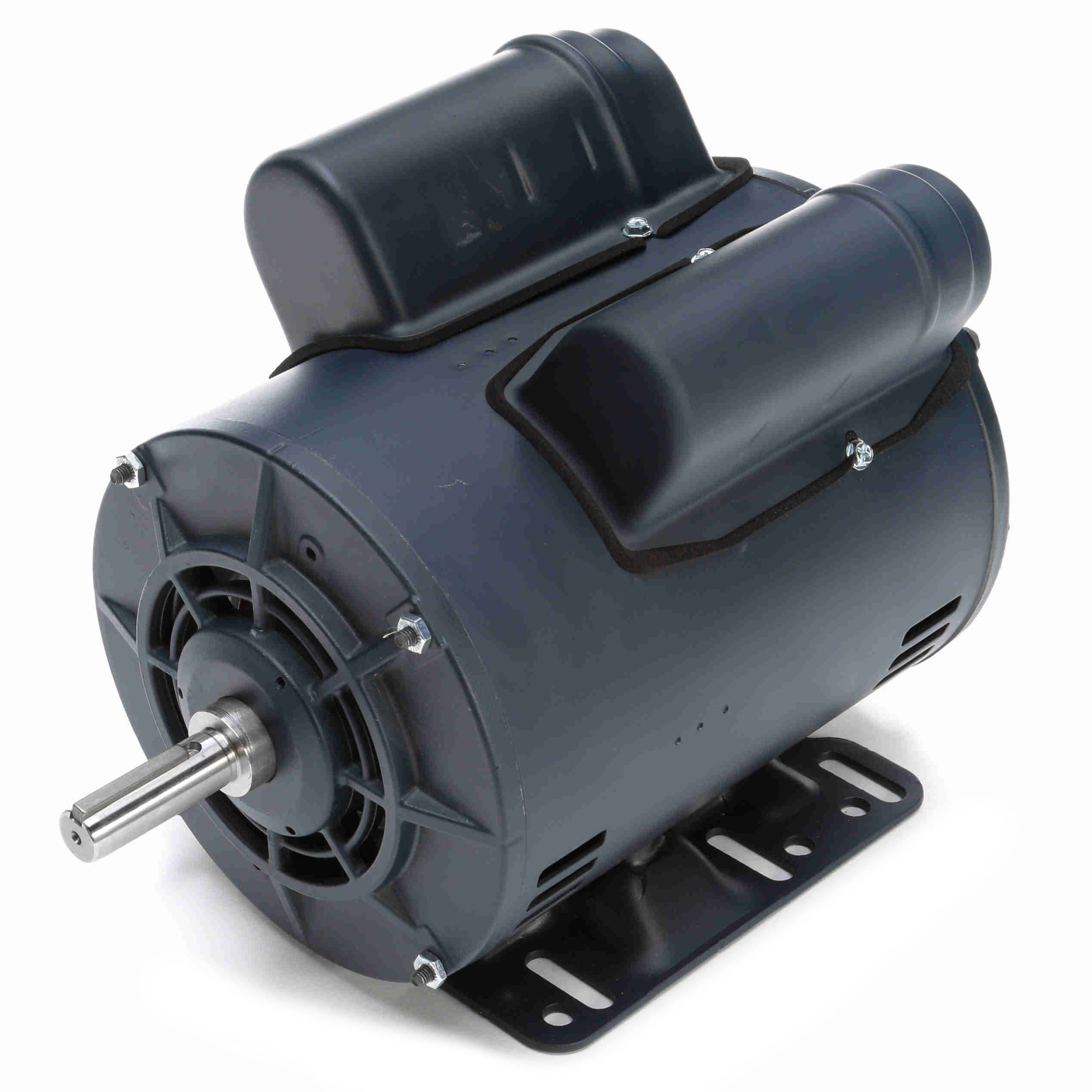

116523.00 Leeson 5HP Compressor Duty Electric Motor, 3600 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 116523.00

Selected accessories will also be added to cart
$646.38 / Each
Quantity:
Drip Proof, 56 Frame, 208-230VAC Single Phase 60Hz, P6K34DB22C, Rigid Base, Rolled Steel, 5/8" Keyed Shaft

Features

Features
  • Double shielded ball bearings
  • Designed for belted loads
  • High efficient copper windings
  • High starting and breakdown torque
  • Dual rotation

General Specifications

General Specifications
Model :P6K34DB22C Catalog No :116523.00
Part Description :..5SPLHP..3450RPM.56.DP.208-230V.1PH.60HZ.CONT.40C.1.0SF.RIGID.P6K34DB22C.....AIR COMPRESSOR.MANUAL....... Category :Air Compressor
Stock :No

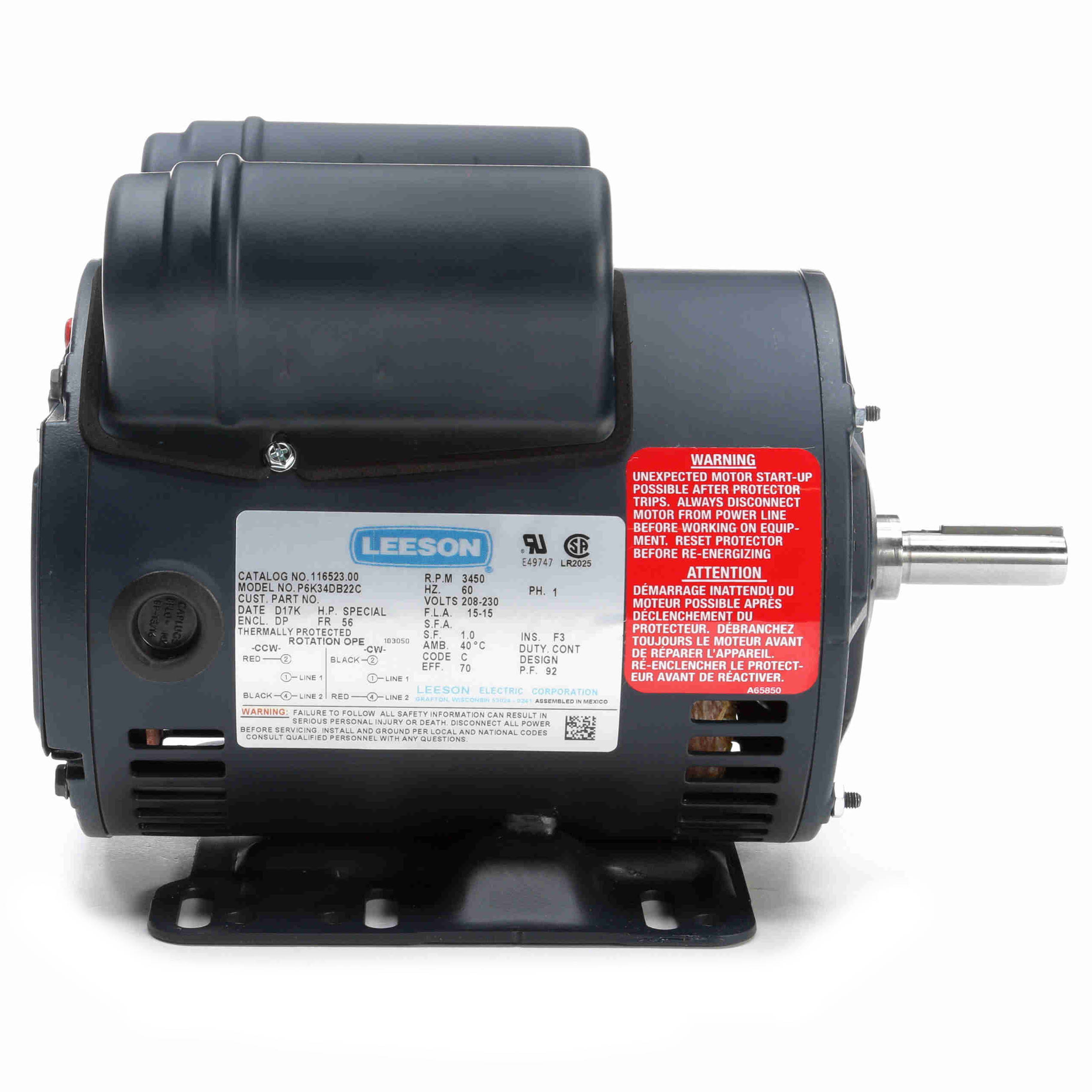

Nameplate Specifications

Nameplate Specifications
Output HP :5 Hp Output KW :5.3 kW
Frequency :60 Hz Voltage :208-230 V
Current :15.0-15.0 A Speed :3450 rpm
Service Factor :1 Phase :1
Efficiency :70 % Duty :Continuous
Insulation Class :F Design Code :NO DESIGN CODE
KVA Code :C Frame :56
Enclosure :Drip Proof Overload Protector :Manual
Ambient Temperature :40 °C Drive End Bearing Size :205
Opp Drive End Bearing Size :203 UL :Recognized
CSA :Y CE :N
IP Code :22

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :2 Rotation :Selective Counterclockwise
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :11.44 in Frame Length :7.56 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720349847
Weight :30.00 LB
