/Products/Electric Motors/Single Phase/Leeson/Air Compressor/120004.00 Leeson 1.5HP Compressor Duty Electric Motor, 1800 RPM
Click Image to Expand

Product ID: 120004.00

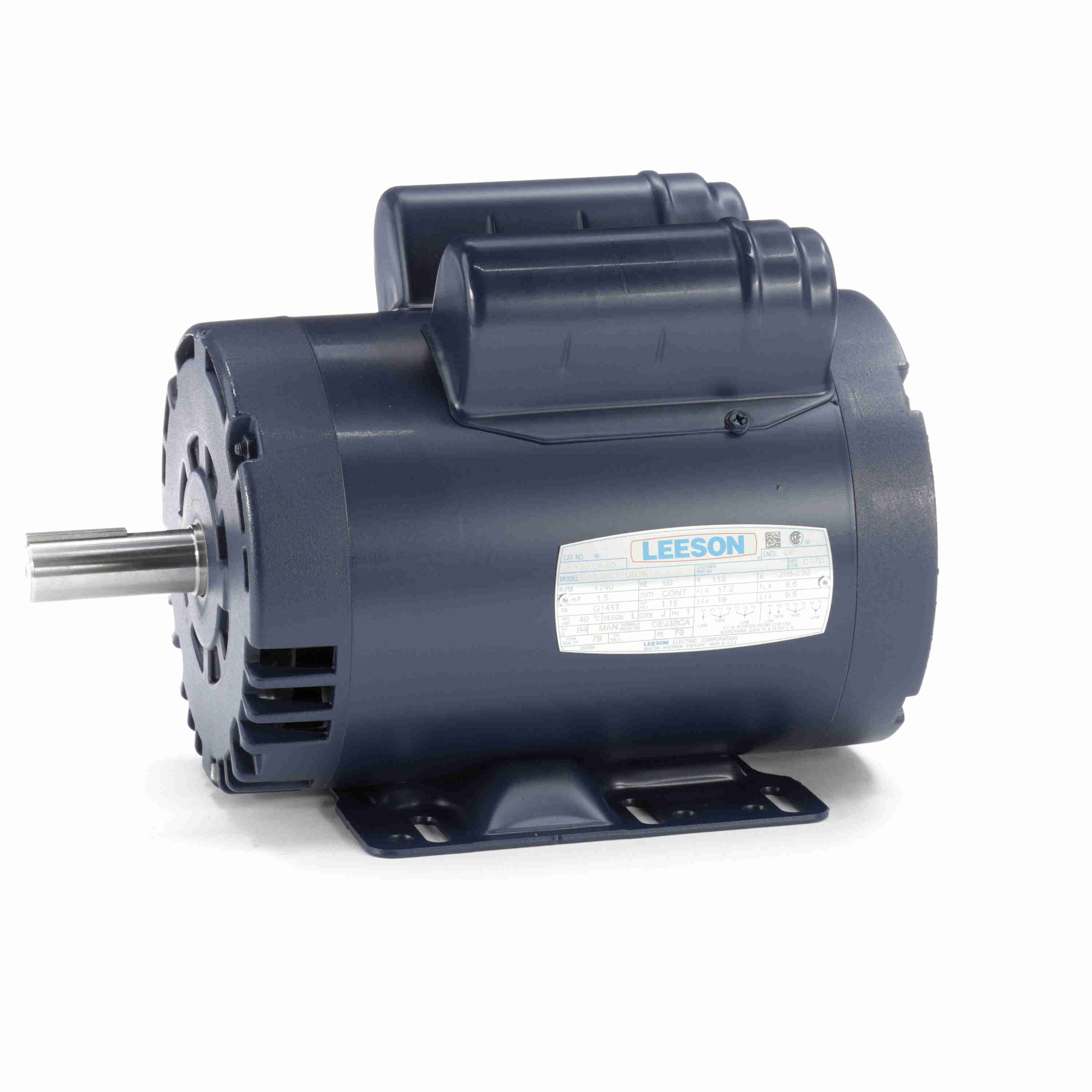

120004.00 Leeson 1.5HP Compressor Duty Electric Motor, 1800 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 120004.00

Selected accessories will also be added to cart
$797.71 / Each
Quantity:
Drip Proof, G145T Frame, 115/208-230V 1-Phase 60Hz, P145K17DB3K, Rigid Base

Features

Features
  • Double shielded ball bearings
  • Designed for belted loads
  • High efficient copper windings
  • High starting and breakdown torque
  • Dual rotation

General Specifications

General Specifications
Model :P145K17DB3K Catalog No :120004.00
Part Description :..1 1/2HP..1740RPM.145.DP.115/208-230V.1PH.60HZ.CONT.40C.1.15SF.RIGID.P145K17DB3K.....GENERAL PURPOSE.MANUAL....... Category :Air Compressor
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :1.50 Hp Output KW :1.1 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :17.2/8.6 A Speed :1740 rpm
Service Factor :1.15 Phase :1
Efficiency :79 % Duty :Continuous
Insulation Class :B Design Code :L
KVA Code :J Frame :G145T
Enclosure :Drip Proof Overload Protector :Manual
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized ( Not Protector)
CSA :Y CE :N
IP Code :22

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :T
Overall Length :12.28 in Frame Length :7.00 in
Shaft Diameter :0.875 in Shaft Extension :2.25 in
Assembly/Box Mounting :F1 ONLY UPC :691720014707
Weight :43.00 LB
