/Products/Electric Motors/3 Phase/Leeson/Feather Picker/121934.00 Leeson 2HP Agriculture Duty Feather Picker Electric Motor, 1800RPM
Click Image to Expand

Product ID: 121934.00

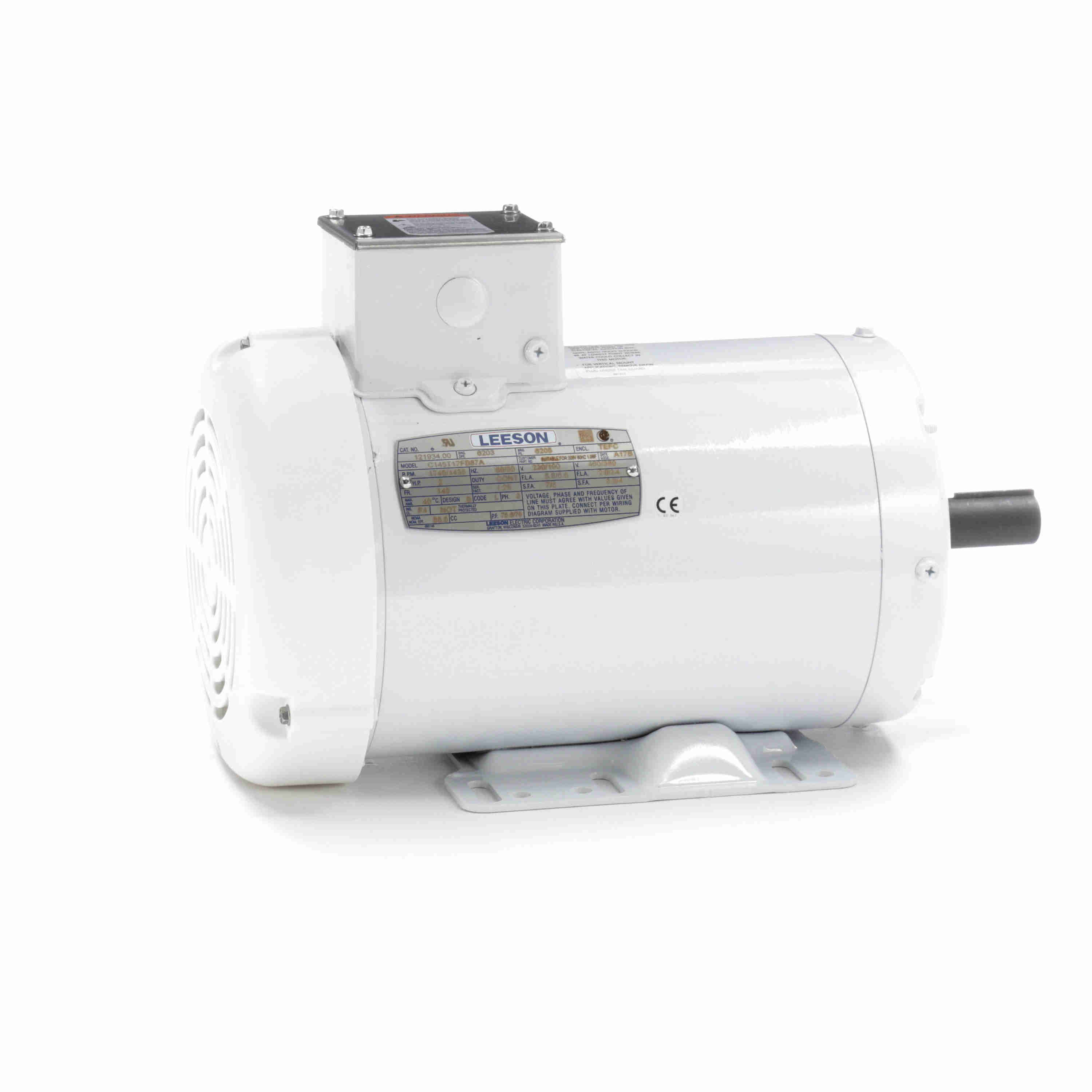

121934.00 Leeson 2HP Agriculture Duty Feather Picker Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C145T17FB87

Selected accessories will also be added to cart
$895.70 / Each
Quantity:
TEFC, 145T Frame, 208-230/460VAC 3-Phase 60Hz, C145T17FB87A, Rigid Base, Rolled Steel

Features

Features
  • Phosphatized or stainless steel shafts drilled and tapped metric shafts
  • Epoxy painted for corrosion protection
  • USDA approved food-safe paint
  • Extra high breakdown torques

General Specifications

General Specifications
Model : C145T17FB87A Catalog No : 121934.00
Part Description : ..2HP..1745RPM.145T.TEFC.230/460V.3PH.60/50HZ.CONT.40C.1.25SF.RIGID.C145T17FB87A............. Category : Feather Picker
Stock : No

Nameplate Specifications

Nameplate Specifications
Output HP : 2 HP Output KW : 1.5 kW
Frequency : 60 Hz Voltage : 230/460 V
Current : 5.8/2.9 A Speed : 1745 RPM
Service Factor : 1.25 Phase : 3
Efficiency : 86.5 % Duty : Continuous
Insulation Class : F Design Code : B
KVA Code : L Frame : 145
Enclosure : Totally Enclosed Fan Cooled Overload Protector : No
Ambient Temperature : 40 °C Drive End Bearing Size : 6205
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : Y
IP Code : 43

Technical Specifications

Technical Specifications
Electrical Type : Squirrel Cage Induction Run Starting Method : Across The Line
Poles : 4 Rotation : Reversible
Mounting : Rigid base Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : Rolled Steel Shaft Type : NEMA 56
Overall Length : 13.72 in Frame Length : 8.00 in
Shaft Diameter : 0.875 in Shaft Extension : 2.25 in
Assembly/Box Mounting : F1 ONLY UPC : 691720053836
Weight : 48.00 LB

Speed & Load Characteristics

Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 25.37 1,268.0 24.60 410.0 120 14.10 0.0 2.00
Full Load 2.00 100.0 6.00 100.0 1,757 1.70 72.1 2.00
Break-Down 19.17 958.0 28.80 480.0 1,100 12.00 0.0 2.00
Locked-Rotor 26.58 1,329.0 24.60 410.0 0 14.36 0.0 2.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.70
  • 0.100
  • 0.0
  • 7.0
  • 1,800
  • 0.0
  • 0.00
  • 25 %
  • 1.90
  • 0.500
  • 74.5
  • 33.5
  • 1,785
  • 0.0
  • 1.50
  • 50 %
  • 2.20
  • 0.950
  • 83.5
  • 52.0
  • 1,775
  • 0.0
  • 3.00
  • 75 %
  • 2.60
  • 1.350
  • 85.5
  • 64.0
  • 1,762
  • 0.0
  • 4.50
  • 100 %
  • 2.90
  • 1.750
  • 86.5
  • 75.6
  • 1,745
  • 55.0
  • 6.00
  • 115 %
  • 3.20
  • 2.000
  • 86.0
  • 76.5
  • 1,740
  • 75.0
  • 6.90
  • 125 %
  • 3.50
  • 2.150
  • 85.5
  • 77.5
  • 1,730
  • 85.0
  • 7.50
  • 150 %
  • 4.10
  • 2.600
  • 84.0
  • 80.5
  • 1,718
  • 0.0
  • 9.00
