/Products/Electric Motors/Single Phase/Leeson/131530.00 Leeson 3HP Electric Motor, 1800RPM
Click Image to Expand

Product ID: 131530.00

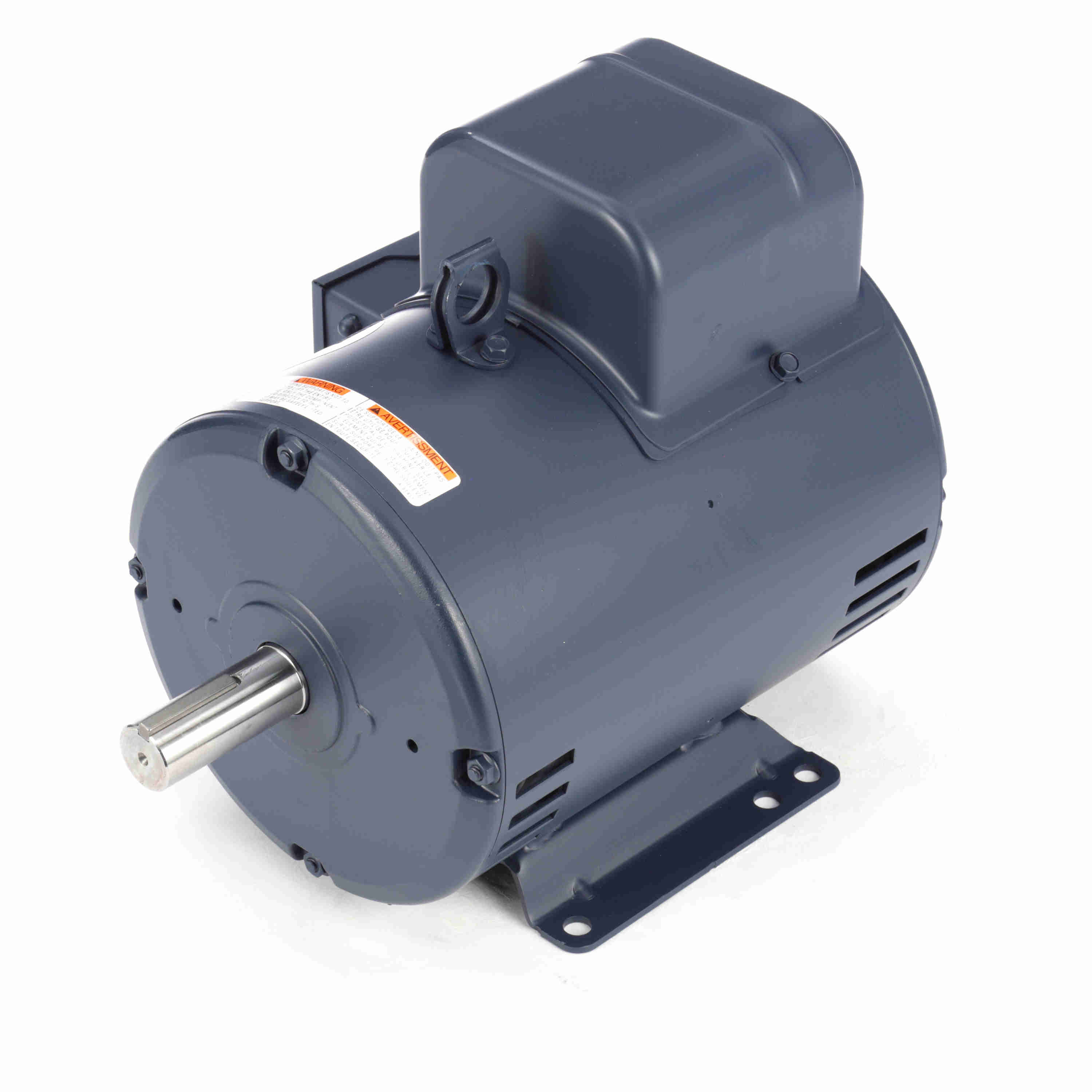

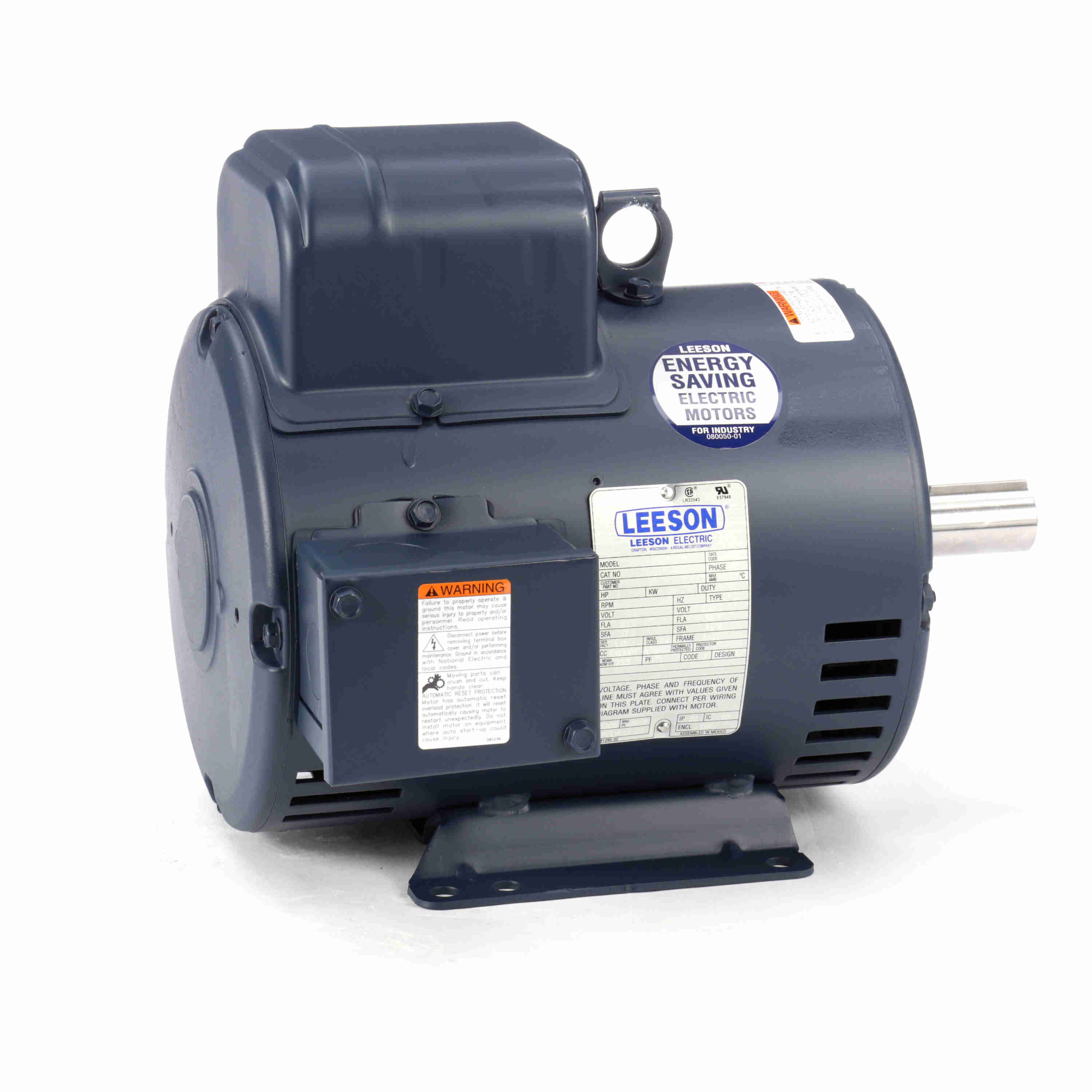

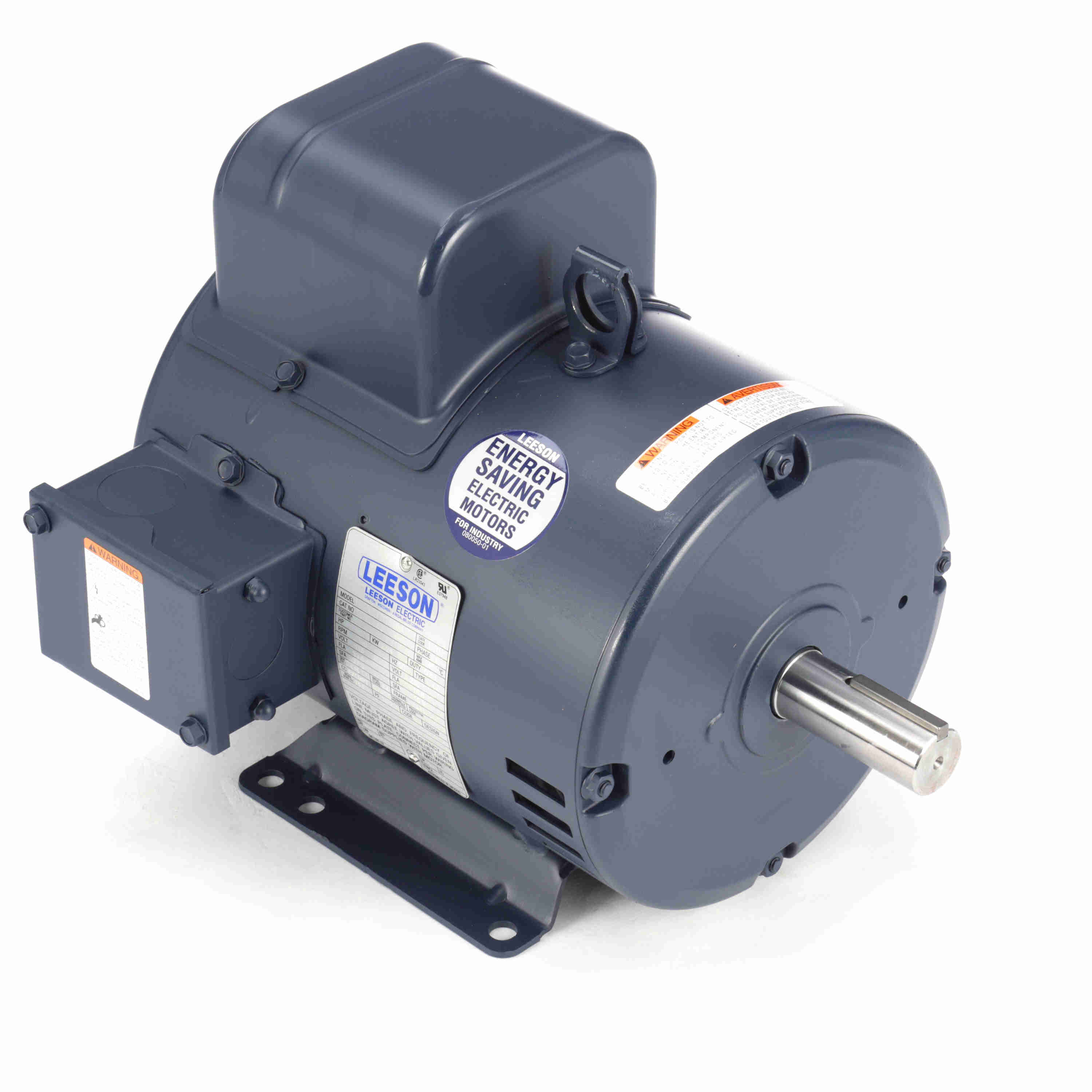

131530.00 Leeson 3HP Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 131530.00

Selected accessories will also be added to cart
$919.81 / Each
Quantity:
DP, 184T Frame, 115/208-230V Single Phase 60Hz, Rigid Base, U184C17DB20A

Features

Features
  • Durable rolled steel construction
  • NEMA design B performance
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

General Specifications

General Specifications
Model :U184C17DB20A Catalog No :131530.00
Part Description :3HP..1740RPM.184.DP.115/230V.1PH.60HZ.CONT.AUTOMATIC.40C.1.15SF.RIGID.GENERAL PURPOSE.U184C17DB20A Category :Open Drip Proof (ODP)
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :3 Hp Output KW :2.2 kW
Frequency :60 Hz Voltage :115/230 V
Current :33.8/16.9 A Speed :1740 rpm
Service Factor :1.15 Phase :1
Efficiency :75.5 % Duty :Continuous
Insulation Class :F Design Code :L
KVA Code :J Frame :184T
Enclosure :Drip Proof Overload Protector :Automatic
Ambient Temperature :40 °C Drive End Bearing Size :6206
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :N
IP Code :22

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :T
Overall Length :14.19 in Frame Length :10.00 in
Shaft Diameter :1.125 in Shaft Extension :2.75 in
Assembly/Box Mounting :F1 ONLY UPC :691720017807
Weight :72.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor90.60546.024.60273.000.000.03.00
Full Load16.60100.09.00100.000.000.03.00
Break-Down0.000.018.40204.000.000.03.00
Pull-Up0.000.017.50194.000.000.03.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 9.70
  • 0.355
  • 0.0
  • 15.9
  • 1,797
  • 0.0
  • 0.00
  • 25 %
  • 10.30
  • 0.955
  • 63.4
  • 43.0
  • 1,787
  • 0.0
  • 2.25
  • 50 %
  • 11.70
  • 1.556
  • 74.2
  • 71.3
  • 1,775
  • 0.0
  • 4.50
  • 75 %
  • 13.90
  • 2.227
  • 75.5
  • 73.0
  • 1,763
  • 0.0
  • 6.7 5
  • 100 %
  • 16.90
  • 2.975
  • 75.5
  • 76.0
  • 1,745
  • 65.0
  • 9.00
  • 115 %
  • 18.50
  • 3.260
  • 78.9
  • 81.8
  • 1,735
  • 95.0
  • 10.30
  • 125 %
  • 20.30
  • 3.809
  • 72.5
  • 81.5
  • 1,727
  • 0.0
  • 11.25
  • 150 %
  • 24.90
  • 4.795
  • 68.0
  • 83.7
  • 1,698
  • 0.0
  • 13.50
