/Products/Electric Motors/Single Phase/Leeson/Air Compressor/140680.00 Leeson 7.5HP Electric Motor, 3520RPM
Click Image to Expand

Product ID: 140680.00

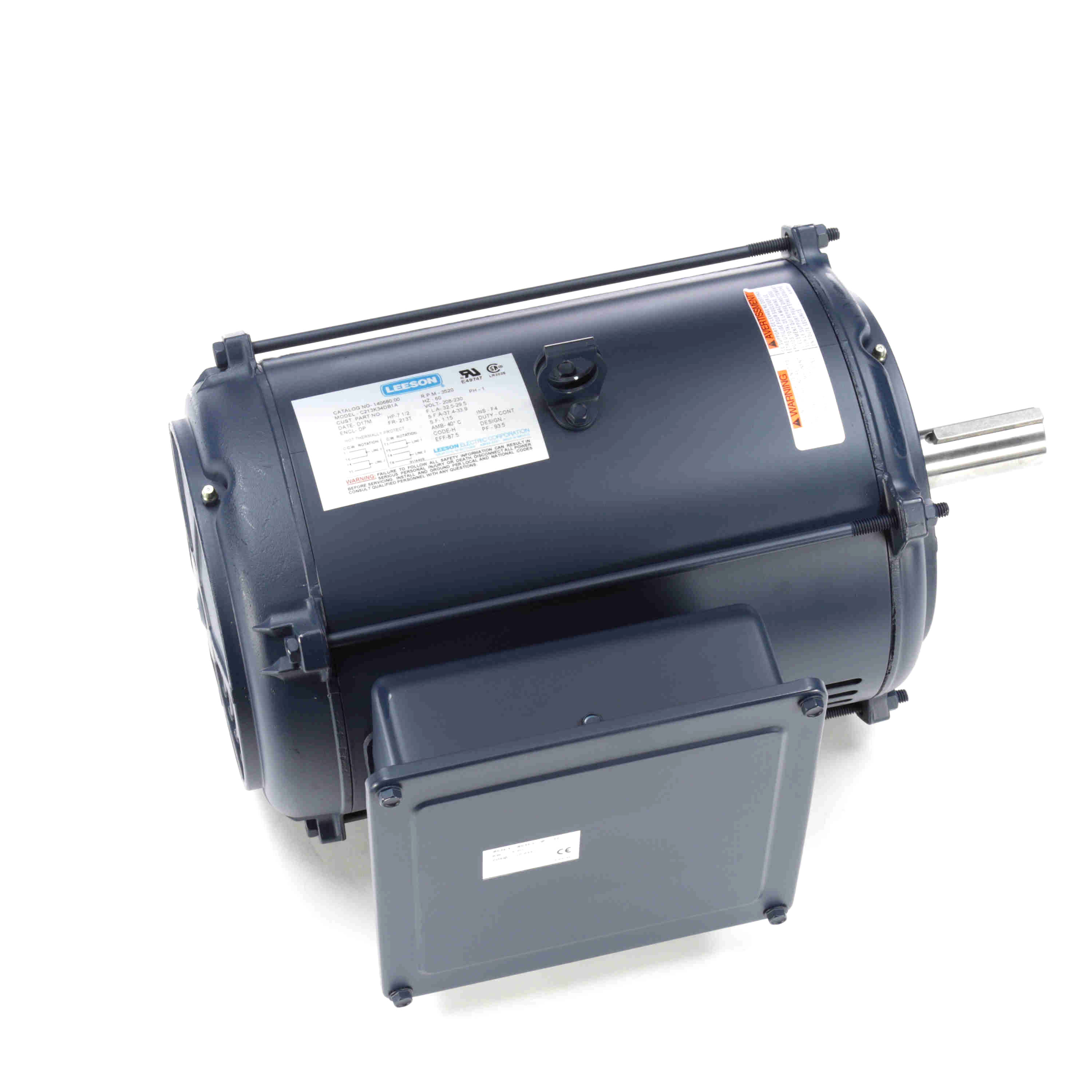

140680.00 Leeson 7.5HP Electric Motor, 3520RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 140680.00

Temporarily out of stock
Selected accessories will also be added to cart
$978.47 / Each
Compressor Duty, DP, 213T Frame, 208-230VAC
Features
  • Double shielded ball bearings
  • Designed for belted loads
  • High efficient copper windings
  • High starting and breakdown torque
  • Dual rotation
General Specifications
Model :C213K34DB1A Catalog No :140680.00
Part Description :..7 1/2HP..3520RPM.213T.DP.208-230V.1PH.60HZ.CONT.40C.1.15SF.RIGID.C213K34DB1A.....GENERAL PURPOSE.NOT....... Category :Air Compressor
Stock :No
Nameplate Specifications
Output HP :7.5 Hp Output KW :5.6 kW
Frequency :60 Hz Voltage :208-230 V
Current :32.5-29.5 A Speed :3520 rpm
Service Factor :1.15 Phase :1
Efficiency :87.5 % Duty :CONTINUOUS
Insulation Class :F Design Code :NO DESIGN CODE
KVA Code :H Frame :213T
Enclosure :DP Overload Protector :NOT
Ambient Temperature :40 °C Drive End Bearing Size :307
Opp Drive End Bearing Size :206 UL :Recognized
CSA :Y CE :Y
IP Code :22
Technical Specifications
Electrical Type :CAP START CAP RUN Starting Method :ACROSS THE LINE
Poles :2 Rotation :SELECTIVE CCW
Mounting :RIGID Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :ROLLED STEEL Shaft Type :T
Overall Length :18.04 in Frame Length :11.15 in
Shaft Diameter :1.38 in Shaft Extension :3.38 in
Assembly/Box Mounting :F1 ONLY UPC :691720252246
Weight :115.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor223.00362.003,232.007.50
Full Load29.5011.20100.03,5247.50
Break-Down130.0032.00286.03,1107.50
Pull-Up216.0025.30226.02307.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 6.10
  • 0.480
  • 0.0
  • 34.2
  • 3,597
  • 0.0
  • 0.00
  • 25 %
  • 9.90
  • 1.800
  • 79.2
  • 79.1
  • 3,581
  • 0.0
  • 2.80
  • 50 %
  • 15.80
  • 3.245
  • 85.8
  • 89.3
  • 3,564
  • 0.0
  • 5.50
  • 75 %
  • 22.30
  • 4.750
  • 89.1
  • 92.6
  • 3,545
  • 0.0
  • 8.40
  • 100 %
  • 29.50
  • 6.340
  • 88.5
  • 93.5
  • 3,520
  • 27.0
  • 11.20
  • 115 %
  • 33.90
  • 7.120
  • 88.1
  • 93.8
  • 3,510
  • 0.0
  • 12.70
  • 125 %
  • 37.10
  • 8.030
  • 87.4
  • 94.1
  • 3,502
  • 0.0
  • 14.10
  • 150 %
  • 45.60
  • 9.820
  • 85.5
  • 93.6
  • 3,477
  • 0.0
  • 17.00
