/Products/Electric Motors/Single Phase/Leeson/Extra Hi-Torque TEFC Rigid Base/141427.00 Leeson 7.5HP Ag Duty Electric Motor
Click Image to Expand

Product ID: 141427.00

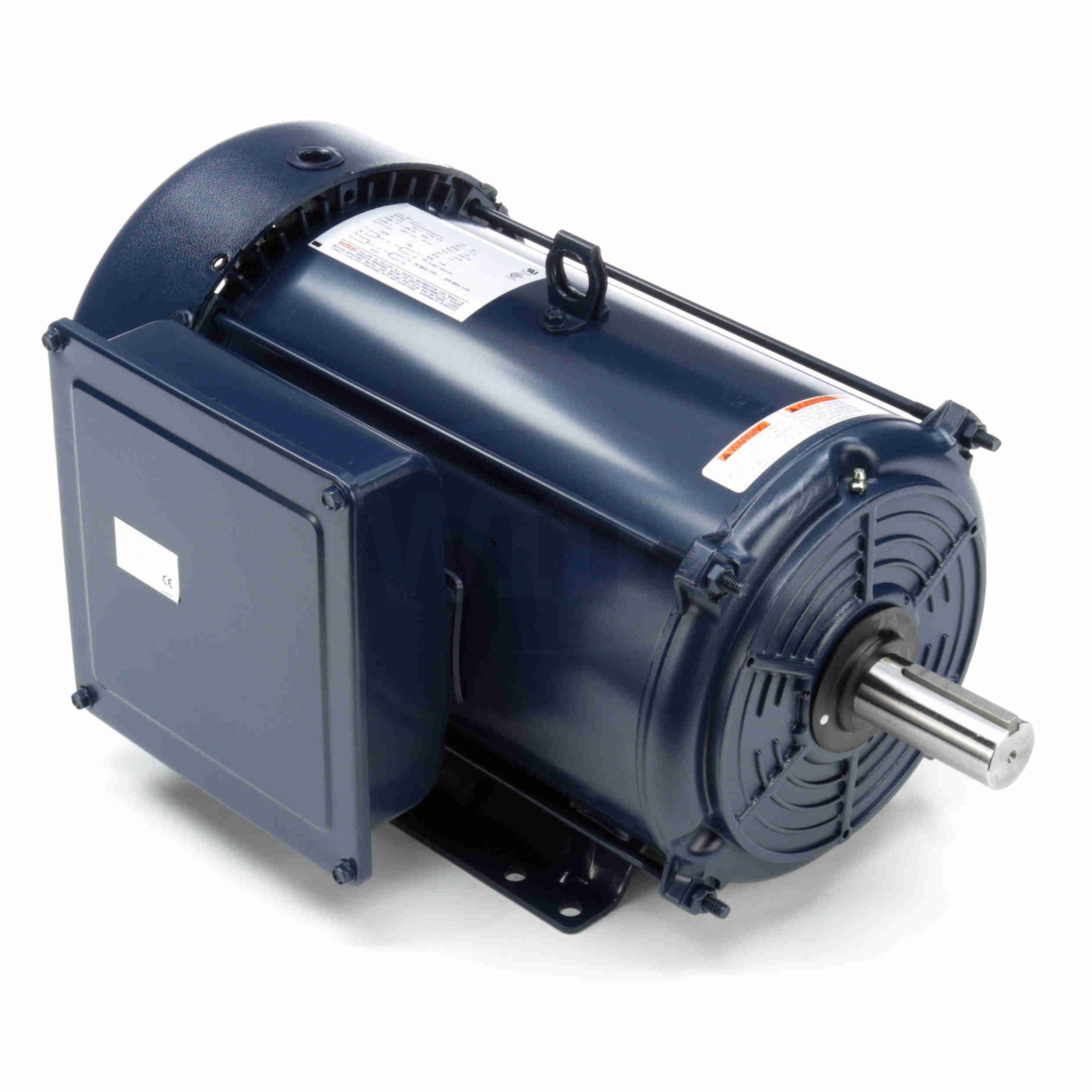

141427.00 Leeson 7.5HP Ag Duty Electric Motor

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 141427.00

Selected accessories will also be added to cart
$1,261.69 / Each
Quantity:
General Purpose, Extra High Torque, Tefc, 1725 Rpm, 215T Frame, 1 Phase, 230V.
Accessories
Select any of the accessories below to purchase them with this inventory item:

Features

  • Extra Hi-Torque designs
  • Rigid base
  • Painted Red
  • Manual Overload protection
  • 1.15 service factor

General Specifications

UPC: 691720108291 Weight: 159.00 LB
Packaged Length: 30.19 IN Packaged Width: 16.5 IN
Packaged Height: 14 IN

Nameplate Specifications

Output HP: 7.50 Hp Output KW: 5.6 kW
Frequency: 60 Hz Voltage: 230 V
Current: 30.5 A Speed: 1750 rpm
Service Factor: 1.15 Phase: 1
Efficiency: 85.5 % Power Factor: 95
Duty: Continuous Insulation Class: F
Design Code: No Design Code KVA Code: K
Frame: 215TZ Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Manual Ambient Temperature: 40 °C
Drive End Bearing Size: 6307 Opp Drive End Bearing Size: 6206
UL: Recognized ( Not Protector) CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 4 Rotation: Selective Counterclockwise
Resistance Main: .215 Ohms Mounting: Rigid base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: Single Special Extension Overall Length: 21.09 in
Frame Length: 12.40 in Shaft Diameter: 1.125 in
Shaft Extension: 3.47 in Assembly/Box Mounting: F1 Only

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 168.00 551.0 51.00 227.0 1,450 24.80 0.0 7.50
Full Load 30.50 100.0 22.50 100.0 1,750 6.50 0.0 7.50
Break-Down 118.00 387.0 58.50 260.0 1,550 23.60 0.0 7.50
No Load 7.00 23.0 0.00 0.0 1,800 0.62 40.0 7.50
Locked-Rotor 266.00 872.0 86.50 384.0 0 51.70 84.5 7.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 % 150 %
Current (Amps) 7.00 11.00 16.50 23.00 30.50 35.00 38.00 47.50
Rated Output (KW) 0.62 2.00 3.40 5.00 6.50 7.70 8.30 10.10
Efficiency (%) 0.0 68.0 81.0 84.5 85.5 84.5 84.0 81.0
Power Factor (%) 40.0 81.5 91.0 94.0 95.0 95.0 94.5 93.5
Speed (RPM) 1,800 1,790 1,775 1,765 1,750 1,745 1,740 1,725
Temp. Rise @ FL 0.0 0.0 0.0 0.0 70.0 100.0 0.0 0.0
Torque (ft-lbs) 0.00 5.60 11.00 16.70 22.50 26.00 28.10 34.60
