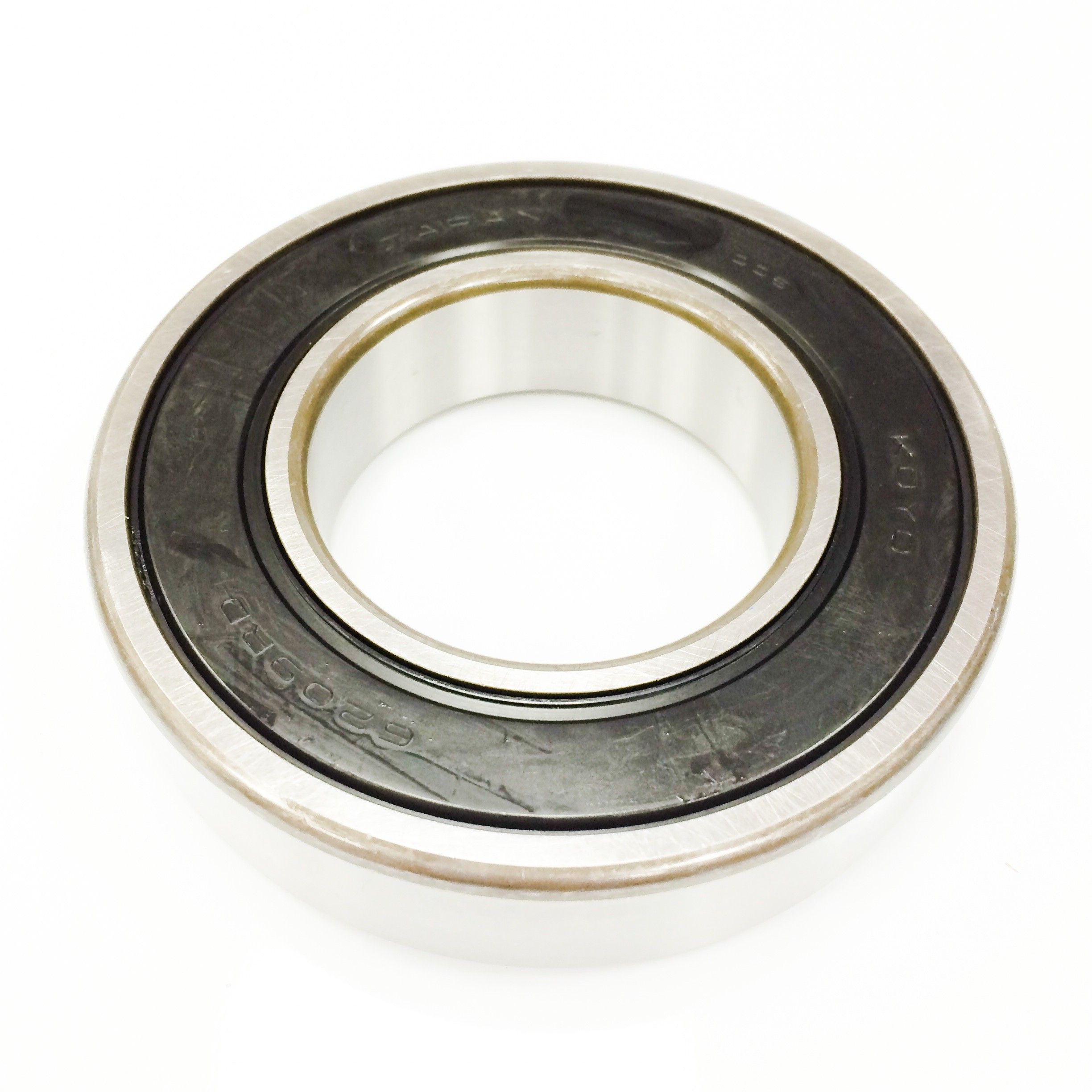

/Products/Ball Bearings/6300 Series Ball Bearings/63122RDTC3 Koyo Ball Bearing, Rubber Sealed,

Click Image to Expand

Previous Next

Available Stock: 1

Selected accessories will also be added to cart

$99.77 / Each

Quantity:

6312-2RS

Brand	Koyo Seiko Company, LTD
Manufacturer Part Number	63122RDTC3
Group	Deep Groove Ball Bearings
Type	Extremely Light Contact Sealed (2RD)

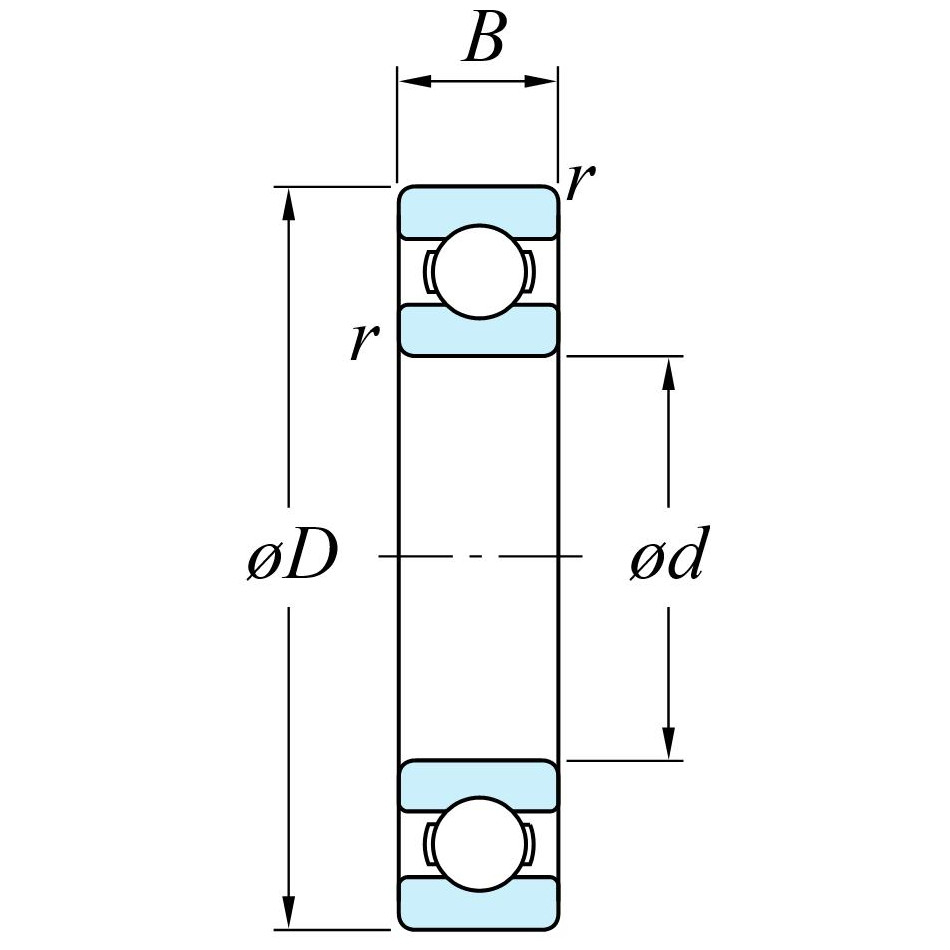

Bore / Inside Diameter (d)	60 mm
Housing / Outside Diameter (D)	130 mm
Width (B)	31 mm
Minimum Radius (r)	2.1 mm
Operating Temperature	-30 to 110°C
Cage Type	Pressed Steel Cage
Configuration	Single-row
Tolerances	JIS B 1514
Allowable Misalignment	.002 3 - .003 4 rad ( 8’ - 12’ )
Basic Load Rating	C_r 81.9 kN C_0r 52.2 kN
Limiting Speeds (Grease Lubrication)	N/A
Mass	1.70 kg 3.75 lbs
UPC	454925017335
Country of Manufacture	Japan
