/Products/Electric Motors/Single Phase/Leeson/Agricultural Duty Fan/A009595.00 Leeson 2HP Agricultural Duty Electric Fan Motor, 1725RPM
Click Image to Expand

Product ID: A009595.00

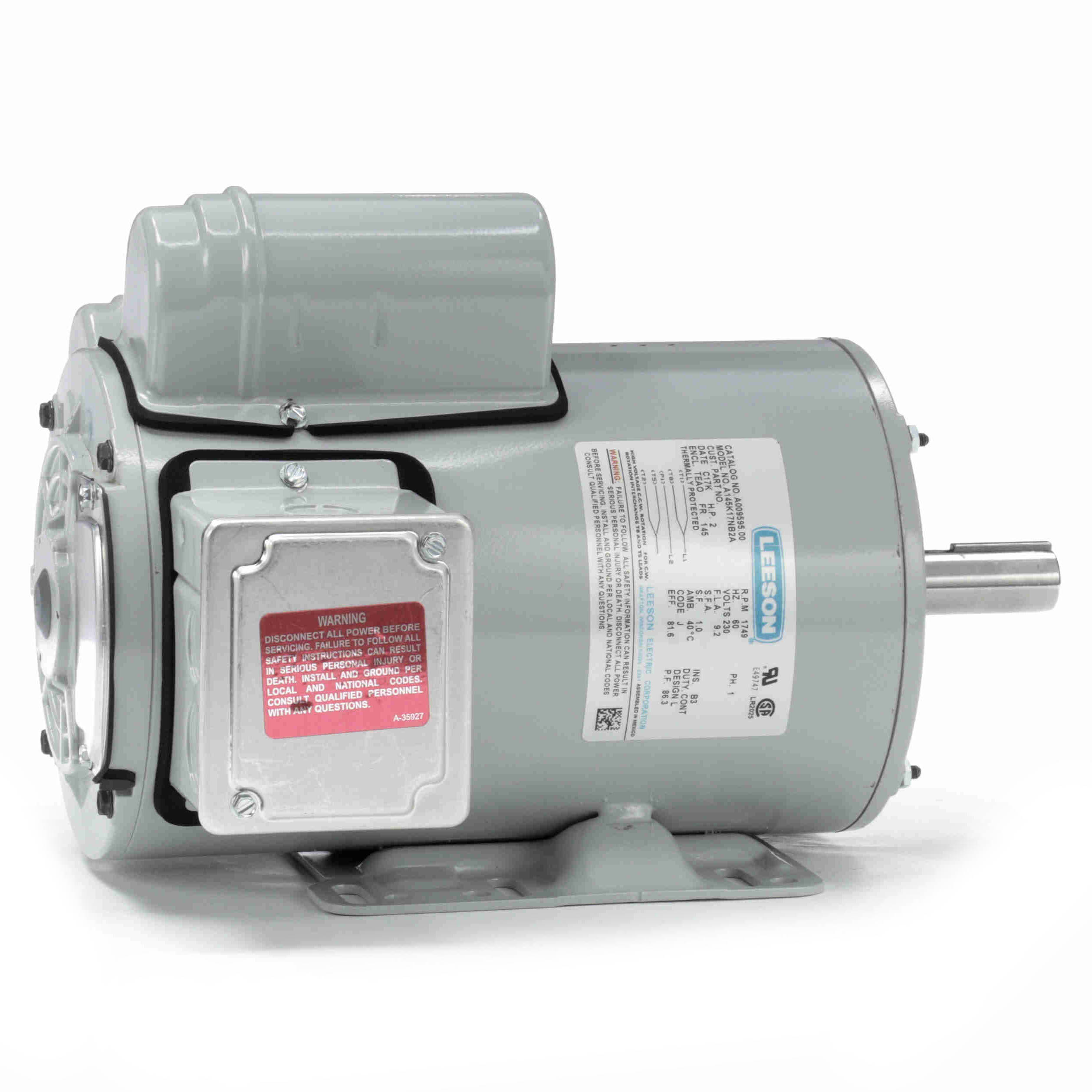

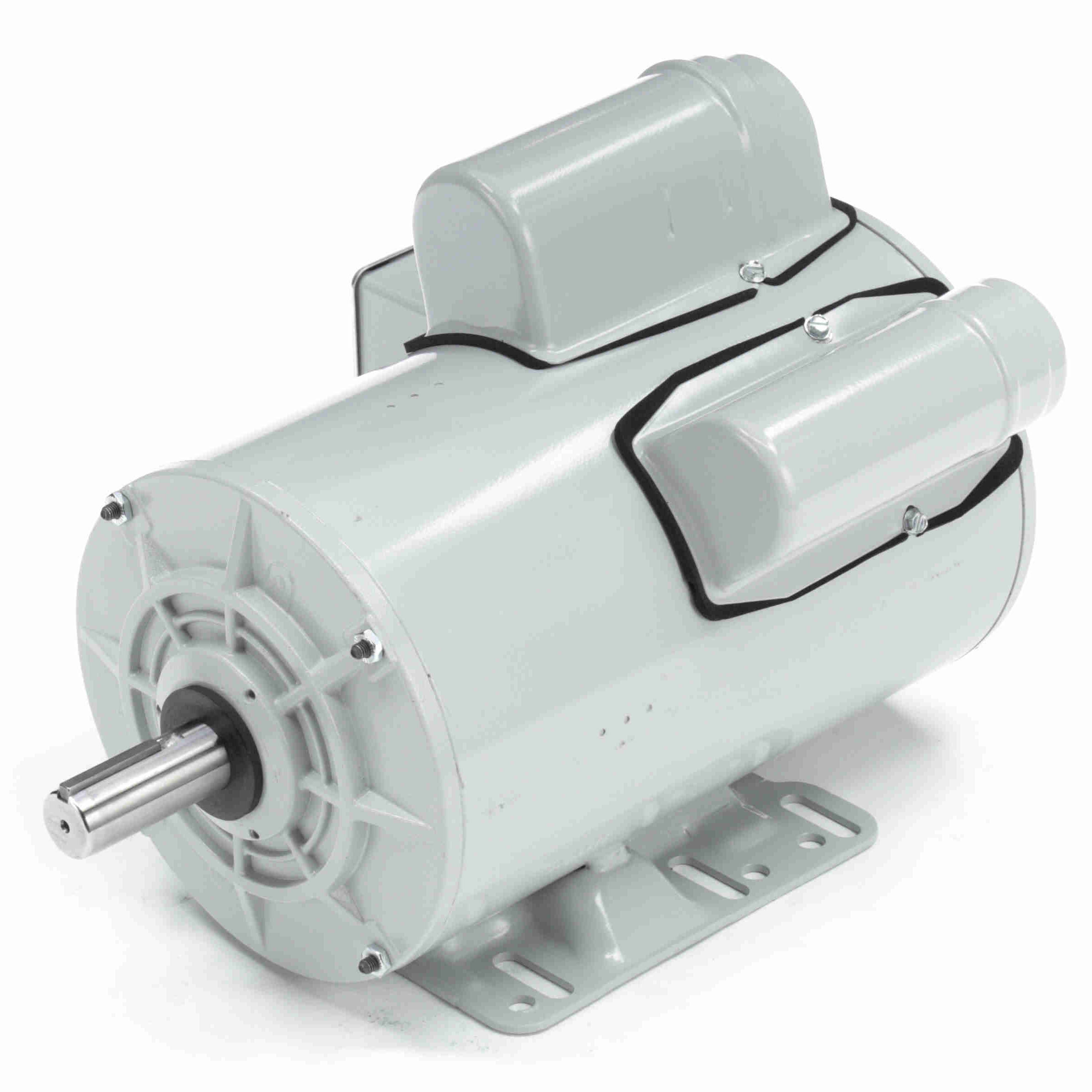

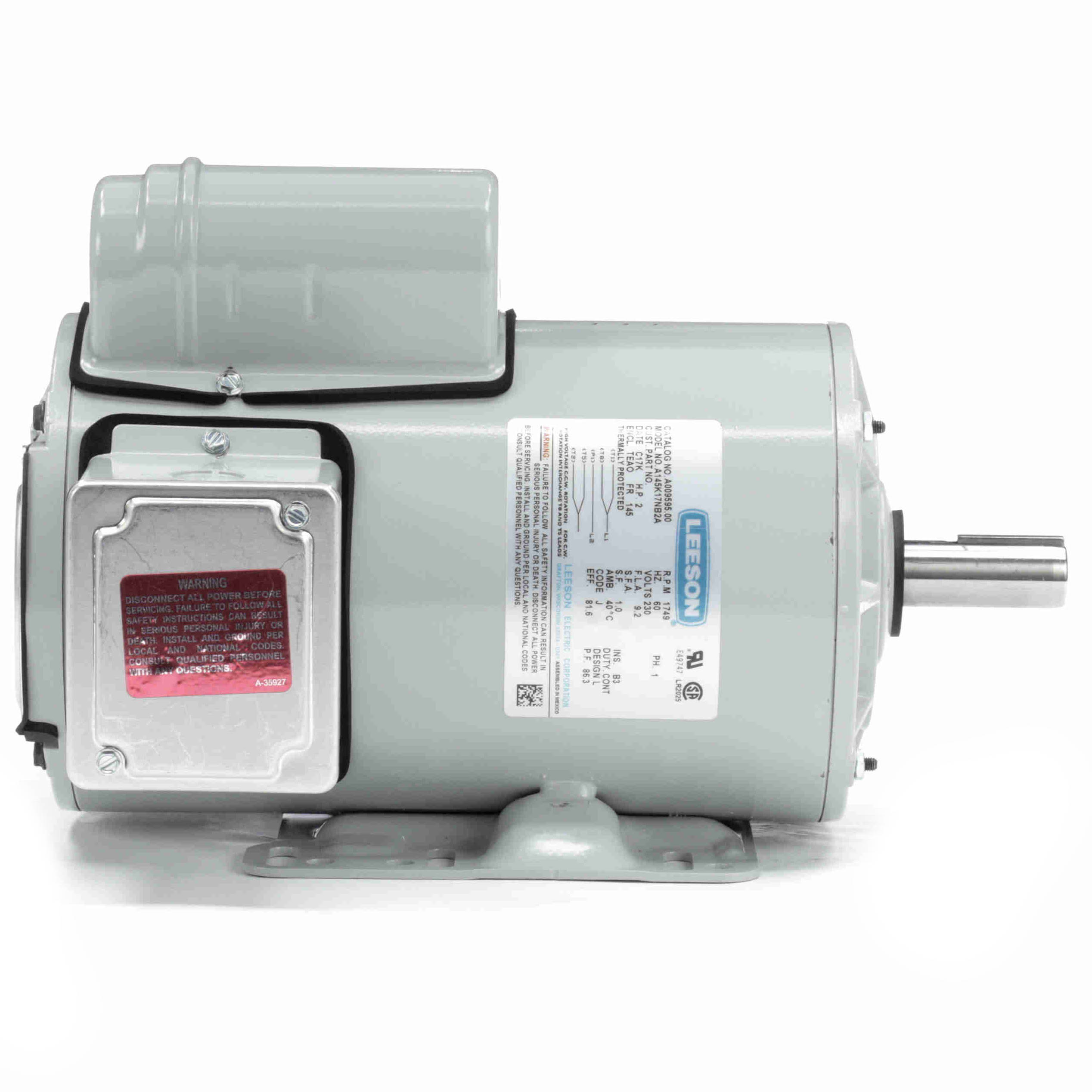

A009595.00 Leeson 2HP Agricultural Duty Electric Fan Motor, 1725RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: A009595.00

Selected accessories will also be added to cart
$619.91 / Each
Quantity:
TEAO, 145T Frame, 230VAC Single Phase 60Hz, A145K17NB2A, Rigid Base, Rolled Steel, 7/8" Keyed Shaft

Features

Features
  • Capacitor start / Capacitor run designs for high efficiency
  • Mount in airstream for proper cooling
  • Combination 56 / 140 frame stamped steel base

General Specifications

General Specifications
A145K17NB2A A009595.00
..2HP..1725RPM.145T.TEAO.230V.1PH.60HZ.CONT.40C.1.0SF.RIGID.U145K17NBA............. Agricultural
No

Nameplate Specifications

Nameplate Specifications
2 HP 1.5 kW
60 Hz 230 V
9.2 A 1749 RPM
1 1
81.6 % Continuous
B L
J 145
Totally Enclosed Air Over Automatic Lock Rotor Only
40 °C 6205
6203
    		Recognized
    Y N
    43

    Technical Specifications

    Technical Specifications
    Capacitor Start Capacitor Run Across The Line
    4 Selective Counterclockwise
    Rigid Base Horizontal
    Ball Ball
    Rolled Steel NEMA 56
    13.49 in9.56 in
    0.875 in 2.25 in
    F1 ONLY 691720103067
    50.00 LB

    Speed & Load Characteristics

    Speed Characteristics
    CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
    Locked-Rotor65.700.018.840.07112.0779.92.00
    Full Load9.260.06.000.01,7491.8486.32.00
    Pull-Up35.300.014.800.01,4576.6582.12.00
    Break-Down30.500.015.310.01,5146.2488.92.00
    Load Characteristics
    • % of Rated Load
    • Current (Amps)
    • Rated Output (KW)
    • Efficiency (%)
    • Power Factor (%)
    • Speed (RPM)
    • Temp. Rise @ FL
    • Torque (ft-lb)
    • 0 %
    • 3.83
    • 0.240
    • 0.0
    • 28.0
    • 1,790
    • 0.0
    • 0.00
    • 25 %
    • 4.44
    • 0.570
    • 65.3
    • 56.6
    • 1,788
    • 0.0
    • 1.49
    • 50 %
    • 5.75
    • 0.960
    • 77.1
    • 73.1
    • 1,776
    • 0.0
    • 2.95
    • 75 %
    • 7.43
    • 1.390
    • 81.0
    • 81.6
    • 1,764
    • 0.0
    • 4.51
    • 100 %
    • 9.23
    • 1.830
    • 81.6
    • 86.3
    • 1,749
    • 0.0
    • 6.02
    • 115 %
    • 10.51
    • 2.120
    • 80.8
    • 87.8
    • 1,738
    • 0.0
    • 6.95
    • 125 %
    • 11.56
    • 2.360
    • 79.3
    • 88.7
    • 1,730
    • 0.0
    • 7.62
    • 150 %
    • 14.09
    • 2.900
    • 77.3
    • 89.6
    • 1,710
    • 0.0
    • 9.24
