/Products/Electric Motors/Single Phase/Leeson/Agricultural Duty Fan/A009782.00 Leeson 1HP Agricultural Duty Fan Electric Motor, 1725 RPM
Click Image to Expand

Product ID: A009782.00

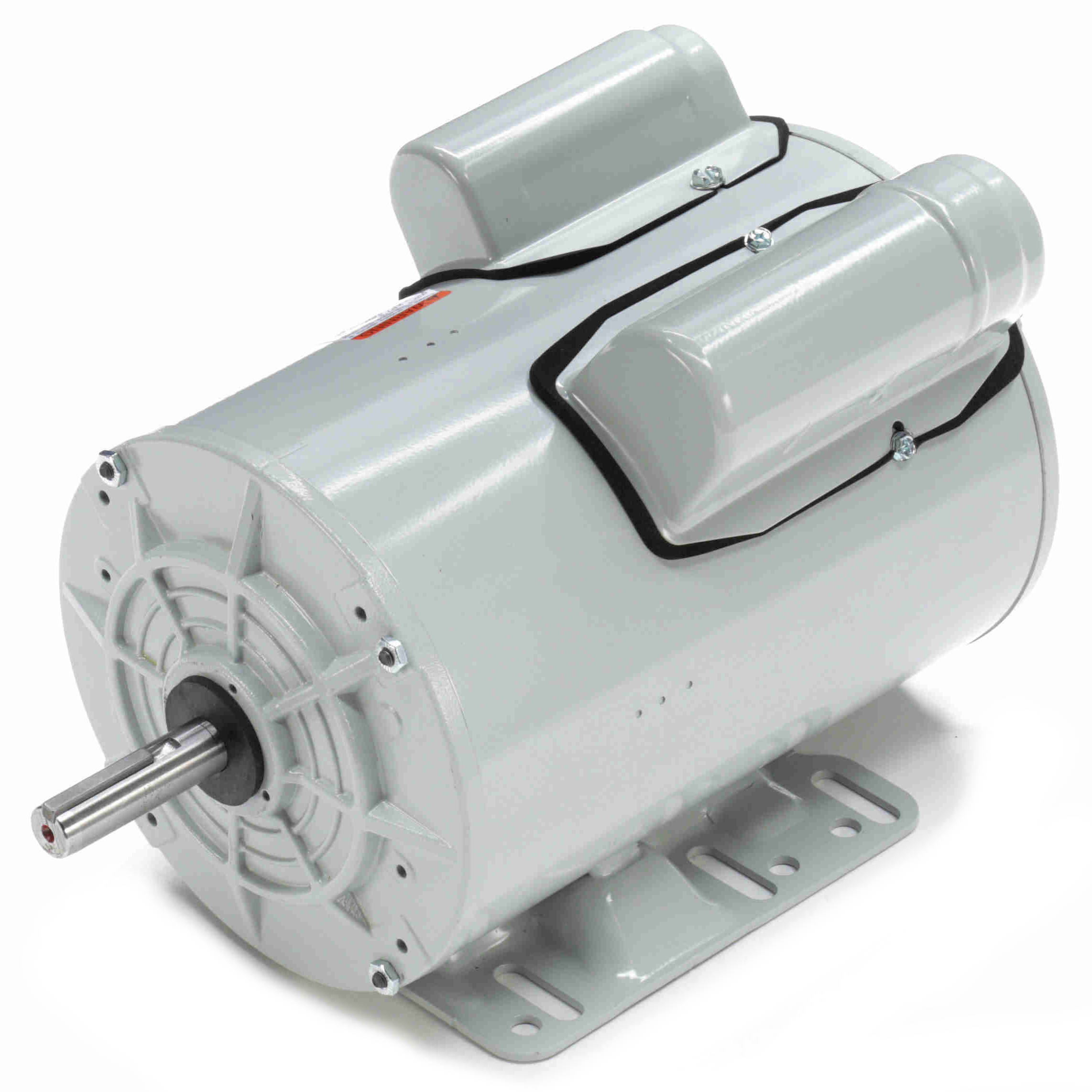

A009782.00 Leeson 1HP Agricultural Duty Fan Electric Motor, 1725 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: A009782.00

Selected accessories will also be added to cart
$423.58 / Each
Quantity:
TEAO, 56H Frame, 115/230V 1-Phase 60Hz

Features

Features
  • Capacitor start / Capacitor run designs for high efficiency
  • Mount in airstream for proper cooling
  • Combination 56 / 140 frame stamped steel base

General Specifications

General Specifications
Model :A6K17NB33A Catalog No :A009782.00
Part Description :..1HP..1800RPM.56H.TEAO.115/230V.1PH.60HZ.CONT.40C..RIGID......FARM AG........ Category :Agricultural
Stock :No

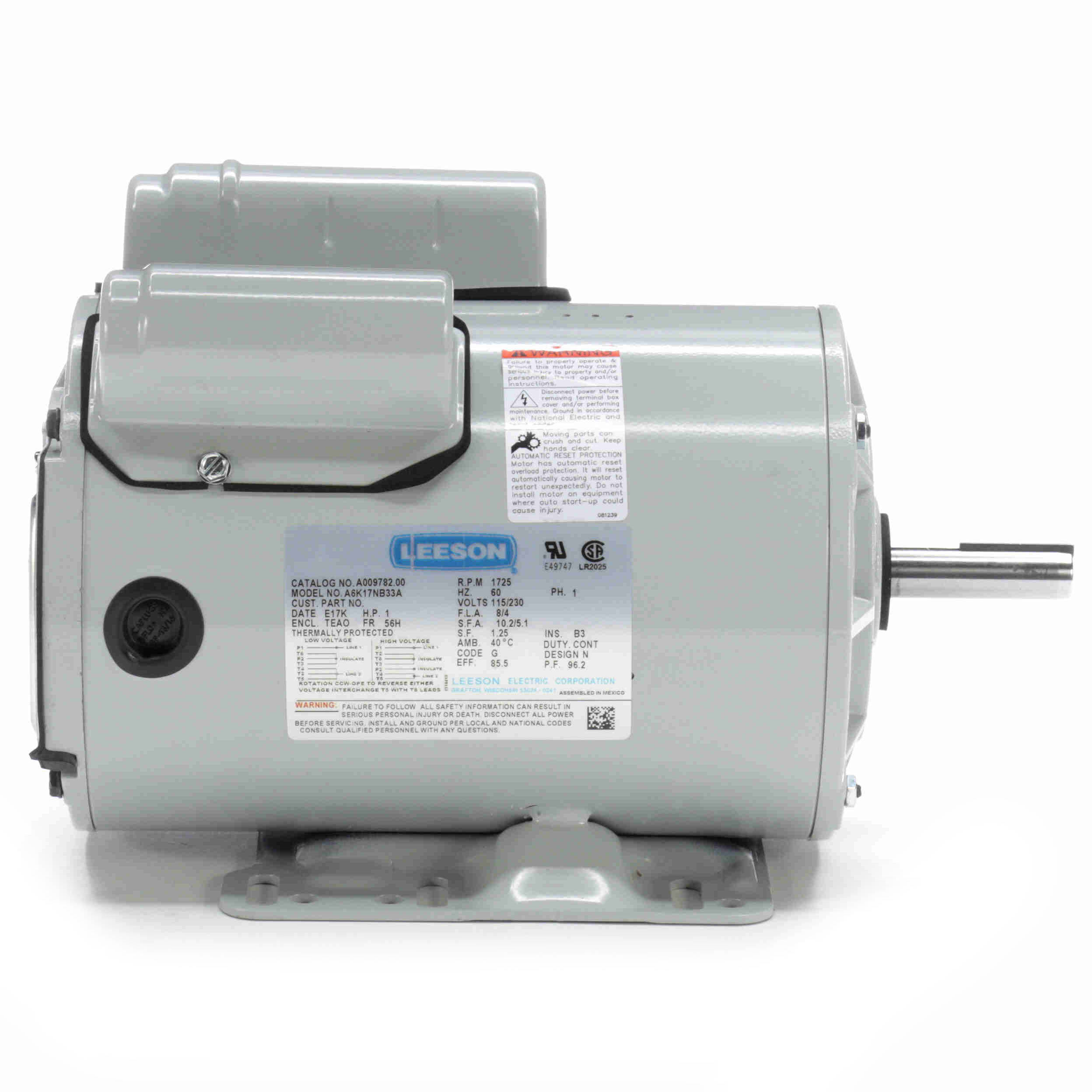

Nameplate Specifications

Nameplate Specifications
Output HP :1 Hp Output KW :0.75 kW
Frequency :60 Hz Voltage :115/230 V
Current :8.0/4.0 A Speed :1725 rpm
Service Factor :1.25 Phase :1
Efficiency :85.5 % Duty :Continuous
Insulation Class :B Design Code :N
KVA Code :G Frame :56H
Enclosure :Totally Enclosed Air Over Overload Protector :Automatic Lock Rotor Only
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :12.44 in Frame Length :8.56 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720103074
Weight :46.00 LB
