/Products/Electric Motors/Single Phase/Leeson/Agricultural Duty Fan/A099462.00 Leeson 1/2HP Agricultural Duty Electric Fan Motor, 1060RPM
Click Image to Expand

Product ID: A099462.00

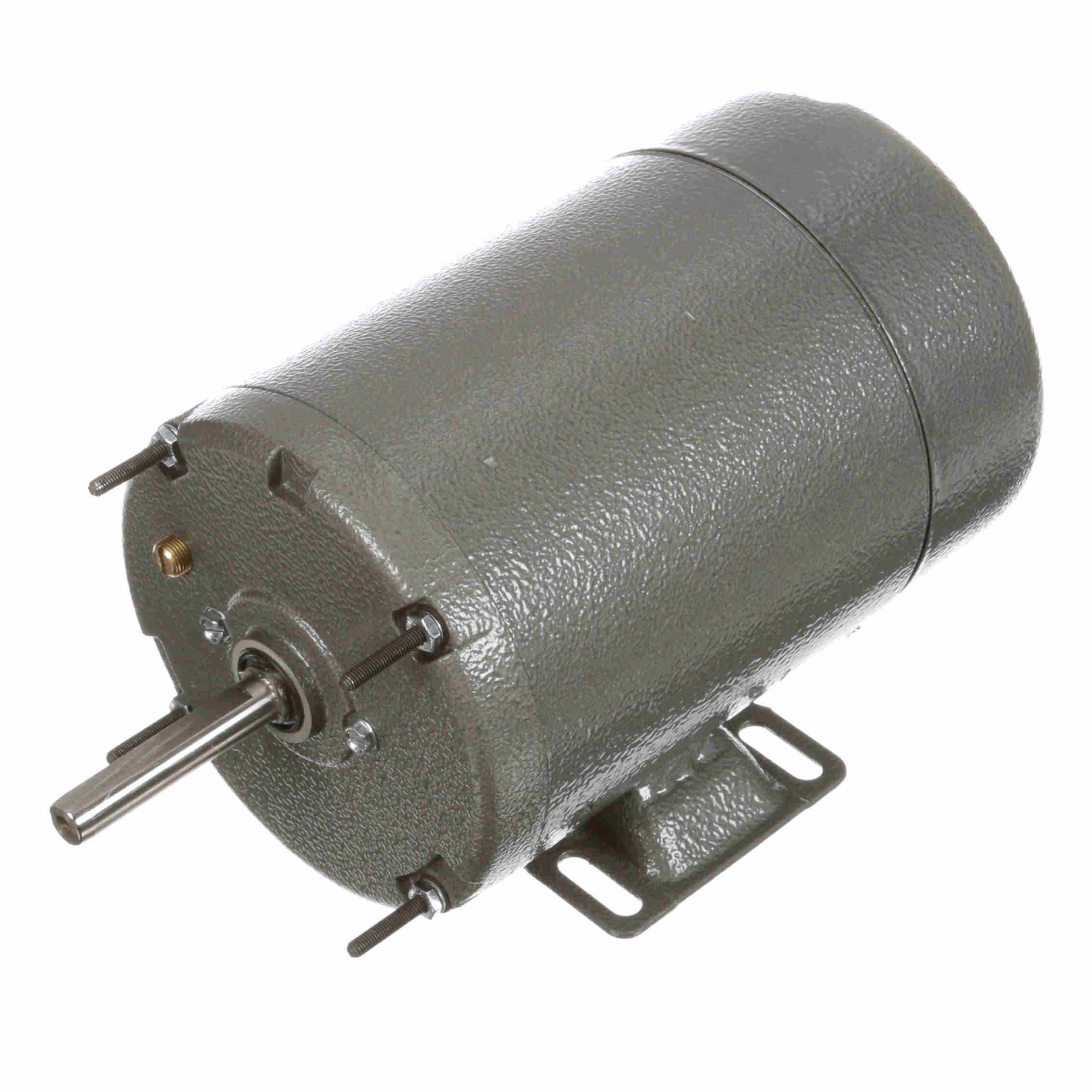

A099462.00 Leeson 1/2HP Agricultural Duty Electric Fan Motor, 1060RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: A099462.00

Selected accessories will also be added to cart
$366.08 / Each
Quantity:
TEAO, 48Y Frame, 115/230V Single Phase 60Hz, Rigid Base, A4P11NZ85A

Features

Features
  • Water-tight connection end compartment
  • Locked double sealed ball bearings
  • All angle mounting
  • Shaft seal on output shaft end
  • Automatic overload protected

General Specifications

General Specifications
Model :A4P11NZ85A Catalog No :A099462.00
Part Description :1/2HP..1060RPM.48Y.TEAO.115/230V.1PH.60HZ.CONT.40C.1.0SF.RIGID......AG-FAN........ Category :Agricultural
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.50 HP Output KW :0.37 kW
Frequency :60 Hz Voltage :115/230 V
Current :5.5/2.8 A Speed :1075 RPM
Service Factor :1 Phase :1
Efficiency :68.9 % Duty :Continuous
Insulation Class :F Design Code :N
KVA Code :D Frame :48Z
Enclosure :Totally Enclosed Air Over Overload Protector :Automatic Lock Rotor Only
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Permanent Split Capacitor Starting Method :Across The Line
Poles :6 Rotation :Selective Counterclockwise
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :Single Special Extension
Overall Length :10.89 in Frame Length :5.50 in
Shaft Diameter :0.500 in Shaft Extension :2.24 in
Assembly/Box Mounting :F1 ONLY UPC :691720102992
Weight :21.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down0.0072.00200.000.50
Locked-Rotor19.0019.0053.000.50
Full Load2.8036.00100.000.50
Pull-Up0.0017.0047.000.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.70
  • 0.164
  • 0.0
  • 41.9
  • 1,198
  • 0.0
  • 0.00
  • 25 %
  • 1.81
  • 0.248
  • 39.4
  • 59.6
  • 1,182
  • 0.0
  • 9.30
  • 50 %
  • 2.02
  • 0.333
  • 55.8
  • 71.7
  • 1,168
  • 0.0
  • 17.90
  • 75 %
  • 2.36
  • 0.438
  • 65.3
  • 80.7
  • 1,150
  • 0.0
  • 28.00
  • 100 %
  • 2.74
  • 0.540
  • 68.9
  • 85.7
  • 1,132
  • 0.0
  • 37.00
  • 125 %
  • 3.35
  • 0.685
  • 68.9
  • 88.9
  • 1,102
  • 0.0
  • 48.20
  • 150 %
  • 4.14
  • 0.860
  • 64.9
  • 90.3
  • 1,061
  • 0.0
  • 59.20
