/Products/Pulleys & Sheaves/AK Single Groove/AK3010 3" X 5/8" AK Single Groove V-Pulley
Click Image to Expand

Product ID: AK3010

AK3010 3" X 5/8" AK Single Groove V-Pulley

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: AK30X5/8

Temporarily out of stock
Selected accessories will also be added to cart
$12.30 / Each

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Leeson
Part Number AK3010
AK30X5/8
Bore 5/8"
Sheave Cross Section AK

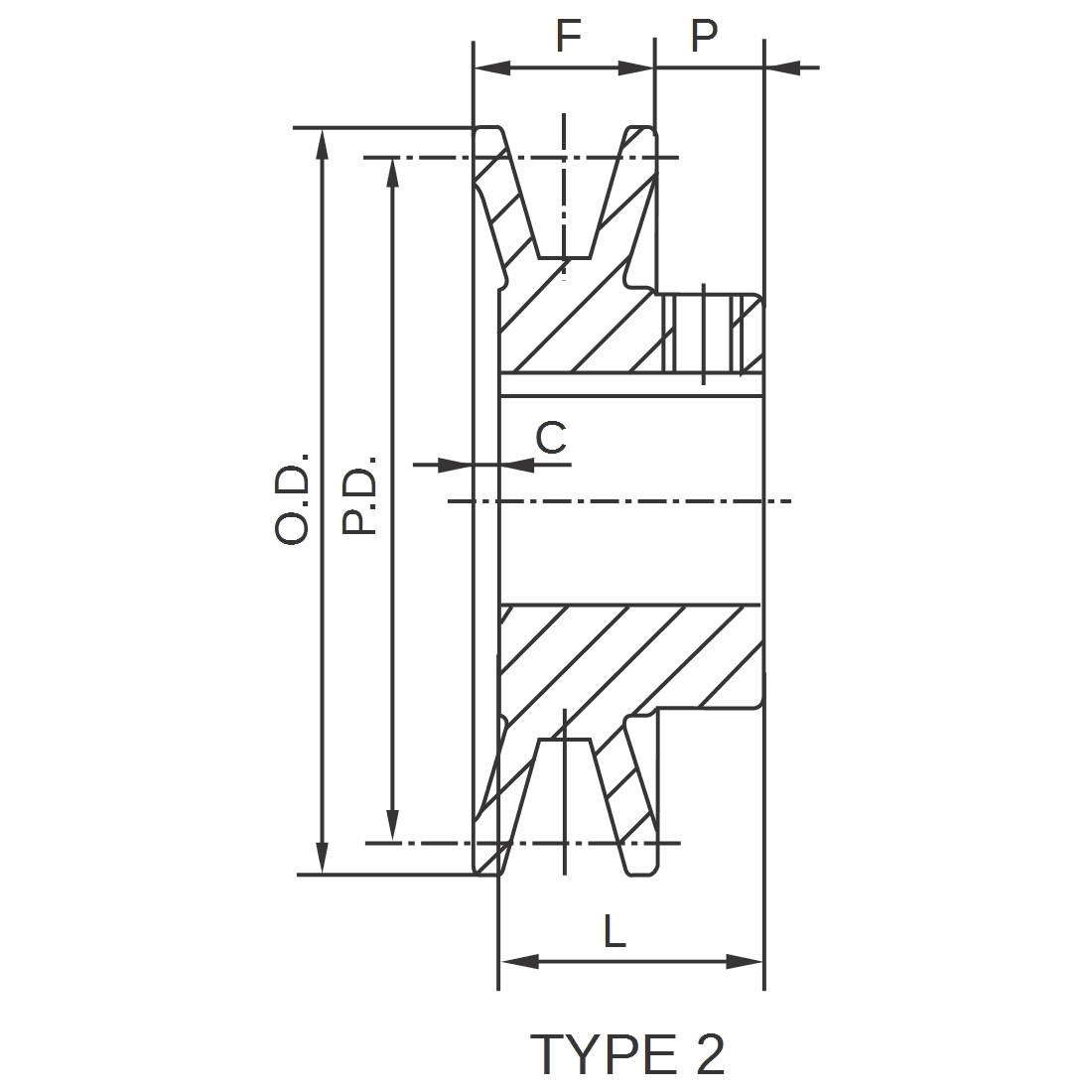

Outside Diameter 3.05"
Pulley Diameter “A” 2.80"
Pulley Diameter “3L” 2.46"
Type 2
Pulley Width “F” 21/32"
Dimension “L” 15/16"
Dimension “P” 7/16"
Recess Depth “C” 5/32"
Approximate Weight 0.7 lbs

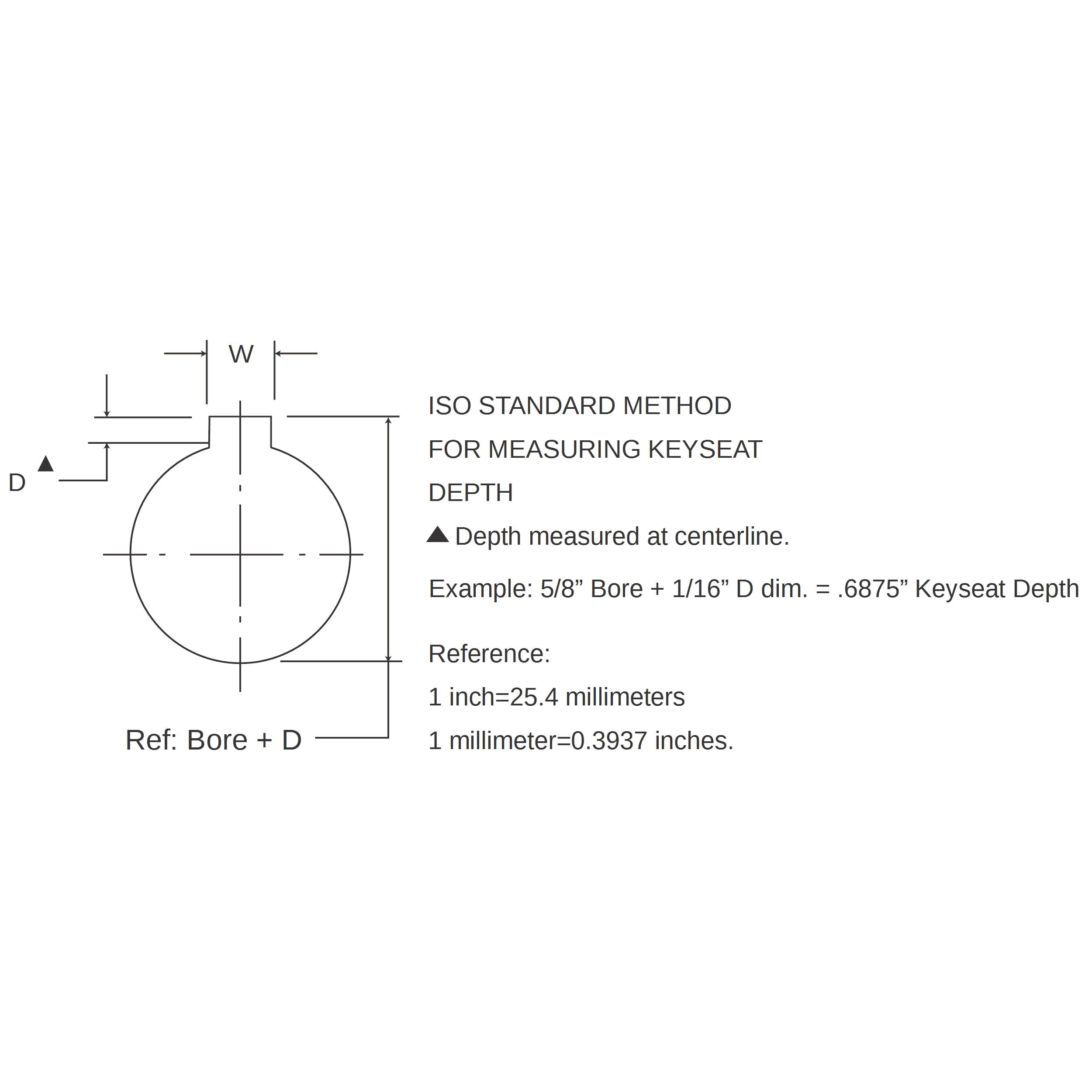

Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
UPC 624832030273
