Product ID: BK3014

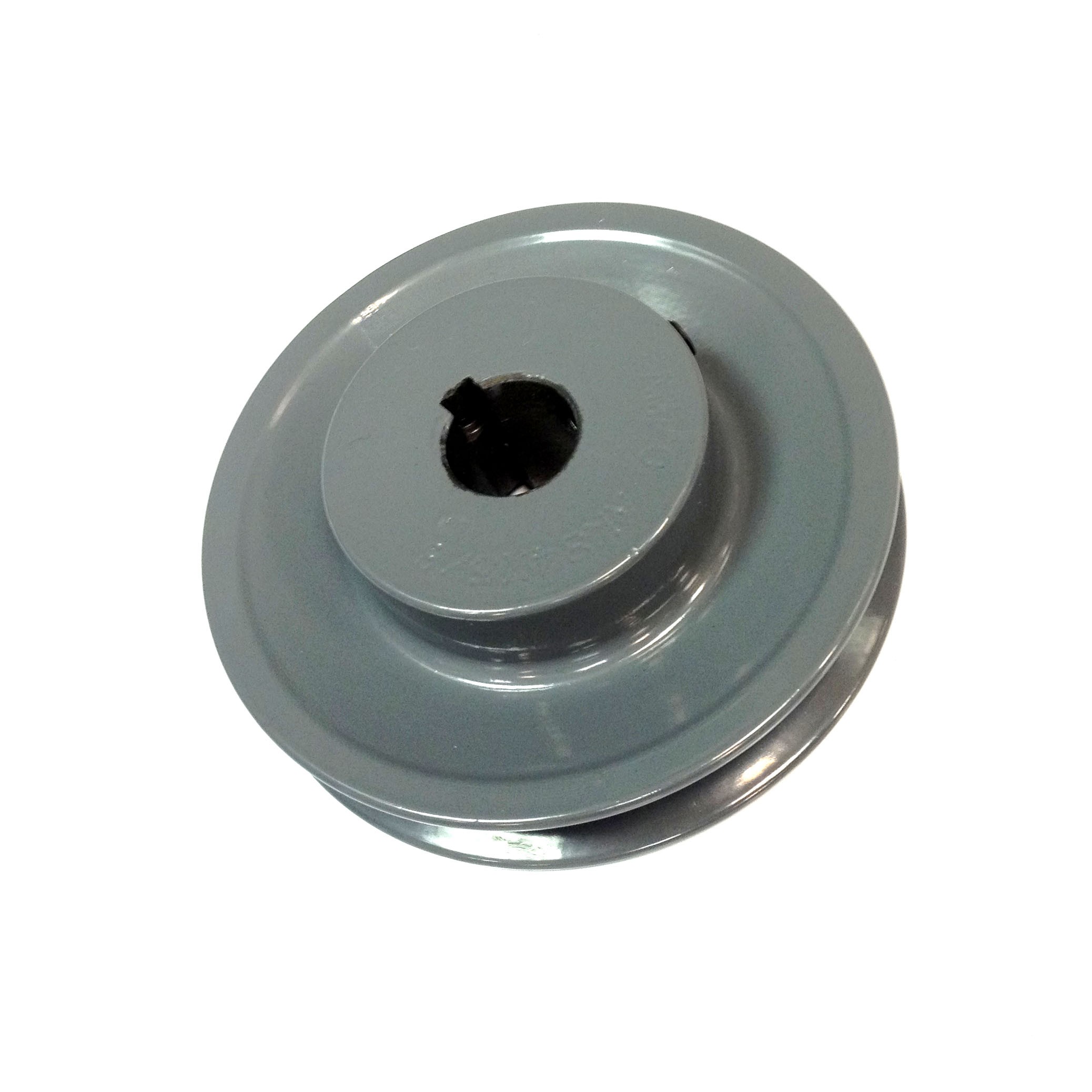

BK3014 3.15" X 7/8" BK Single Groove V-Pulley

MFG: New Standard Power Transmission
MFG Part Number: BK30-7/8

Temporarily out of stock
Selected accessories will also be added to cart
$9.50 / Each

Specifications

• Manufactured in high quality grey cast iron
• Finished bore with H7 precision
• Keyway and set screws in accordance with USAS. B. 17.1-1967
• Individually packaged
Brand Various
Part Number BK3014
BK30X7/8
Bore 7/8"
Sheave Cross Section BK
Outside Diameter 3.15"
Pulley Diameter “A” 2.40"
Pulley Diameter “B” 2.80"
Type 2
Pulley Width “F” 13/16"
Dimension “L” 1-1/16"
Dimension “P” 13/32"
Recess Depth “C” 5/32"
Approximate Weight 0.9 lbs

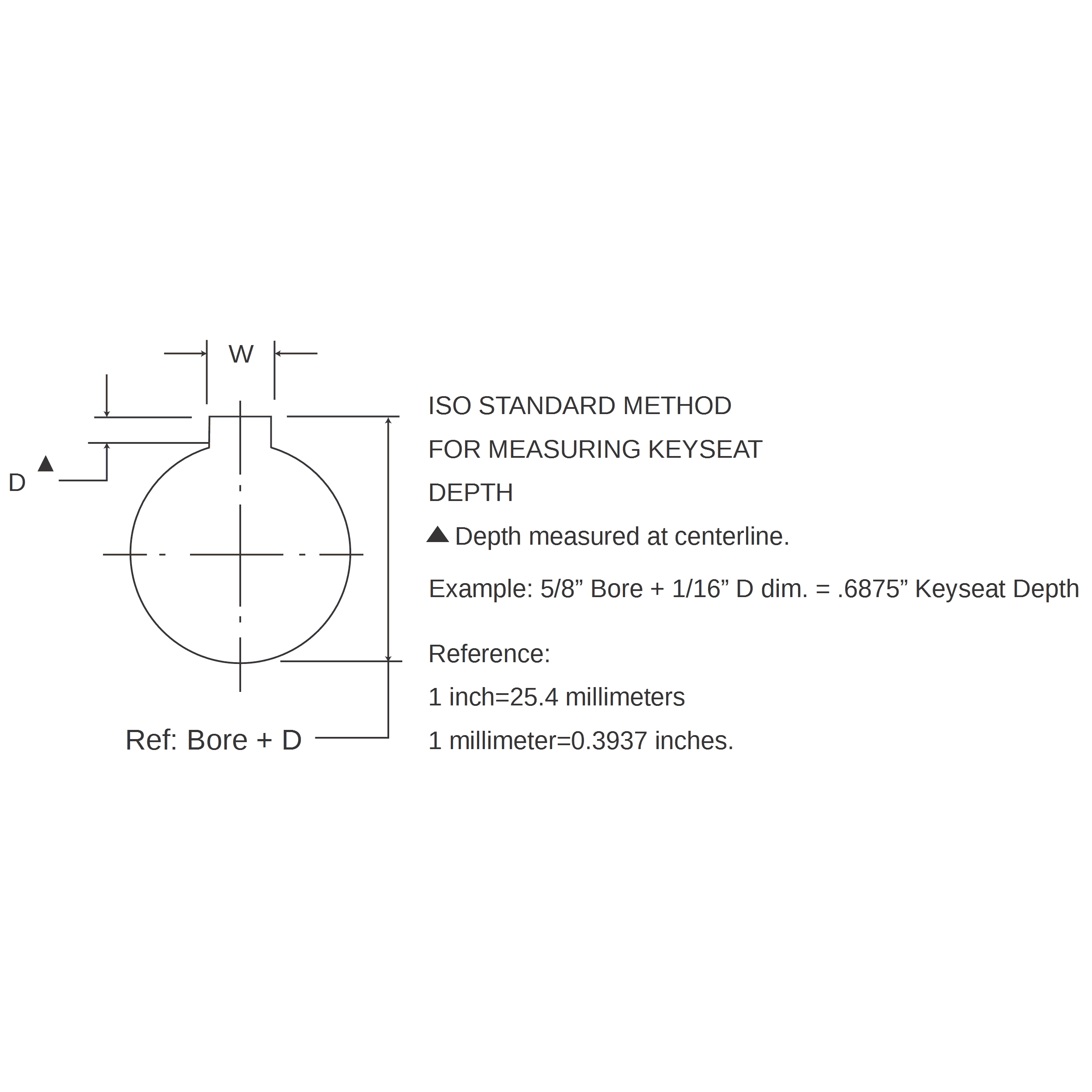

Keyseat (WxD) 3/16" x 3/32"
Set Screw(s) Yes, 2
Country of Origin Various
