/Products/Pulleys & Sheaves/BK-H Single Groove/BK45H 4.25" "H" Style BK Single Groove V-Pulley

Click Image to Expand

Previous Next

Product ID: BK45H

BK45H 4.25" "H" Style BK Single Groove V-Pulley

Available Stock: 2

Selected accessories will also be added to cart

$21.26 / Each

Quantity:

Accessories

Select any of the accessories below to purchase them with this inventory item:

H10 AMEC "H" Style Taper Bushing, 5/8" Bore
$9.66 / Each
H11 AMEC "H" Style Taper Bushing, 11/16" Bore
$7.49 / Each
H12 AMEC "H" Style Taper Bushing, 3/4" Bore
$9.66 / Each
H14 AMEC "H" Style Taper Bushing, 7/8" Bore
$9.66 / Each
H15 AMEC "H" Style Taper Bushing, 15/16" Bore
$5.90 / Each
H16 AMEC "H" Style Taper Bushing, 1" Bore
$9.66 / Each
H16MM "H" Style Bushing, 16MM Bore
$6.16 / Each
H18 AMEC "H" Style Taper Bushing, 1-1/8" Bore
$9.66 / Each
H18MM "H" Stye Bushing, 18MM Bore
$5.55 / Each
H20 AMEC "H" Style Taper Bushing, 1-1/4" Bore
$9.66 / Each
H22 AMEC "H" Style Bushing, 1-3/8" Bore
$9.66 / Each
H22MM AMEC "H" Style Taper Bushing, 22MM Bore
$7.49 / Each
H24 AMEC "H" Style Taper Bushing, 1-1/2" Bore
$9.66 / Each
H25MM "H" Style Bushing, 25MM Bore
$5.20 / Each

Details

Specifications

• The BK-H series of taper sheaves are designed for “H” style STL bushings
• Precision installation
• Easy assembly disassembly
• Manufactured in high quality grey cast iron
• Individually packaged

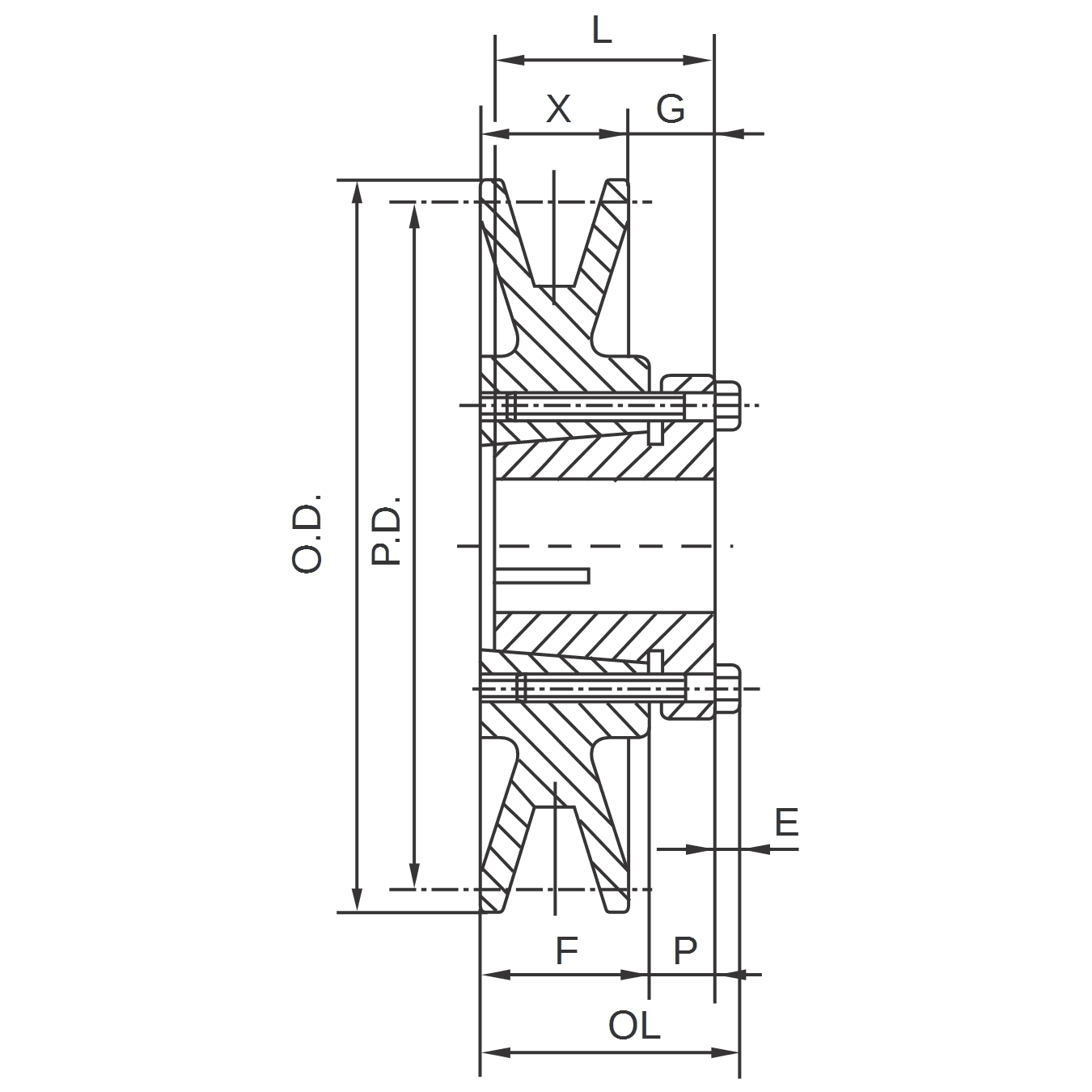

Brand	Various
Part Number	BK45H
Outside Diameter	4.25"
Pulley Diameter "A"	3.50"
Pulley Diameter "3L"	3.90"
Type	2
Dimension "OL"	1-1/2"
Dimension "F"	7/8"
Dimension "L"	1-1/4"
Dimension "P"	7/16"
Dimension "X"	7/8"
Dimension "G"	7/16"
Dimension "E"	3/16"
Approximate Weight	1.8 lbs
