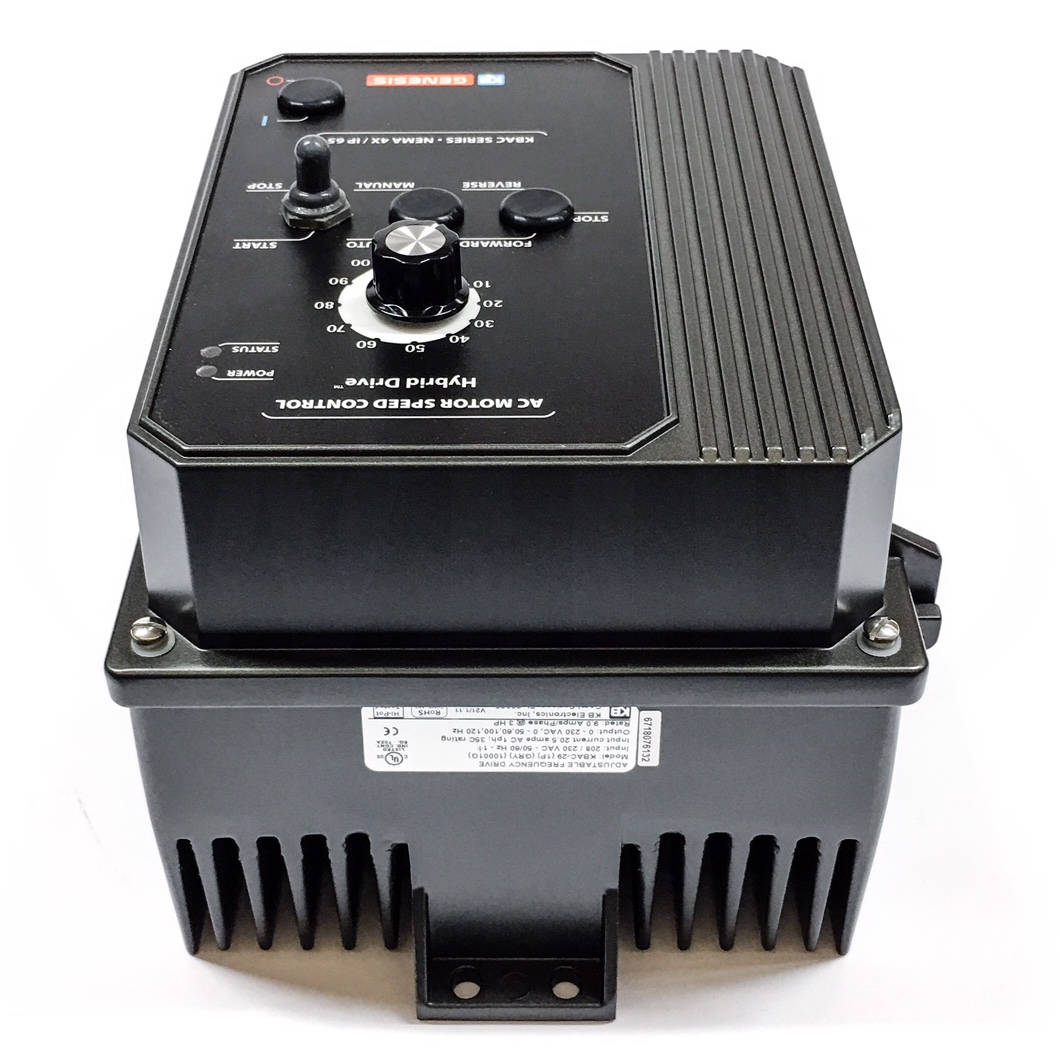

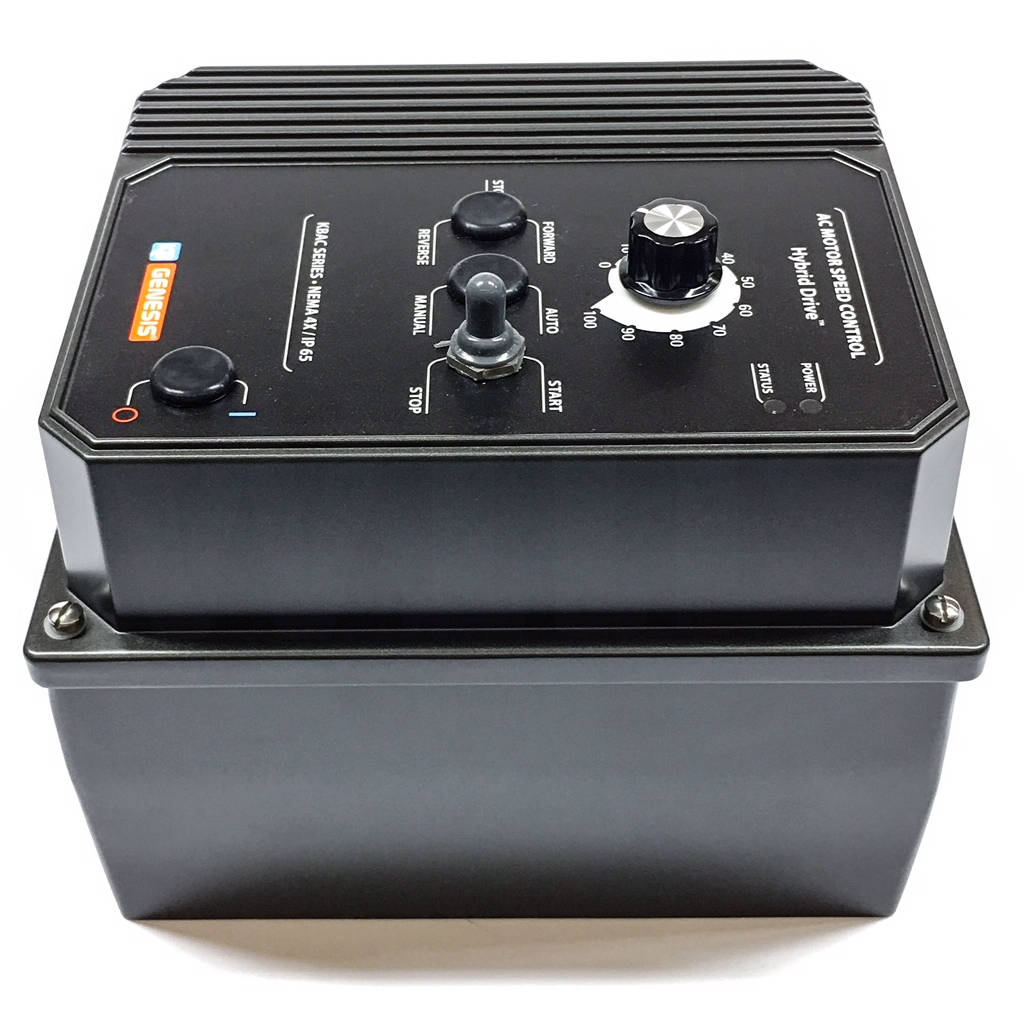

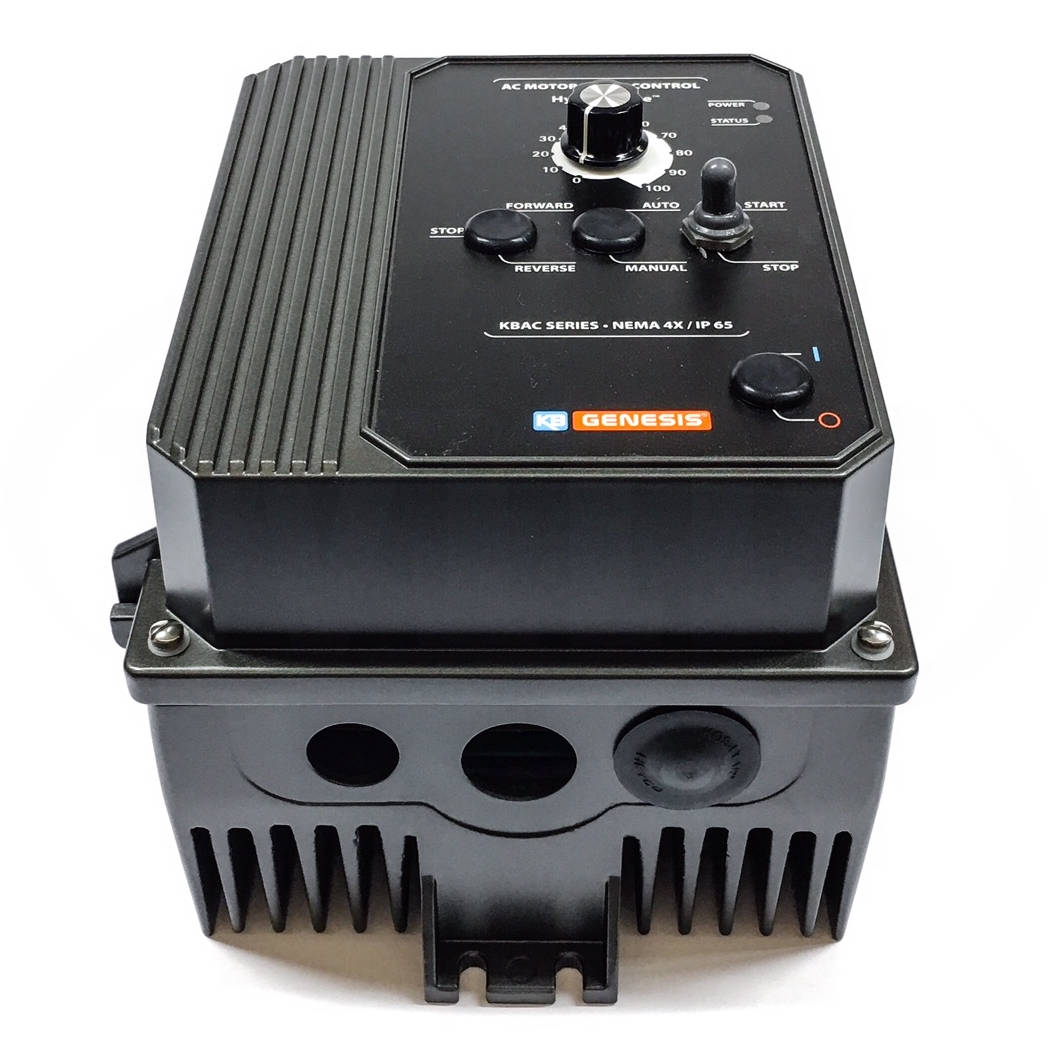

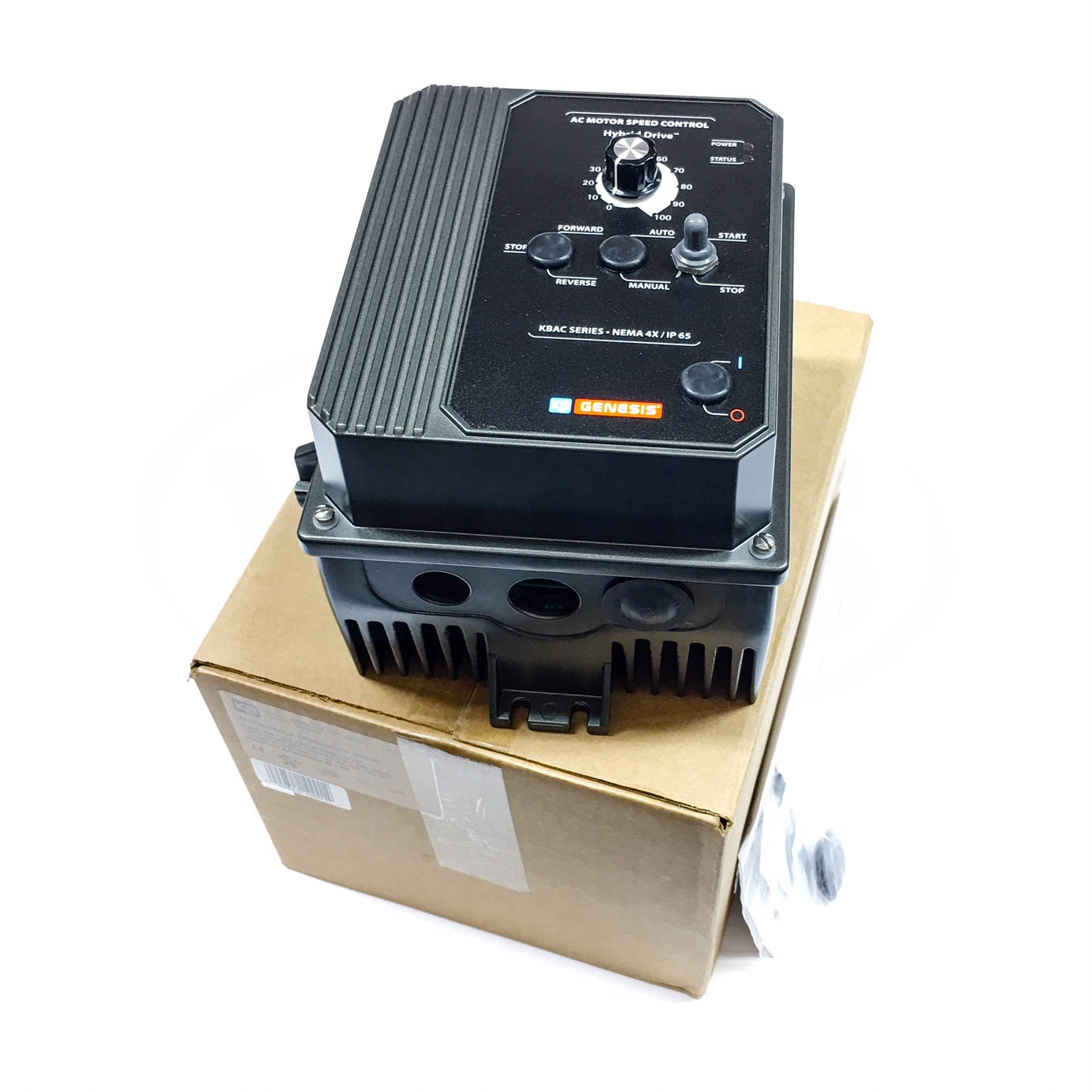

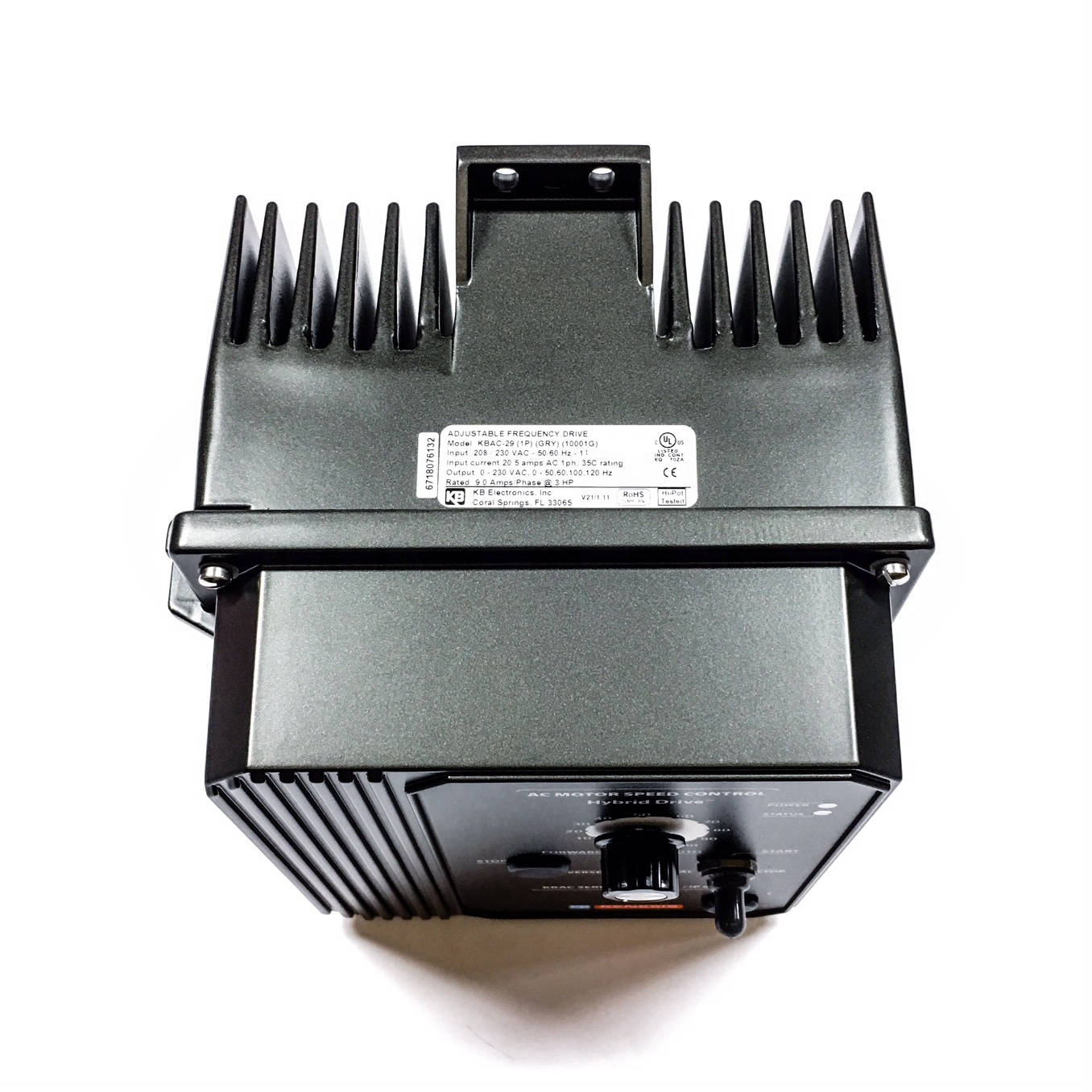

KBAC-29 (1P) Hybrid AC Drive - Digital Drive with Analog Interface

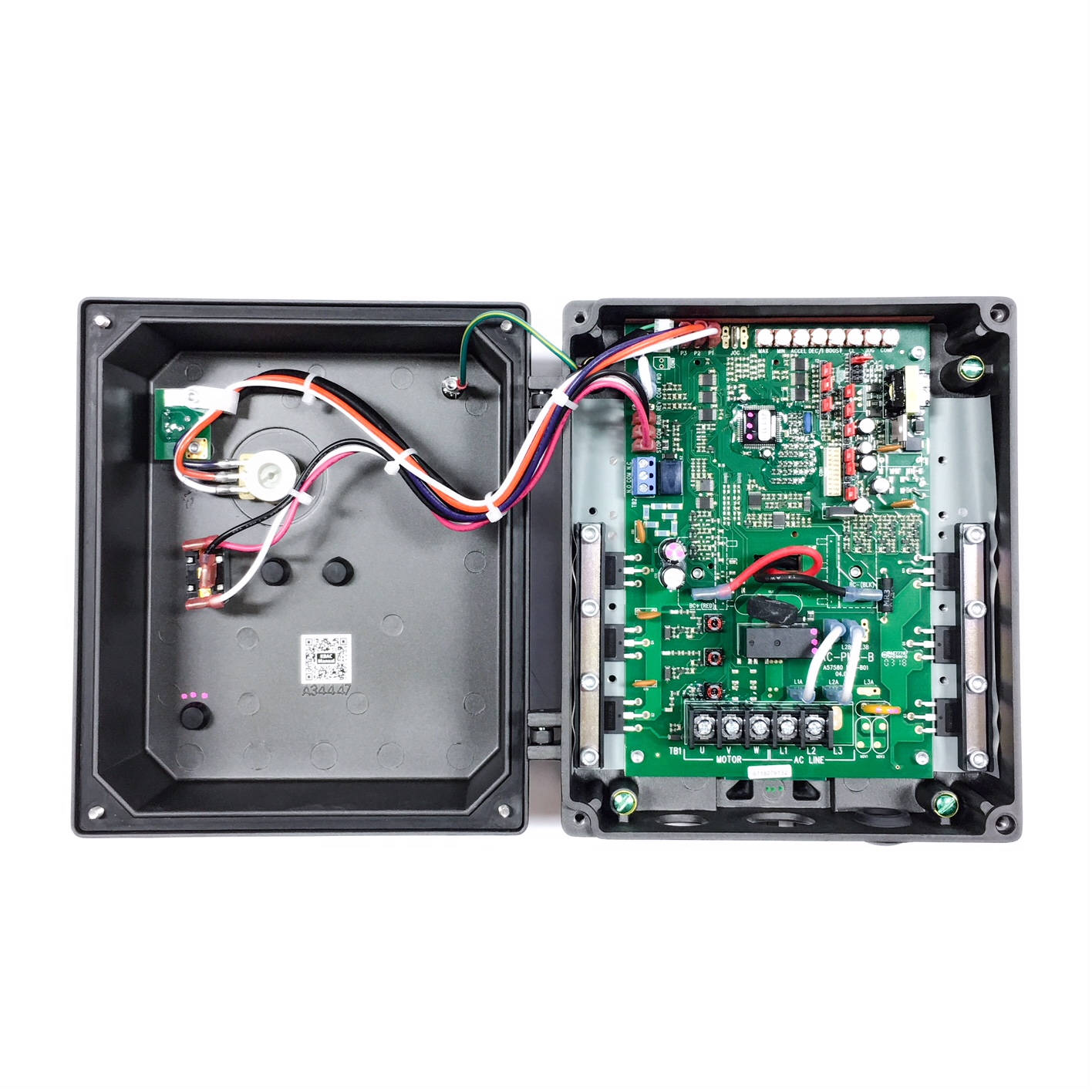

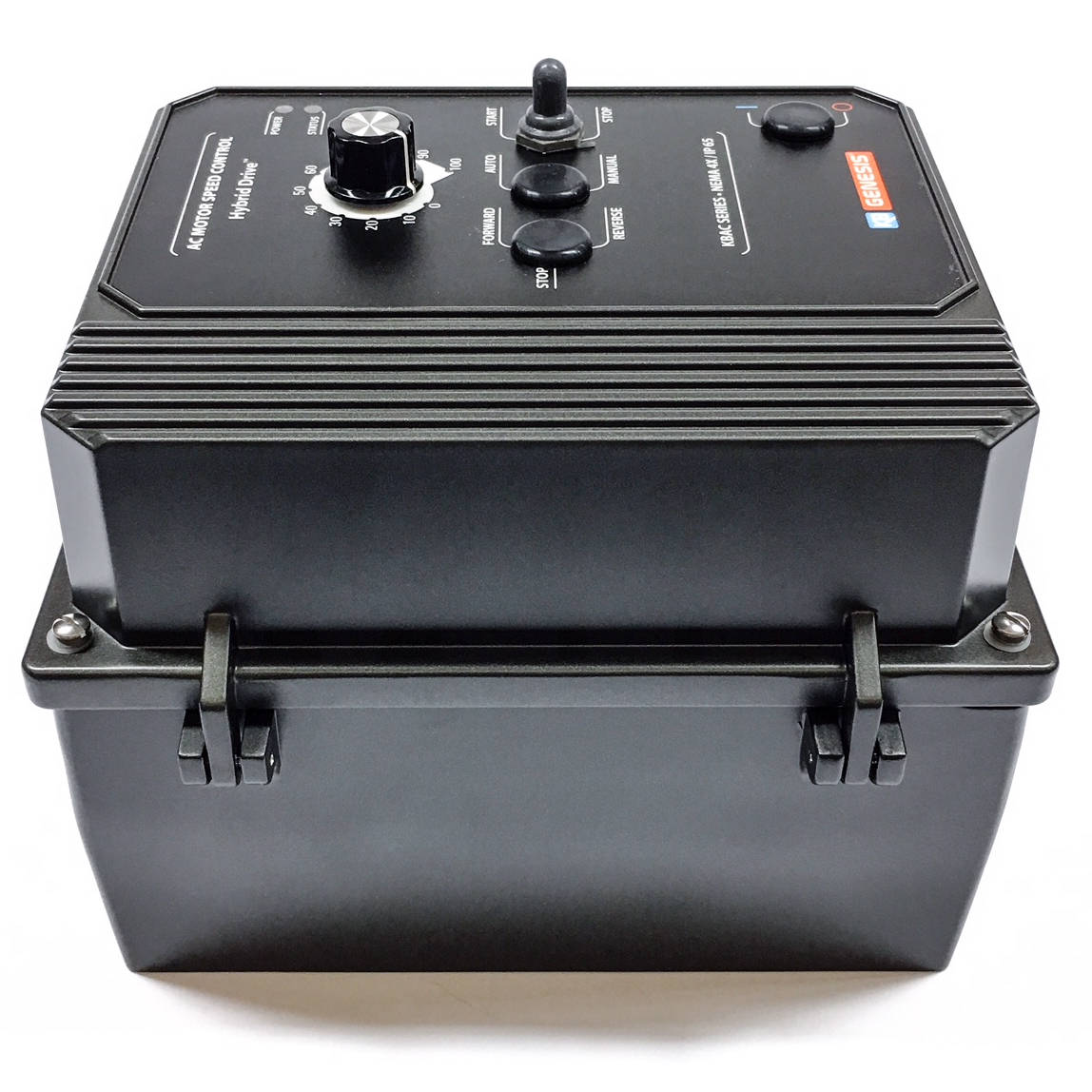

Rugged Die-Cast Aluminum NEMA-4X/IP-65 Enclosure with hinged cover.

Primary Features:
• Horsepower 1/8 to 3 HP, Jumper Selectable
• 1Ø Input 208-230 VAC, 50/60 Hz, 20.5 Amps; 35°C Rating
• 3Ø Output 230 VAC, 0-50, 60, 100 or 120 Hz
• Rated 9.0 Amps / Phase @ 3 HP
• Start/Stop Switch
• 200% Starting Torque
• Diagnostic LED Status Indicators

Additional Features:
• Sensorless Flux Vector Control
• Electronic Inrush Current Limit (EICLTM) Protection
• Run/Fault Relay Output Contacts
• Holding Torque at Zero Speed in "Stop" mode
• Undervoltage and Overvoltage Protection
• Short Circuit Protection, phase to phase
• Ride-Through momentary power loss
• Regeneration eliminates tripping
• Basic, Programmable, Trimpot Adjustments

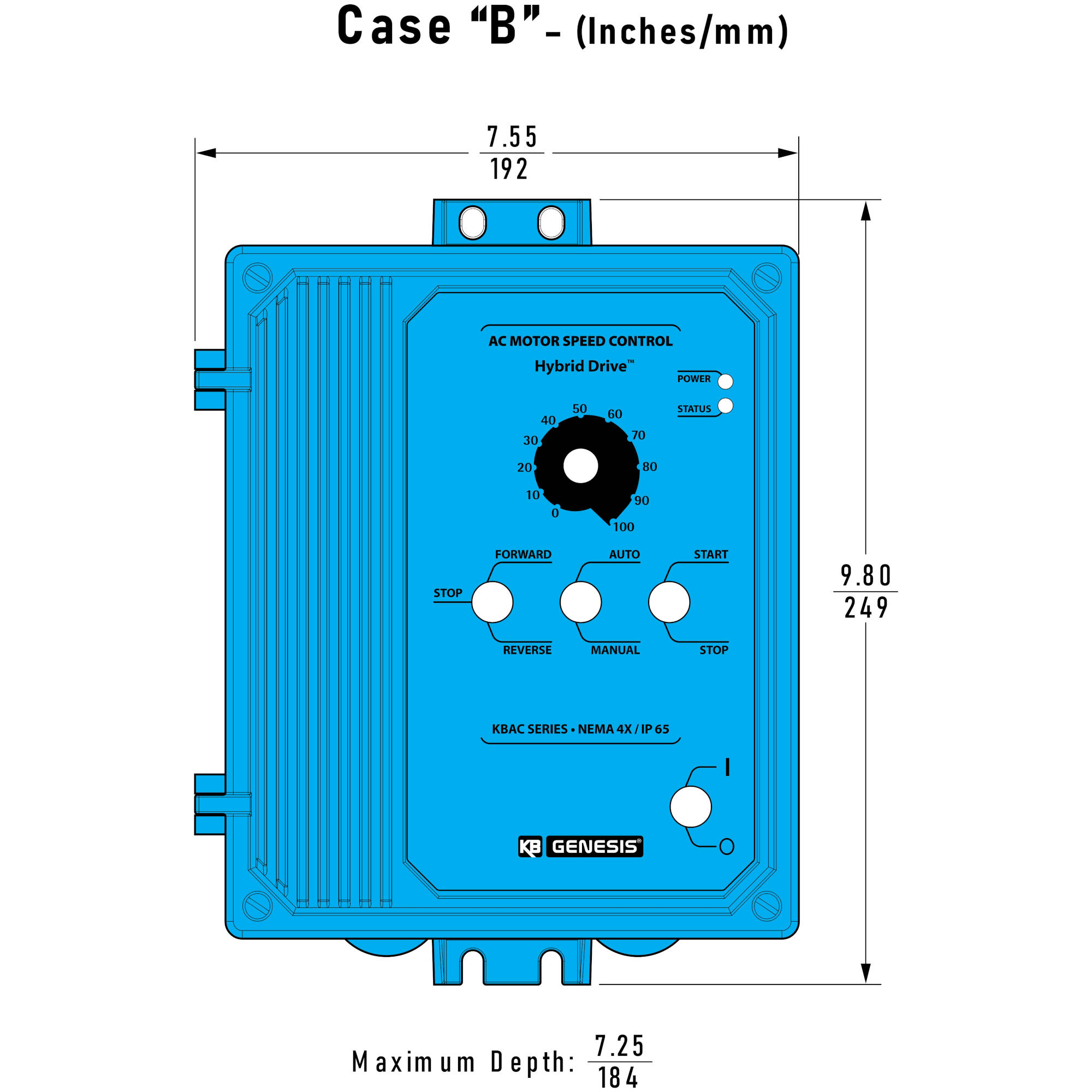

Dimensions approx. 9.8" X 7.6" X 7.3".
Agency approvals: UL, CE, CSA, C-Tick.

Links:
KB Electronics KBAC Data Sheet (PDF, 4 Pages, 1.18MB)
KB Electronics KBAC Installation and Operation Manual (PDF, 24 Pages, 6.09MB)
