/Products/Pumps/Seals/PS-185 U.S. Seal Mfg 1.25" Pump Seal
Click Image to Expand

Product ID: PS-185

PS-185 U.S. Seal Mfg 1.25" Pump Seal

MFG: U.S. Seal
MFG Part Number: PS-185

Available Stock: 4
Selected accessories will also be added to cart
$59.34 / Each
Quantity:
Carbon Upgrade

Description

General Pool Applications
Carbon Upgrade
  • Materials of Construction: Buna Elastomers, Carbon Primary Ring, Ceramic Seat, Stainless Steel Hardware
  • Better Chemical Resistance

Specifications

Seal Size 1.250"

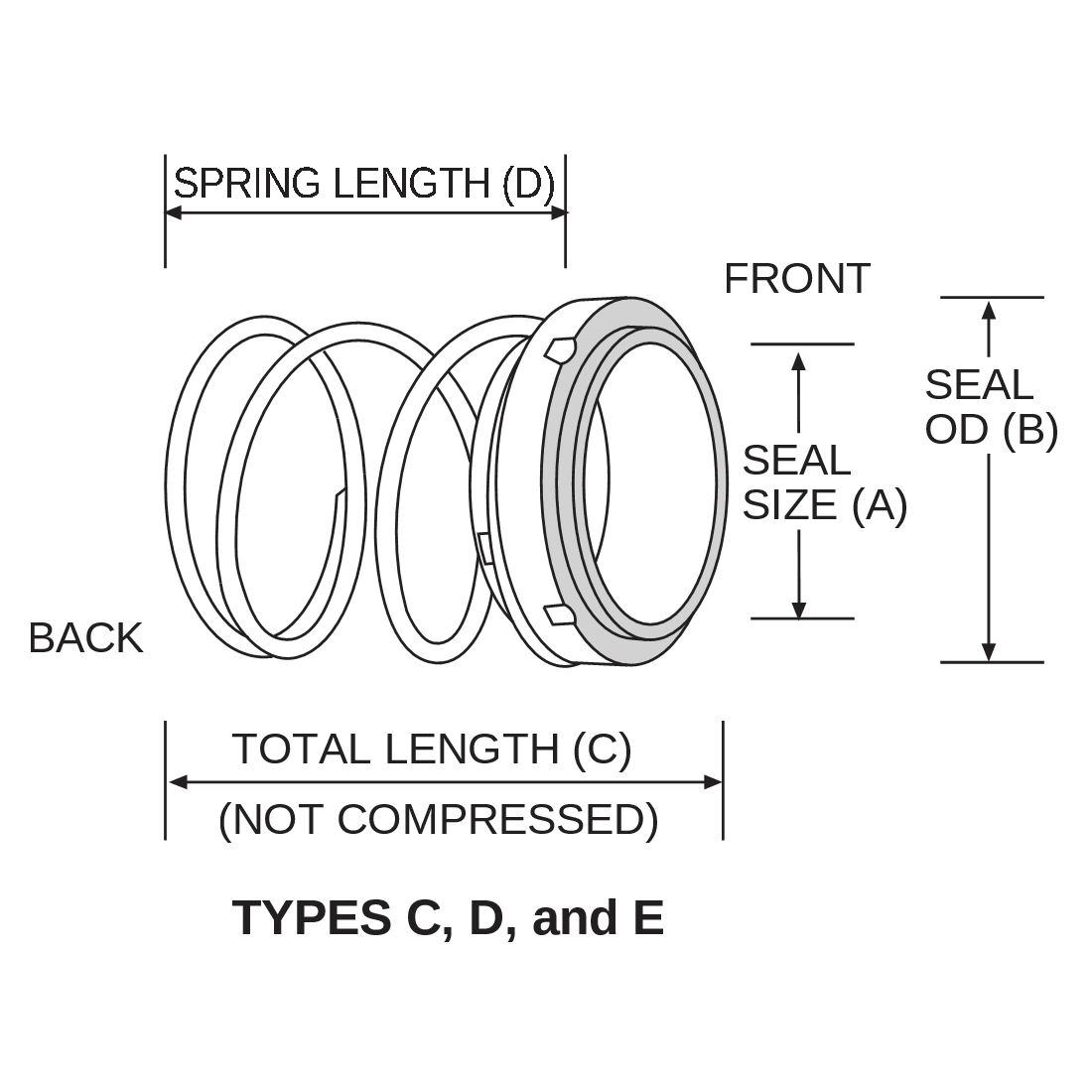

Head Figure C
Head Outside Diameter 1.937"
Head Operating Height 1.062"
Mating Ring Figure 1
Mating Ring Bore 1.875"
Mating Ring Thickness 0.437"
Material Code BCFJF
Buna Secondary Seals
Carbon rimary Rings
Stainless Steel Metal Parts
Ceramic Mating Rings
Stainless Steel Springs
Notes
UPC 852661157063
Weight 0.25 lbs
Pressure Rating PSI
Temperature °F to °F
Country of Origin Mexico
U.S. Seal Manufacturer Part Number(s) PS-185 (Carbon Upgrade)
PS-185V-CMS (Ozone / Salt Service)
PS-185V-SC-SC (SCS Series)
VG-185 (Value Guard)
Pump Nameplate Data Cross Reference BALDOR RELIANCE Motor Frame 140
CARVER PUMP CO. K2L-20-9
GOULDS PUMPS 3656
PEABODY-BARNES MFG. 18ACG, 18, 19, 23 & 26 CCG
STA-RITE INDUSTRIES CC/C Series, D Series, CC/C Series, D Series pre 8/00 CSPH / CCSPH Series
TEEL PUMP 2P142, 3P660, 3P661, 3P662
Cross Reference AURORA® 712-0908-753
BALDOR RELIANCE 64262-12A
BERKELEY S32014
BSM PUMP CORP. 213-744-274
BURKS® PUMPS 9917
CAMERON COMPRESSION SYSTEMS 2-01S-073-003
CLAY EQUIPMENT 0-902718-0
CRANE-DEMING 0030880, 0070713
DECATUR PUMP 9917
DUFF-NORTON 464901C
DUNHAM-BUSH S-4998
ESSICK 9014025
FAIRBANKS MORSE HYD1AC2
FINN CORP. 080485
GOULDS PUMPS 9152071001
GRUNDFOS CBS, INC. 91868317
GUSHER PUMPS 84217-4
HYDROMATIC PUMP CO. 049160001
INGERSOLL-DRESSER PUMPS AND COMPRESSORS CPM-10601A
JACUZZI® 10-0369-29, 10-1400-02
MEGATOR CORP. 5779
MONARCH PUMPS 240070
MYERS, F.E. 22577A000
PACIFIC PUMPING CO. 14033710
PEABODY-BARNES MFG. 70713
PENTAIR, INC. 049160001, 22577A000
PROSSER PUMP 2-31020
RAINBOW IRRIGATION PUMPS 14821
REXNORD INDUSTRIES, LLC. X8023
SCOT PUMP 101.000.104, 101.000.104A
STA-RITE INDUSTRIES U109-200, U109-433SS, S32014
STERLING MACHINERY 1636
STONE CONST. 37692
SYNCROFLO 13-950-0880
TEEL PUMP 5P394, IR439
WATERCO USA 19B5032
WAUKESHA MOTORS 178033
WEINMAN® Q26-395-Y2
YEOMANS CHICAGO CORP. C3-2-57
ZOELLER PUMP CO. 008165
