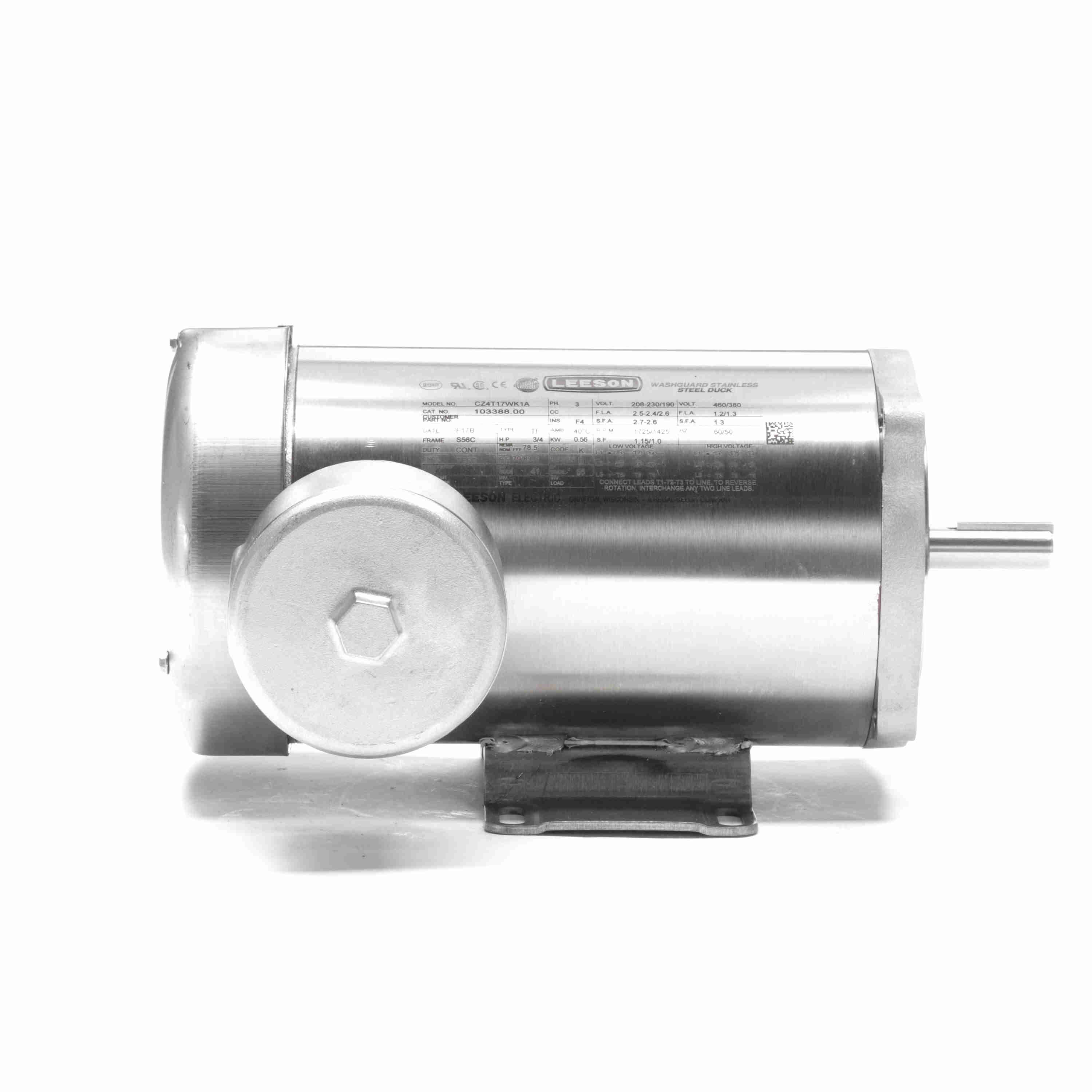

103388.00 Leeson 3/4HP Washguard Stainless Steel Electric Motor, 1800 RPM
Click Image to Expand
Previous
Next
Product ID: 103388.00
103388.00 Leeson 3/4HP Washguard Stainless Steel Electric Motor, 1800 RPM
MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 103388.00
Selected accessories will also be added to cart
$1,539.97 / Each
Quantity:
TEFC, S56 Frame, 230/460V 60Hz 3-Phase, C-Face, Rigid Base
Details
Features
Features
All exterior components are 300-series stainless steel; All sealing components are Viton® for superior chemical resistance
End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
Interior coatings applied to rotor and stator protect against corrosion; Ease to clean construction is BISSC Certified for bakery applications
Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
LEESON’s exclusive IRIS™ Inverter-Rated Insulation System provides extra protection and long life, especially in inverter-driven applications
Full fact nameplate is laser etched on the motor frame
General Specifications
General Specifications
Model :
CZ4T17WK1A
Catalog No :
103388.00
Part Description :
..3/4HP..1800RPM.S56.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID-C......Stainless Washdown.NOT.......
Category :
3 Phase
Stock :
No
Nameplate Specifications
Nameplate Specifications
Output HP :
0.75 Hp
Output KW :
0.56 kW
Frequency :
60 Hz
Voltage :
208-230/460 V
Current :
2.5-2.4/1.2 A
Speed :
1725 rpm
Service Factor :
1.15
Phase :
3
Efficiency :
78.5 %
Duty :
Continuous
Insulation Class :
F
Design Code :
B
KVA Code :
K
Frame :
S56C
Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
No
Ambient Temperature :
40 °C
Drive End Bearing Size :
6204
Opp Drive End Bearing Size :
6204
UL :
Recognized
CSA :
Y
CE :
Y
IP Code :
56
Technical Specifications
Technical Specifications
Electrical Type :
Squirrel Cage Induction Run
Starting Method :
Across The Line
Poles :
4
Rotation :
Reversible
Mounting :
Rigid base
Motor Orientation :
HORIZONTAL
Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL
Frame Material :
Stainless Steel
Shaft Type :
NEMA 56
Overall Length :
12.50 in
Frame Length :
8.00 in
Shaft Diameter :
0.625 in
Shaft Extension :
1.88 in
Assembly/Box Mounting :
F1 ONLY
UPC :
691720105825
Weight :
41.00 LB
Speed & Load Characteristics
Speed Characteristics
Curvepoint
Current (Amps)
Current (%)
Torque (ft-lbs)
Torque (%)
Speed (RPM)
Rated Output (KW)
Power Factor (%)
Rated Output (Hp)
Full Load
1.13
100.0
36.00
100.0
1,728
0.00
0.0
0.75
Pull-Up
7.65
677.0
140.00
389.0
349
0.00
0.0
0.75
Locked-Rotor
8.00
708.0
150.00
417.0
0
0.00
0.0
0.75
Break-Down
6.20
549.0
145.00
403.0
914
0.00
0.0
0.75
Load Characteristics
% of Rated Load
Current (Amps)
Rated Output (KW)
Efficiency (%)
Power Factor (%)
Speed (RPM)
Temp. Rise @ FL
Torque (ft-lb)
0 %
0.66
122.000
0.0
23.3
1,792
0.0
0.00
25 %
0.70
239.000
59.4
43.3
1,776
0.0
9.00
50 %
0.80
387.000
72.6
60.9
1,759
0.0
18.00
75 %
0.94
544.000
76.7
72.6
1,740
0.0
27.00
100 %
1.10
700.000
78.7
79.4
1,721
45.0
36.00
115 %
1.20
787.000
79.8
82.1
1,708
52.0
41.40
