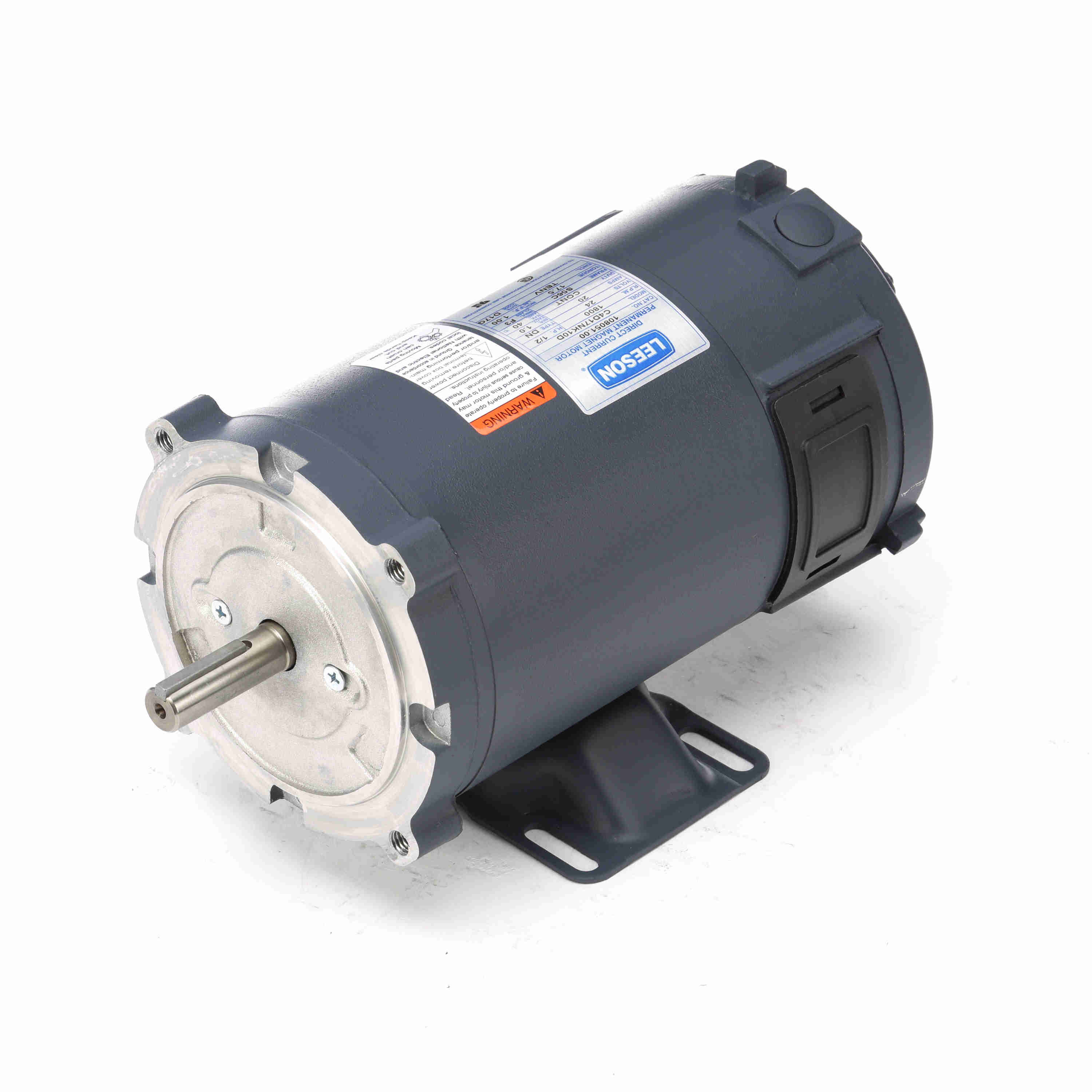

/Products/Electric Motors/DC/Leeson/Low Voltage/108051.00 Leeson 1/2HP DC Electric Motor, 1800 RPM

Click Image to Expand

Previous Next

Selected accessories will also be added to cart

$689.97 / Each

Quantity:

TENV, S56C Frame, 24VDC, C4D17NK10D, C-Face With Removable Base

Oversized brushes for long life; External access to brushes allows for easy replacement further prolonging motor life
Heavy-duty, stamped steel, bolt on base (Removable)
NEMA C face mounting flange at no additional cost; High strength rolled steel frame
Rugged die cast end shields with steel bearing inserts
Permanently lubricated sealed ball bearings
High starting torques for heavy load applications
Linear speed torque characteristics throughout the speed range
Capable of dynamic braking for faster stops
Reversible rotation; Simple two lead connection

Model :	C4D17NK10D	Catalog No :	108051.00
Part Description :	1/2HP.1800RPM.S56C.TENV.24V.CONT.40C.1.0SF.RIGID C.DC NEMA LOW VOLTAGE.C4D17NK10D	Category :	Low Voltage
Stock :	No

Output HP :	0.50 Hp	Output KW :	0.37 kW
Voltage :	24 V	Current :	20.0 A
Speed :	1800 rpm	Service Factor :	1
Efficiency :	77 %	Duty :	Continuous
Insulation Class :	F	Frame :	S56C
Enclosure :	Totally Enclosed Non Ventilated	Overload Protector :	No
Ambient Temperature :	40 °C	Drive End Bearing Size :	6203
Opp Drive End Bearing Size :	6203	UL :	Recognized
CSA :	Y	CE :	N

40mm x 17mm x 12mm
Available Stock: 55

6203-2RS

$8.06 / Each
