/Products/Electric Motors/DC/Leeson/Low Voltage/109104.00 Leeson 1.5HP Low Voltage DC Electric Motor, 1800RPM

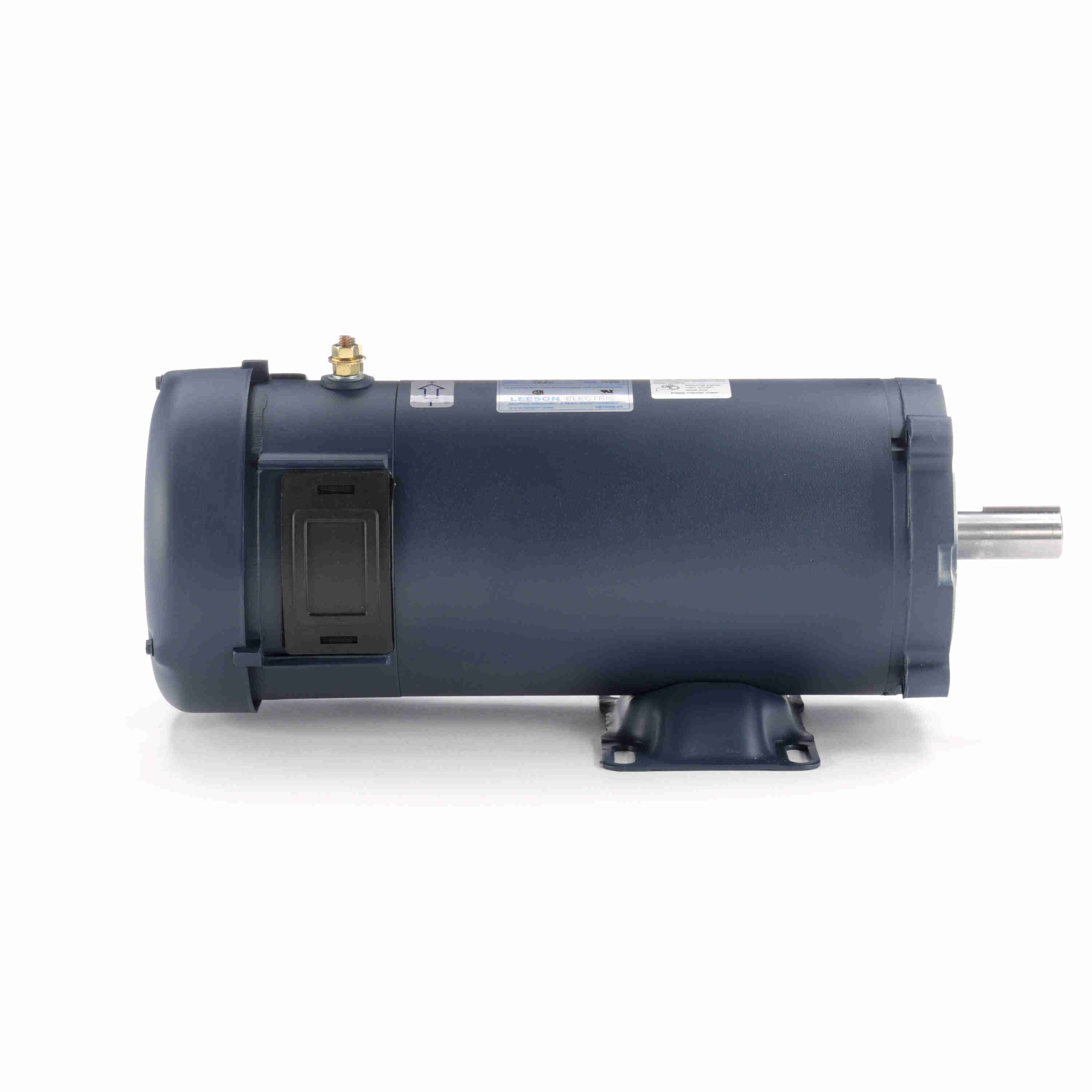

Click Image to Expand

Product ID: 109104.00

109104.00 Leeson 1.5HP Low Voltage DC Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 109104.00

Selected accessories will also be added to cart
$1,399.97 / Each
Quantity:
TEFC, S56CZ Frame, 36VDC, C4D18FK4B, C-Face, Foot Mount, Rolled Steel, 7/8" Keyed Shaft

Features

Features
  • Oversized brushes for long life; External access to brushes allows for easy replacement further prolonging motor life
  • Heavy-duty, stamped steel, bolt on base (Removable)
  • NEMA C face mounting flange at no additional cost; High strength rolled steel frame
  • Rugged die cast end shields with steel bearing inserts
  • Permanently lubricated sealed ball bearings
  • High starting torques for heavy load applications
  • Linear speed torque characteristics throughout the speed range
  • Capable of dynamic braking for faster stops
  • Reversible rotation; Simple two lead connection

General Specifications

General Specifications

C4D18FK4B 109104.00
1 1/2HP.1800RPM.S56CZ.TEFC.36V.CONT.40C.1.0SF.RIGID C.DC NEMA LOW VOLTAGE.C4D18FK4B Low Voltage
No

Nameplate Specifications

Nameplate Specifications

1.50 HP 1.1 kW
36 V 36.0 A
1800 RPM 1
82.4 % Continuous
H S56CZ
Totally Enclosed Fan Cooled No
40 °C 6205
6203
Recognized
Y N

Technical Specifications

Technical Specifications

Reversible Rigid C base
15.89 in 8.47 in
0.875 in 2.13 in
691720347461 37.00 LB

Speed & Load Characteristics
