/Products/Electric Motors/3 Phase/Leeson/110176.00 Leeson 1/2HP Electric Motor, 1800RPM
Click Image to Expand

Product ID: 110176.00

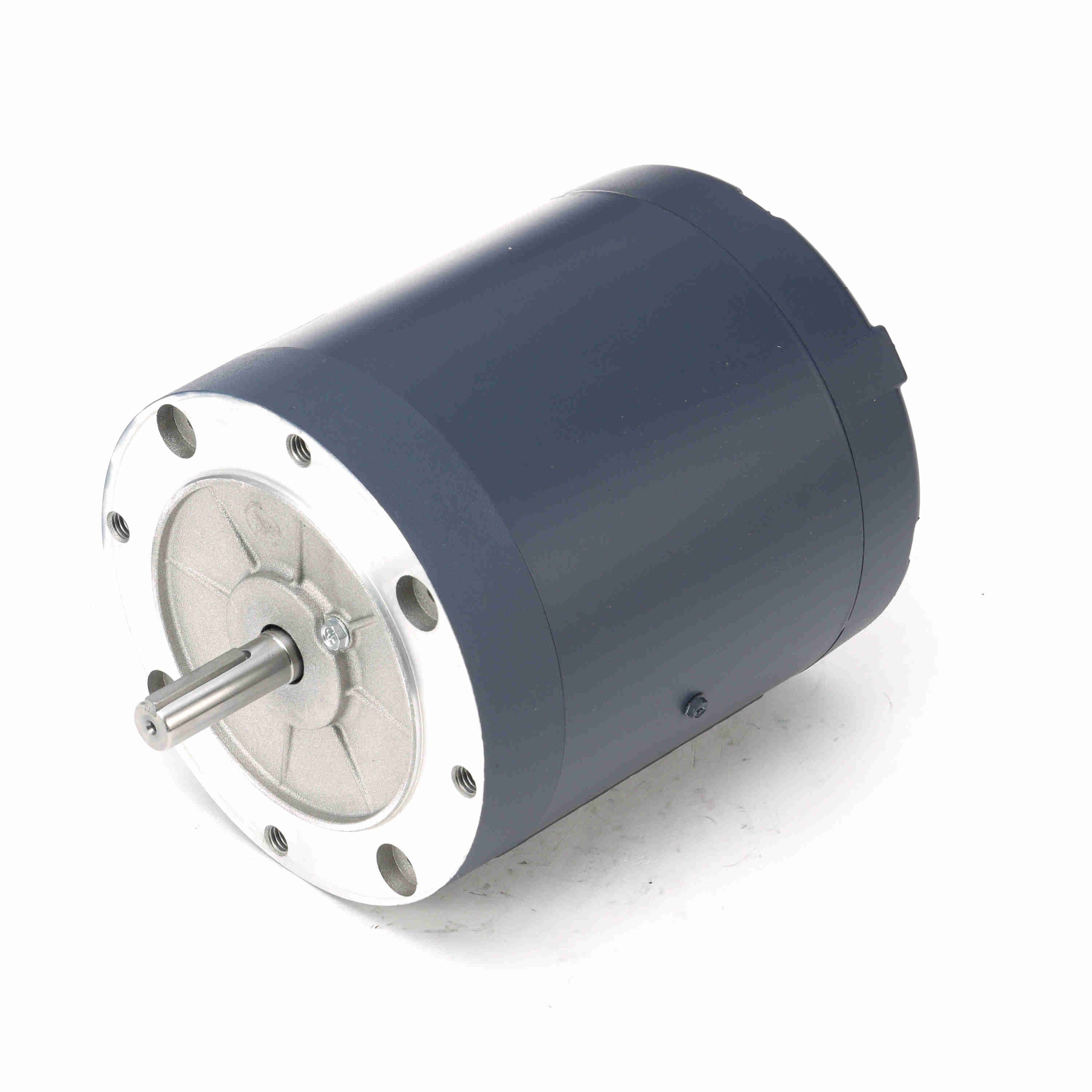

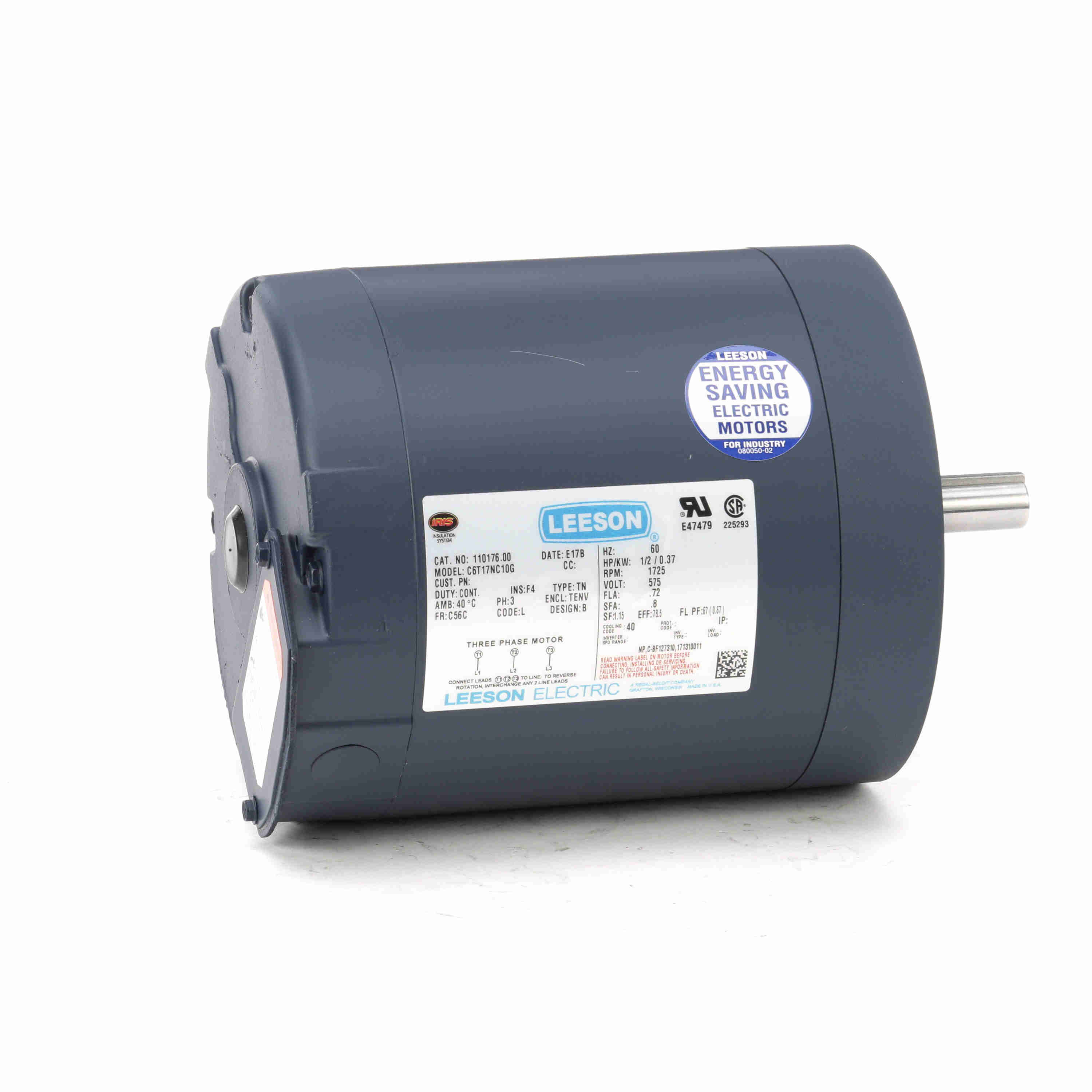

110176.00 Leeson 1/2HP Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 110176.00

Selected accessories will also be added to cart
$490.20 / Each
Quantity:
TENV, 56C Frame, 575VAC 3-Phase 60Hz, C-Face, No Base, Rolled Steel, 5/8" Shaft

Features

  • Standard efficient ratings
  • Inverter rated
  • Shielded ball bearings for direct coupled applications. Contact your local sales office for belted load applications
  • Rolled steel frame material designs
  • Dynamically balanced rotors
  • Torques exceed NEMA performance standards
  • UL recognized and CSA certified
  • Continuous duty

General Specifications

UPC: 691720008003 Weight: 23.00 LB
Packaged Length: 14.44 IN Packaged Width: 7.94 IN
Packaged Height: 10.88 IN

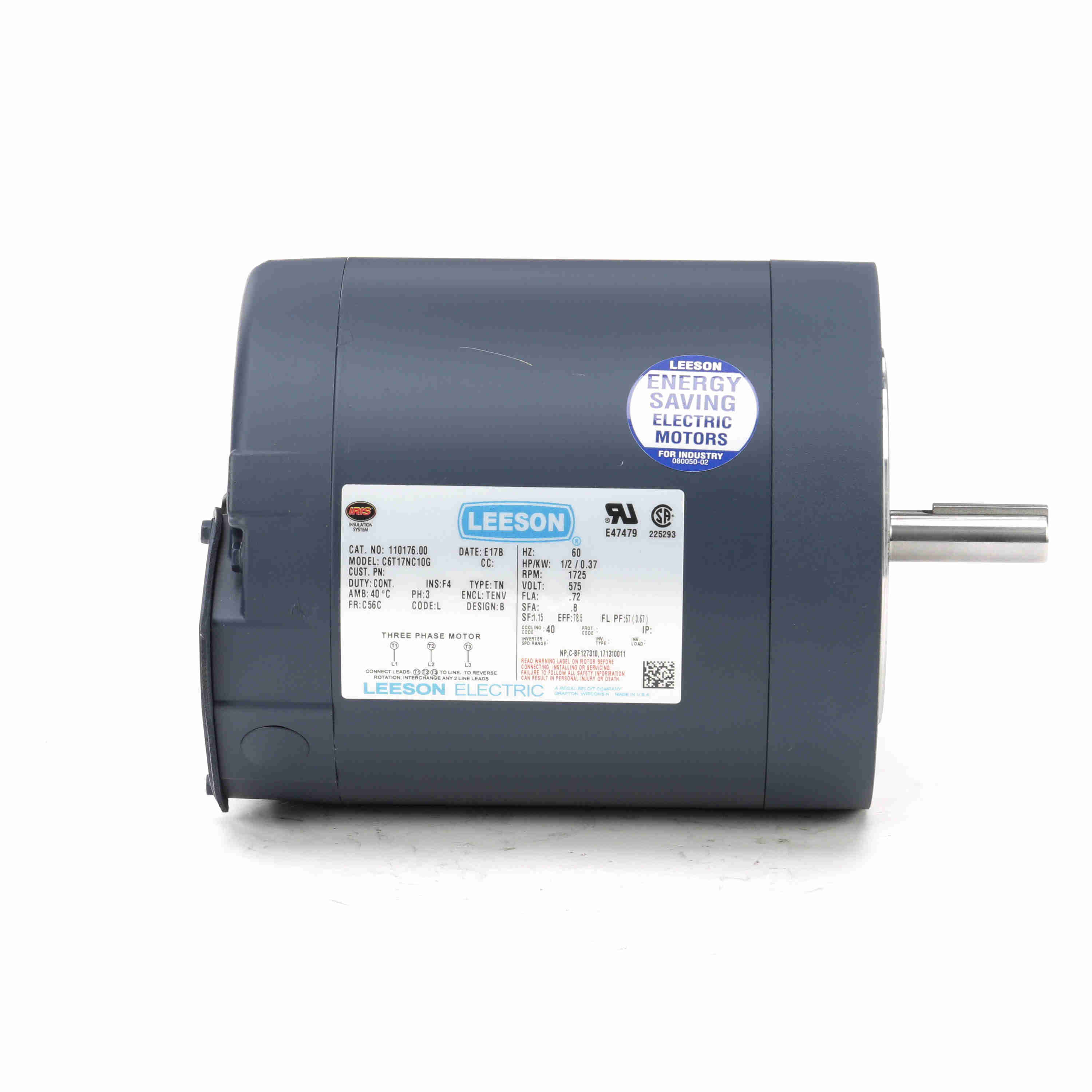

Nameplate Specifications

Output HP: 0.50 Hp Output KW: 0.37 kW
Frequency: 60 Hz Voltage: 575 V
Current: 0.72 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 78.5 % Power Factor: 67
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: L
Frame: 56C Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 9.90 in
Frame Length: 5.00 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 0.00 97.80 408.0 0 0.50
Locked-Rotor 4.85 72.10 300.0 0 0.50
Pull-Up 0.00 71.40 298.0 0 0.50
Full Load 0.72 24.00 100.0 0 0.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 0.53 0.00 0.00 0.00 0.00 0.00 0.00
Rated Output (KW) 0.00 0.00 0.00 0.00 0.00 0.00 0.00
Efficiency (%) 0.0 59.0 71.0 76.4 78.5 0.0 0.0
Power Factor (%) 0.0 29.0 44.0 56.0 67.0 0.0 0.0
Speed (RPM) 0 0 0 0 0 0 0
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 0.00 0.00 0.00 0.00 0.00 0.00
