/Products/Electric Motors/Single Phase/Leeson/High Torque TEFC C-Face No Base/110492.00 Leeson 1/2HP Hi-Torque Farm/Agriculture Duty Electric Motor
Click Image to Expand

Product ID: 110492.00

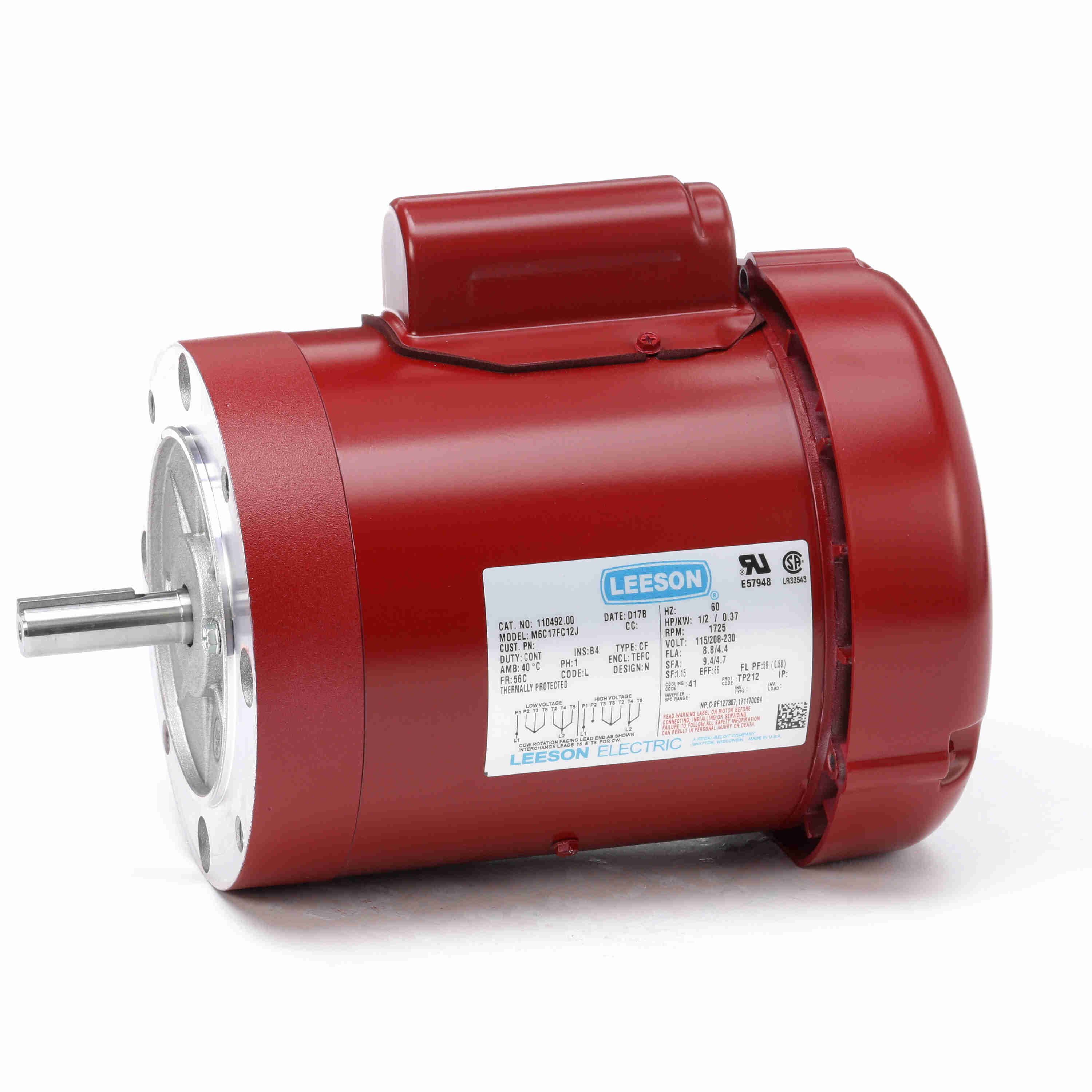

110492.00 Leeson 1/2HP Hi-Torque Farm/Agriculture Duty Electric Motor

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: M6C17FC12

Selected accessories will also be added to cart
$333.97 / Each
Quantity:
TEFC, 1800RPM, 56C Frame, 115/208-230V Single Phase 60Hz, C Face Less Base, M6C17FC12J, 5/8" Shaft
Features
  • Premium efficient designs
  • Double sealed ball bearings
  • Shaft flinger - output shaft
  • Normally closed thermostat protected
  • Weep holes provide condensation drains
General Specifications
Model :   M6C17FC12J
Catalog No :   110492.00
Part Description :   1/2HP..1725RPM.56.TEFC./V.1PH.60HZ.CONT.MANUAL.40C.1.15SF.ROUND.AG - FARM DUTY/GENERAL PURPOSE.M6C17FC12J
Category :   Agricultural
Stock :   No
Nameplate Specifications
Output HP :   0.5 Hp
Output KW :   0.37 kW
Frequency :   60 Hz
Voltage :   115/208-230 V
Current :   8.8/4.4 A
Speed :   1725 rpm
Service Factor :   1.15
Phase :   1
Efficiency :   66 %
Duty :   CONTINUOUS
Insulation Class :   B
Design Code :   N
KVA Code :   L
Frame :   56C
Enclosure :   TEFC
Overload Protector :   MANUAL
Ambient Temperature :   40 °C
Drive End Bearing Size :   6203
Opp Drive End Bearing Size :   6203
UL :   Recognized
CSA :   Y
CE :   N
IP Code :   43
Technical Specifications
Electrical Type :   CAP START IND RUN
Starting Method :   ACROSS THE LINE
Poles :   4
Rotation :   SELECTIVE CCW
Mounting :   ROUND
Motor Orientation :   HORIZONTAL
Drive End Bearing :   BALL
Opp Drive End Bearing :   BALL
Frame Material :   ROLLED STEEL
Shaft Type :   STANDARD 56
Overall Length :   10.98 in
Frame Length :   5.5 in
Shaft Diameter :   0.63 in
Shaft Extension :   1.88 in
Assembly/Box Mounting :   F1 ONLY
UPC :   691720008997
Weight :   24.00 LB

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 20.28 0.0 86.40 357.0 0 3.97 0.0 0.50
Full Load 4.36 0.0 24.00 0.0 1,746 0.59 58.1 0.50
Break-Down 0.00 0.0 67.30 272.0 1,475 0.00 0.0 0.50
Pull-Up 0.00 0.0 64.50 262.0 1,300 0.00 0.0 0.50

Load Characteristics

  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.70
  • 0.197
  • 0.0
  • 23.1
  • 1,792
  • 0.0
  • 0.00
  • 25 %
  • 3.65
  • 0.274
  • 34.6
  • 32.6
  • 1,781
  • 0.0
  • 6.00
  • 50 %
  • 3.76
  • 0.371
  • 50.7
  • 42.9
  • 1,767
  • 0.0
  • 12.00
  • 75 %
  • 3.97
  • 0.472
  • 59.3
  • 51.7
  • 1,753
  • 0.0
  • 18.00
  • 100 %
  • 4.35
  • 0.584
  • 63.0
  • 58.4
  • 1,728
  • 84.0
  • 24.00
  • 125 %
  • 4.64
  • 0.695
  • 65.9
  • 65.1
  • 1,720
  • 0.0
  • 30.00
  • 150 %
  • 5.09
  • 0.821
  • 66.1
  • 70.1
  • 1,699
  • 0.0
  • 36.00
