/Products/Electric Motors/3 Phase/Leeson/111311.00 Leeson 1HP General Purpose Electric Motor, 1800RPM
Click Image to Expand

Product ID: 111311.00

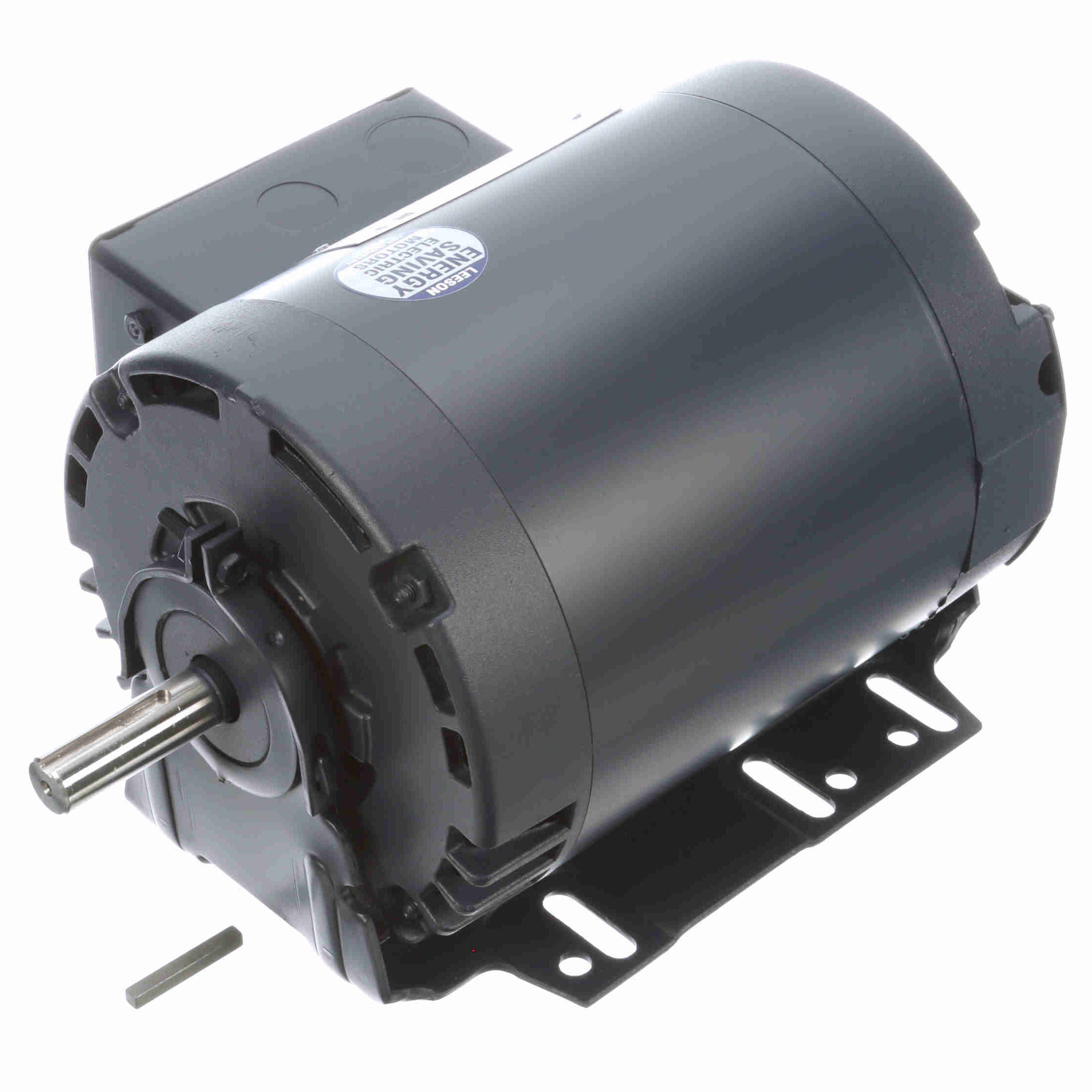

111311.00 Leeson 1HP General Purpose Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 111311.00

Selected accessories will also be added to cart
$154.22 / Each
Quantity:
ODP, 56H Frame, 208-230/460VAC 60Hz 3-Phase, Resilient Base, Rolled Steel, 5/8" Keyed Shaft

Features

  • Designed for belted loads
  • Ball bearing designs
  • Durable rolled steel construction
  • NEMA® Design B performance
  • Continuous Duty

General Specifications

UPC: 691720009833 Weight: 30.00 LB
Packaged Length: 14.44 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 4.2/2.1 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 78.5 % Power Factor: 58
Duty: Continuous Insulation Class: B
Design Code: B KVA Code: K
Frame: 56H Enclosure: Drip Proof
Thermal Protection: Automatic Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 22

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 4 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: Resilient Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 11.32 in
Frame Length: 5.50 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 22.00 9.50 317.0 0 1.00
Break-Down 0.00 11.80 393.0 0 1.00
Pull-Up 0.00 9.40 313.0 0 1.00
Full Load 4.20 3.00 100.0 0 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 1.83 0.00 0.00 0.00 0.00 0.00 0.00
Rated Output (KW) 0.00 0.00 0.00 0.00 0.00 0.00 0.00
Efficiency (%) 0.0 50.0 66.5 71.5 78.5 0.0 0.0
Power Factor (%) 0.0 26.6 38.8 49.7 64.0 0.0 0.0
Speed (RPM) 0 0 0 0 0 0 0
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 0.00 0.00 0.00 0.00 0.00 0.00
