/Products/Electric Motors/Single Phase/Leeson/TEAO Resilient Base/111322.00 Leeson 3/4HP 2-Winding Agricultural Fan Duty Electric Motor, 1075RPM
Click Image to Expand

Product ID: 111322.00

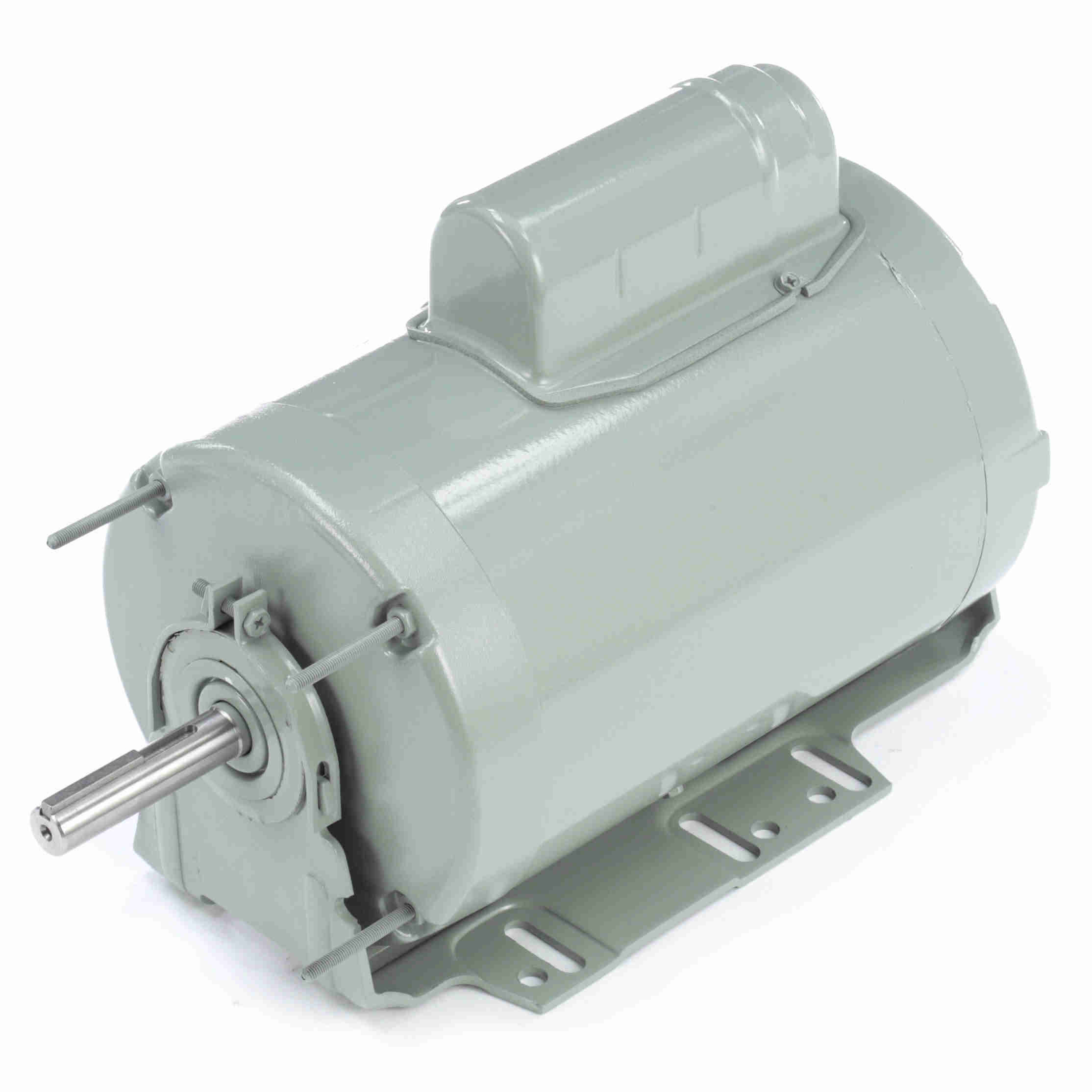

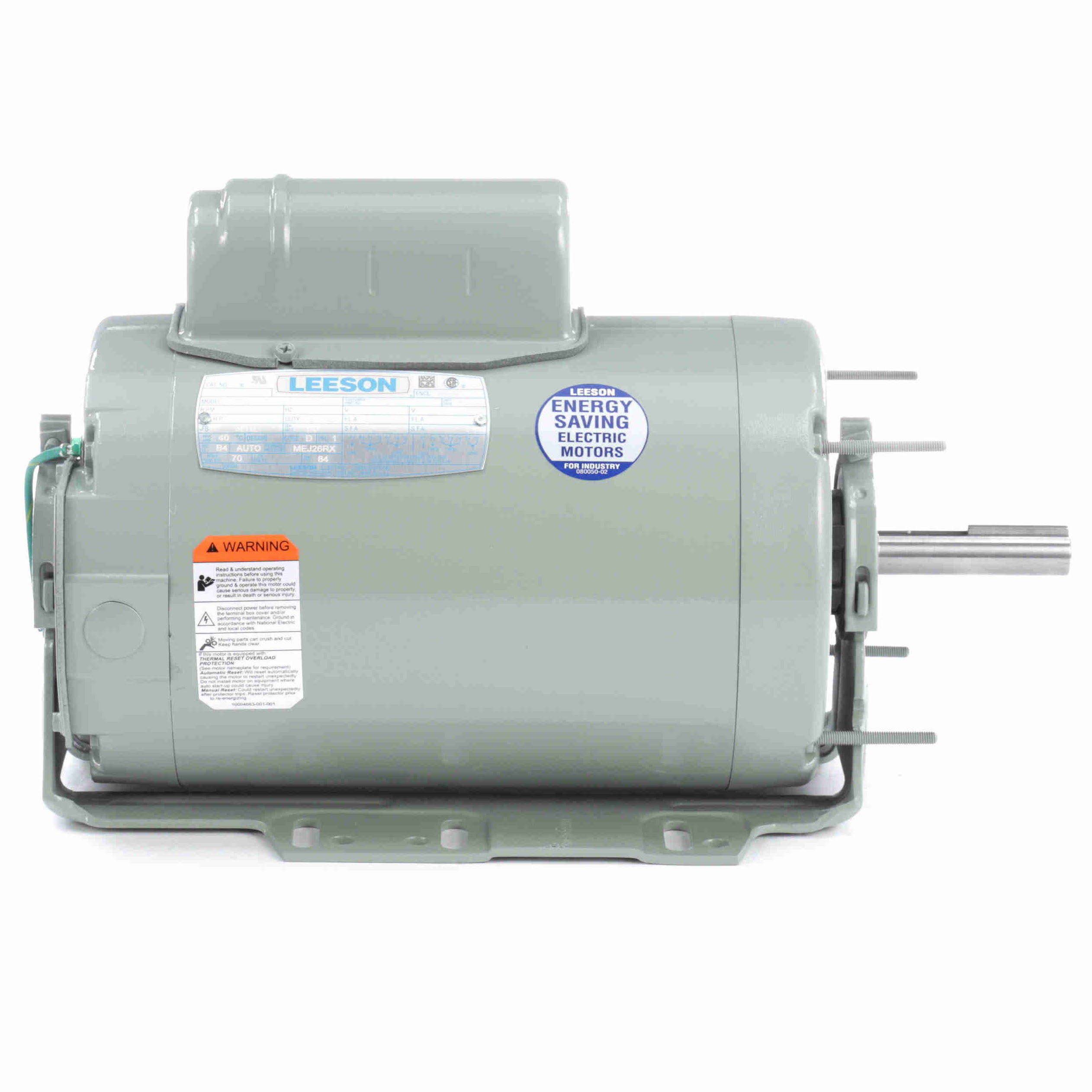

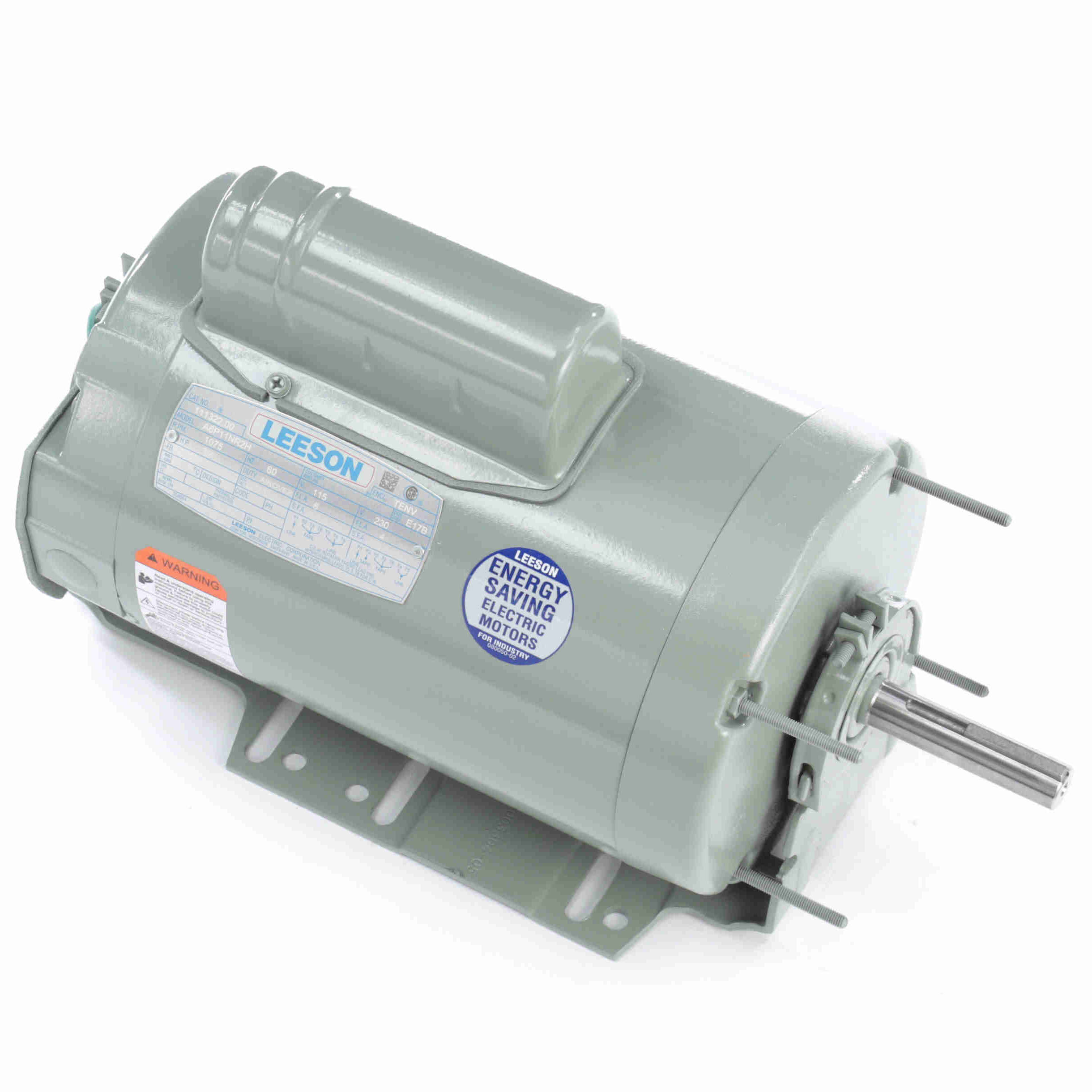

111322.00 Leeson 3/4HP 2-Winding Agricultural Fan Duty Electric Motor, 1075RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: A6P11NR2

Selected accessories will also be added to cart
$388.39 / Each
Quantity:
TEAO, 56HZ Frame, 115/230VAC Single Phase 60Hz, A6P11NR2H, Resilient Base
Volts 115   Volts 230   Volts
FL Amps 8   FL Amps 4   FL Amps
SF Amps   SF Amps   SF Amps
RPM 1075   Hertz 60
HP 3/4   Duty AIROVER   Type PN
KW .56   SF 1.0   Phase 1
Frame 56HZ   Design NO DESIGN CODE   KVA Code D
Ambient 40   Protection AUTOMATIC   Therm.Prot. MEJ26RX
Insulation Class B   Eff(75%)   PF 84
Eff(100%) 70   CSA Y   Bearing OPE 6203
UL Y-(LEESON UL REC)   CE N   Bearing PE 6203
CC Number EXEMPT   Inverter Type   Speed Range NONE
LOad Type
Motor Wt. 47 LB   Enclosure TENV   Lubrication POLYREX EM
Nameplate 004004   Mounting RESILIENT BASE   Rotation SELECTIVE CCW
Shaft Diam. 5/8 IN   Cust Part No.   Packaging B
    Winding P63637   Carton Label Leeson Farm Duty
    Group 3   Iris
Paint GRAY - LIGHT (EPOXY)   Hazardous Location NONE   Test Card 02
