/Products/Electric Motors/Single Phase/Leeson/TEFC - Resilient Base/111915.00 Leeson 1HP Electric Motor, 1800RPM
Click Image to Expand

Product ID: 111915.00

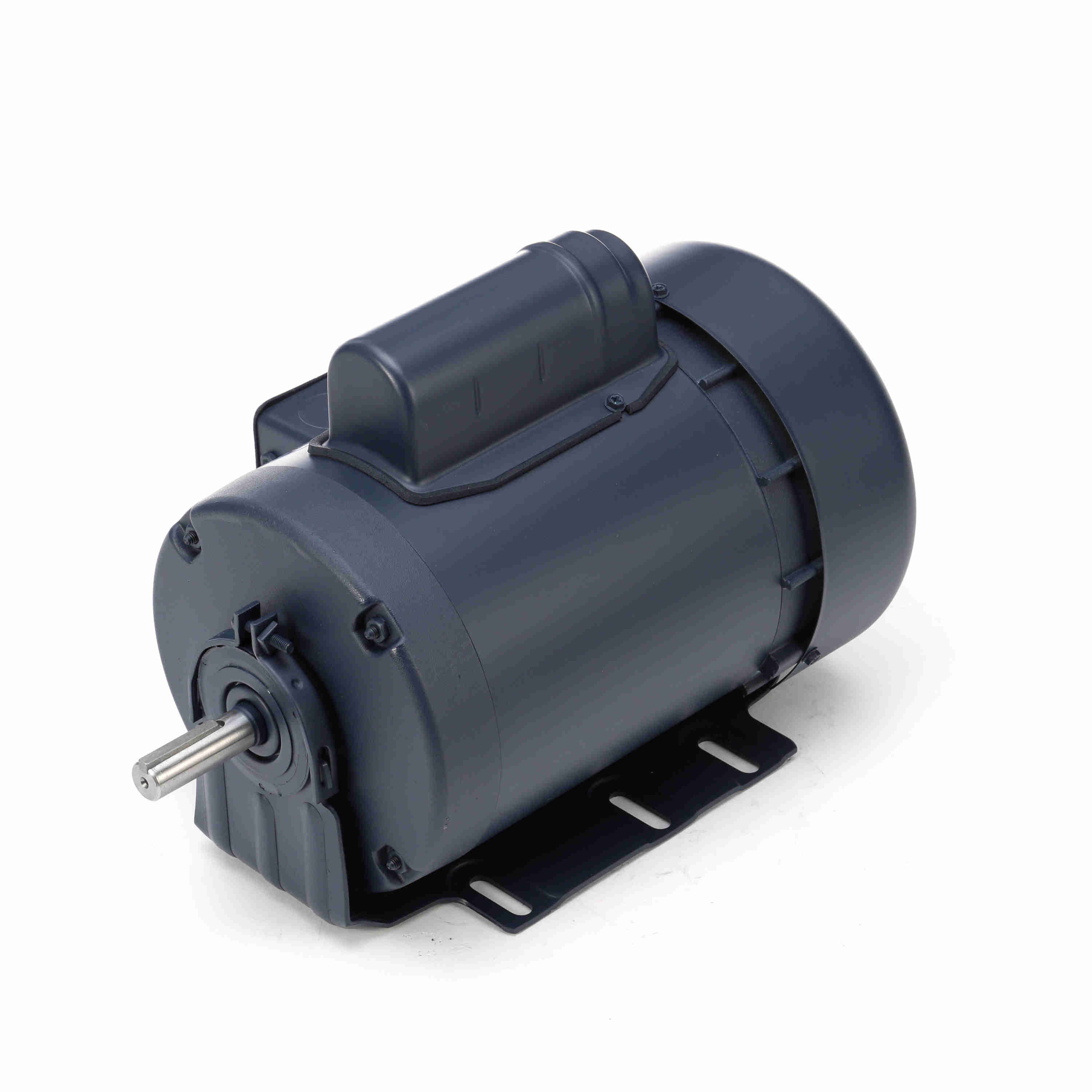

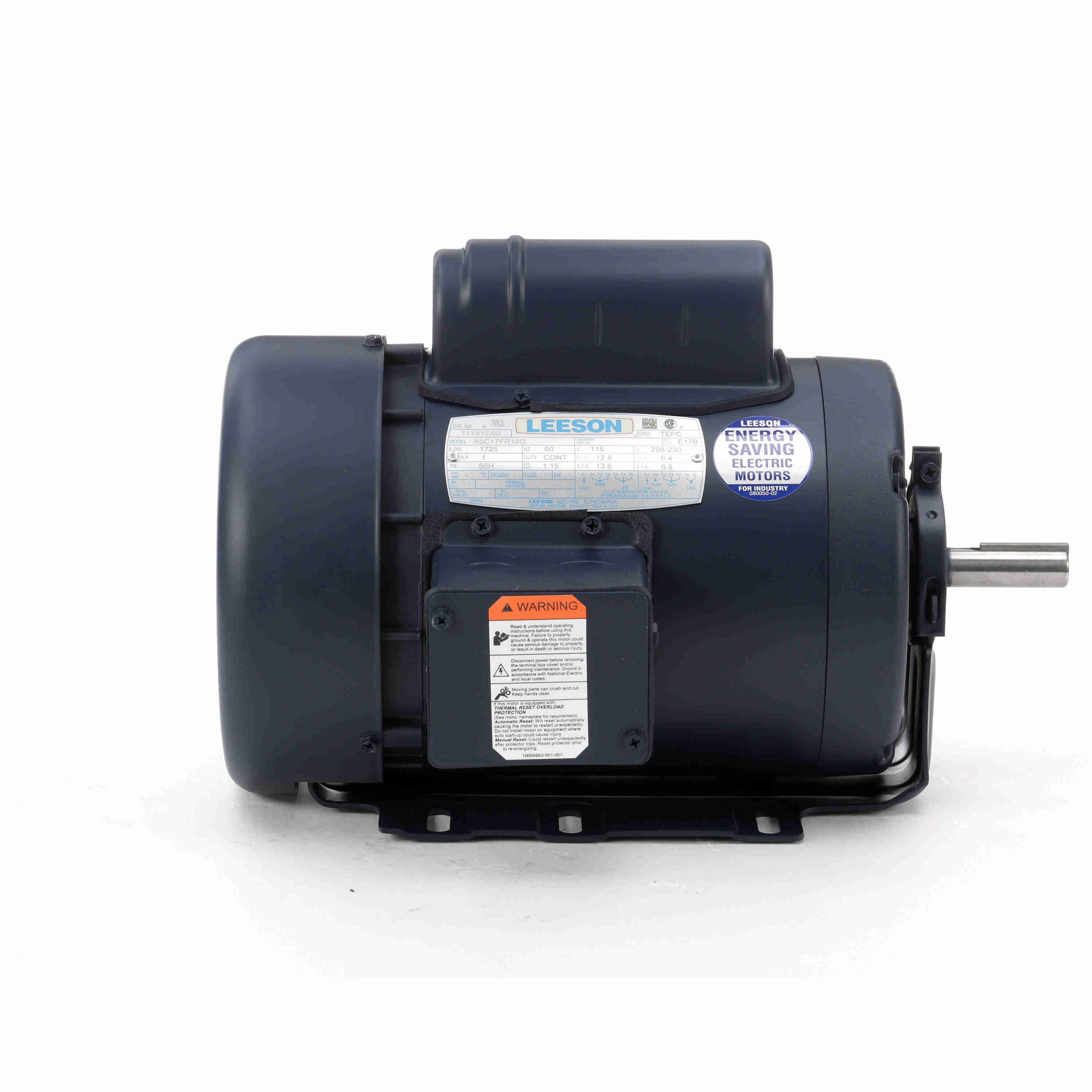

111915.00 Leeson 1HP Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 111915.00

Selected accessories will also be added to cart
$696.65 / Each
Quantity:
A6C17FR10G, 56H Frame, 115/208-230V
Features
  • Double shielded ball bearings
  • Dynamically balanced rotors
  • NEMA ® Design B performance
  • Continuous Duty
  • Meets or exceeds NEMA service factors
General Specifications
Model : A6C17FR10G Catalog No : 111915.00
Part Description : 1HP..1725RPM.56H.TEFC./V.1PH.60HZ.CONT.AUTOMATIC.40C.1.15SF.RESIL.GENERAL PURPOSE.A6C17FR10G Category : Totally Enclosed Fan Cooled (TEFC)
Stock : No
Nameplate Specifications
Output HP : 1 Hp Output KW : 0.75 kW
Frequency : 60 Hz Voltage : 115/208-230 V
Current : 12.8/6.4 A Speed : 1725 rpm
Service Factor : 1.15 Phase : 1
Efficiency : 75 % Duty : CONTINUOUS
Insulation Class : B Design Code : L
KVA Code : K Frame : 56H
Enclosure : TEFC Overload Protector : AUTOMATIC
Ambient Temperature : 40 °C Drive End Bearing Size : 6203
Opp Drive End Bearing Size : 6203 UL : Recognized
CSA : Y CE : N
IP Code : 43
Technical Specifications
Electrical Type : CAP START IND RUN Starting Method : ACROSS THE LINE
Poles : 4 Rotation : SELECTIVE CCW
Mounting : RESILIENT BASE Motor Orientation : HORIZONTAL
Drive End Bearing : BALL Opp Drive End Bearing : BALL
Frame Material : ROLLED STEEL Shaft Type : STANDARD 56
Overall Length : 12.96 in Frame Length : 6 in
Shaft Diameter : 0.63 in Shaft Extension : 1.88 in
Assembly/Box Mounting : F1 ONLY UPC : 691720010105
Weight : 34.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 0.0 6.70 223.0 0 0.00 0.0 1.00
Full Load 6.40 0.0 3.00 100.0 1,747 0.00 0.0 1.00
Break-Down 0.00 0.0 7.00 233.0 0 0.00 0.0 1.00
Locked-Rotor 33.00 0.0 9.00 300.0 0 0.00 0.0 1.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.60
  • 0.148
  • 0.0
  • 14.0
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 4.76
  • 0.340
  • 56.0
  • 31.1
  • 1,786
  • 0.0
  • 0.75
  • 50 %
  • 5.17
  • 0.542
  • 69.7
  • 45.6
  • 1,774
  • 0.0
  • 1.50
  • 75 %
  • 5.80
  • 0.774
  • 72.8
  • 58.0
  • 1,762
  • 0.0
  • 2.25
  • 100 %
  • 6.42
  • 0.993
  • 75.0
  • 67.2
  • 1,747
  • 73.0
  • 3.00
  • 115 %
  • 6.85
  • 1.135
  • 75.0
  • 72.0
  • 1,737
  • 0.0
  • 3.45
  • 125 %
  • 7.56
  • 1.271
  • 72.4
  • 73.1
  • 1,728
  • 0.0
  • 3.75
  • 150 %
  • 8.82
  • 1.552
  • 70.3
  • 76.5
  • 1,708
  • 0.0
  • 4.50
