/Products/Electric Motors/3 Phase/Leeson/114638.00 Leeson 1HP Electric Motor, 1760RPM
Click Image to Expand

Product ID: 114638.00

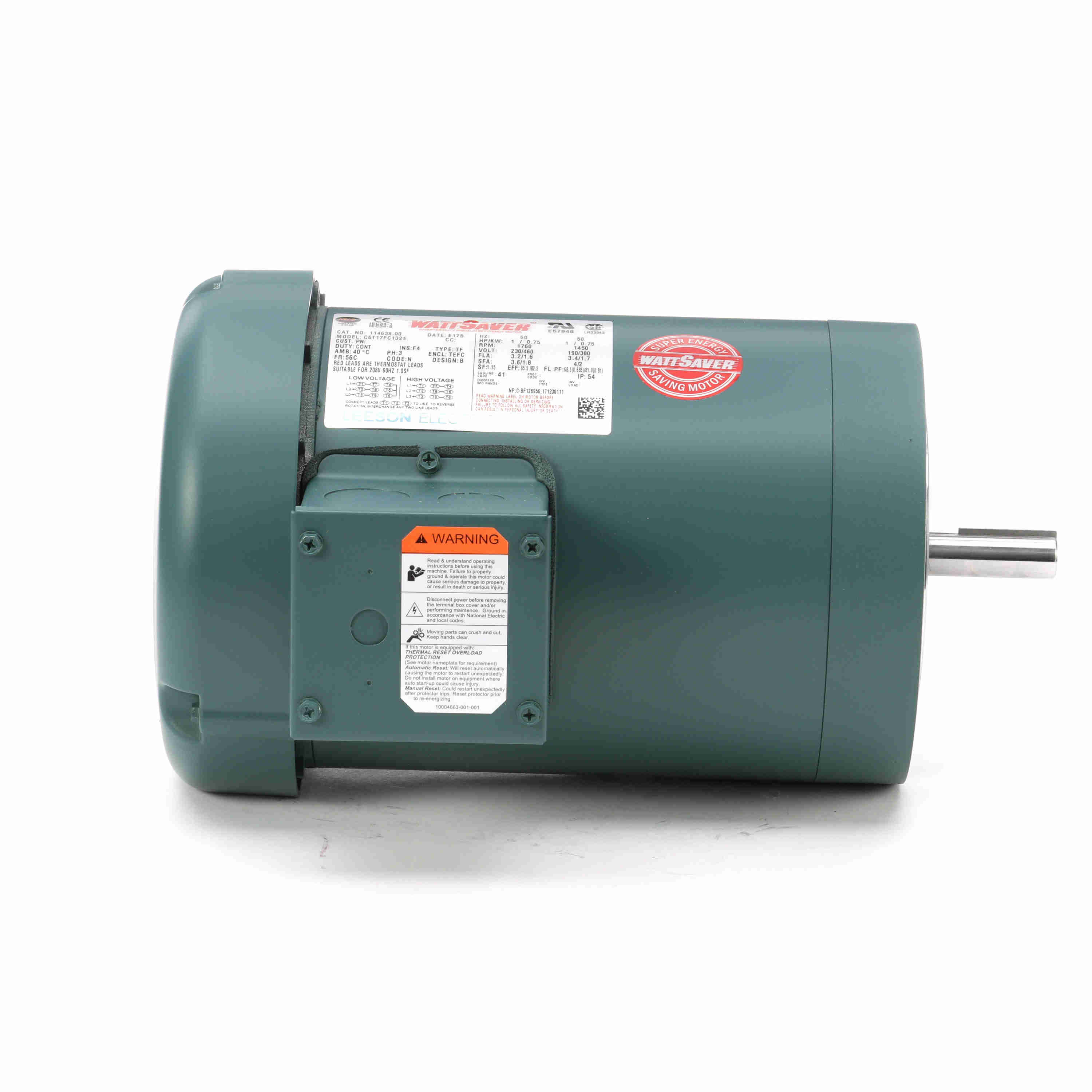

114638.00 Leeson 1HP Electric Motor, 1760RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 114638.00

Temporarily out of stock
Selected accessories will also be added to cart
$902.88 / Each
Quantity:
TEFC, 56C Frame, 208-230/460V 3-Phase 60Hz, C-Face Less Base, C6T17FC132E
Features
  • Premium efficient ratings
  • Inverter-rated; Continuous duty
  • Class B insulation systems – 42, 48 and 56 frames
  • Shielded ball bearings for direct coupled applications Contact your local sales office for belted load applications
  • Dynamically balanced rotors
  • Torques exceed NEMA performance standards; UL recognized and CSA certified
General Specifications
Model :C6T17FC132E Catalog No :114638.00
Part Description :..1HP..1760RPM.56.TEFC.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.C6T17FC132E.....WATTSAVER.T-STATS....... Category :Totally Enclosed Fan Cooled (TEFC)
Stock :No
Nameplate Specifications
Output HP :1 Hp Output KW :0.75 kW
Frequency :60 Hz Voltage :230/460 V
Current :3.2/1.6 A Speed :1760 rpm
Service Factor :1.15 Phase :3
Efficiency :85.5 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :N Frame :56C
Enclosure :Totally Enclosed Fan Cooled Overload Protector :Automatic
Ambient Temperature :40 °C Drive End Bearing Size :6203
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :Y
IP Code :54
Technical Specifications
Electrical Type :Squirrel Cage Inverter Rated Starting Method :Line Or Inverter
Poles :4 Rotation :Reversible
Mounting :Round Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :12.48 in Frame Length :7.00 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720014257
Weight :37.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up13.020.011.900.01107.200.01.00
Locked-Rotor14.000.012.000.007.300.01.00
Full Load1.700.03.000.01,7610.9169.91.00
Break-Down9.860.015.800.01,1706.160.01.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 1.00
  • 0.064
  • 0.0
  • 8.0
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 1.02
  • 0.263
  • 72.5
  • 32.4
  • 1,789
  • 0.0
  • 0.75
  • 50 %
  • 1.16
  • 0.476
  • 79.6
  • 51.5
  • 1,779
  • 0.0
  • 1.50
  • 75 %
  • 1.35
  • 0.662
  • 85.4
  • 61.5
  • 1,769
  • 0.0
  • 2.25
  • 100 %
  • 1.55
  • 0.876
  • 85.5
  • 70.9
  • 1,757
  • 38.0
  • 3.00
  • 115 %
  • 1.70
  • 1.000
  • 85.0
  • 75.0
  • 1,750
  • 0.0
  • 3.45
  • 125 %
  • 1.77
  • 1.098
  • 84.7
  • 77.9
  • 1,745
  • 60.0
  • 3.75
  • 150 %
  • 2.03
  • 1.316
  • 84.2
  • 81.4
  • 1,733
  • 0.0
  • 4.50
