/Products/Electric Motors/3 Phase/Leeson/116202.00 Leeson 1HP Fan & Blower HVAC/R Electric Motor, 900RPM
Click Image to Expand

Product ID: 116202.00

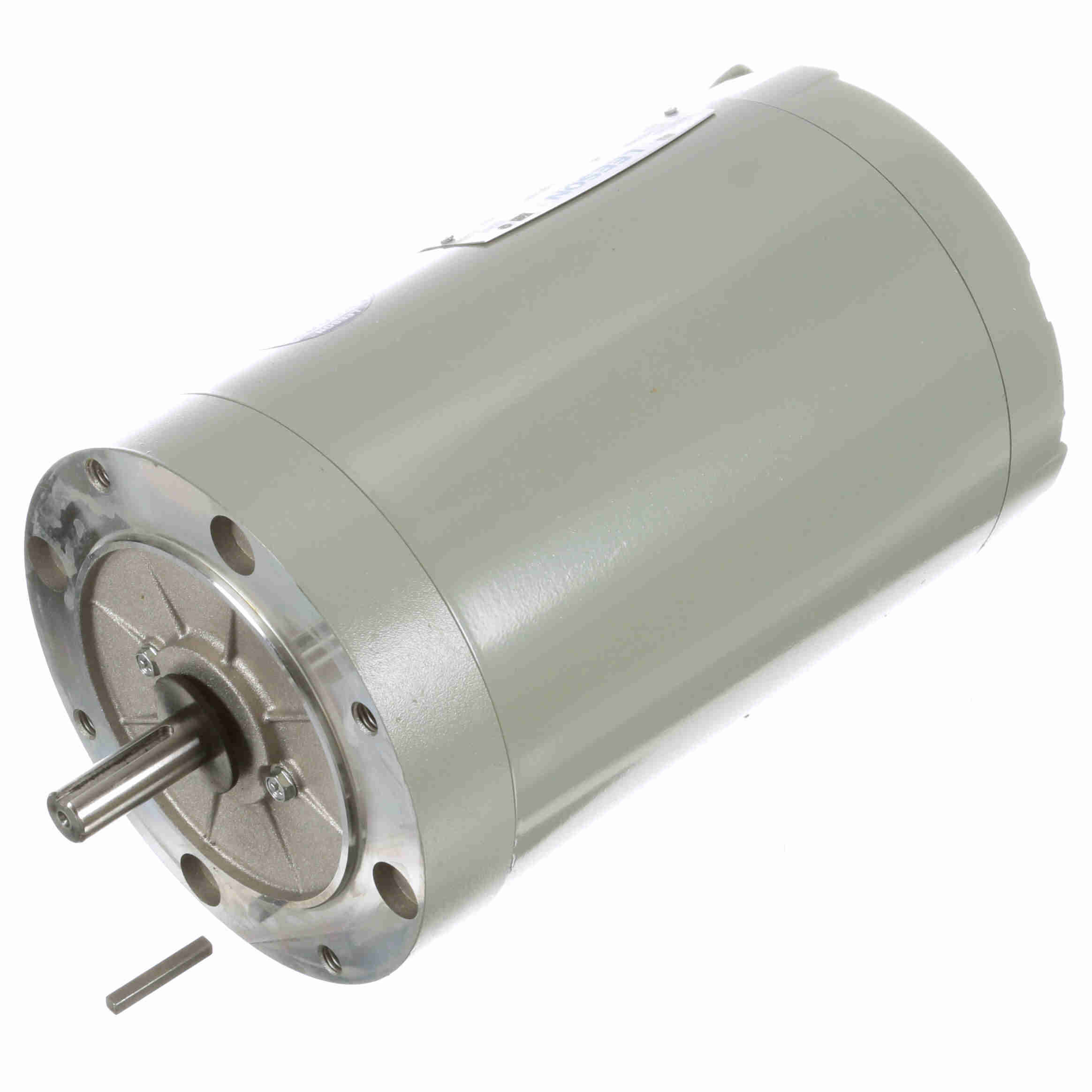

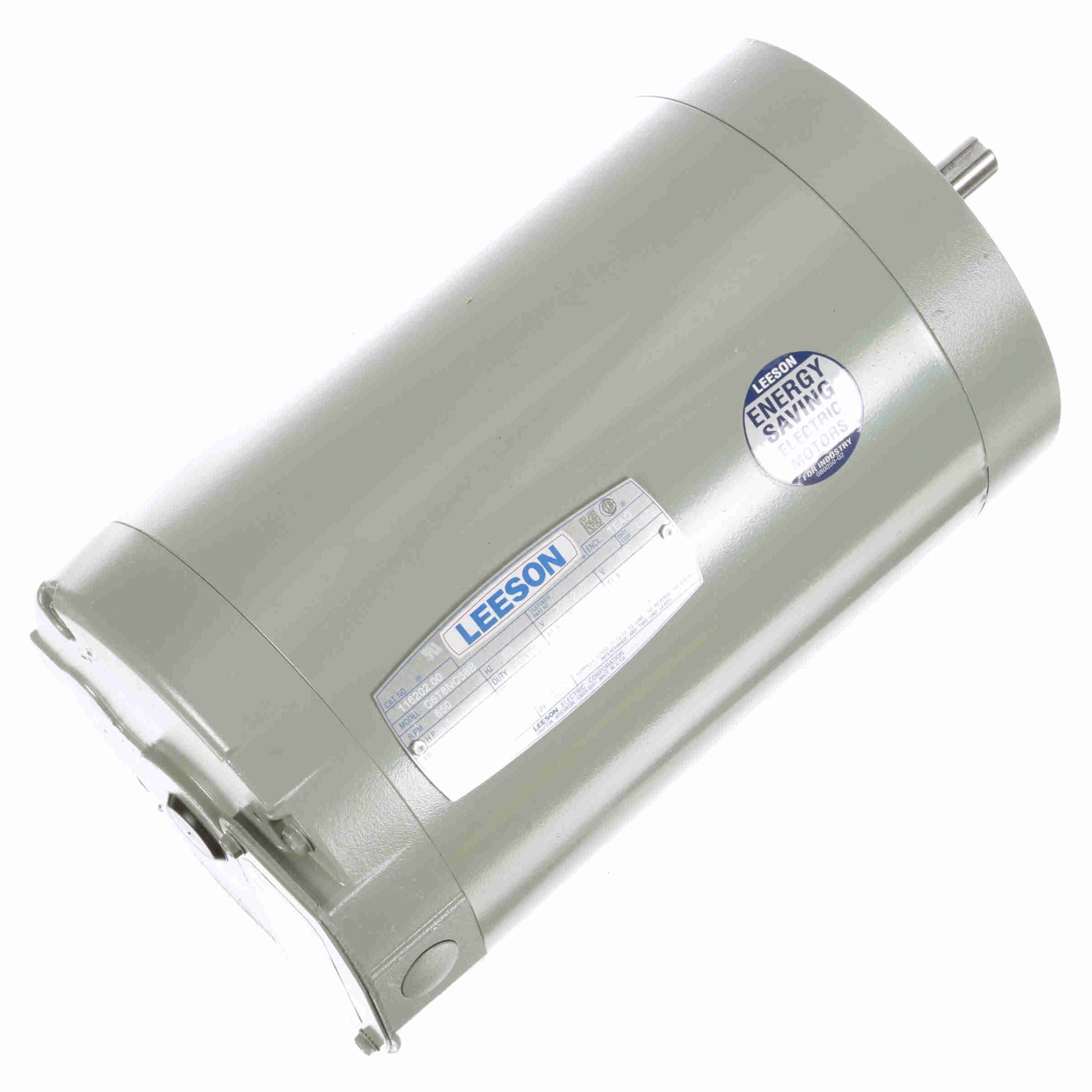

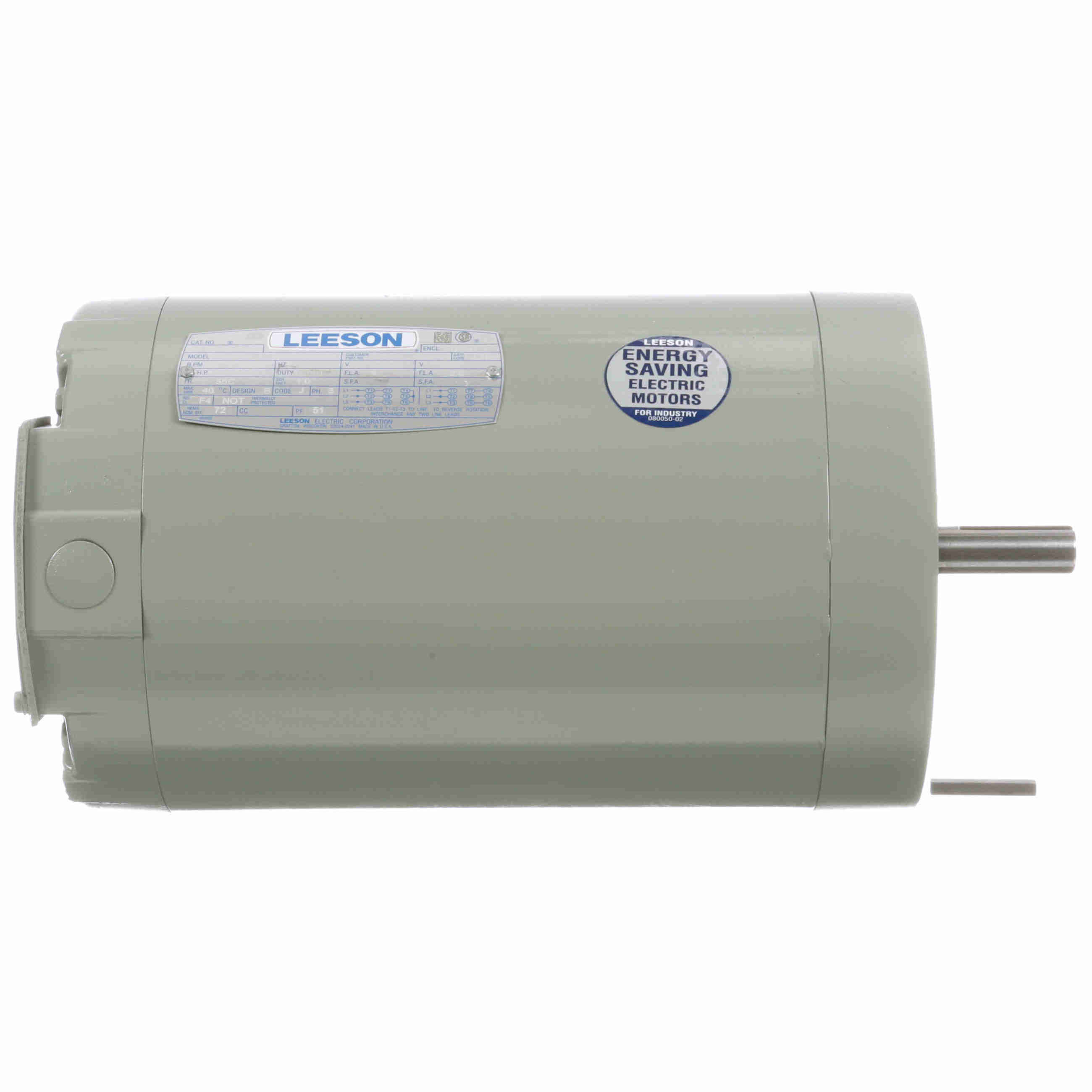

116202.00 Leeson 1HP Fan & Blower HVAC/R Electric Motor, 900RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 116202.00

Selected accessories will also be added to cart
$564.77 / Each
Quantity:
TEAO, 56C Frame, 208-230/460VAC 60Hz 3-Phase, Round Body, C-Face, Rolled Steel, 5/8" Keyed Shaft

Features

  • Rolled steel construction
  • Permanent split capacitor start motors
  • Direct drive exhaust ventilation fans
  • Extended thru-bolt designs
  • Built in terminal panel for quick connections

General Specifications

UPC: 691720292105 Weight: 44.00 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 1 Hp Output KW: 0.75 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 5.0/2.5 A Speed: 850 rpm
Service Factor: 1 Phase: 3
Efficiency: 72 % Power Factor: 51
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: J
Frame: 56C Enclosure: Totally Enclosed Air Over
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 43

Technical Specifications

Electrical Type: Squirrel Cage Induction Run Starting Method: Across The Line
Poles: 8 Rotation: Reversible
Resistance Main: 17.2 Ohms Mounting: Round
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Overall Length: 12.90 in
Frame Length: 8.00 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Pull-Up 0.00 11.50 192.0 100 1.00
Locked-Rotor 8.50 12.00 200.0 0 1.00
Break-Down 0.00 15.00 250.0 600 1.00

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 %
Current (Amps) 1.80 1.86 1.99 2.18 2.48 2.68 3.02
Rated Output (KW) 0.14 0.34 0.56 0.78 1.01 1.24 1.50
Efficiency (%) 0.0 55.2 67.3 71.1 72.0 71.7 69.9
Power Factor (%) 9.7 23.1 35.1 44.9 51.0 58.3 62.1
Speed (RPM) 899 889 878 866 850 837 817
Temp. Rise @ FL 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Torque (ft-lbs) 0.00 1.50 3.00 4.50 6.00 7.50 9.00
