/Products/Electric Motors/Single Phase Stainless Steel/Leeson/116919.00 Leeson 3/4HP Premium Duck Washdown Electric Motor, 1140RPM
Click Image to Expand

Product ID: 116919.00

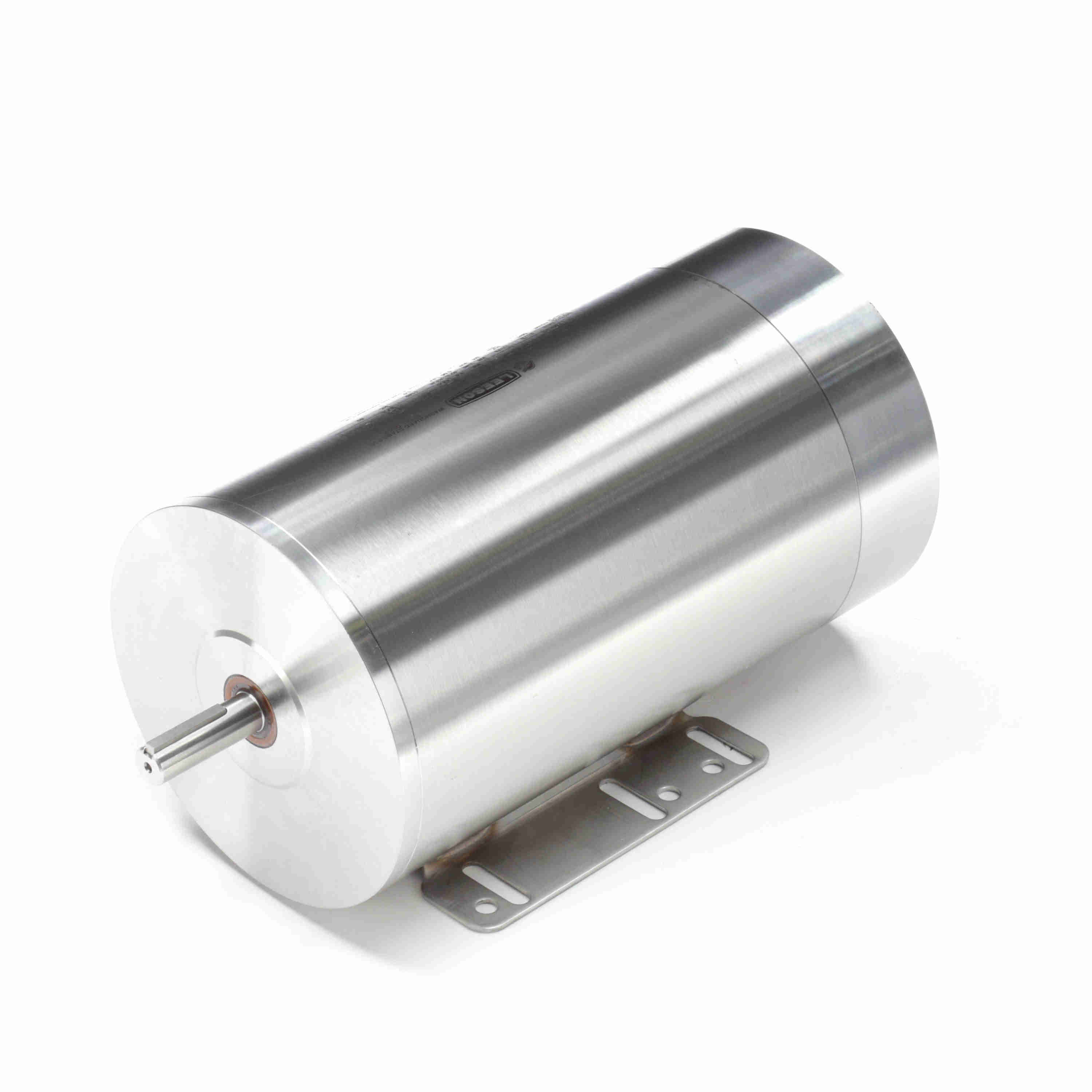

116919.00 Leeson 3/4HP Premium Duck Washdown Electric Motor, 1140RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 116919.00

Selected accessories will also be added to cart
$1,275.16 / Each
Quantity:
TENV, 56H Frame, 115/208-230V Single Phase 60Hz, Rigid Base, UZ6K11VB1B

Features

Features
  • All exterior components are 300-series stainless steel
  • All sealing components are Viton® for superior chemical resistance
  • End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • Interior coatings applied to rotor and stator protect against corrosion
  • Windings are immersed and cured in polyester insulating varnish for extra moisture-resistance
  • Single and three phase motors are UL component recognized – file number E57948, guide number PRGY2
  • CSA Energy Efficiency Verification Program, report number EEV 78720-1

General Specifications

General Specifications
Model :UZ6K11VB1B Catalog No :116919.00
Part Description :..3/4HP..1140RPM.56H.TENV.115/208-230V.1PH.60HZ.CONT.40C.1.0SF.RIGID.UZ6K11VB1B......AUTOMATIC....3/4/0.56KW... Category :1 Phase
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.75 HP Output KW :0.56 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :8.4/4.4-4.2 A Speed :1140 RPM
Service Factor :1 Phase :1
Efficiency :71.7 % Duty :Continuous
Insulation Class :F Design Code :NO DESIGN CODE
KVA Code :H Frame :56H
Enclosure :Totally Enclosed Non Ventilated Overload Protector :Automatic
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :No
CSA :N CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Capacitor Run Starting Method :Across The Line
Poles :6 Rotation :Selective Counterclockwise
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :13.88 in Frame Length :9.50 in
Shaft Diameter :0.625 in Shaft Extension :1.87 in
Assembly/Box Mounting :F1 ONLY UPC :691720053096
Weight :56.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Break-Down0.00110.00204.01,0500.75
Locked-Rotor22.00100.00185.000.75
Pull-Up0.0070.00130.07000.75
Full Load4.2054.00100.01,1400.75
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 2.20
  • 0.190
  • 0.0
  • 37.5
  • 1,198
  • 0.0
  • 0.00
  • 25 %
  • 2.35
  • 0.312
  • 45.8
  • 57.7
  • 1,193
  • 0.0
  • 13.50
  • 50 %
  • 2.79
  • 0.445
  • 63.9
  • 69.3
  • 1,185
  • 0.0
  • 27.00
  • 75 %
  • 3.39
  • 0.590
  • 71.7
  • 75.7
  • 1,176
  • 0.0
  • 40.50
  • 100 %
  • 4.10
  • 0.756
  • 74.0
  • 80.2
  • 1,167
  • 0.0
  • 54.00
  • 125 %
  • 4.90
  • 0.927
  • 74.7
  • 82.3
  • 1,155
  • 0.0
  • 67.50
  • 150 %
  • 5.94
  • 1.128
  • 72.6
  • 82.6
  • 1,139
  • 0.0
  • 81.00
