/Products/Electric Motors/3 Phase Stainless Steel/Leeson/117267.00 Leeson 3/4HP Washguard Stainless Steel Electric Motor, 1800RPM
Click Image to Expand

Product ID: 117267.00

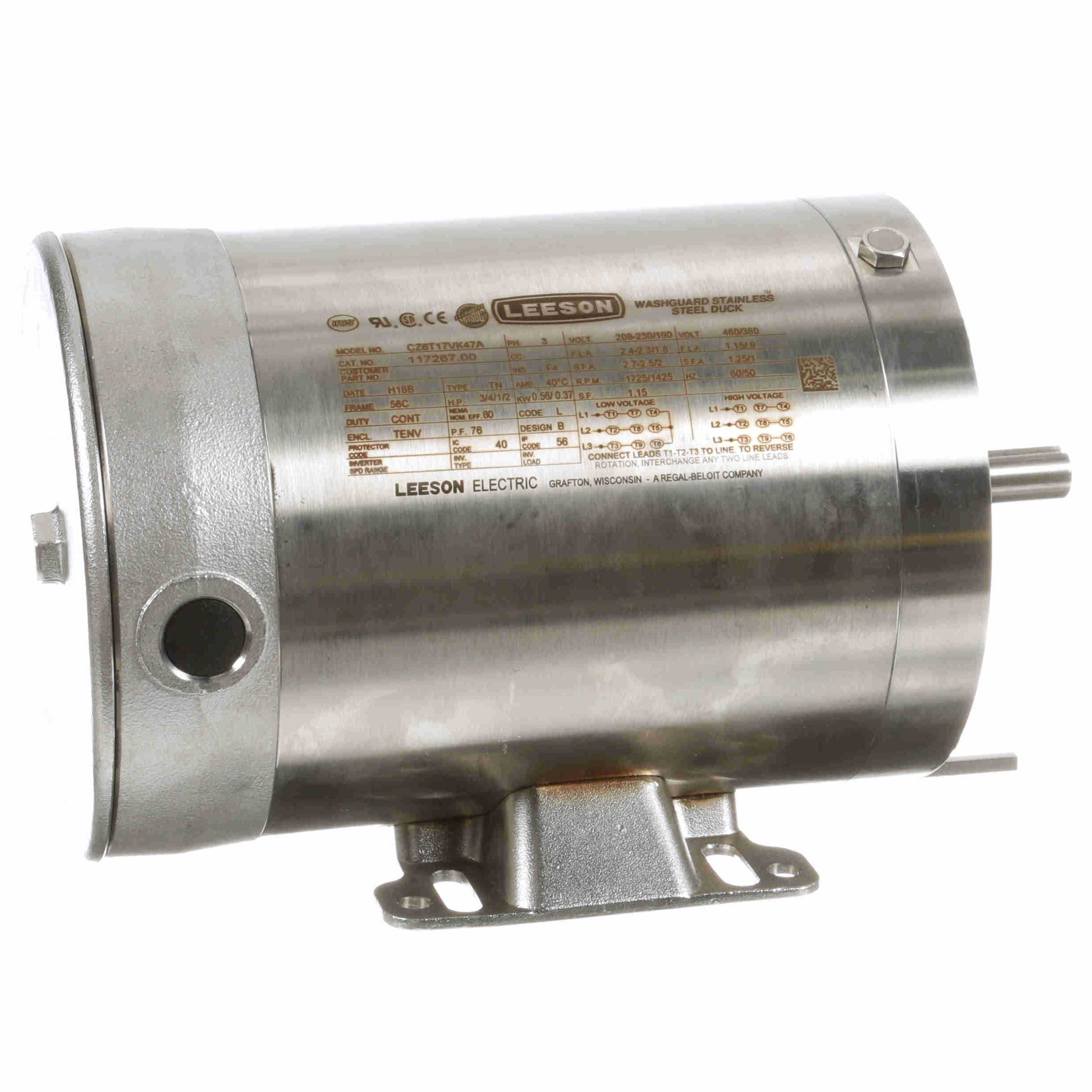

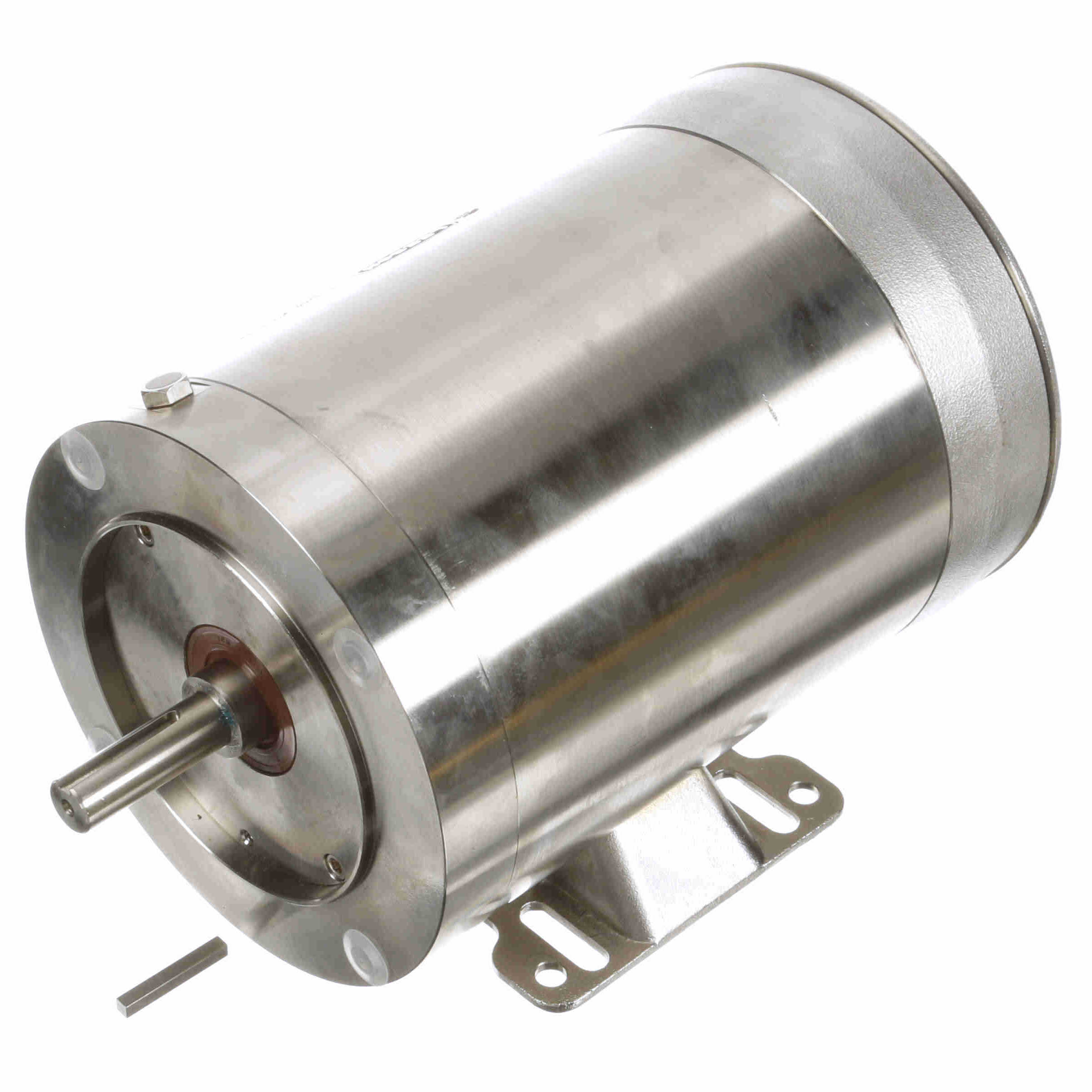

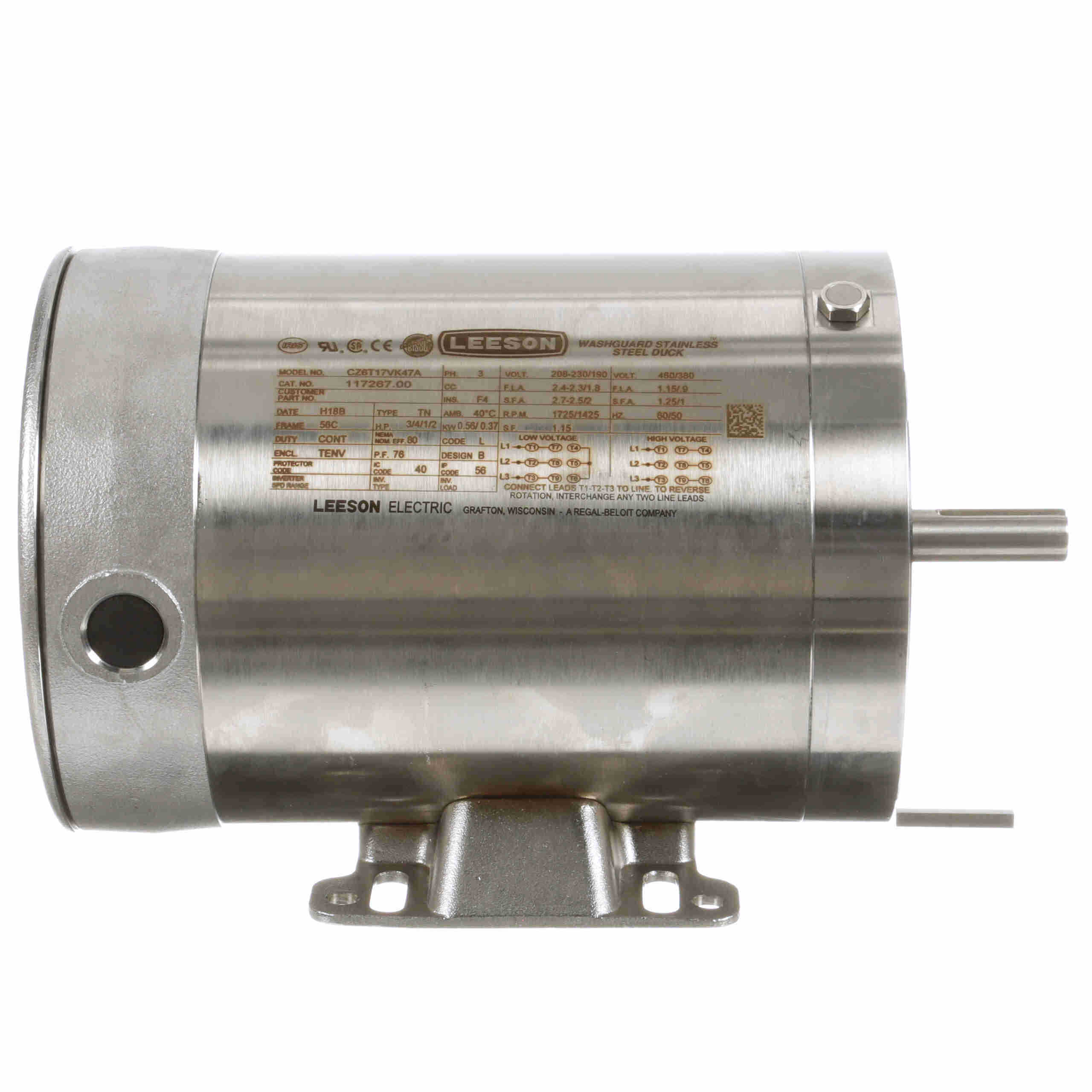

117267.00 Leeson 3/4HP Washguard Stainless Steel Electric Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 117267.00

Selected accessories will also be added to cart
$1,225.97 / Each
Quantity:
TENV, 56C Frame, 208-230/460VAC 60Hz 3 Phase, CZ6T17VK4, Rigid Base, C-Face, 5/8" Keyed Shaft

Features

  • Exterior 300-series stainless steel resists corrosion and maintains strength for reliable operation.
  • Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
  • All motor sealing components are Viton® for superior chemical resistance.
  • Conduit box mounting system provides optimum seal and protection (when present in motor design).

General Specifications

UPC: 691720105818 Weight: 43.00 LB
Packaged Length: 19.5 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN

Nameplate Specifications

Output HP: 0.75 Hp Output KW: 0.56 kW
Frequency: 60 Hz Voltage: 208-230/460 V
Current: 2.4-2.3/1.2 A Speed: 1725 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 80 % Power Factor: 76
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: L
Frame: 56C Enclosure: Totally Enclosed Non Ventilated
Thermal Protection: No Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6205
UL: Recognized CSA: Y
CE: Y IP Code: 56

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 0 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Stainless Steel
Shaft Type: NEMA 56 Overall Length: 11.72 in
Frame Length: 6.50 in Shaft Diameter: 0.625 in
Shaft Extension: 1.88 in Assembly/Box Mounting: F1 ONLY

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (OZ-FT) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Locked-Rotor 9.14 0.0 110.60 0.0 0 4.52 0.0 0.75
Pull-Up 9.10 0.0 104.30 0.0 129 4.60 0.0 0.75
Full Load 1.12 0.0 36.00 0.0 1,752 0.69 0.0 0.75
Break-Down 5.50 0.0 148.80 0.0 1,314 3.90 0.0 0.75

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 125 % 150 % 175 % 200 %
Current (Amps) 0.62 0.68 0.79 0.94 1.12 1.32 1.54 1.78 2.05
Rated Output (KW) 0.08 0.23 0.38 0.53 0.69 0.86 1.04 1.22 1.43
Efficiency (%) 0.0 62.0 74.5 79.1 81.2 81.5 81.0 80.1 78.4
Power Factor (%) 17.0 42.1 59.4 70.5 77.3 81.8 84.6 86.2 87.2
Speed (RPM) 1,794 1,788 1,777 1,765 1,753 1,740 1,725 1,709 1,689
Temp. Rise @ FL 0.0 0.0 0.0 0.0 82.0 0.0 0.0 0.0 0.0
Torque (OZ-FT) 0.00 8.90 17.80 26.80 36.00 45.30 54.80 64.60 74.70
