/Products/Electric Motors/3 Phase Stainless Steel/Leeson/117275.00 Leeson 1/2HP Washguard Stainless Steel Electric Motor, 1140RPM
Click Image to Expand

Product ID: 117275.00

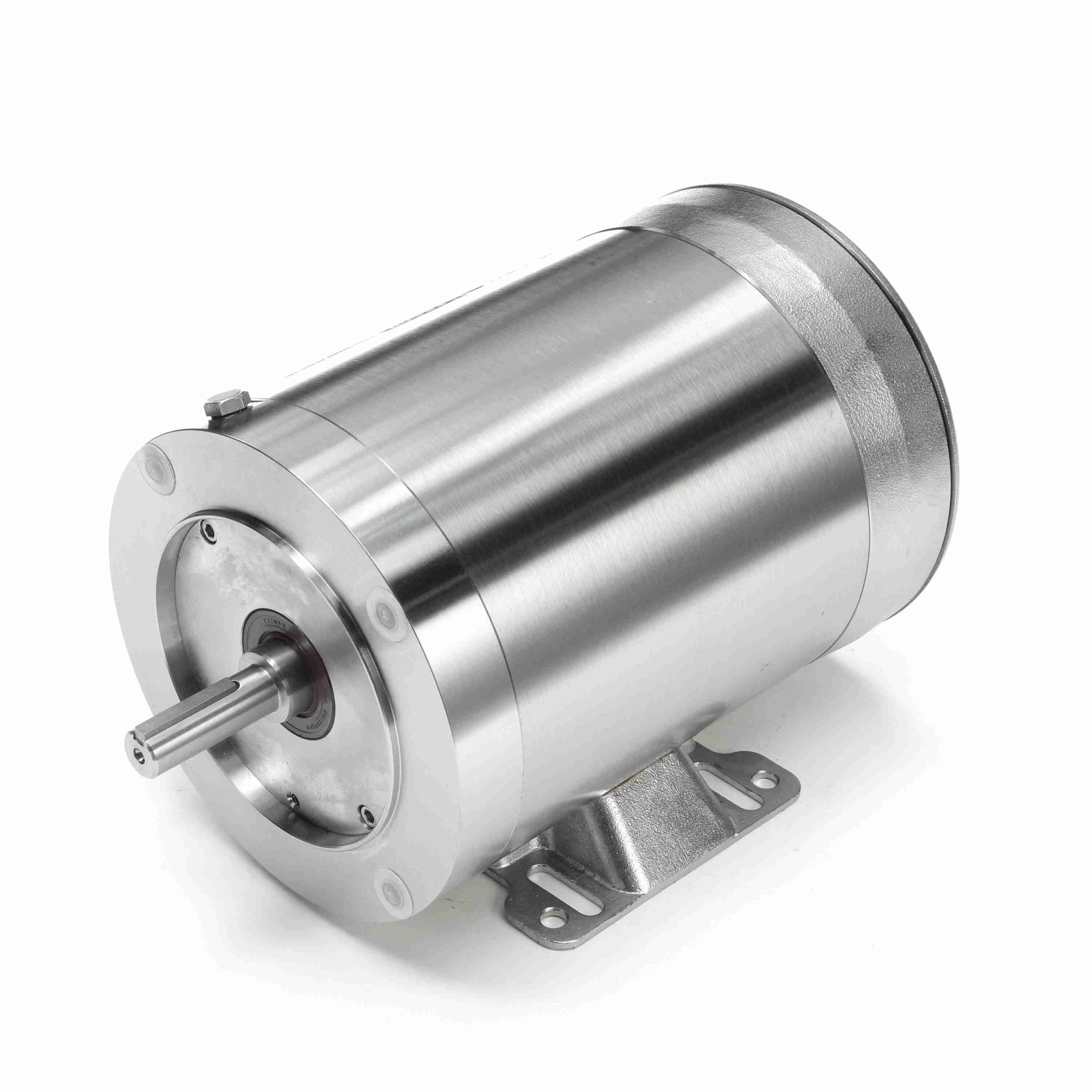

117275.00 Leeson 1/2HP Washguard Stainless Steel Electric Motor, 1140RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 117275.00

Selected accessories will also be added to cart
$1,474.97 / Each
Quantity:
TENV, 56H Frame, 208-230/460V 3-Phase 60Hz, CZ6T11VK5A
Features
  • All exterior components are 300-series stainless steel; All sealing components are Viton® for superior chemical resistance
  • End shields are O-ring sealed to the frame; Double lip shaft seals on both ends of TEFC motors (shaft end only on TENV motors)
  • Double-sealed bearings are pre-lubricated with moisture-resistant high temperature grease for long life
  • Interior coatings applied to rotor and stator protect against corrosion; Ease to clean construction is BISSC Certified for bakery applications
  • Removable hydrophobic breathers in opposite shaft end bell and conduit box equalize pressure without allowing moisture to enter
  • LEESON’s exclusive IRIS™ Inverter-Rated Insulation System provides extra protection and long life, especially in inverter-driven applications
  • Full fact nameplate is laser etched on the motor frame
General Specifications
Model :CZ6T11VK5A Catalog No :117275.00
Part Description :..1/2HP..1140RPM.56H.TENV.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID C.CZ6T11VK5A......NOT....... Category :3 Phase
Stock :No
Nameplate Specifications
Output HP :0.50 Hp Output KW :0.37 kW
Frequency :60 Hz Voltage :208-230/460 V
Current :2.4-2.3/1.2 A Speed :1140 rpm
Service Factor :1.15 Phase :3
Efficiency :77 % Duty :Continuous
Insulation Class :F Design Code :B
KVA Code :K Frame :56HC
Enclosure :Totally Enclosed Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6205 UL :Recognized
CSA :Y CE :Y
IP Code :56
Technical Specifications
Electrical Type :Squirrel Cage Inverter Rated Starting Method :Line Or Inverter
Poles :6 Rotation :Reversible
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Stainless Steel Shaft Type :NEMA 56
Overall Length :11.47 in Frame Length :6.25 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720926048
Weight :41.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up5.420.0131.00363.02002.490.00.50
Break-Down4.510.0140.00389.07002.580.00.50
Locked-Rotor5.800.0113.00315.002.920.00.50
Full Load1.070.036.00100.01,1630.490.00.50
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 0.81
  • 0.069
  • 0.0
  • 10.7
  • 1,197
  • 0.0
  • 0.00
  • 25 %
  • 0.83
  • 0.167
  • 57.3
  • 25.2
  • 1,189
  • 0.0
  • 9.10
  • 50 %
  • 0.89
  • 0.269
  • 70.0
  • 38.1
  • 1,181
  • 0.0
  • 18.00
  • 75 %
  • 0.96
  • 0.377
  • 74.7
  • 49.0
  • 1,172
  • 0.0
  • 27.10
  • 100 %
  • 1.06
  • 0.484
  • 76.7
  • 57.3
  • 1,162
  • 77.0
  • 36.00
  • 125 %
  • 1.18
  • 0.599
  • 76.9
  • 63.9
  • 1,152
  • 0.0
  • 45.10
  • 150 %
  • 1.30
  • 0.712
  • 76.7
  • 68.6
  • 1,140
  • 0.0
  • 54.00
  • 175 %
  • 1.45
  • 0.836
  • 75.5
  • 72.4
  • 1,128
  • 0.0
  • 63.10
  • 200 %
  • 1.61
  • 0.960
  • 74.1
  • 75.0
  • 1,113
  • 0.0
  • 72.00
