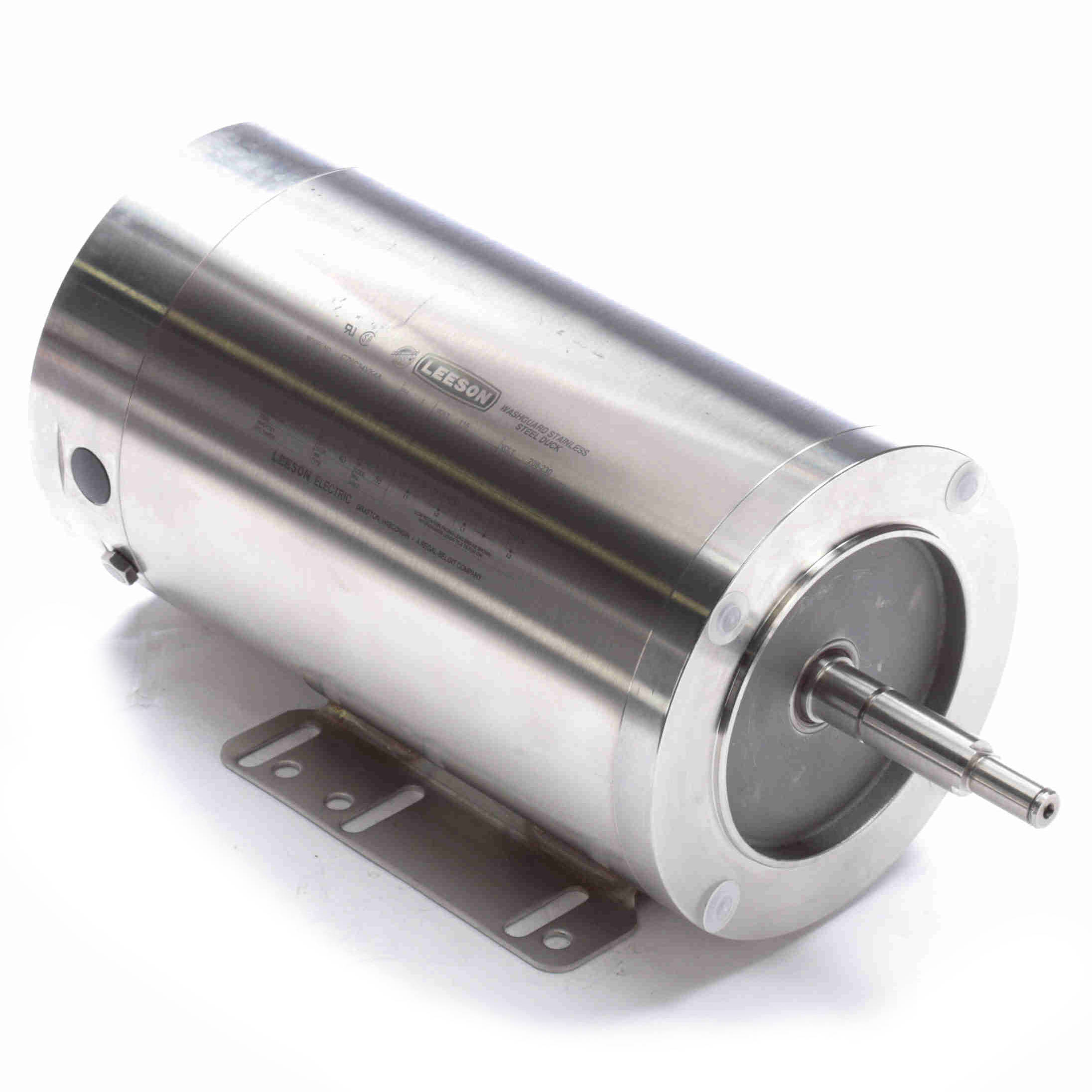

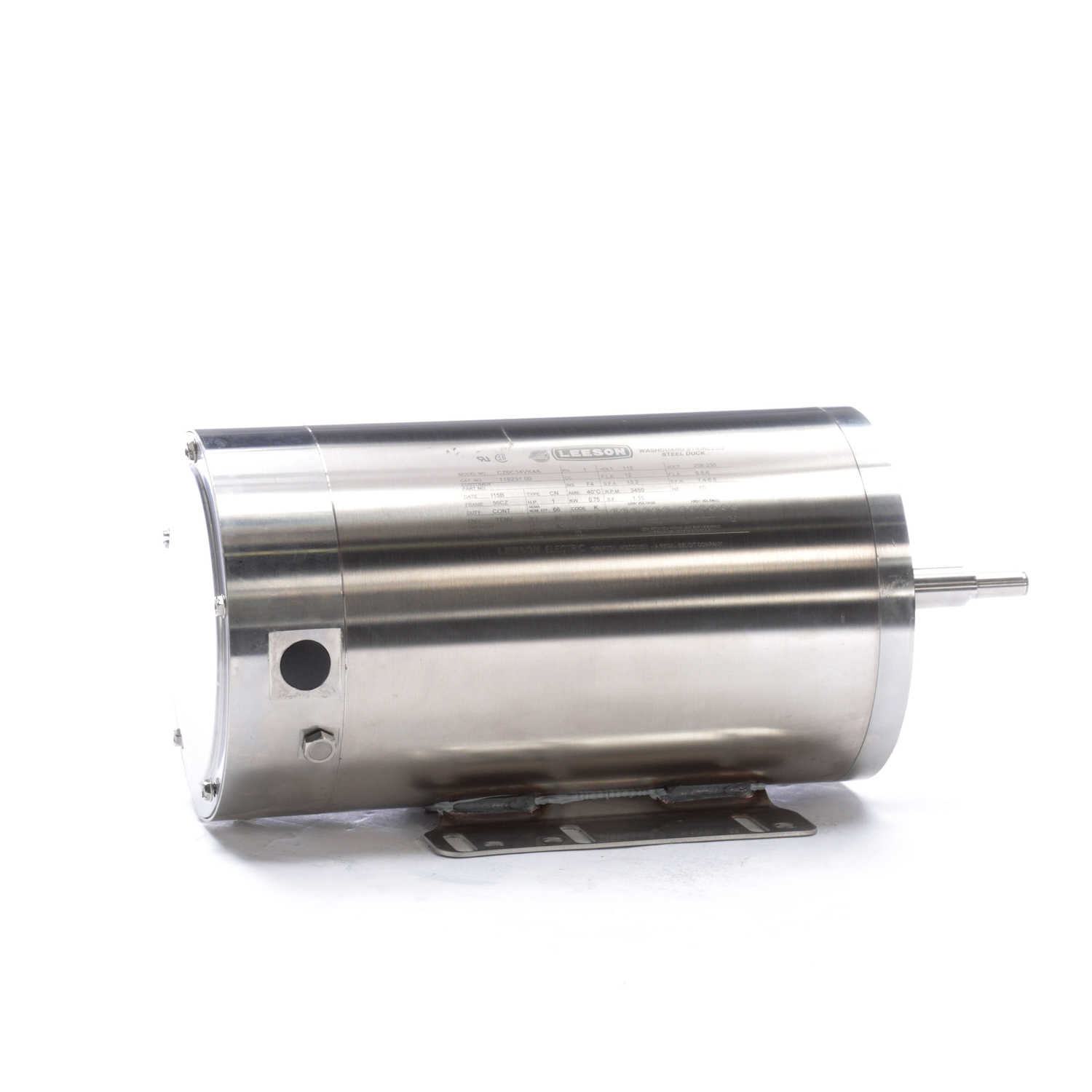

Features:
• Stainless
• Replacements for SURGE® milk pumps
• WASHGUARD® motor features for high pressure washdown applications
• Epoxy painted and stainless ratings available for corrosion protection
• Capacitor start-induction run motor
• Solid state encapsulated starting switch on capacitor start motors
Features
- Replacements for SURGE® milk pumps
- WASHGUARD® motor features for high pressure washdown applications
- Epoxy painted and stainless ratings available for corrosion protection
- Solid state encapsulated starting switch on capacitor start motors
- Three phase motor is inverter rated
General Specifications
General Specifications
| UPC: |
691720053713 |
Weight: |
49.00 LB |
| Packaged Length: |
19.5 IN |
Packaged Width: |
10.44 IN |
| Packaged Height: |
10.88 IN |
Nameplate Specifications
Nameplate Specifications
| Output HP: |
1 Hp |
Output KW: |
0.75 kW |
| Frequency: |
60 Hz |
Voltage: |
115/208-230 V |
| Current: |
12.0/6.8-6.0 A |
Speed: |
3450 rpm |
| Service Factor: |
1.15 |
Phase: |
1 |
| Efficiency: |
66 % |
Power Factor: |
80 |
| Duty: |
Continuous |
Insulation Class: |
F |
| Design Code: |
N |
KVA Code: |
K |
| Frame: |
56CZ |
Enclosure: |
Totally Enclosed Non Ventilated |
| Thermal Protection: |
No |
Ambient Temperature: |
40 °C |
| Drive End Bearing Size: |
6205 |
Opp Drive End Bearing Size: |
6203 |
| UL: |
Recognized |
CSA: |
Y |
| CE: |
N |
IP Code: |
55 |
| Number of Speeds: |
1 |
Technical Specifications
Technical Specifications
| Electrical Type: |
Capacitor Start Induction Run |
Starting Method: |
Across The Line |
| Poles: |
2 |
Rotation: |
Selective Clockwise |
| Resistance Main: |
1.92 Ohms |
Mounting: |
Rigid Base |
| Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
| Opp Drive End Bearing: |
Ball |
Frame Material: |
Stainless Steel |
| Shaft Type: |
Single Special Extension |
Overall Length: |
14.86 in |
| Frame Length: |
9.00 in |
Shaft Diameter: |
0.500 in |
| Shaft Extension: |
3.11 in |
Assembly/Box Mounting: |
F1 ONLY |
Speed Characteristics
Speed Characteristics
| Curvepoint |
Current (Amps) |
Current (%) |
Torque (OZ-FT) |
Torque (%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
| Locked-Rotor |
38.00 |
|
80.00 |
333.0 |
0 |
|
|
1.00 |
| Pull-Up |
0.00 |
|
48.00 |
200.0 |
2,400 |
|
|
1.00 |
| Break-Down |
0.00 |
|
56.00 |
233.0 |
3,000 |
|
|
1.00 |
| Full Load |
6.00 |
|
24.00 |
100.0 |
3,492 |
|
|
1.00 |
Load Characteristics
Load Characteristics
| % of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
125 % |
150 % |
| Current (Amps) |
2.68 |
3.84 |
4.20 |
5.09 |
6.11 |
7.31 |
8.64 |
| Rated Output (KW) |
0.25 |
0.64 |
0.74 |
0.96 |
1.20 |
1.47 |
1.76 |
| Efficiency (%) |
0.0 |
29.5 |
51.2 |
58.8 |
62.1 |
62.8 |
62.3 |
| Power Factor (%) |
39.9 |
72.6 |
76.3 |
81.6 |
85.3 |
87.3 |
88.5 |
| Speed (RPM) |
3,590 |
3,547 |
3,539 |
3,517 |
3,492 |
3,462 |
3,426 |
| Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
92.0 |
0.0 |
0.0 |
| Torque (OZ-FT) |
0.00 |
6.00 |
12.00 |
18.00 |
24.00 |
30.00 |
36.00 |
