/Products/Electric Motors/Single Phase/Leeson/Milk Transfer Pump/119448.00 Leeson 1HP Agriculture Duty Milk Transfer Pump Electric Motor, 3600RPM
Click Image to Expand

Product ID: 119448.00

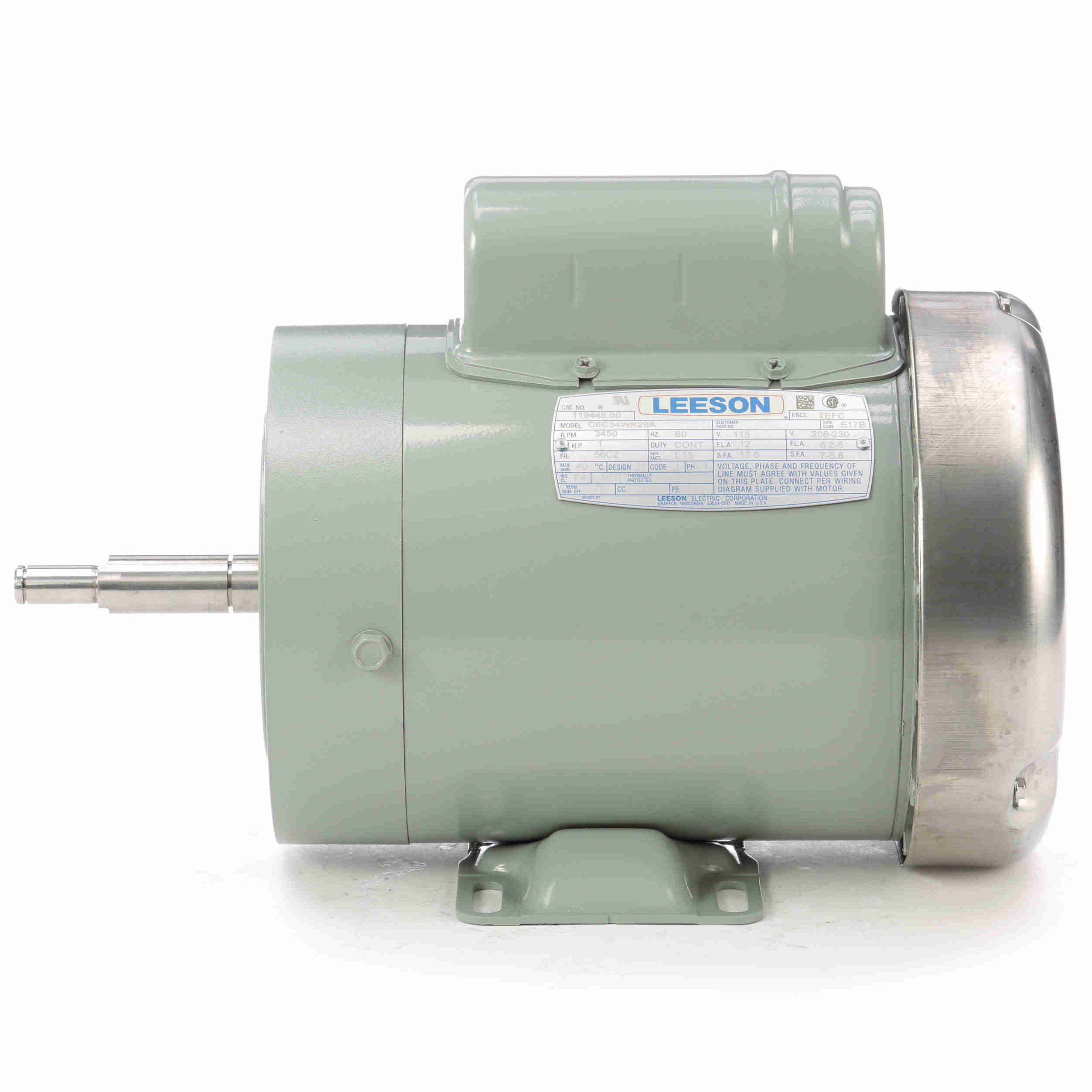

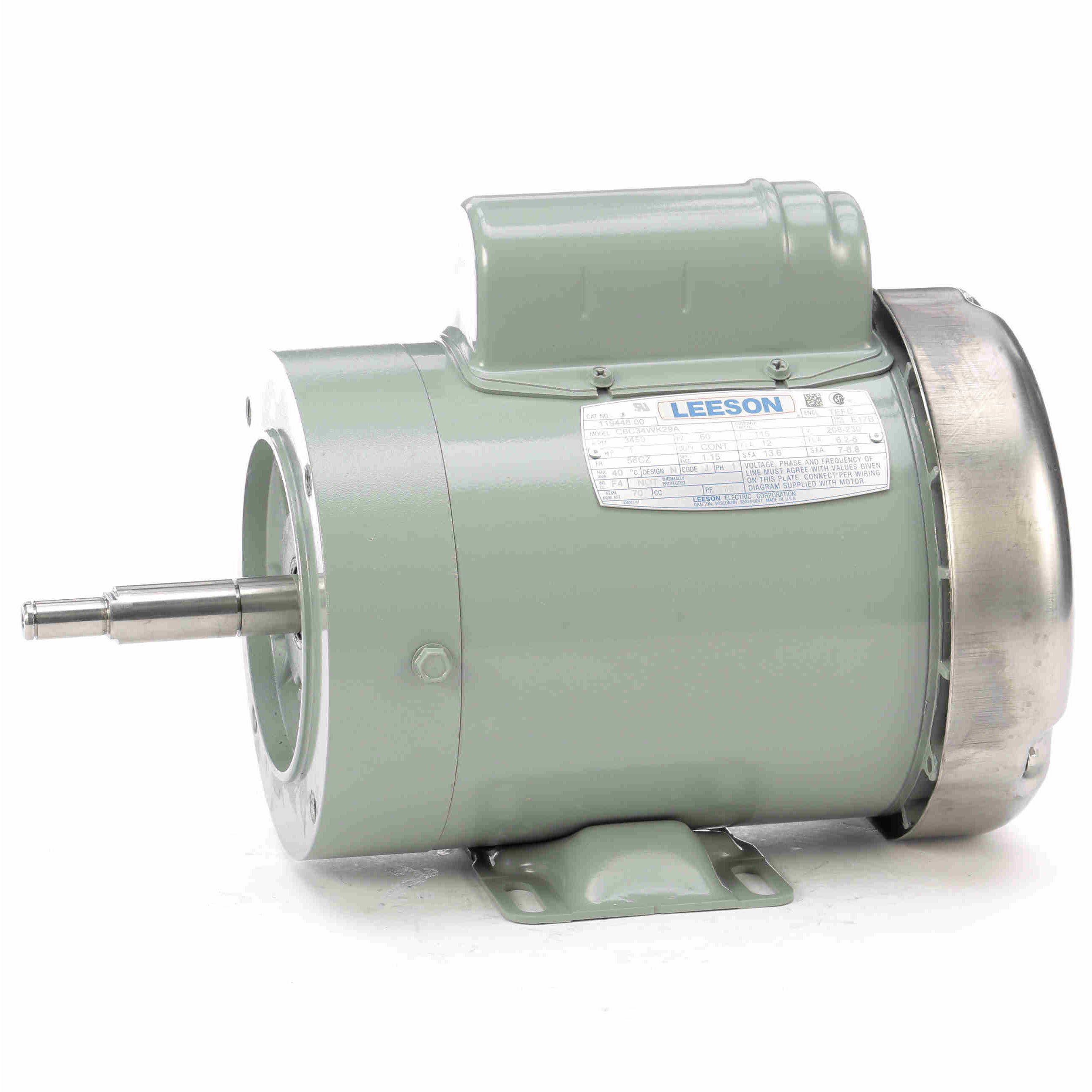

119448.00 Leeson 1HP Agriculture Duty Milk Transfer Pump Electric Motor, 3600RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: C6C34WK29

Selected accessories will also be added to cart
$504.01 / Each
Quantity:
TEFC, 56CZ Frame, 115/230VAC Single Phase 60Hz, C6C34WK29A, Rigid Base, Rolled Steel, 3/4" Shaft

Features

Features
  • Washguard® motor features for high pressure washdown applications
  • Epoxy painted and stainless ratings available for corrosion protection
  • Solid state encapsulated starting switch on capacitor start motors
  • Three phase motor is inverter rated

General Specifications

General Specifications
Model :C6C34WK29A Catalog No :119448.00
Part Description :119448.00..1HP..3450RPM.56C.TEFC.230V.1PH.60HZ.CONT.40C.1.15 S.F..RIGID C FACE.C6C34WK29.....MILK TRANSFER PUMP.NONE....... Category :Milk Transfer
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :1 HP Output KW :0.75 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :12.0/6.2-6.0 A Speed :3450 RPM
Service Factor :1.15 Phase :1
Efficiency :70 % Duty :Continuous
Insulation Class :F Design Code :N
KVA Code :J Frame :56CZ
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :43

Technical Specifications

Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :2 Rotation :Selective Counterclockwise
Mounting :Rigid Base Motor Orientation :Horizontal
Drive End Bearing :Ball Opp Drive End Bearing :Ball
Frame Material :Rolled Steel Shaft Type :Single Special Extension
Overall Length :13.04 in Frame Length :6.00 in
Shaft Diameter :0.750 in Shaft Extension :3.11 in
Assembly/Box Mounting :F1 ONLY UPC :691720053737
Weight :33.00 LB

Speed & Load Characteristics

Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor34.0080.00333.001.00
Break-Down0.0064.00267.03,0001.00
Full Load6.0024.00100.03,4911.00
Pull-Up0.0060.00250.02,8001.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. Rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.70
  • 0.180
  • 0.0
  • 21.2
  • 3,599
  • 0.0
  • 0.00
  • 25 %
  • 3.95
  • 0.387
  • 49.1
  • 42.6
  • 3,568
  • 0.0
  • 6.00
  • 50 %
  • 4.44
  • 0.595
  • 63.5
  • 58.3
  • 3,544
  • 0.0
  • 12.00
  • 75 %
  • 5.13
  • 0.819
  • 68.7
  • 69.4
  • 3,519
  • 0.0
  • 18.00
  • 100 %
  • 5.99
  • 1.055
  • 70.5
  • 76.6
  • 3,491
  • 60.0
  • 24.00
  • 125 %
  • 7.04
  • 1.314
  • 70.1
  • 81.2
  • 3,458
  • 0.0
  • 30.00
  • 150 %
  • 8.28
  • 1.598
  • 68.4
  • 83.9
  • 3,420
  • 0.0
  • 36.00
