/Products/Electric Motors/Single Phase/Leeson/Air Compressor/140681.00 Leeson 10HP Compressor Duty Electric Motor, 3515RPM
Click Image to Expand

Product ID: 140681.00

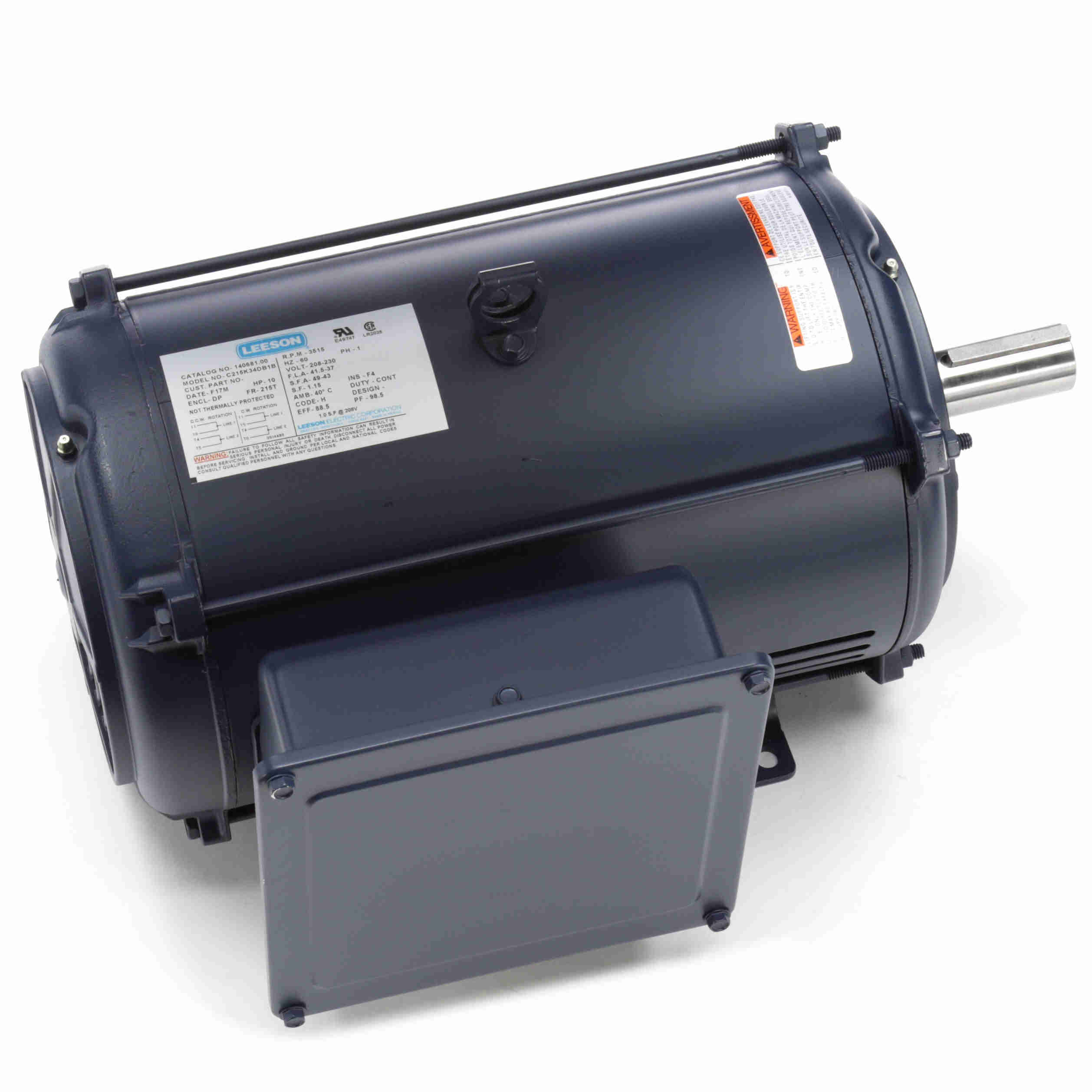

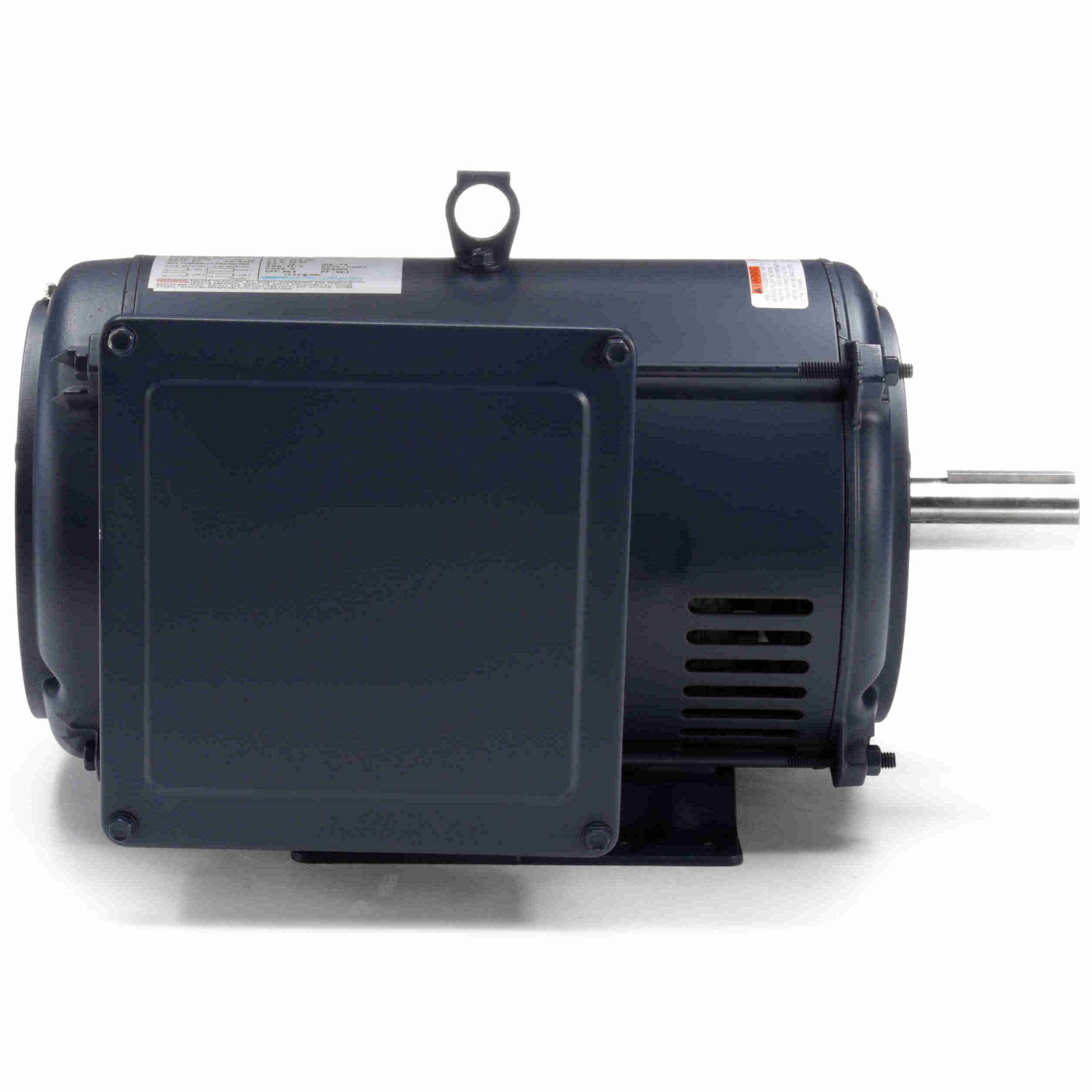

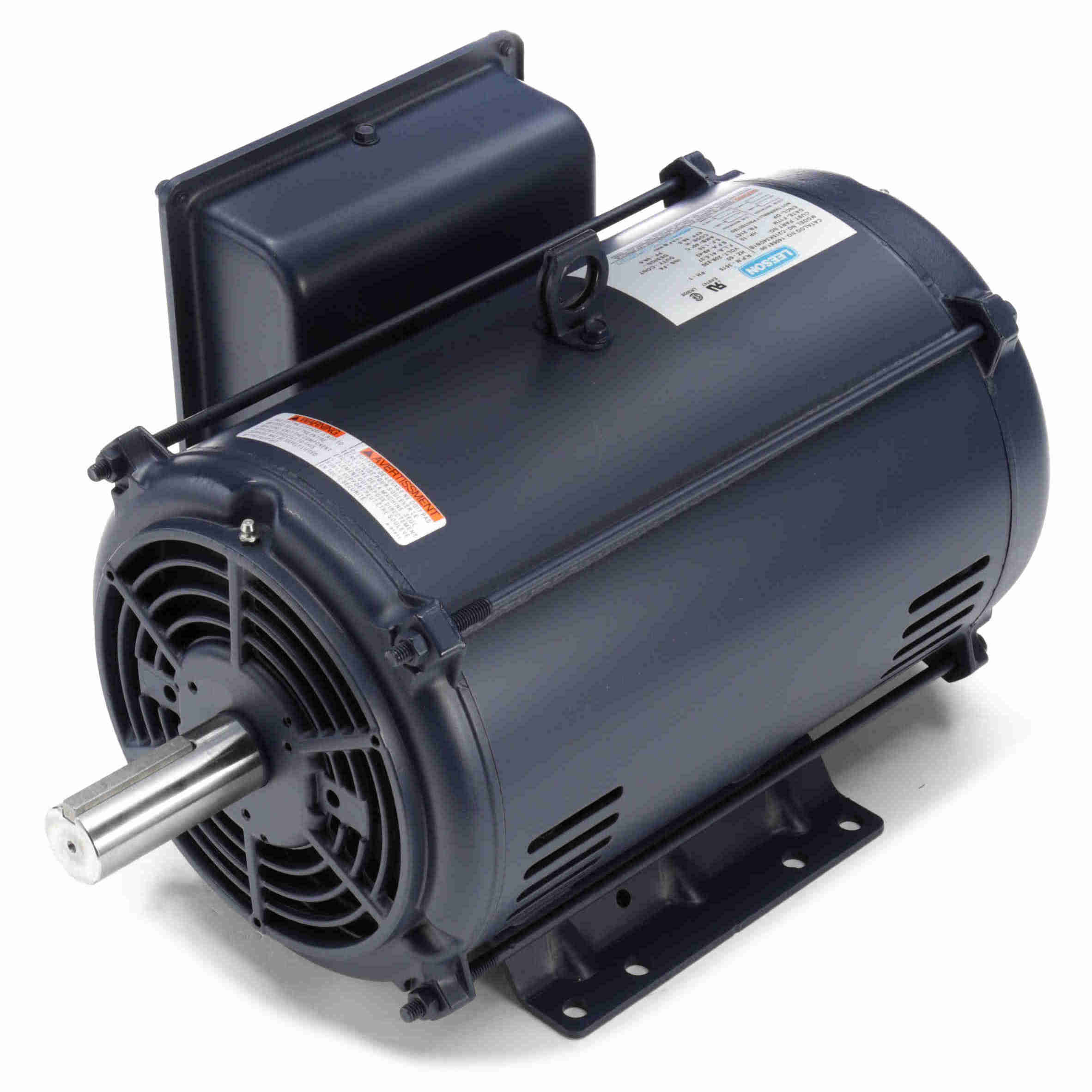

140681.00 Leeson 10HP Compressor Duty Electric Motor, 3515RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 140681.00

Selected accessories will also be added to cart
$1,918.62 / Each
Quantity:
DP, 215T Frame, 208-230VAC 60Hz Single Phase
Features
  • Double shielded ball bearings
  • Designed for belted loads
  • High efficient copper windings
  • High starting and breakdown torque
  • Dual rotation
General Specifications
Model :C215K34DB1B Catalog No :140681.00
Part Description :10HP..3515RPM.215.DP./V.1PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.GENERAL PURPOSE.C215K34DB1B Category :Air Compressor
Stock :No

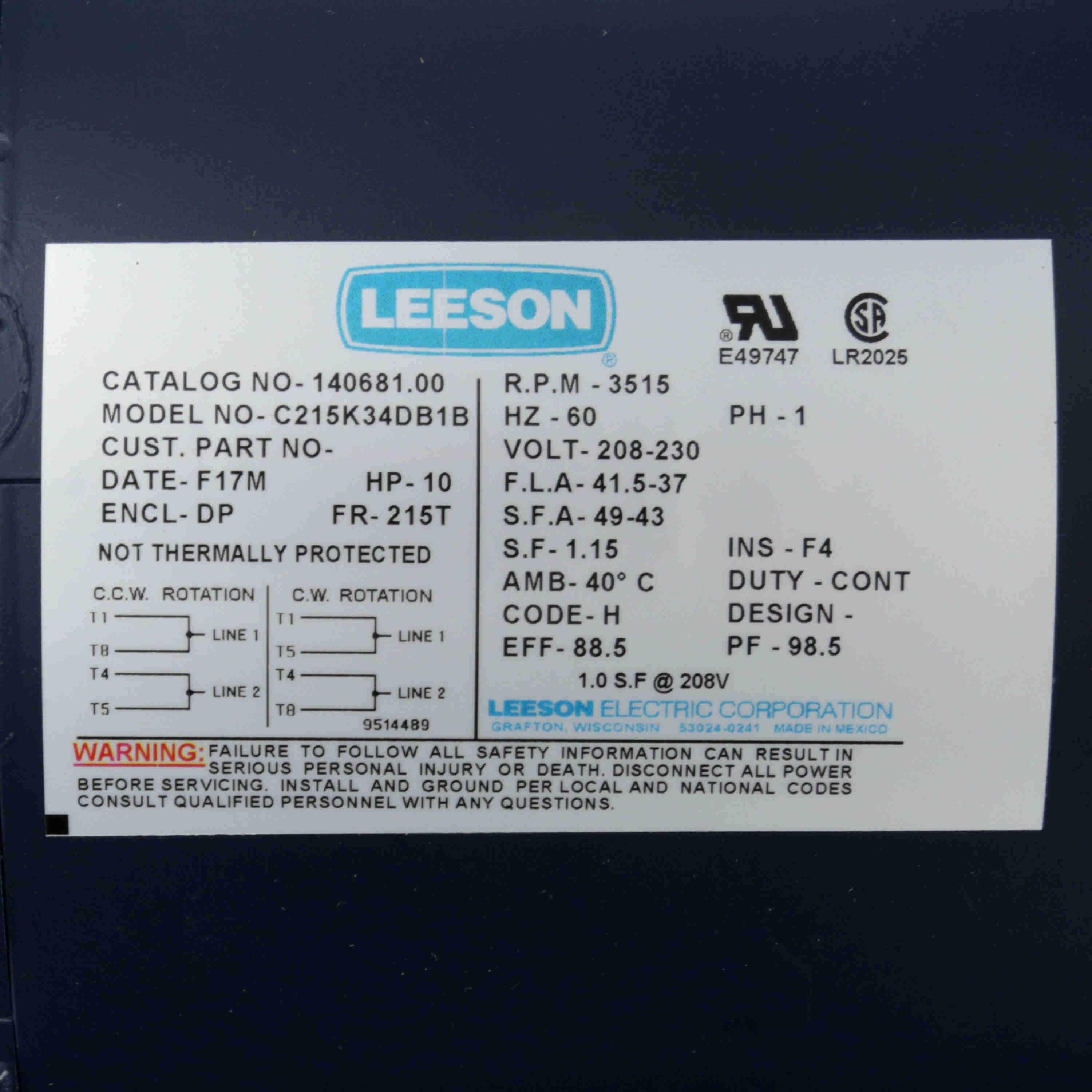

Nameplate Specifications
Output HP :10 Hp Output KW :7.5 kW
Frequency :60 Hz Voltage :208-230 V
Current :41.5-37 A Speed :3515 rpm
Service Factor :1.15 Phase :1
Efficiency :88.5 % Duty :CONTINUOUS
Insulation Class :F Design Code :NO DESIGN CODE
KVA Code :H Frame :215T
Enclosure :DP Overload Protector :NOT
Ambient Temperature :40 °C Drive End Bearing Size :307
Opp Drive End Bearing Size :206 UL :Recognized
CSA :Y CE :N
IP Code :22
Technical Specifications
Electrical Type :CAP START CAP RUN Starting Method :ACROSS THE LINE
Poles :2 Rotation :SELECTIVE CCW
Mounting :RIGID Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :ROLLED STEEL Shaft Type :T
Overall Length :19.29 in Frame Length :12.4 in
Shaft Diameter :1.38 in Shaft Extension :3.38 in
Assembly/Box Mounting :F1 ONLY UPC :691720256978
Weight :126.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Locked-Rotor295.00797.046.00307.000.000.010.00
Break-Down163.00441.041.50277.0300.000.010.00
Full Load37.00100.015.00100.03,5190.000.010.00
Pull-Up165.00446.038.00253.02,8000.000.010.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 3.80
  • 0.694
  • 0.0
  • 79.4
  • 3,597
  • 0.0
  • 0.00
  • 25 %
  • 11.10
  • 2.397
  • 78.5
  • 93.9
  • 3,581
  • 0.0
  • 3.70
  • 50 %
  • 18.60
  • 4.250
  • 88.1
  • 99.3
  • 3,562
  • 0.0
  • 7.40
  • 75 %
  • 27.40
  • 6.240
  • 89.7
  • 99.0
  • 3,541
  • 0.0
  • 11.13
  • 100 %
  • 37.00
  • 8.360
  • 89.5
  • 98.5
  • 3,515
  • 35.0
  • 15.00
  • 115 %
  • 43.00
  • 9.700
  • 88.4
  • 98.2
  • 3,495
  • 50.0
  • 17.25
  • 125 %
  • 47.20
  • 10.640
  • 87.6
  • 98.0
  • 3,490
  • 0.0
  • 18.80
  • 150 %
  • 58.50
  • 13.040
  • 86.0
  • 96.9
  • 3,462
  • 0.0
  • 22.80
