/Products/Electric Motors/Single Phase/Leeson/Catfish Pond/140705.00 Leeson 10HP Agriculture Duty Catfish Pond Aeration Motor, 1800RPM
Click Image to Expand

Product ID: 140705.00

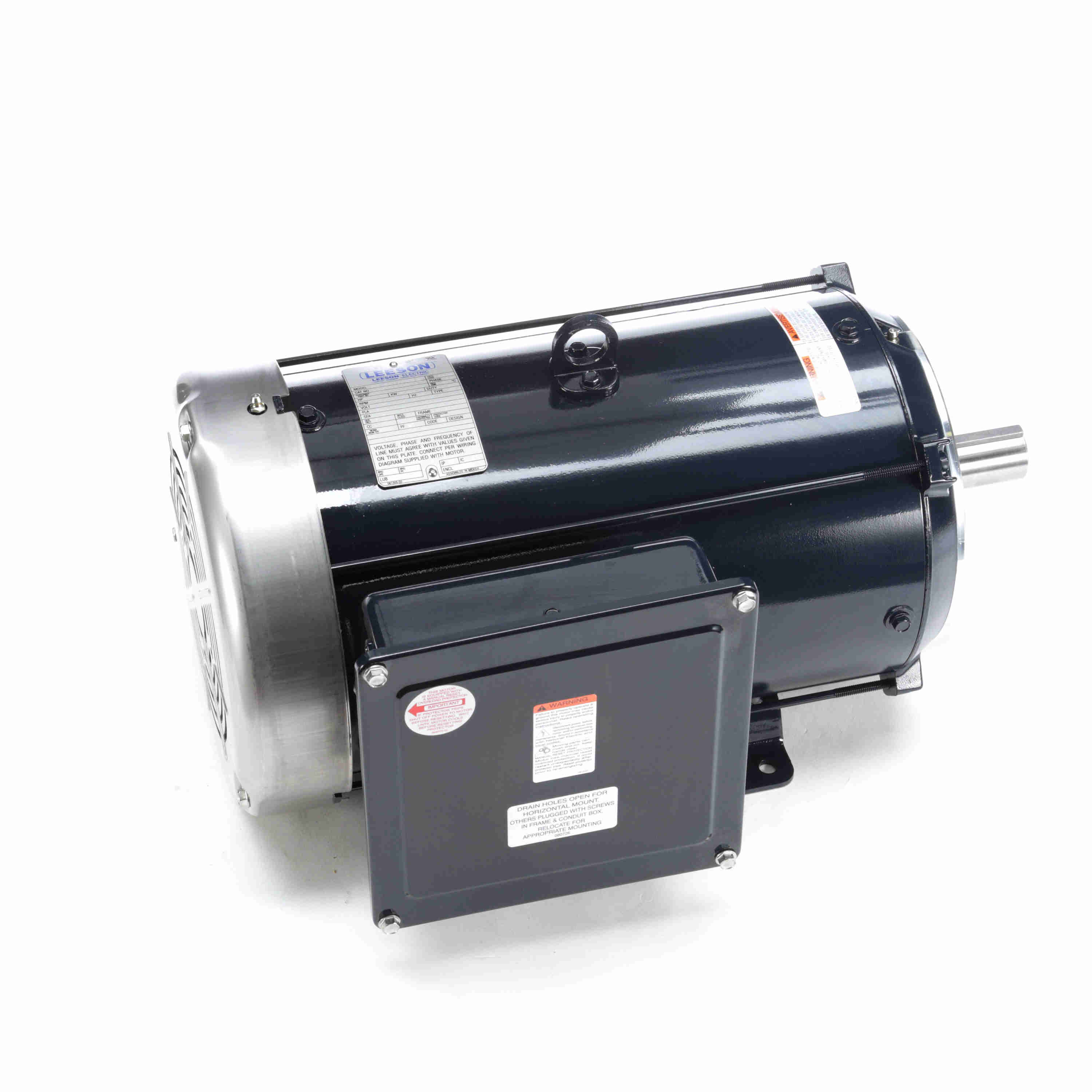

140705.00 Leeson 10HP Agriculture Duty Catfish Pond Aeration Motor, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: P215K17FK5

Selected accessories will also be added to cart
$1,417.99 / Each
Quantity:
TEFC, 215TC Frame, 230VAC Single Phase 60Hz, P215K17FK5B, Rigid Base, Rolled Steel, 1-3/8" Keyed Shaft
Features
  • High torque designs
  • Epoxy painted for corrosion protection
  • Double sealed ball bearings
  • Drain holes provided to purge condensation
General Specifications
Model :P215K17FK5B Catalog No :140705.00
Part Description :10HP..1740RPM.215.TEFC./230V.1PH.60HZ.CONT.MANUAL.40C.1.15SF.RIGID C.AG - CATFISH POND.P215K17FK5B.B Category :Agricultural
Stock :No
Nameplate Specifications
Output HP :10 Hp Output KW :7.5 kW
Frequency :60 Hz Voltage :230 V
Current :40 A Speed :1740 rpm
Service Factor :1.15 Phase :1
Efficiency :86.5 % Duty :CONTINUOUS
Insulation Class :F Design Code :NO DESIGN CODE
KVA Code :G Frame :215TC
Enclosure :TEFC Overload Protector :MANUAL
Ambient Temperature :40 °C Drive End Bearing Size :6207
Opp Drive End Bearing Size :6206 UL :Recognized
CSA :Y CE :Y
IP Code :43
Technical Specifications
Electrical Type :CAP START CAP RUN Starting Method :ACROSS THE LINE
Poles :4 Rotation :SELECTIVE CCW
Mounting :RIGID Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :ROLLED STEEL Shaft Type :T
Overall Length :20.71 in Frame Length :14 in
Shaft Diameter :1.38 in Shaft Extension :3.38 in
Assembly/Box Mounting :F1 ONLY UPC :691720255780
Weight :155.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up179.40448.061.50205.01,38031.900.010.00
Locked-Rotor264.00660.090.20301.0051.000.010.00
Full Load40.00100.030.00100.000.000.010.00
Break-Down146.00365.069.50232.01,54029.200.010.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 7.70
  • 0.813
  • 0.0
  • 45.9
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 13.40
  • 2.636
  • 72.3
  • 85.5
  • 1,788
  • 0.0
  • 7.50
  • 50 %
  • 21.20
  • 4.523
  • 83.7
  • 92.8
  • 1,776
  • 0.0
  • 15.00
  • 75 %
  • 29.90
  • 6.529
  • 86.4
  • 94.9
  • 1,766
  • 0.0
  • 22.50
  • 100 %
  • 39.50
  • 8.656
  • 86.2
  • 95.3
  • 1,751
  • 95.0
  • 30.00
  • 125 %
  • 49.70
  • 10.913
  • 84.6
  • 95.5
  • 1,733
  • 0.0
  • 37.50
  • 150 %
  • 60.90
  • 13.360
  • 82.1
  • 95.4
  • 1,715
  • 0.0
  • 45.00
