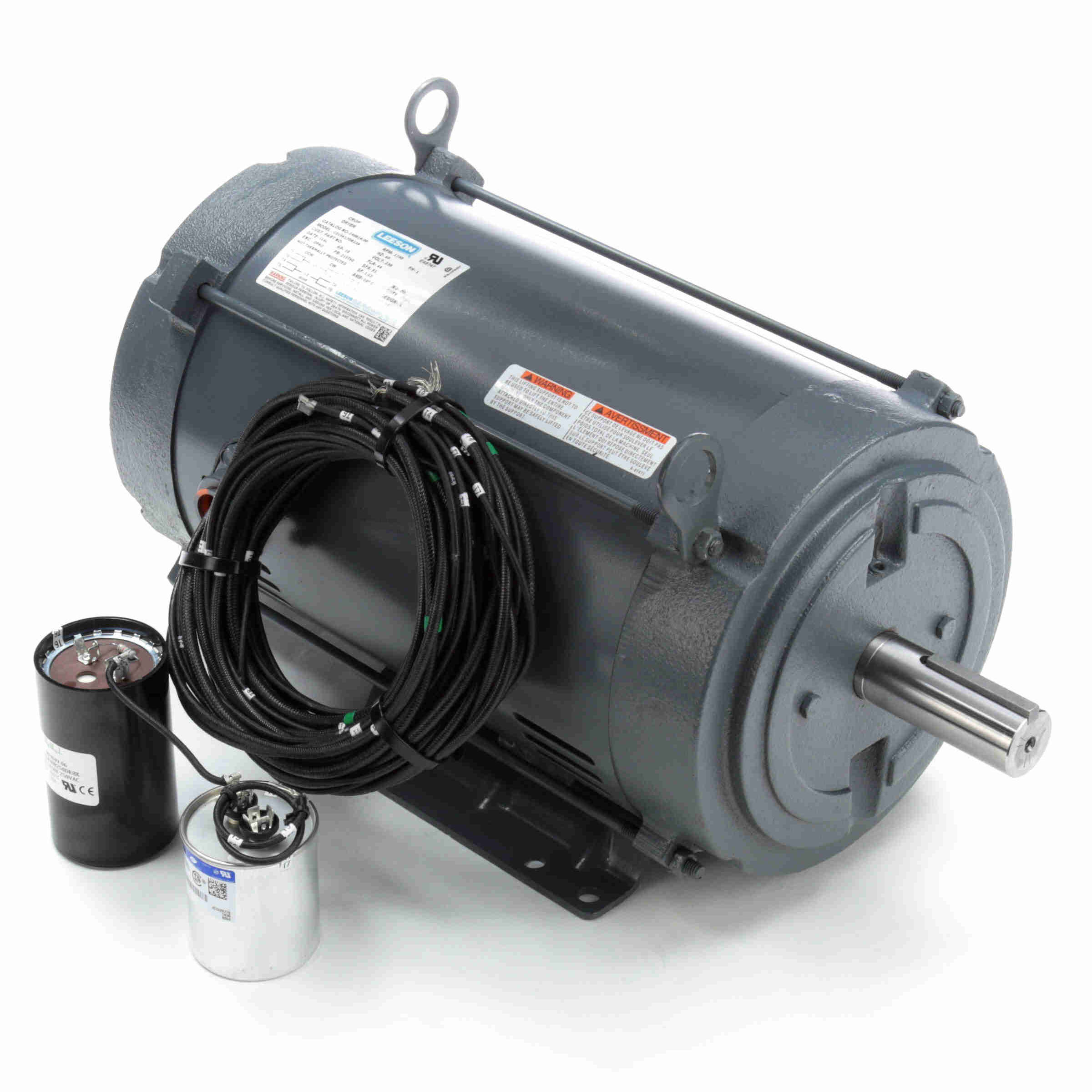

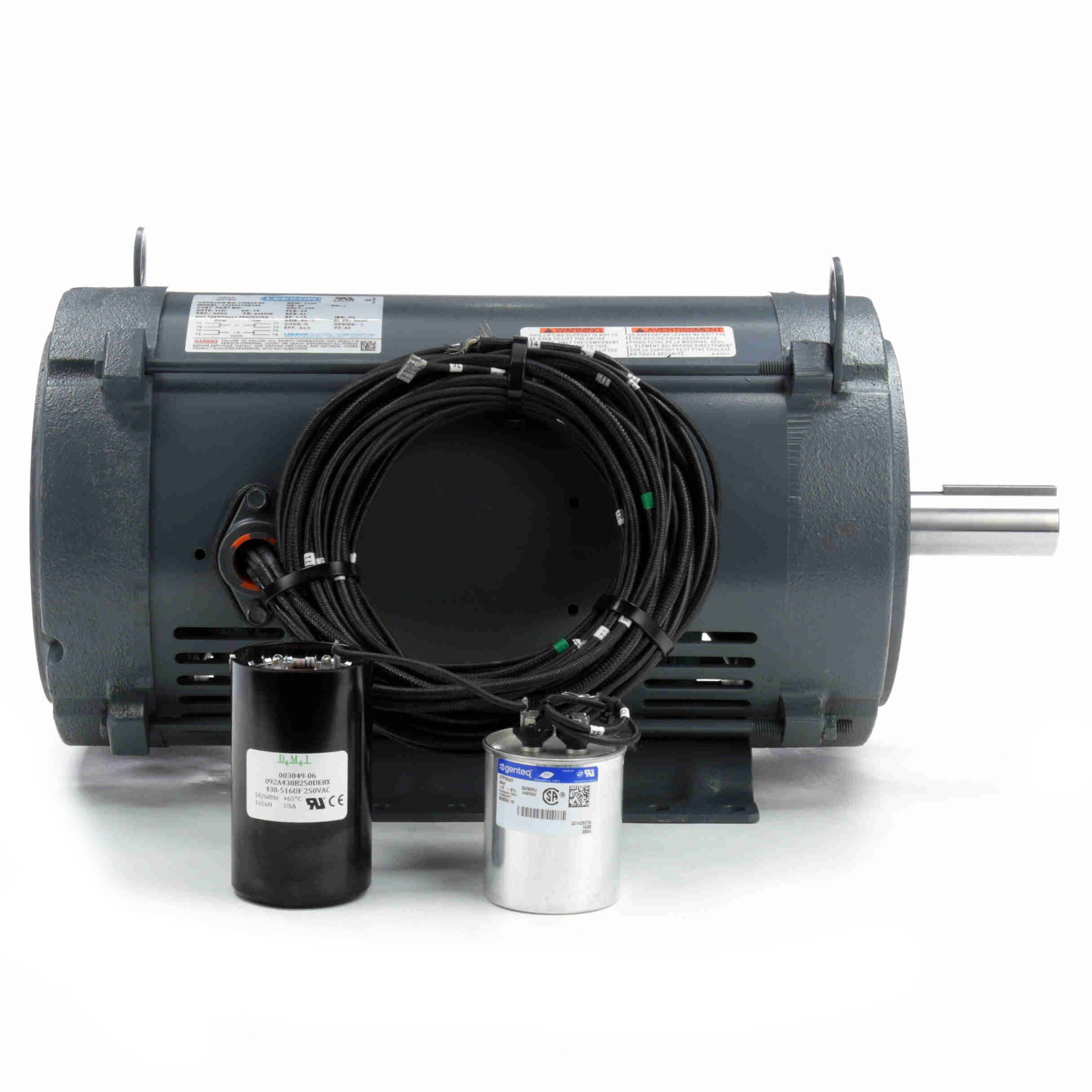

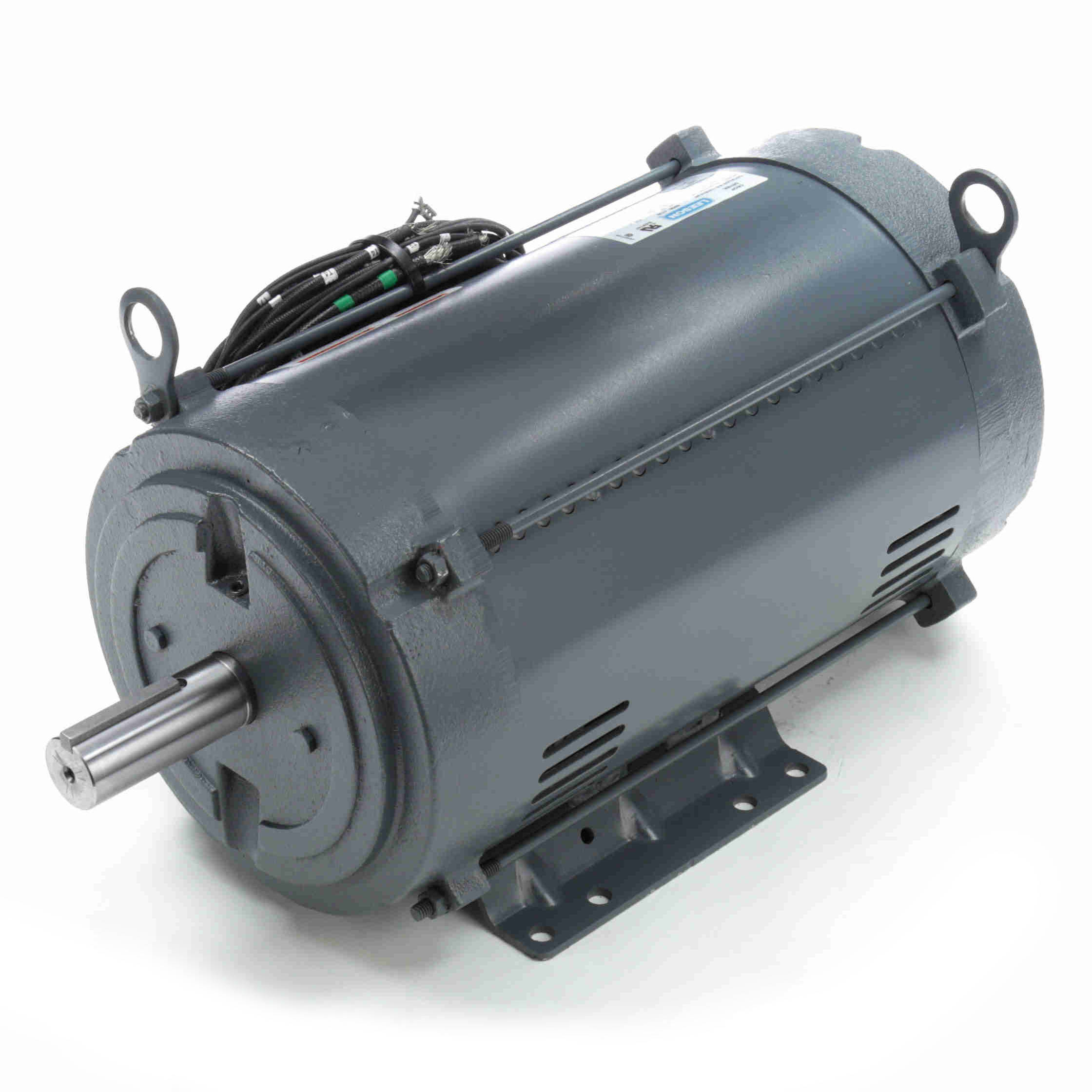

Used in Tobacco Barns and other applications that require a fan motor in a high ambient condition.
Features:
• Drip-proof airover designs
• Class H insulation for high ambient conditions
• 80° C ambient rated
• 120 inch leads
• Oversized double sealed bearings
• 1/4-20 tapped hole at end of shaft
Volts | 230 | | Volts | | | Volts | | | FL Amps | 44 | | FL Amps | | | FL Amps | | | SF Amps | 51 | | SF Amps | | | SF Amps | | | | RPM | 1800 | | Hertz | 60 | | | | | HP | 10 | | Duty | CONTINUOUS | | Type | KD | | KW | 7.5 | | SF | 1.15 | | Phase | 1 | | Frame | 215TVZ | | Design | L | | KVA Code | G | | Ambient | 80 | | Protection | NOT | | Therm.Prot. | | | Insulation Class | H | | Eff(75%) | | | PF | 89 | | Eff(100%) | 82.5 | | CSA | Y | | Bearing OPE | 6206 | | UL | Y-(LEESON UL REC) | | CE | N | | Bearing PE | 6307 | | CC Number | EXEMPT | | Inverter Type | | | Speed Range | NONE | | LOad Type | | | | | Motor Wt. | 150 LB | | Enclosure | DPAO | | Lubrication | DC 44M | | Nameplate | | | Mounting | RIGID | | Rotation | SELECTIVE CCW | | Shaft Diam. | | | Cust Part No. | | | Packaging | F | | | | | Winding | BK104121 | | Carton Label | | | | | | Group | 2 | | Iris | | | Paint | GRAY - LEESON (EPOXY) | | Hazardous Location | NONE | | Test Card | | |
|
