/Products/Electric Motors/Single Phase/Leeson/TEAO Resilient Base/A099836.00 Leeson 1/2HP 2-Winding Agricultural Fan Duty Electric Motor, 850RPM
Click Image to Expand

Product ID: A099836.00

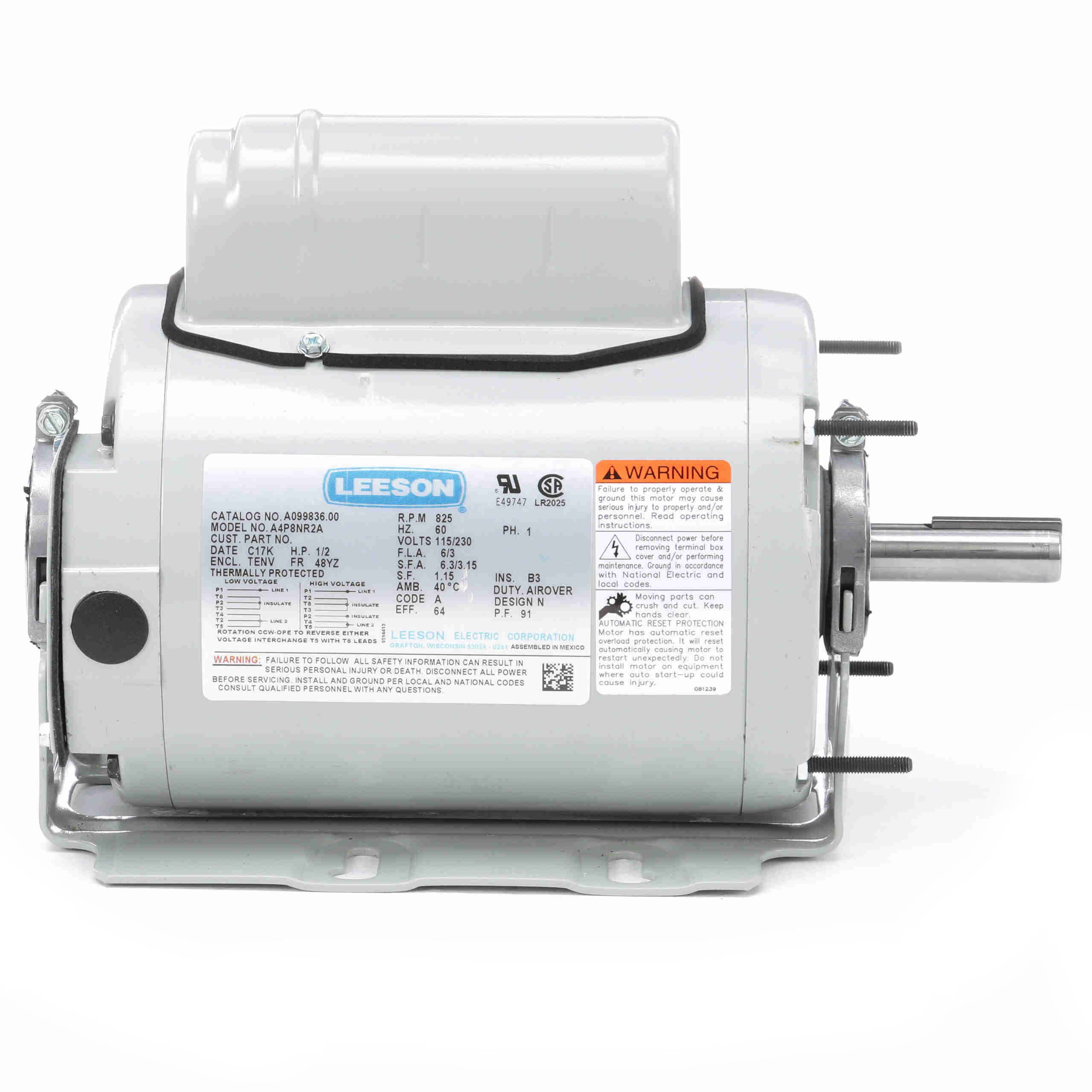

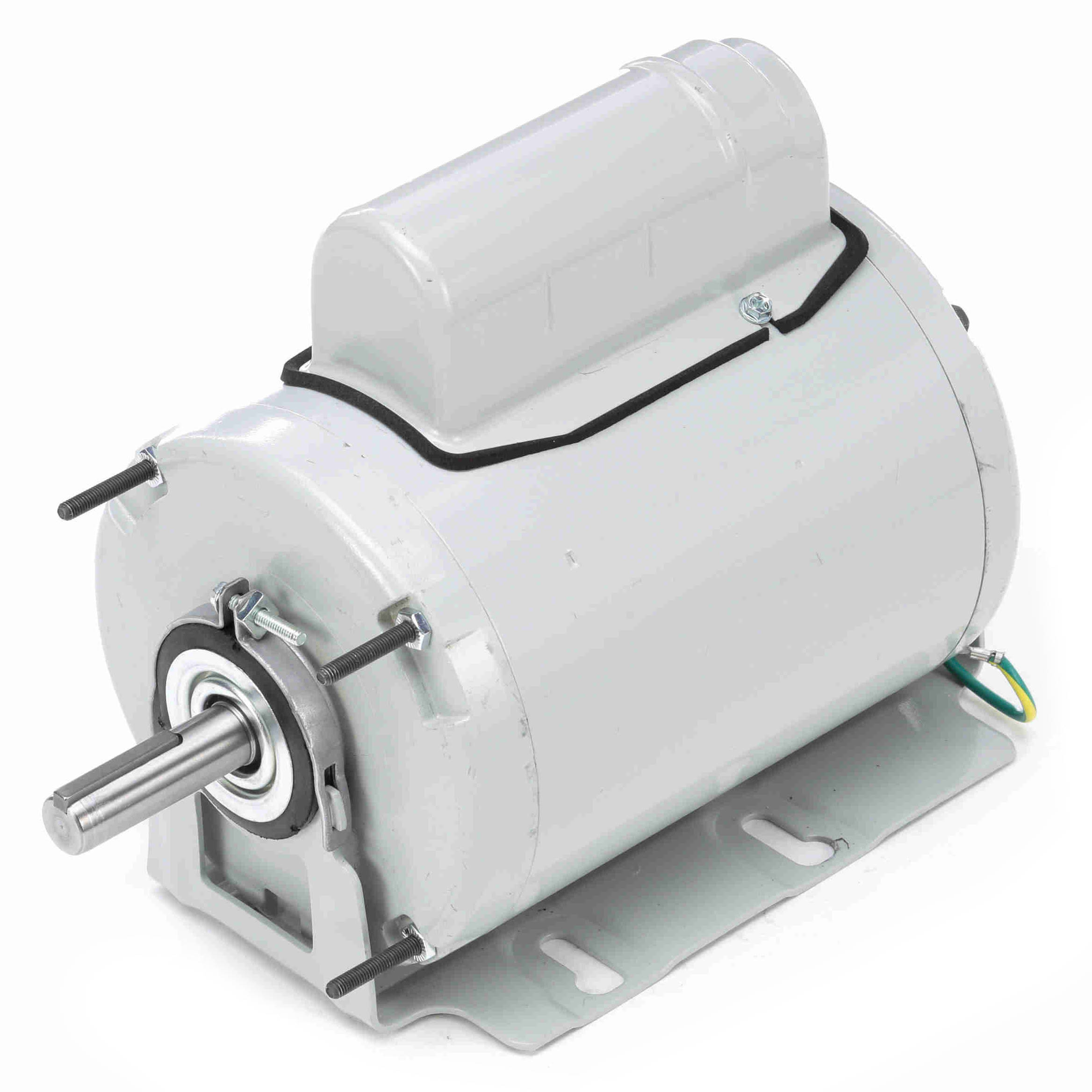

A099836.00 Leeson 1/2HP 2-Winding Agricultural Fan Duty Electric Motor, 850RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: A48P8NR2

Temporarily out of stock
Selected accessories will also be added to cart
$314.86 / Each
TEAO, 48YZ Frame, 115/230VAC Single Phase 60Hz, A4P8NR2A, Resilient Base
Volts 115   Volts 230   Volts
FL Amps 6   FL Amps 3   FL Amps
SF Amps 6.3   SF Amps 3.15   SF Amps
RPM 825   Hertz 60
HP 1/2   Duty AIROVER   Type PN
KW 0.37   SF 1.15   Phase 1
Frame 48YZ   Design N   KVA Code A
Ambient 40   Protection AUT LCK RTR ONLY   Therm.Prot. A-A56227-52
Insulation Class B   Eff(75%)   PF 91
Eff(100%) 64   CSA Y   Bearing OPE 6203
UL Y-(LEESON UL REC)   CE N   Bearing PE 6203
CC Number EXEMPT   Inverter Type   Speed Range NONE
LOad Type
Motor Wt. 22 LB   Enclosure TENV   Lubrication VERIFY
Nameplate 92005-6   Mounting RESILIENT BASE   Rotation SELECTIVE CCW
Shaft Diam.   Cust Part No.   Packaging F
    Winding PE488252   Carton Label
    Group 3   Iris
Paint VERIFY   Hazardous Location NONE   Test Card
