/Products/Electric Motors/3 Phase Explosion Proof/Marathon/C362A Marathon 1.5HP Explosion Proof Electric Motor, 1800RPM
Click Image to Expand

Product ID: 145TTGN6536

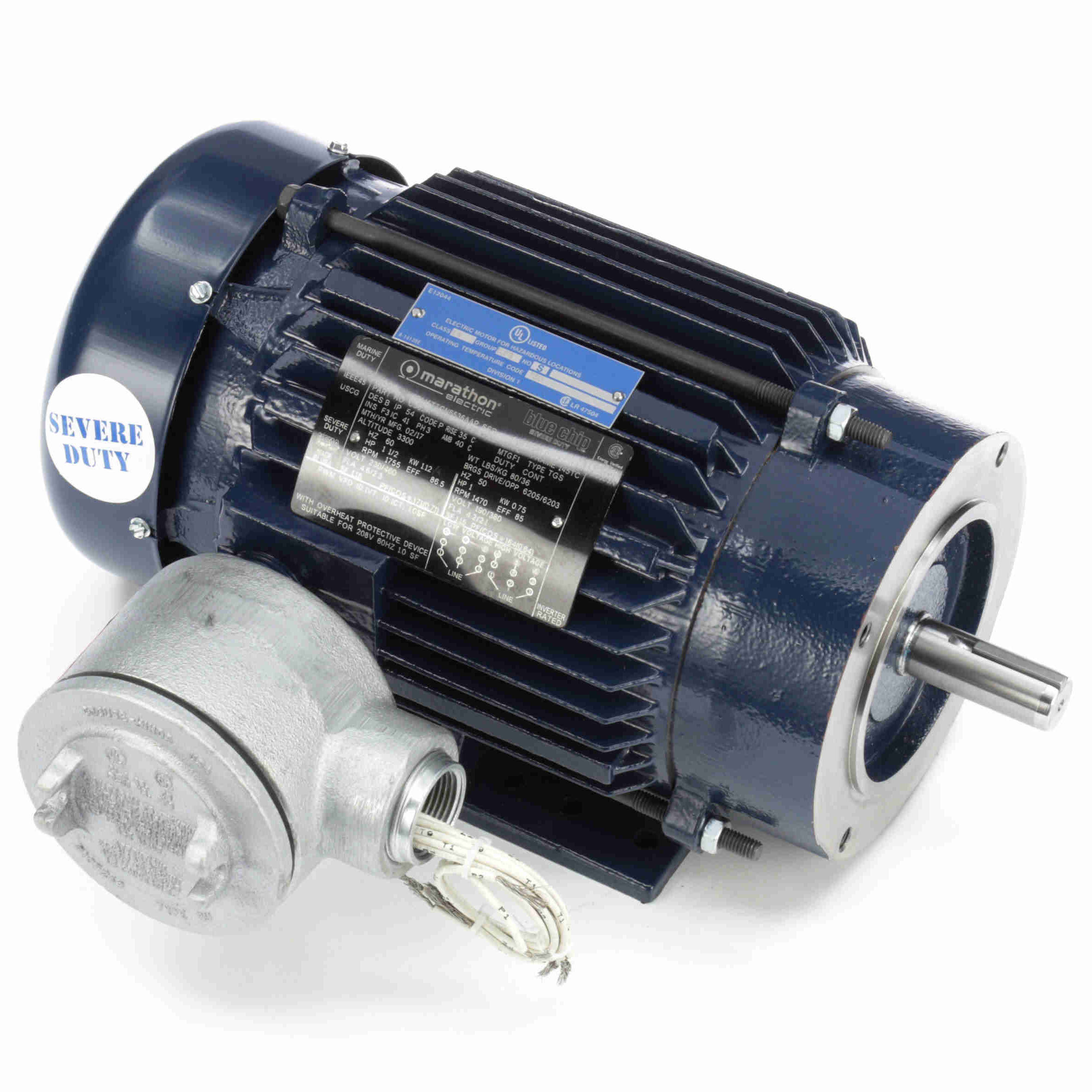

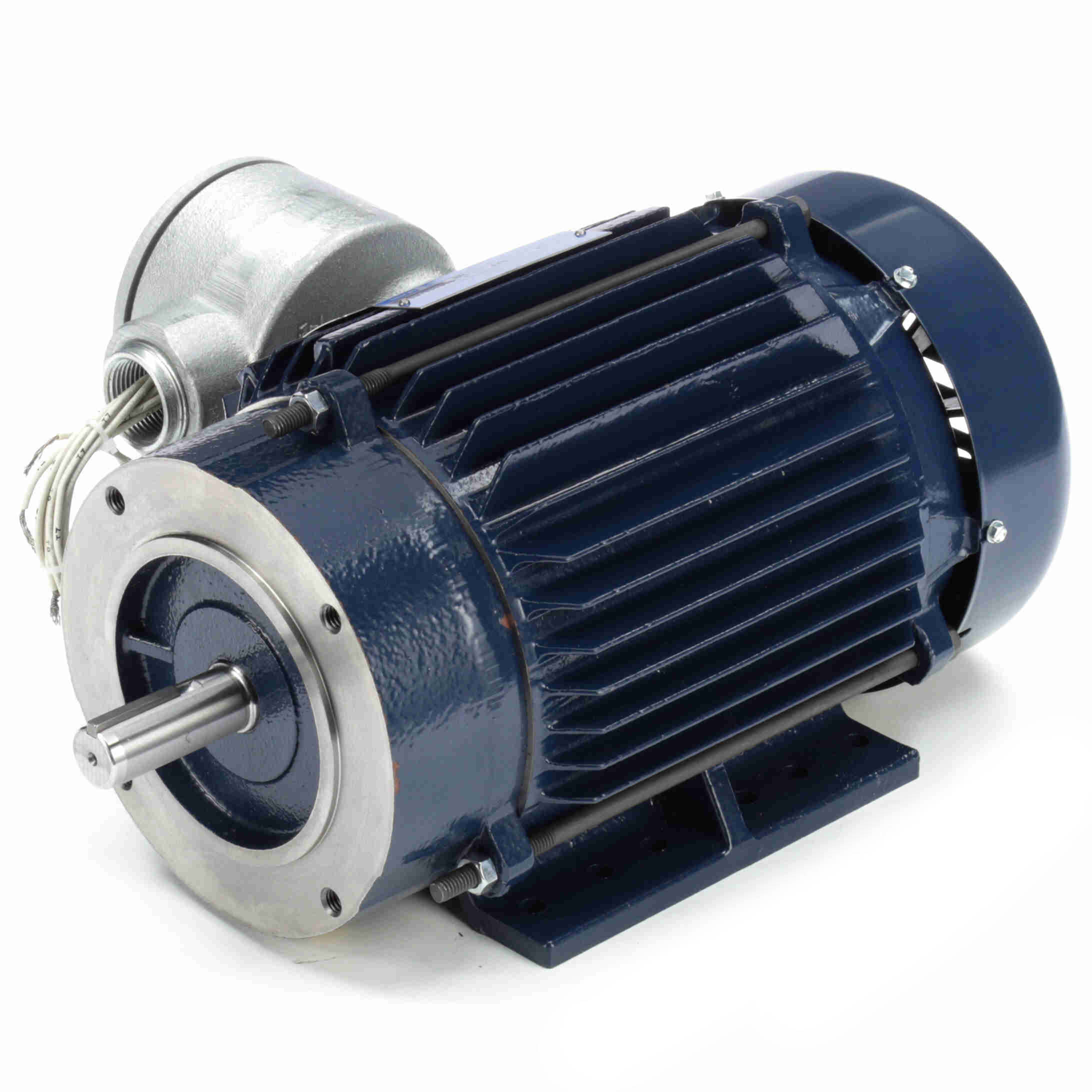

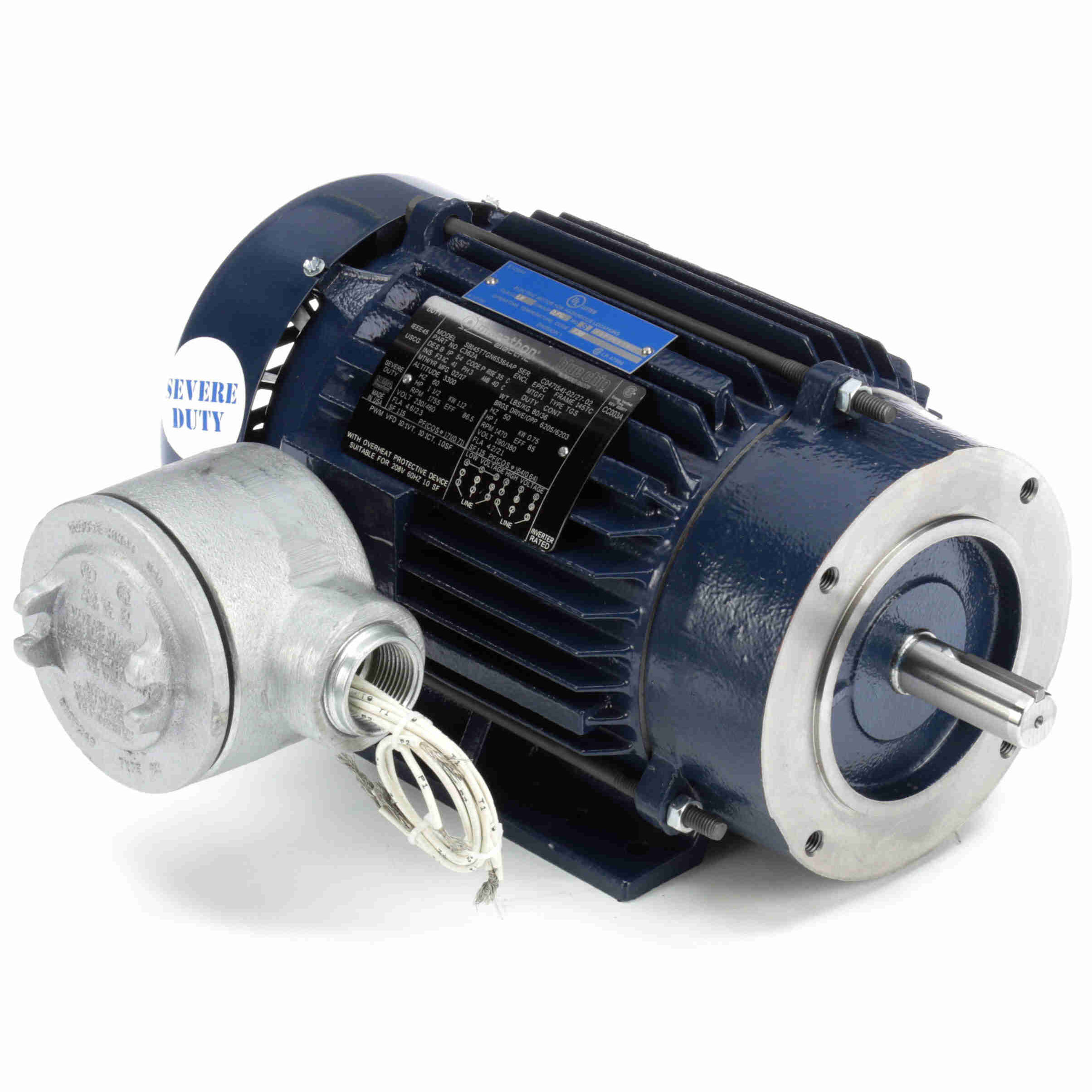

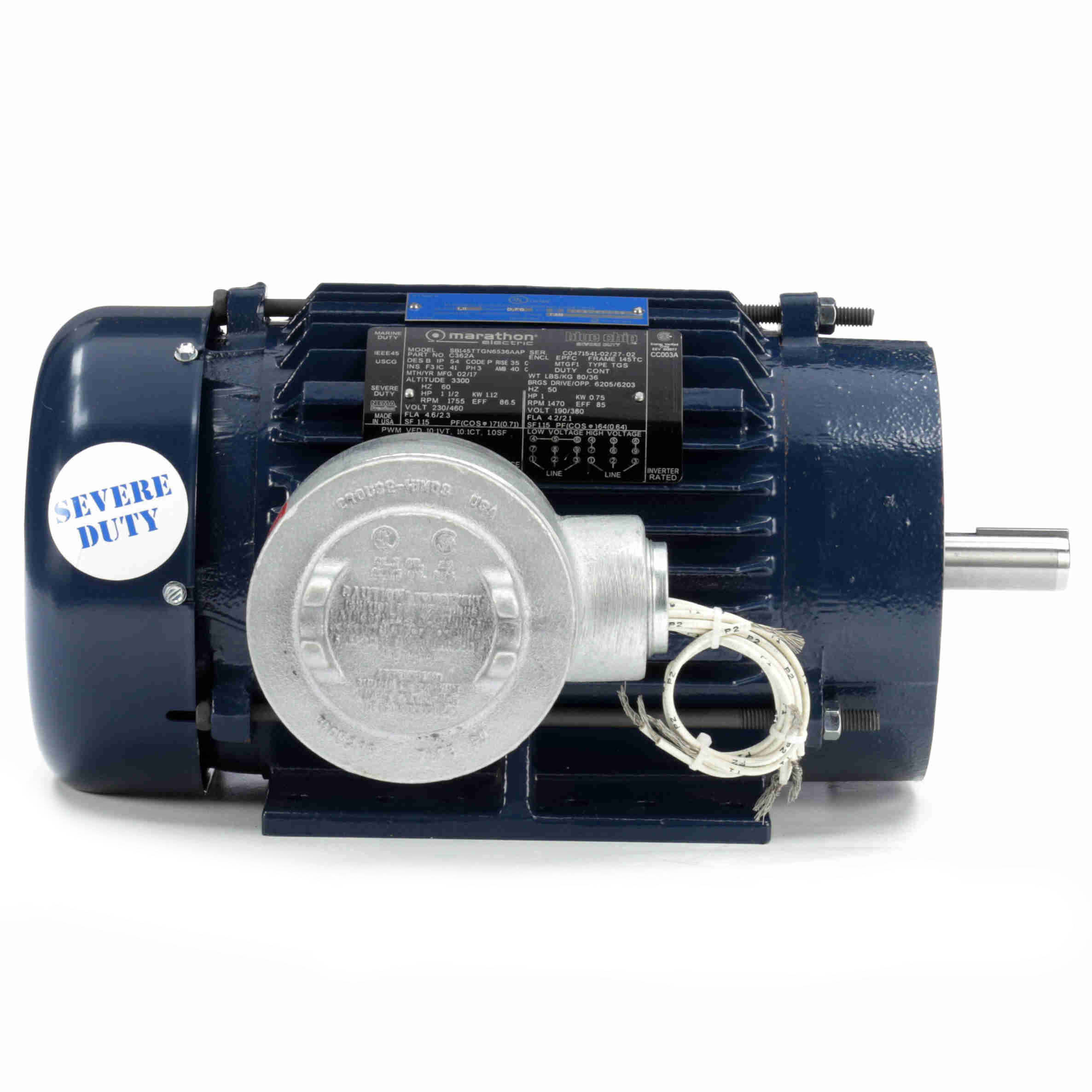

C362A Marathon 1.5HP Explosion Proof Electric Motor, 1800RPM

MFG: Marathon Electric (Regal Beloit Corp)
MFG Part Number: 145TTGN6536

Selected accessories will also be added to cart
$999.97 / Each
Quantity:
EPFC, 145TC Frame, 230/460VAC 3-Phase 60Hz, 145TTGN6536, Rigid Base, C-Face, Cast Iron Frame, 7/8" Keyed Shaft

Features

  • 10:1 Variable torque, see Inverter Duty column for constant torque
  • CR200 Corona Resistant, 200°C rated magnet wire
  • Normally closed thermostats (must be connected to control circuit)
  • Meets temperature code T3B
  • All cast iron construction• External surface treated with epoxy paint
  • Nameplated 60/50 hertz, 190/380 Volts, at next lower horsepower
  • Rolled steel fan guard on 143T-145T

General Specifications

UPC: 722856022165 Weight: 80.00 LB
Packaged Length: 15.81 IN Packaged Width: 14.31 IN
Packaged Height: 9.38 IN

Nameplate Specifications

Output HP: 1.50 Hp Output KW: 1.1 kW
Frequency: 60 Hz Voltage: 230/460 V
Current: 4.6/2.3 A Speed: 1755 rpm
Service Factor: 1.15 Phase: 3
Efficiency: 86.5 % Power Factor: 71
Duty: Continuous Insulation Class: F
Design Code: B KVA Code: P
Frame: 145TC Enclosure: Explosion Proof Fan cooled
Thermal Protection: Thermostats (N/C) Ambient Temperature: 40 °C
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: UL Listed And CSA Certified CSA: Y
CE: N IP Code: 54
Hazardous Location: EXP PROOF CL I GR D CL II GR F&G T3B

Technical Specifications

Electrical Type: Squirrel Cage Inverter Rated Starting Method: Line Or Inverter
Poles: 4 Rotation: Reversible
Resistance Main: 7.9 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Cast Iron
Shaft Type: T Overall Length: 15.23 in
Frame Length: 7.50 in Shaft Diameter: 0.875 in
Shaft Extension: 2.12 in Assembly/Box Mounting: F1 ONLY

Speed & Load Characteristics

Speed Characteristics

Curvepoint Current (Amps) Current (%) Torque (ft-lbs) (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 16.00 696.0 26.00 578.0 1,190 0.00 85.5 1.50
1/3 22.80 991.0 18.00 400.0 600 0.00 0.0 1.50
No Load 1.50 65.0 0.00 0.0 1,800 0.00 0.0 1.50
2/3 19.20 835.0 22.30 496.0 1,200 0.00 0.0 1.50
Pull-Up 23.30 1,013.0 20.20 449.0 130 0.00 0.0 1.50
Locked-Rotor 24.00 1,043.0 21.20 471.0 0 0.00 69.5 1.50
Full Load 2.30 100.0 4.50 100.0 1,755 0.00 0.0 1.50

Load Characteristics

% of Rated Load 0 % 25 % 50 % 75 % 100 % 115 % 125 %
Current (Amps) 1.50 1.55 1.75 2.00 2.30 2.50 2.65
Rated Output (KW) 0.09 0.38 0.68 1.00 1.30 1.50 1.65
Efficiency (%) 0.0 74.0 82.5 85.5 86.5 86.5 85.5
Power Factor (%) 7.5 30.5 49.0 62.5 71.0 75.0 77.0
Speed (RPM) 1,800 1,790 1,780 1,765 1,755 1,750 1,745
Temp. Rise @ FL 0.0 0.0 0.0 0.0 35.0 45.0 60.0
Torque (ft-lbs) 0.00 1.10 2.20 3.50 4.50 5.20 5.65
