/Products/Electric Motors/Single Phase/Leeson/Washguard - TEFC/Leeson Washguard Electric Motor, 1HP, 1800RPM
Click Image to Expand

Product ID: 112626.00

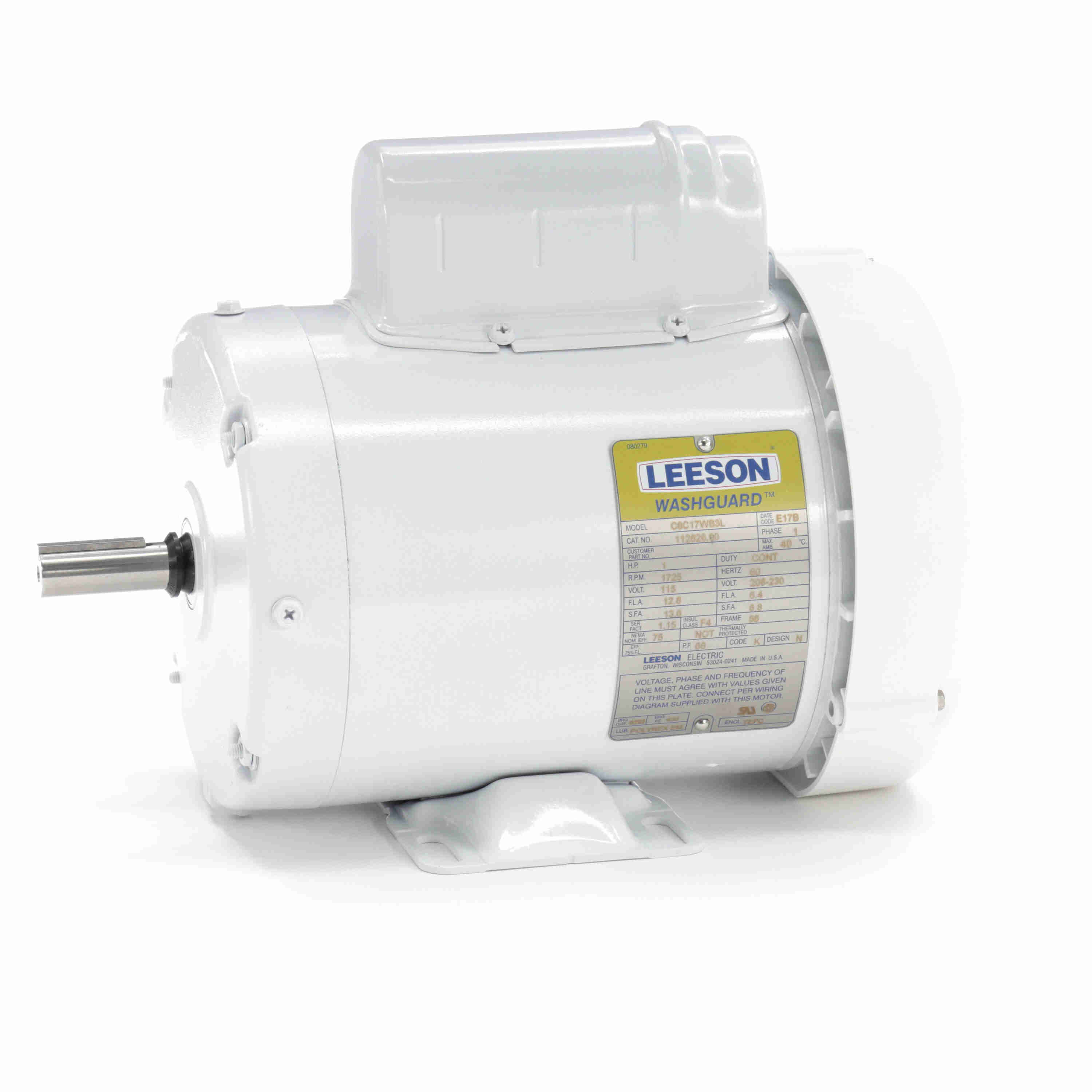

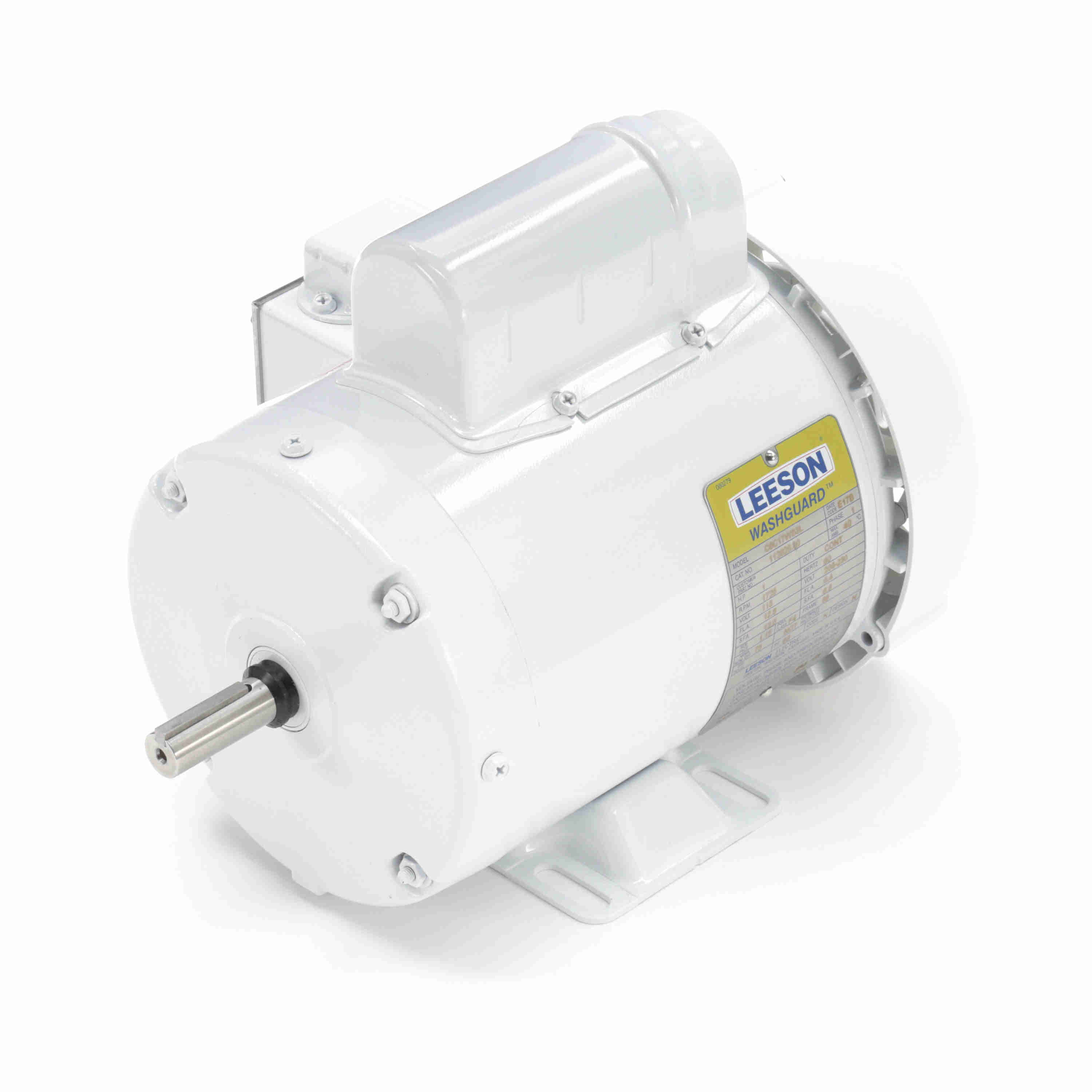

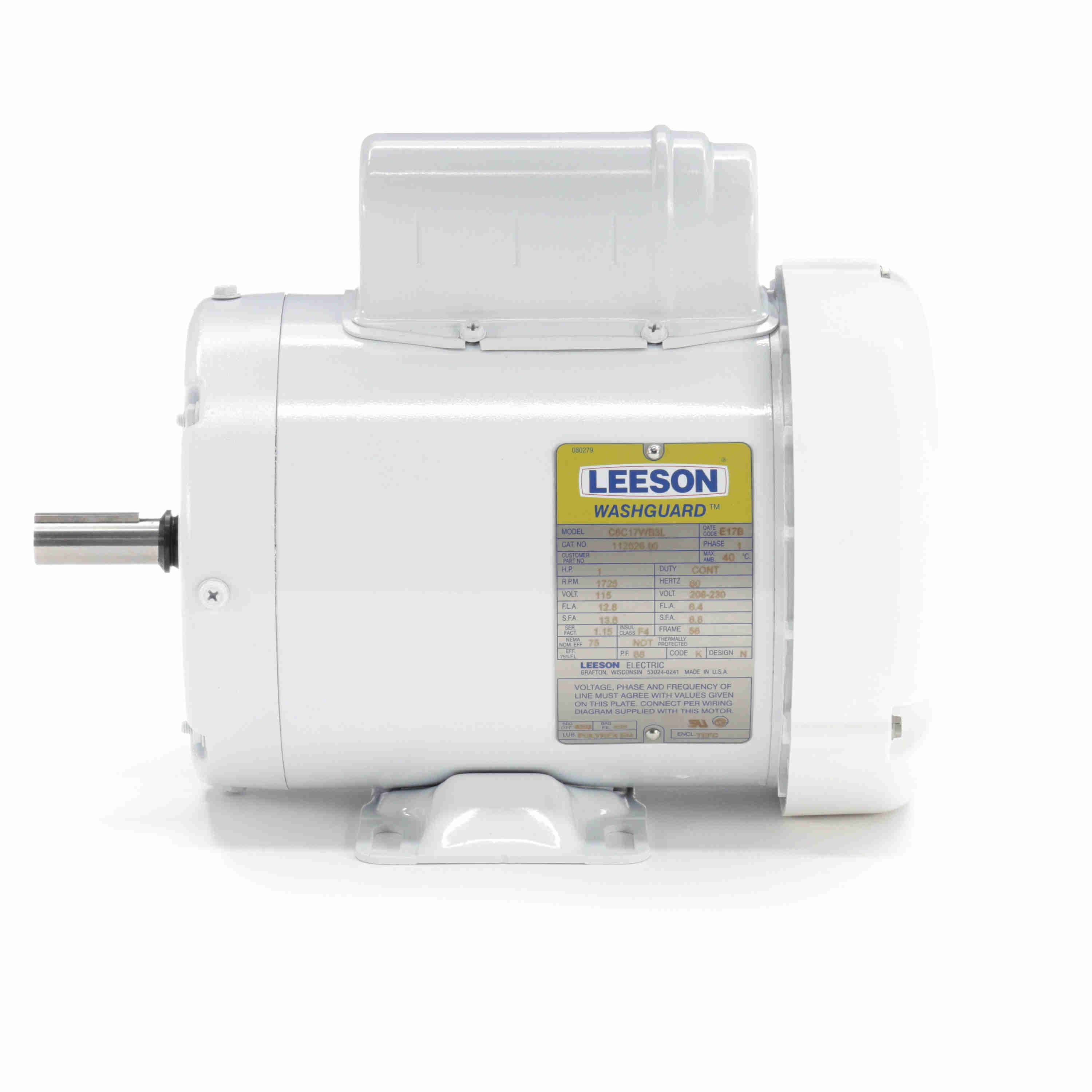

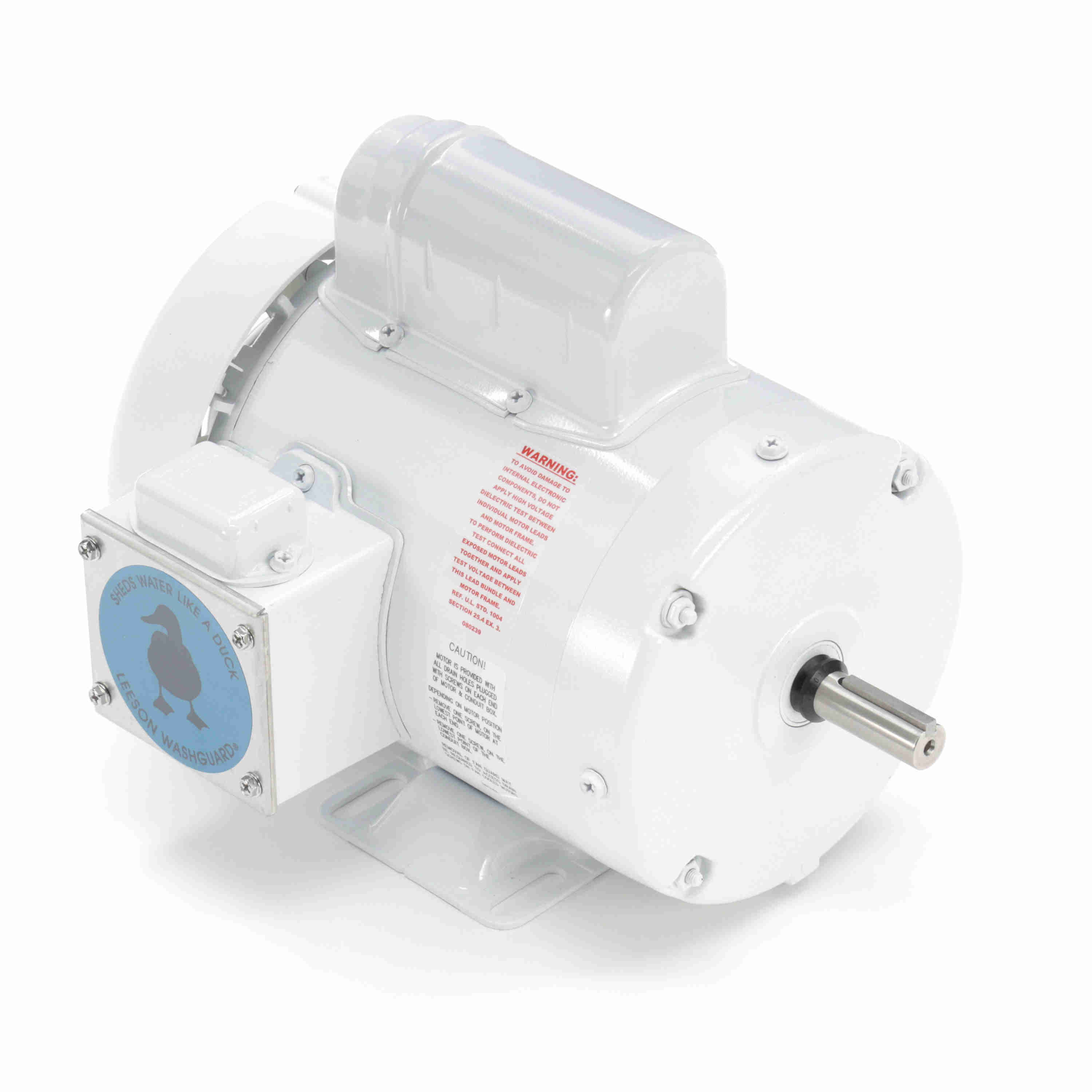

Leeson Washguard Electric Motor, 1HP, 1800RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: 112626.00

Selected accessories will also be added to cart
$631.87 / Each
Quantity:
56 Frame, 115/208-230V 1-Phase, TEFC, Rigid Base, C6C17WB3
Features
  • USDA-approved epoxy painted motors
  • Stainless steel Shaft
  • NEMA motors
  • AC washdown motors
  • Rigid base and C face mount types
  • BISSC approved designs
  • Double lip contact seals and v-ring seals used for shaft seals
  • UL recognized and CSA certified
  • Single phase motors feature an electronic Solid State Encapsulated switch
General Specifications
Model :C6C17WB3L Catalog No :112626.00
Part Description :1HP..1725RPM.56.TEFC./V.1PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.WASHGUARD.C6C17WB3L Category :General Purpose
Stock :No
Nameplate Specifications
Output HP :1 Hp Output KW :0.75 kW
Frequency :60 Hz Voltage :115/208-230 V
Current :12.8/6.4 A Speed :1725 rpm
Service Factor :1.15 Phase :1
Efficiency :75 % Duty :Continuous
Insulation Class :F Design Code :N
KVA Code :K Frame :56
Enclosure :Totally Enclosed Fan Cooled Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6205
Opp Drive End Bearing Size :6203 UL :Recognized
CSA :Y CE :N
IP Code :55
Technical Specifications
Electrical Type :Capacitor Start Induction Run Starting Method :Across The Line
Poles :4 Rotation :Selective Counterclockwise
Mounting :Rigid base Motor Orientation :HORIZONTAL
Drive End Bearing :BALL Opp Drive End Bearing :BALL
Frame Material :Rolled Steel Shaft Type :NEMA 56
Overall Length :11.75 in Frame Length :6.25 in
Shaft Diameter :0.625 in Shaft Extension :1.88 in
Assembly/Box Mounting :F1 ONLY UPC :691720011027
Weight :36.00 LB
Speed Characteristics
CurvepointCurrent (Amps)Current (%)Torque (ft-lbs)Torque (%)Speed (RPM)Rated Output (KW)Power Factor (%)Rated Output (Hp)
Pull-Up0.000.06.70223.000.000.01.00
Locked-Rotor33.000.09.00300.000.000.01.00
Break-Down0.000.07.00233.000.000.01.00
Full Load6.400.03.00100.01,7470.000.01.00
Load Characteristics
  • % of Rated Load
  • Current (Amps)
  • Rated Output (KW)
  • Efficiency (%)
  • Power Factor (%)
  • Speed (RPM)
  • Temp. rise @ FL
  • Torque (ft-lb)
  • 0 %
  • 4.60
  • 0.148
  • 0.0
  • 14.0
  • 1,798
  • 0.0
  • 0.00
  • 25 %
  • 4.76
  • 0.340
  • 56.0
  • 31.1
  • 1,786
  • 0.0
  • 0.75
  • 50 %
  • 5.17
  • 0.542
  • 69.7
  • 45.6
  • 1,774
  • 0.0
  • 1.50
  • 75 %
  • 5.80
  • 0.774
  • 72.8
  • 58.0
  • 1,762
  • 0.0
  • 2.25
  • 100 %
  • 6.42
  • 0.993
  • 75.0
  • 67.2
  • 1,747
  • 73.0
  • 3.00
  • 115 %
  • 6.85
  • 1.135
  • 75.0
  • 72.0
  • 1,737
  • 0.0
  • 3.45
  • 125 %
  • 7.56
  • 1.271
  • 72.4
  • 73.1
  • 1,728
  • 0.0
  • 3.75
  • 150 %
  • 8.82
  • 1.552
  • 70.3
  • 76.5
  • 1,708
  • 0.0
  • 4.50
