/Products/Electric Motors/DC/Leeson/Sub-FHP, Square Flange, TENV/M1120046.00 Leeson 0.17/0.33HP Sub-Fractional DC Electric Motor, 1750-3900 RPM
Click Image to Expand

Product ID: M1120046.00

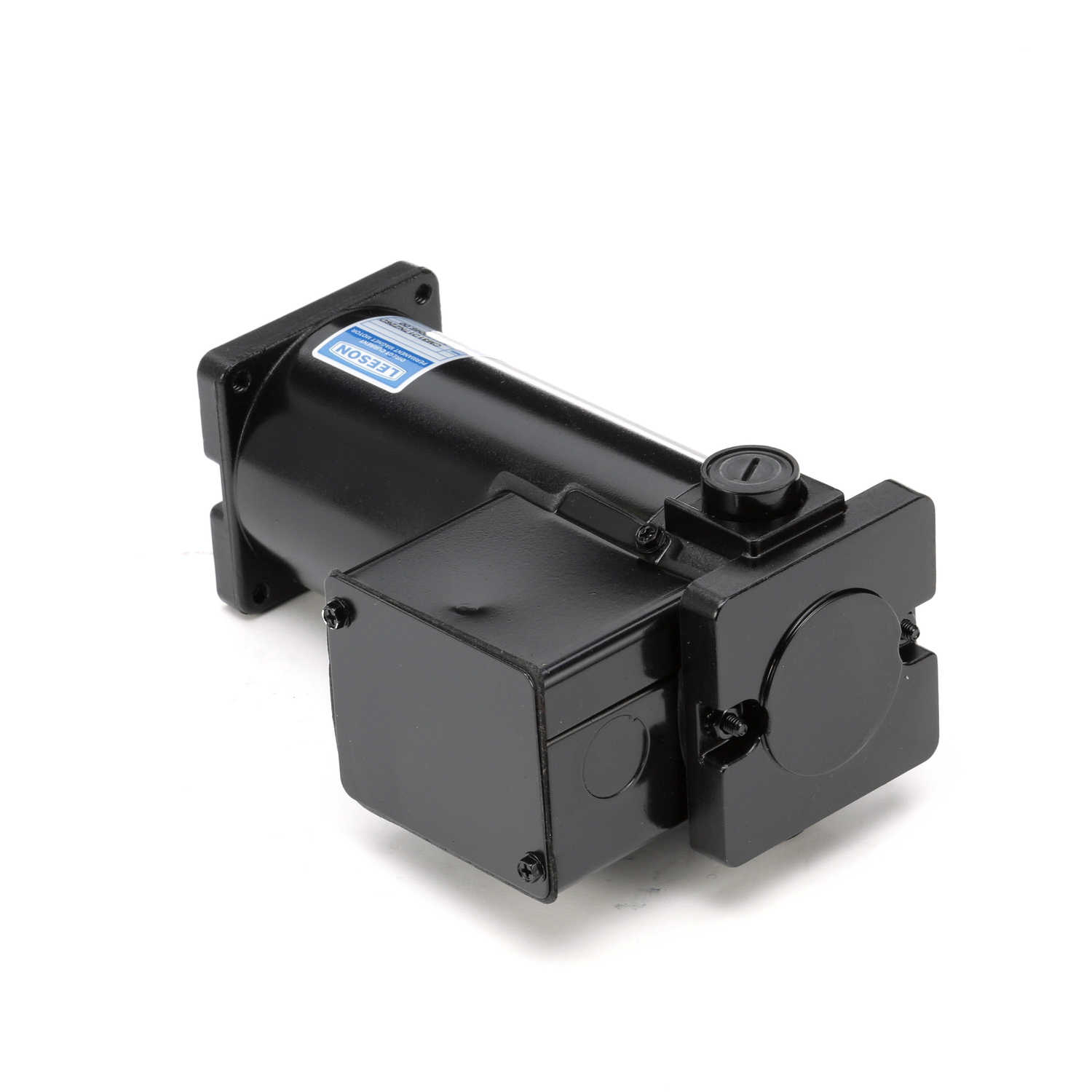

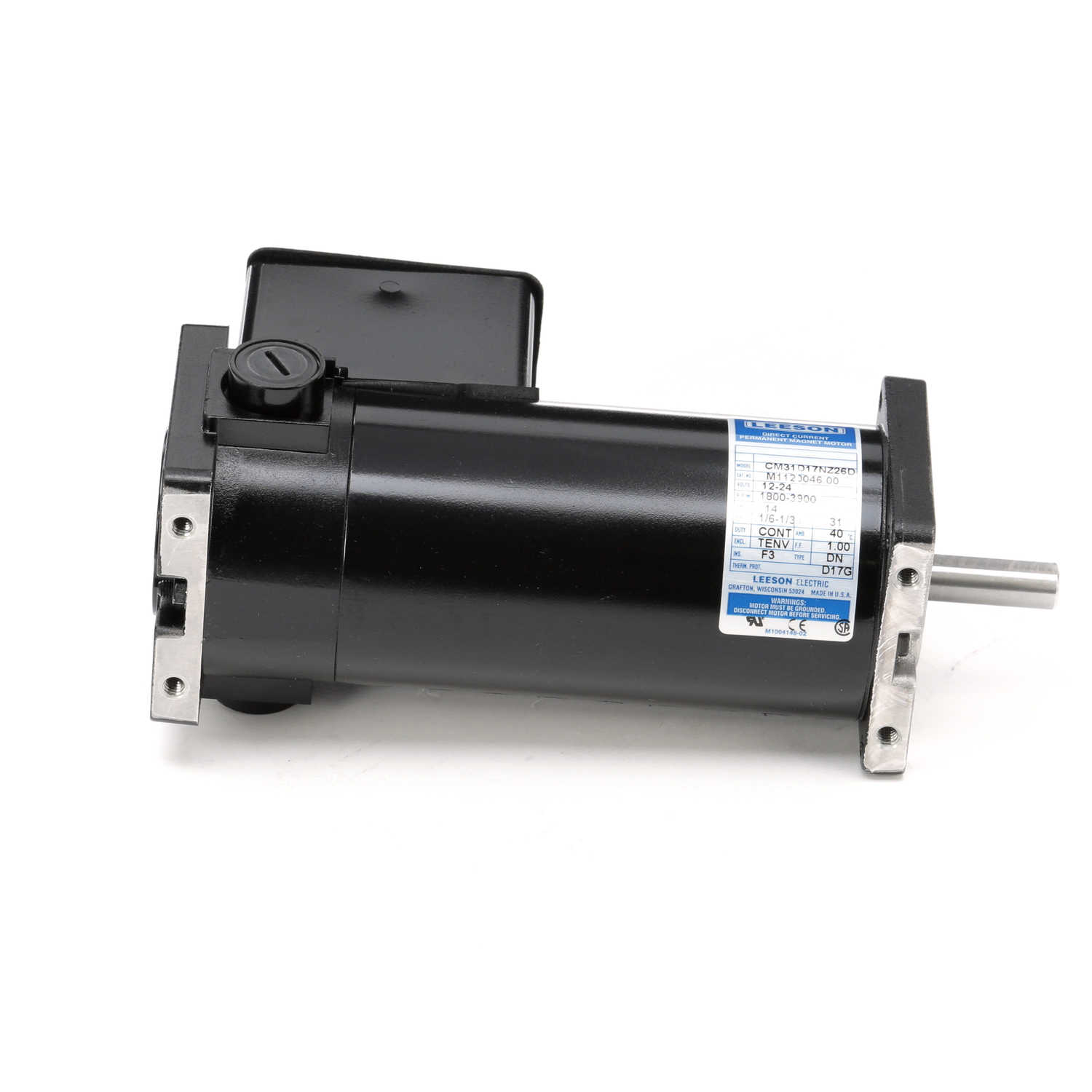

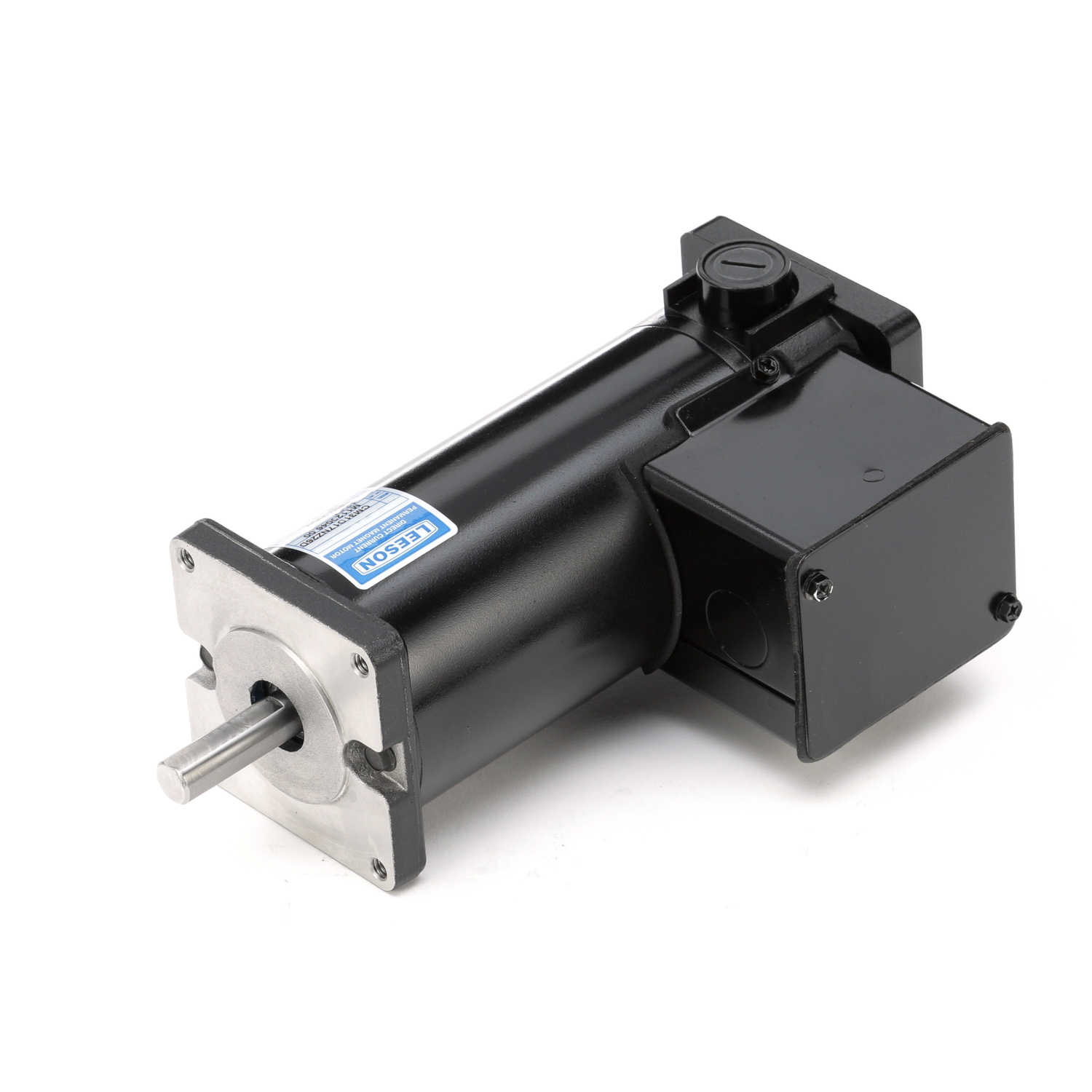

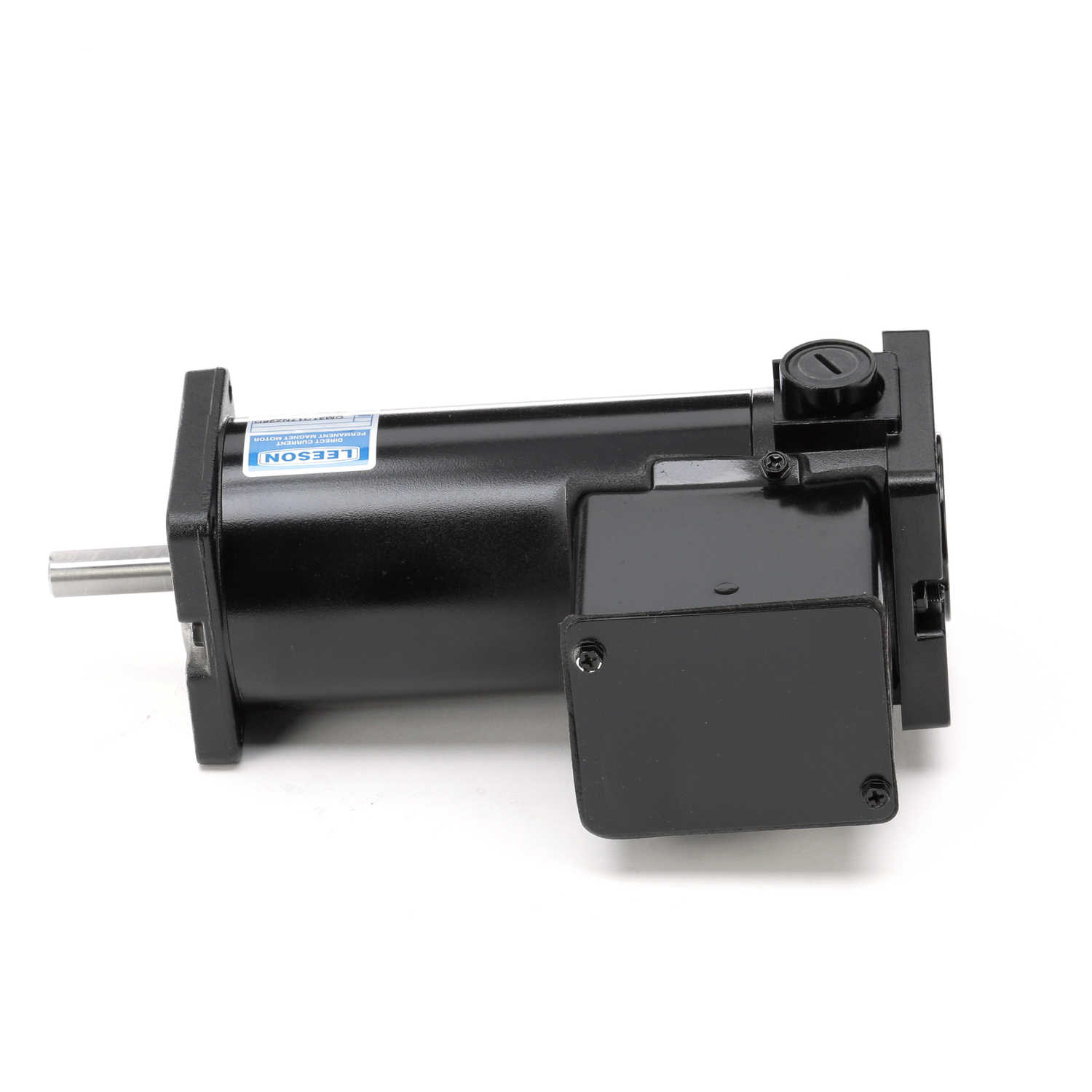

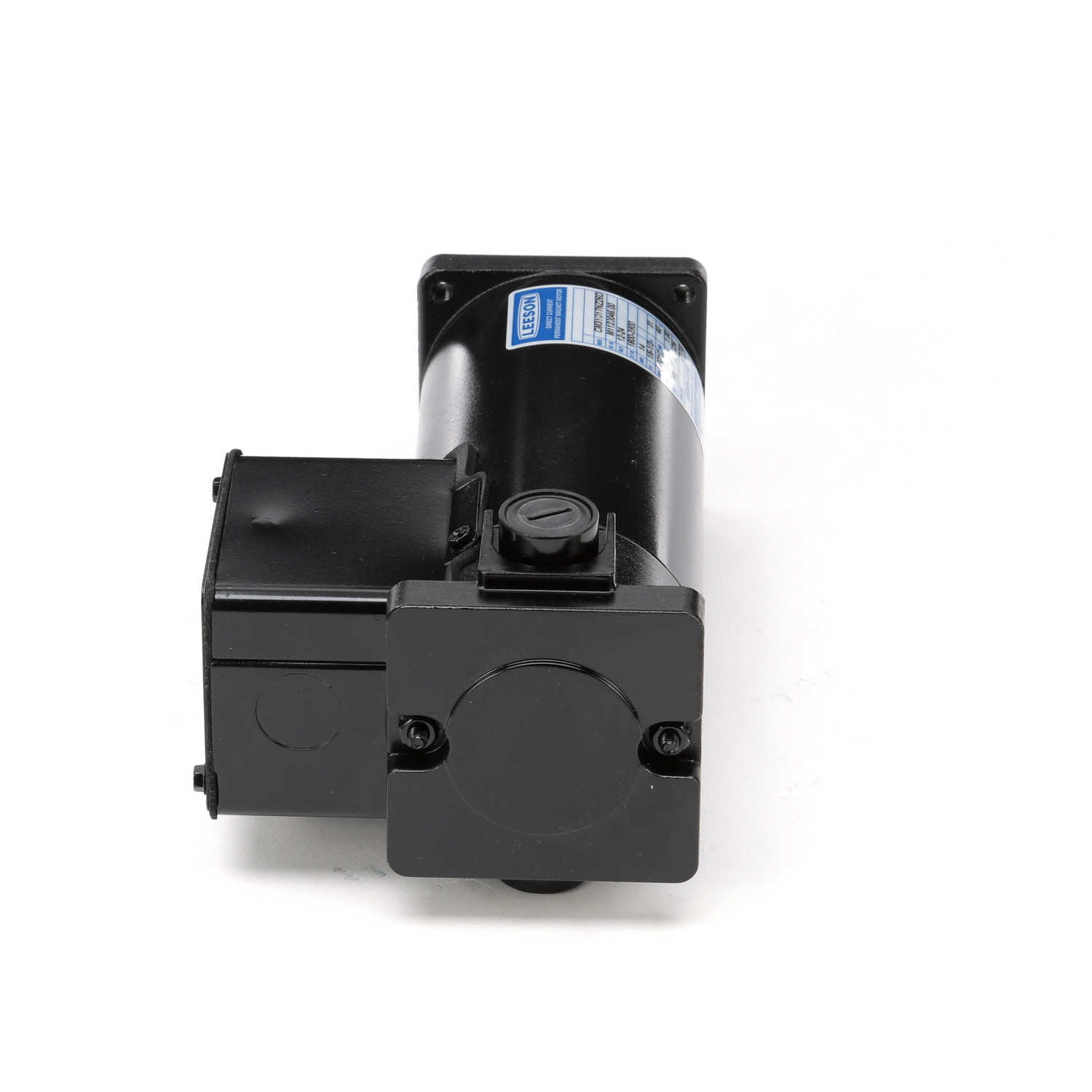

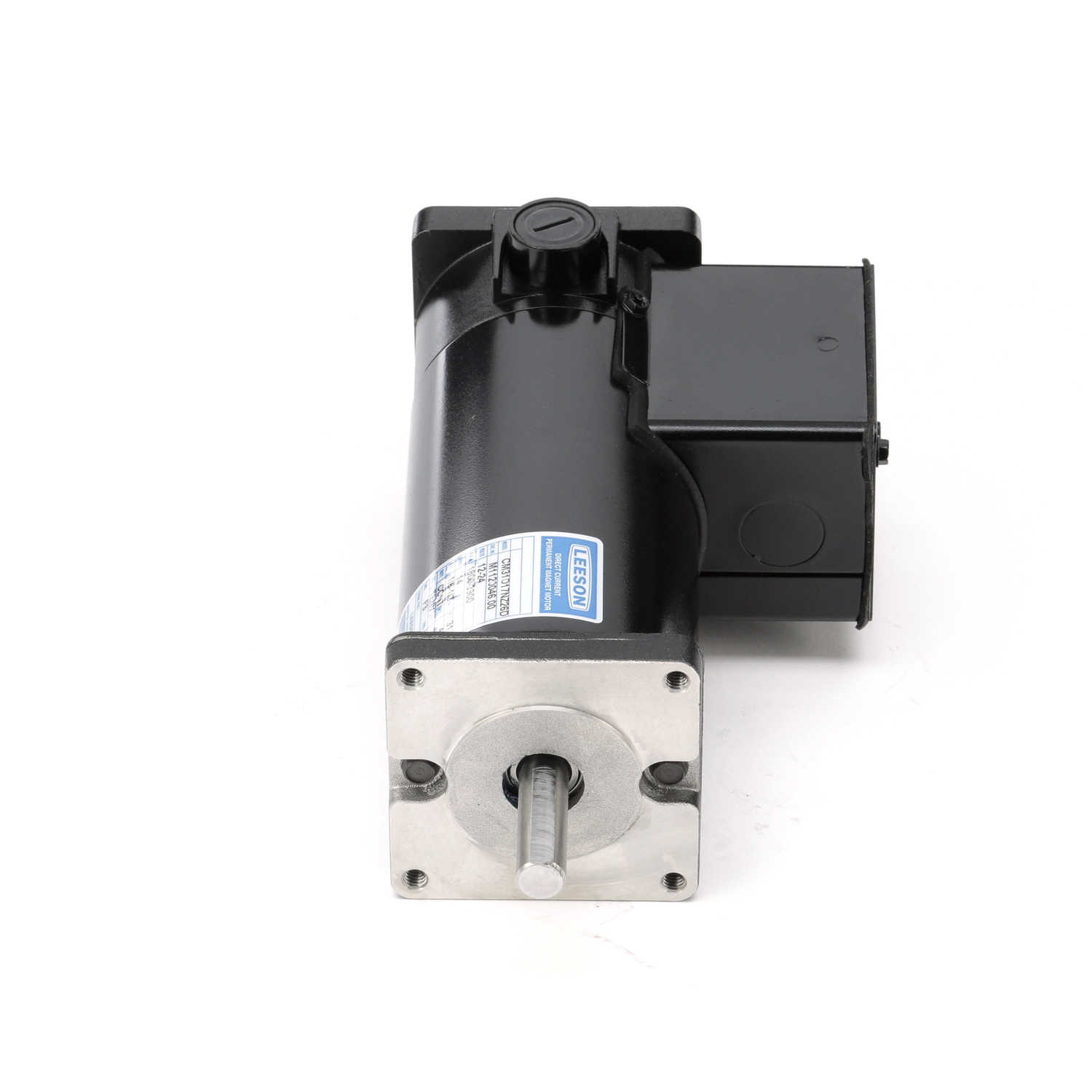

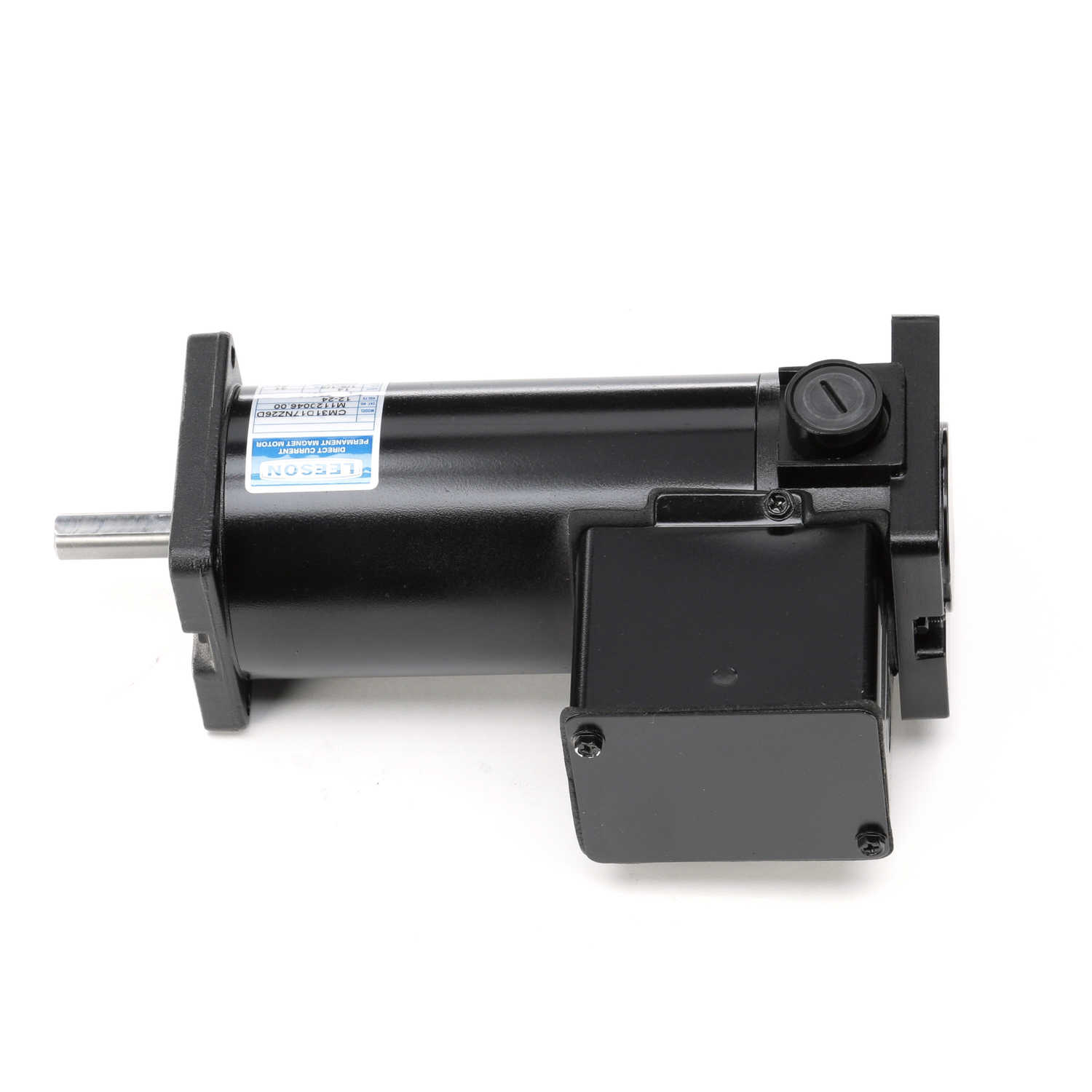

M1120046.00 Leeson 0.17/0.33HP Sub-Fractional DC Electric Motor, 1750-3900 RPM

MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: M1120046.00

Selected accessories will also be added to cart
$409.97 / Each
Quantity:
TENV, 31GS Frame, 12-24VDC, Square Flange, 1/2" Shaft

Features

Features
  • Compact, space saving design
  • Standard conduit box simplifies connections
  • Ball bearing construction; Long life brushes
  • External access to brushes allows for easy replacement further prolonging motor life
  • High starting torques
  • Linear speed torque characteristics throughout the speed range
  • Capable of dynamic braking for faster stops
  • Reversible rotation
  • Simple two lead connection
  • Class F insulated with high temperature welded commutators

General Specifications

General Specifications
Model :CM31D17NZ26D Catalog No :M1120046.00
Part Description :..1/6HP-1/3HP..1800RPM - 3900RPM.31.TENV.12V - 24V...CONT.40C.1.0SF.SQ. FLANGE.CM31D17NZ26D.....DC SUB-FHP LOW VOLTAGE........ Category :Sub-Fractional
Stock :No

Nameplate Specifications

Nameplate Specifications
Output HP :0.17-0.33 Hp Output KW :0.13-0.25 kW
Voltage :12-24 V Current :14.0 A
Speed :1800-3900 rpm Service Factor :1
Efficiency :72.8 % Duty :Continuous
Insulation Class :F Frame :31
Enclosure :Totally Enclosed Non Ventilated Overload Protector :No
Ambient Temperature :40 °C Drive End Bearing Size :6201-13
Opp Drive End Bearing Size :6201-13 UL :Recognized
CSA :Y CE :Y

Technical Specifications

Technical Specifications
Rotation :Reversible Mounting :Round
Overall Length :9.45 in Frame Length :5.50 in
Shaft Diameter :0.500 in Shaft Extension :1.5 in
UPC :691720090848 Weight :9.00 LB
