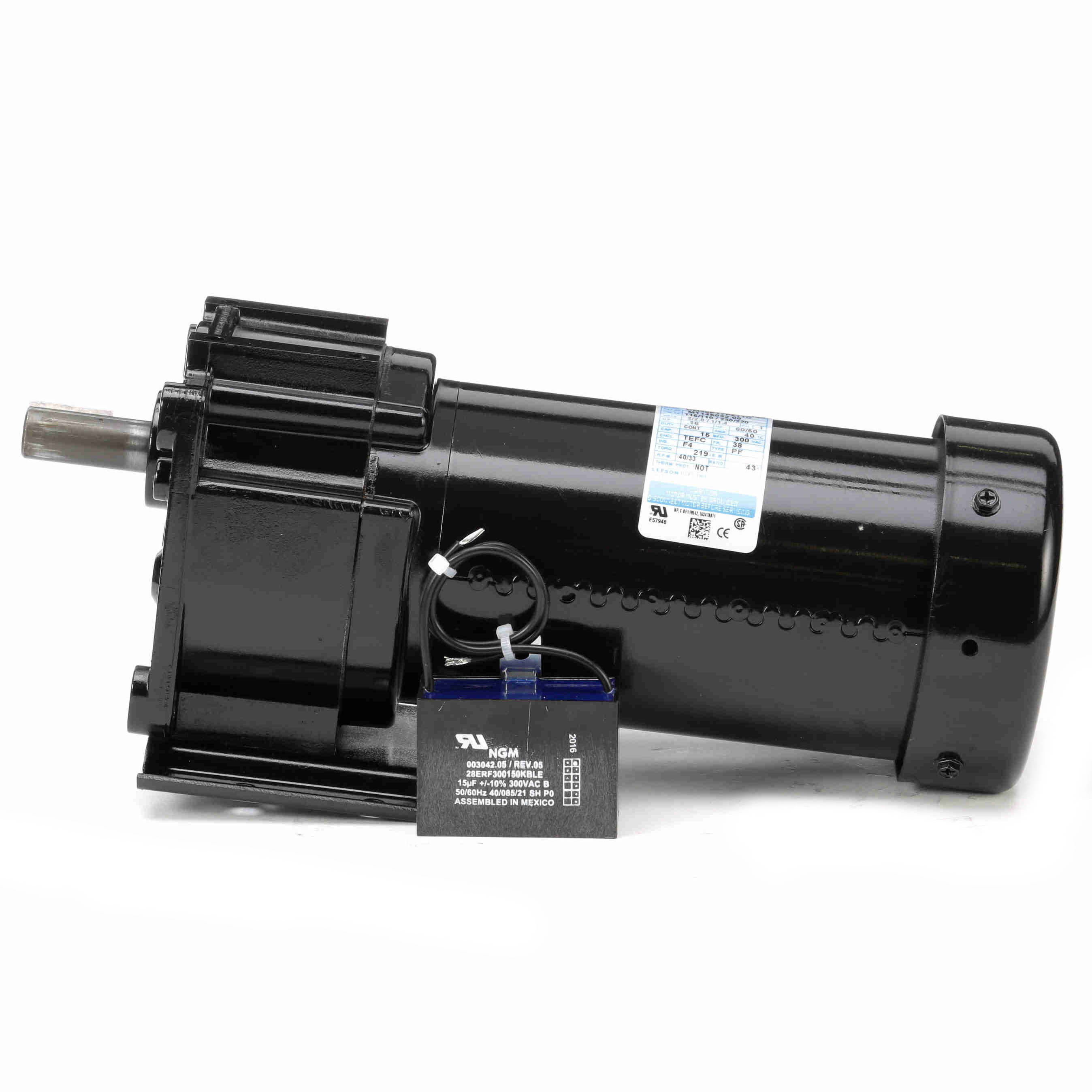

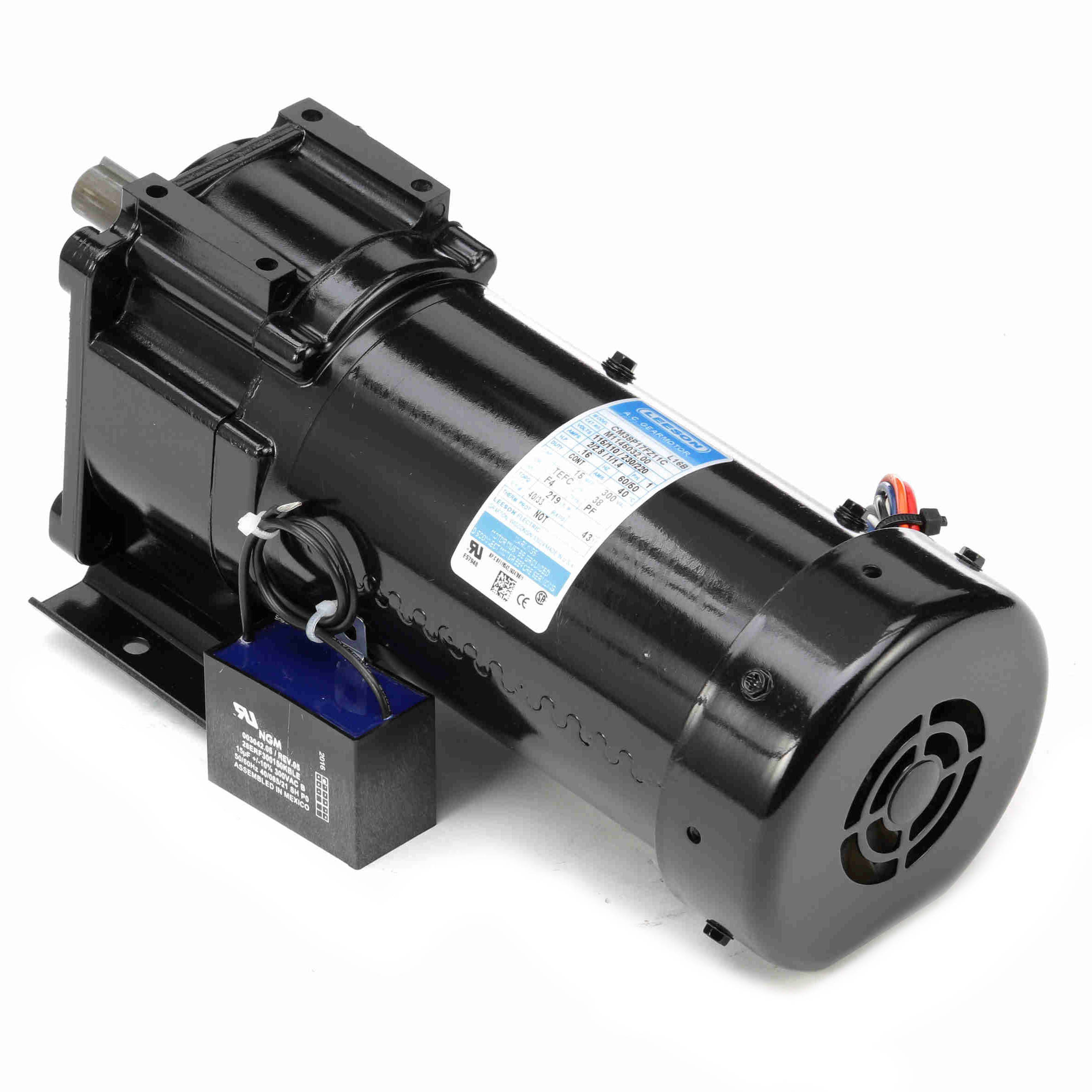

M1145032.00 Leeson 0.16HP AC Gearmotor, 40 RPM
Click Image to Expand
Previous
Next
Product ID: M1145032.00
M1145032.00 Leeson 0.16HP AC Gearmotor, 40 RPM
MFG: Leeson Electric (Regal Rexnord)
MFG Part Number: M1145032.00
Selected accessories will also be added to cart
$872.00 / Each
Quantity:
TEFC, 38 Frame, 115/230VAC Single Phase 60Hz
Details
Specs
Features
Features
Permanent split capacitor design rated for 115/230VAC 60/50 HZ input
Precision machined in-line steel gears
First stage steel helical gear followed by spur-type gears
Lubrication is permanent semi-fluid grease, reducing possibility of leakage
Output shafts have needle bearings for high load capacities
Shafts are hardened steel
Optional conduit box available
General Specifications
General Specifications
Model :
CM38P17FZ11C
Catalog No :
M1145032.00
Part Description :
..1/6HP..40RPM.38.TEFC.115/230V.1PH.60HZ.....CM38P17FZ11C.P240...43:1.AC GEARMOTORS..219LBIN......
Category :
P240 Series
Stock :
No
Nameplate Specifications
Nameplate Specifications
Output HP :
0.16 Hp
Output KW :
0.12 kW
Frequency :
60 Hz
Voltage :
110 V
Current :
2.0/1.0 A
Speed :
40 rpm
Service Factor :
1
Phase :
1
Duty :
Continuous
Insulation Class :
F
KVA Code :
D
Frame :
38
Enclosure :
Totally Enclosed Fan Cooled
Overload Protector :
No
Ambient Temperature :
40 °C
Drive End Bearing Size :
6201
Opp Drive End Bearing Size :
6201
UL :
Recognized
CSA :
Y
CE :
Y
Technical Specifications
Technical Specifications
Rotation :
Reversible
Mounting :
Special
Shaft Type :
Parallel
Overall Length :
12.13 in
Frame Length :
5.88 in
Shaft Diameter :
0.625 in
Shaft Extension :
1.5 in
UPC :
691720092156
Weight :
20.00 LB
Type
Electric Motor
Input Phase
Single Phase
Enclosure
TEFC
Horsepower
0.16HP
Frame
38
Input Voltage
115VAC
Input Voltage
230VAC
