00112ET3ER145TC-W22 WEG 1HP Severe Duty Electric Motor, 1200RPM

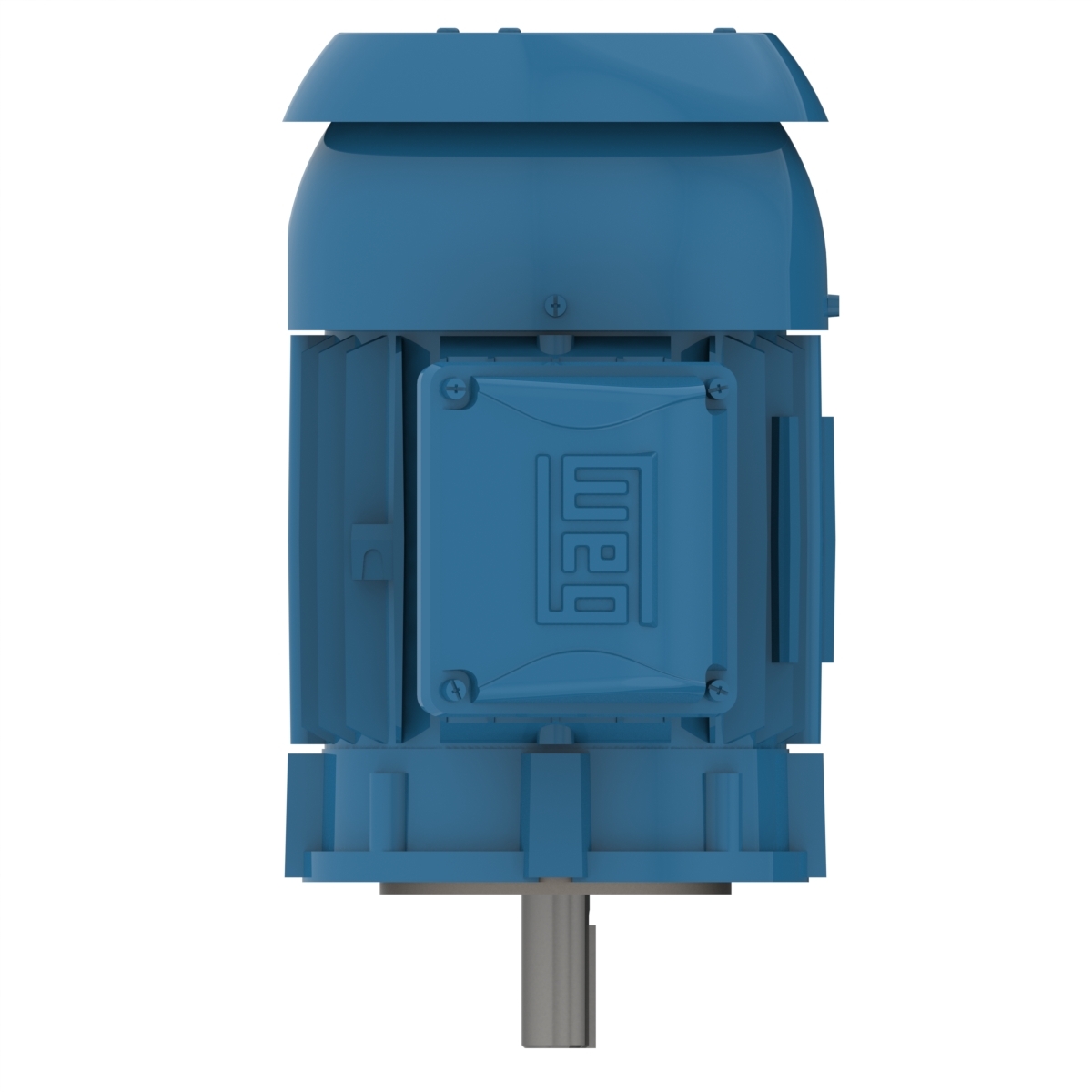

Enlarge Photo

Product ID: 00112ET3ER145TC-W22

00112ET3ER145TC-W22 WEG 1HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00112ET3ER145TC-W22

Selected accessories will also be added to cart
$582.95 / Each
Quantity:
IC411 - TEFC, IP55, 145TC Frame, 230/460VAC 60Hz 3 Phase, 12821872, NEMA Premium Efficiency, Footless, C-Face, Cast Iron Frame, 7/8" Keyed Shaft

Electric Motors

Frame145TC
Output1 HP (0.75 kW)
Number of Poles6
Frequency60 Hz
Rated speed1160 rpm
Slip3.33 %
Rated voltage230/460 V
Rated current3.46/1.73 A
L. R. Amperes21.5/10.7 A
LRC6.2x(Code K)
No load current2.39/1.20 A
Rated torque4.53 ft.lb
Locked rotor torque260 %
Breakdown torque300 %
Locked rotor time50s (cold) 28s (hot)
Moment of inertia (J)0.1595 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?50.0 dB(A)
Approx. weight?54.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
77.0  82.0  82.5

Power factor

50%75%100%
0.45  0.57  0.66
Frame145TC
Output0.75 HP (0.550 kW)
Number of Poles6
Frequency50 Hz
Rated speed960 rpm
Slip4.00 %
Rated voltage380 V
Rated current1.60 A
L. R. Amperes9.28 A
LRC5.8x(Code K)
No load current1.18 A
Rated torque4.10 ft.lb
Locked rotor torque280 %
Breakdown torque310 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.1595 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?45.0 dB(A)
Approx. weight?54.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
74.8  78.4  79.3

Power factor

50%75%100%
0.44  0.57  0.66
Frame145TC
Output0.75 HP (0.550 kW)
Number of Poles6
Frequency50 Hz
Rated speed970 rpm
Slip3.00 %
Rated voltage400 V
Rated current1.62 A
L. R. Amperes9.88 A
LRC6.1x(Code L)
No load current1.28 A
Rated torque4.06 ft.lb
Locked rotor torque300 %
Breakdown torque330 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.1595 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?45.0 dB(A)
Approx. weight?54.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
73.2  77.5  78.9

Power factor

50%75%100%
0.41  0.53  0.62
Frame145TC
Output0.75 HP (0.550 kW)
Number of Poles6
Frequency50 Hz
Rated speed970 rpm
Slip3.00 %
Rated voltage415 V
Rated current1.66 A
L. R. Amperes10.5 A
LRC6.3x(Code M)
No load current1.36 A
Rated torque4.06 ft.lb
Locked rotor torque320 %
Breakdown torque340 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.1595 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?45.0 dB(A)
Approx. weight?54.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
70.7  75.8  77.9

Power factor

50%75%100%
0.38  0.50  0.59
Frame145TC
Output1 HP (0.75 kW)
Number of Poles6
Frequency50 Hz
Rated speed940 rpm
Slip6.00 %
Rated voltage380 V
Rated current1.96 A
L. R. Amperes9.41 A
LRC4.8x(Code G)
No load current1.18 A
Rated torque5.59 ft.lb
Locked rotor torque200 %
Breakdown torque220 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.1595 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?45.0 dB(A)
Approx. weight?54.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
77.0  80.0  78.5

Power factor

50%75%100%
0.53  0.66  0.74
Frame145TC
Output1 HP (0.75 kW)
Number of Poles6
Frequency50 Hz
Rated speed950 rpm
Slip5.00 %
Rated voltage400 V
Rated current1.94 A
L. R. Amperes10.1 A
LRC5.2x(Code H)
No load current1.28 A
Rated torque5.53 ft.lb
Locked rotor torque229 %
Breakdown torque260 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.1595 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?45.0 dB(A)
Approx. weight?54.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
75.5  80.0  78.5

Power factor

50%75%100%
0.49  0.62  0.71
Frame145TC
Output1 HP (0.75 kW)
Number of Poles6
Frequency50 Hz
Rated speed950 rpm
Slip5.00 %
Rated voltage415 V
Rated current1.95 A
L. R. Amperes10.7 A
LRC5.5x(Code J)
No load current1.36 A
Rated torque5.53 ft.lb
Locked rotor torque250 %
Breakdown torque280 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)0.1595 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Noise level?45.0 dB(A)
Approx. weight?54.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
74.0  78.5  78.5

Power factor

50%75%100%
0.46  0.59  0.68

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Drip CoverWith
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Application
Severe Duty
Enclosure
TEFC
Horsepower
1HP
Input Voltage
230VAC
Input Voltage
460VAC
Frame
145TC
