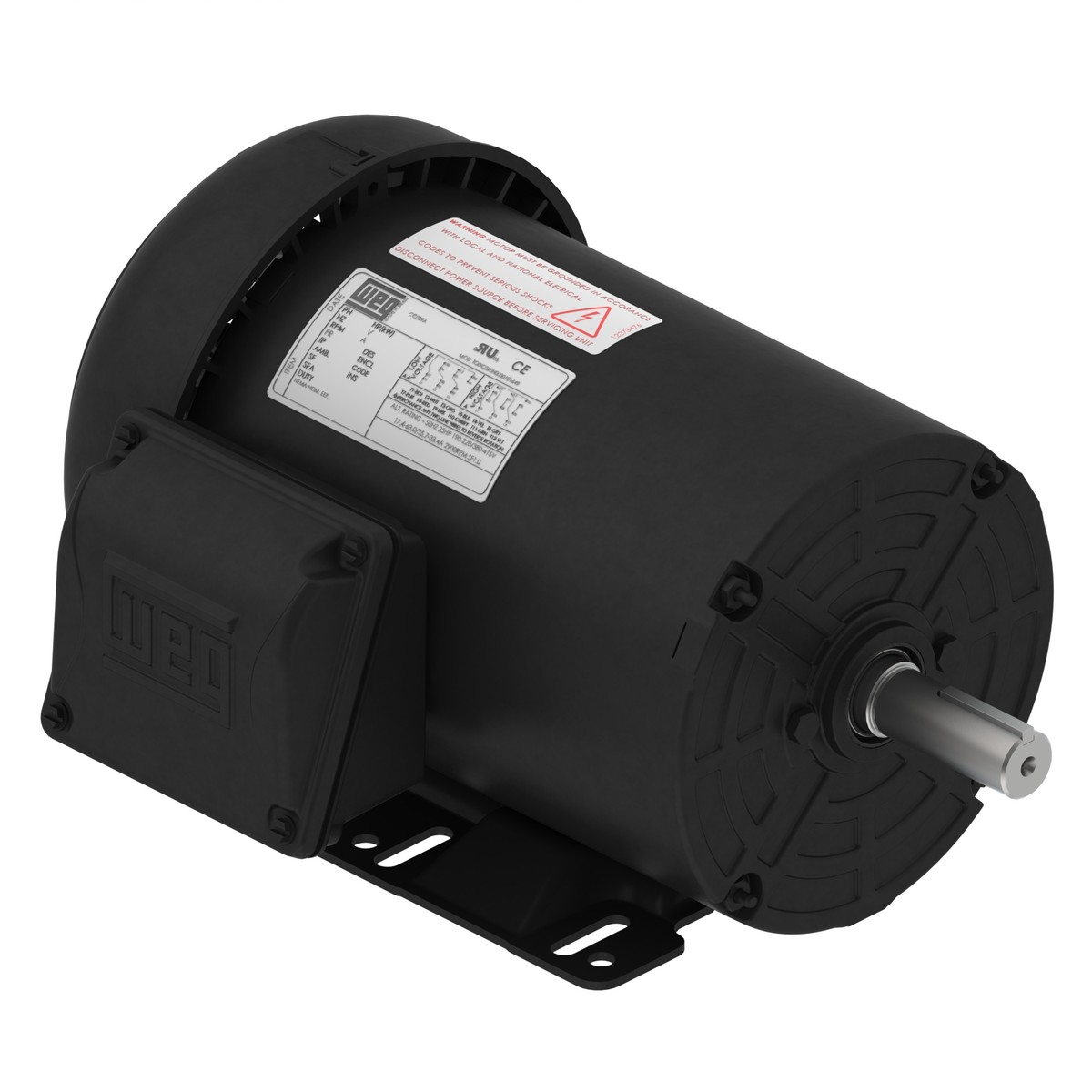

00112ET3H145T-S WEG 1HP General Purpose Electric Motor, 1200RPM
Enlarge Photo

Product ID: 00112ET3H145T-S

00112ET3H145T-S WEG 1HP General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00112ET3H145T-S

Selected accessories will also be added to cart
$470.81 / Each
Quantity:
IC411-TEFC, 143T/145T Frame, 575VAC 3-Phase 60Hz, 12682581, Foot Mounted, Rolled Steel, Premium Efficiency, 7/8" Keyed Shaft

Electric Motors

Frame143/5T
Output1 HP (0.75 kW)
Number of Poles6
Frequency60 Hz
Rated speed1145 rpm
Slip4.58 %
Rated voltage575 V
Rated current1.26 A
L. R. Amperes7.33 A
LRC5.8x(Code J)
No load current0.810 A
Rated torque4.52 ft.lb
Locked rotor torque229 %
Breakdown torque280 %
Locked rotor time55s (cold) 31s (hot)
Moment of inertia (J)0.1597 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?49.0 dB(A)
Approx. weight?38.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
80.0  82.5  82.5

Power factor

50%75%100%
0.50  0.63  0.72

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.118"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
Painting

Grounding LugsSingle
Fan Cover materialPlastic
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Enclosure
TEFC
Horsepower
1HP
Input Voltage
575VAC
Frame
143T
Frame
145T
