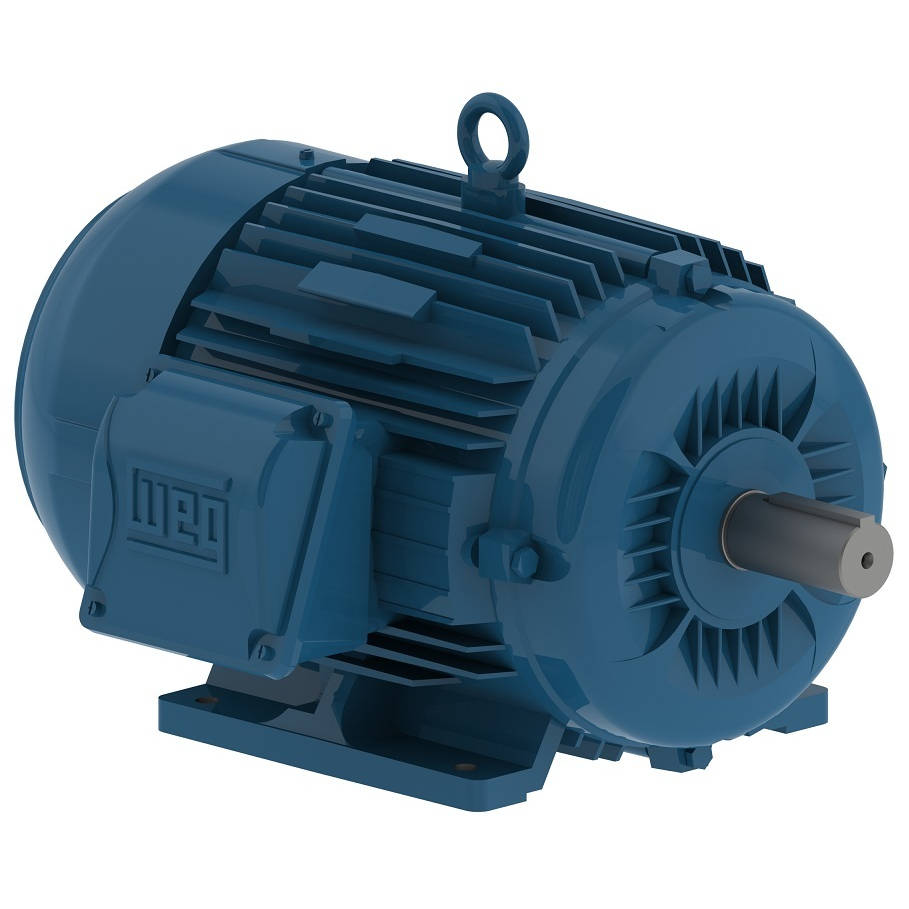

00112ET3H145T-W22 WEG 1 HP Electric Motor, 1200RPM
Enlarge Photo

Product ID: 00112ET3H145T-W22

00112ET3H145T-W22 WEG 1 HP Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00112ET3H145T-W22

Selected accessories will also be added to cart
$541.12 / Each
Quantity:
TEFC-NEMA Pr, 11457101, 143/5T Frame, 575V, IC411-TEFC, Foot Mounted, Cast Iron, 7/8" Shaft

Electric Motors

Frame 143/5T
Output 1 HP (0.75 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1150 rpm
Slip 4.17 %
Rated voltage 575 V
Rated current 1.38 A
L. R. Amperes 8.58 A
No load current 0.958 A
Rated torque 4.51 ft.lb
Locked rotor torque 260 %
Breakdown torque 300 %
Moment of inertia (J) 0.1595 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 49.0 dB(A)
Approx. weight³ 51.5 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
77.0  82.0  82.5

Power factor

50% 75% 100%
0.45  0.57  0.66

Features

Frame Material Cast Iron
Impregnation Method Dip and Bake Polyester
Main terminal box hole NPT 3/4"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting

Grounding Lugs Single
Fan Cover material Rolled Steel
Tropicalized Painting Without
Fan material Plastic
Bearing cap No-Without Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Type
Electric Motor
Input Phase
3-Phase
Application
Severe Duty
Enclosure
TEFC
Horsepower
1HP
Speed
1200RPM
Input Voltage
575VAC
Frame
143T
Frame
145T
