00112ET3P145T-W22 WEG 1HP Severe Duty Electric Motor, 1200RPM

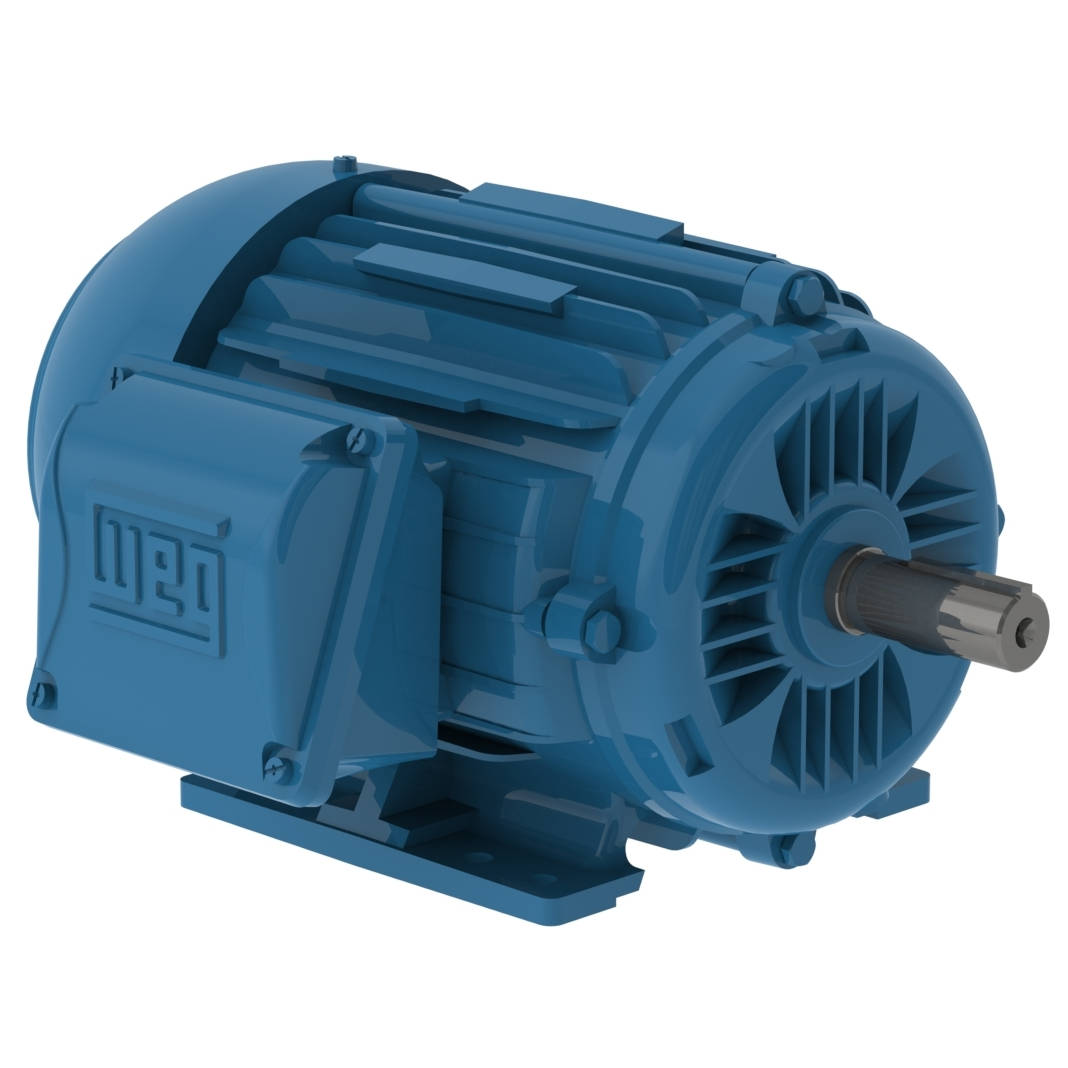

Enlarge Photo

Product ID: 00112ET3P145T-W22

00112ET3P145T-W22 WEG 1HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 00112ET3P145T-W22

Selected accessories will also be added to cart
$541.12 / Each
Quantity:
IC411 - TEFC, IP55, 143T/145T Frame, 200VAC 60Hz 3 Phase, 11958351, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 7/8" Keyed Shaft

Electric Motors

Frame143/5T
Output1 HP (0.75 kW)
Number of Poles6
Frequency60 Hz
Rated speed1160 rpm
Slip3.33 %
Rated voltage200 V
Rated current3.98 A
L. R. Amperes24.7 A
LRC6.2x(Code K)
No load current2.53 A
Rated torque4.53 ft.lb
Locked rotor torque260 %
Breakdown torque300 %
Locked rotor time50s (cold) 28s (hot)
Moment of inertia (J)0.1595 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?50.0 dB(A)
Approx. weight?50.4 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
77.0  82.0  82.5

Power factor

50%75%100%
0.45  0.57  0.66

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity3
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Application
Severe Duty
Enclosure
TEFC
Horsepower
1HP
Input Voltage
200VAC
Frame
143T
Frame
145T
