/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Super Premium Efficiency/00118EG3E143T-W22 WEG 1HP Electric Motor, 1800RPM

Product ID: 00118EG3E143T-W22

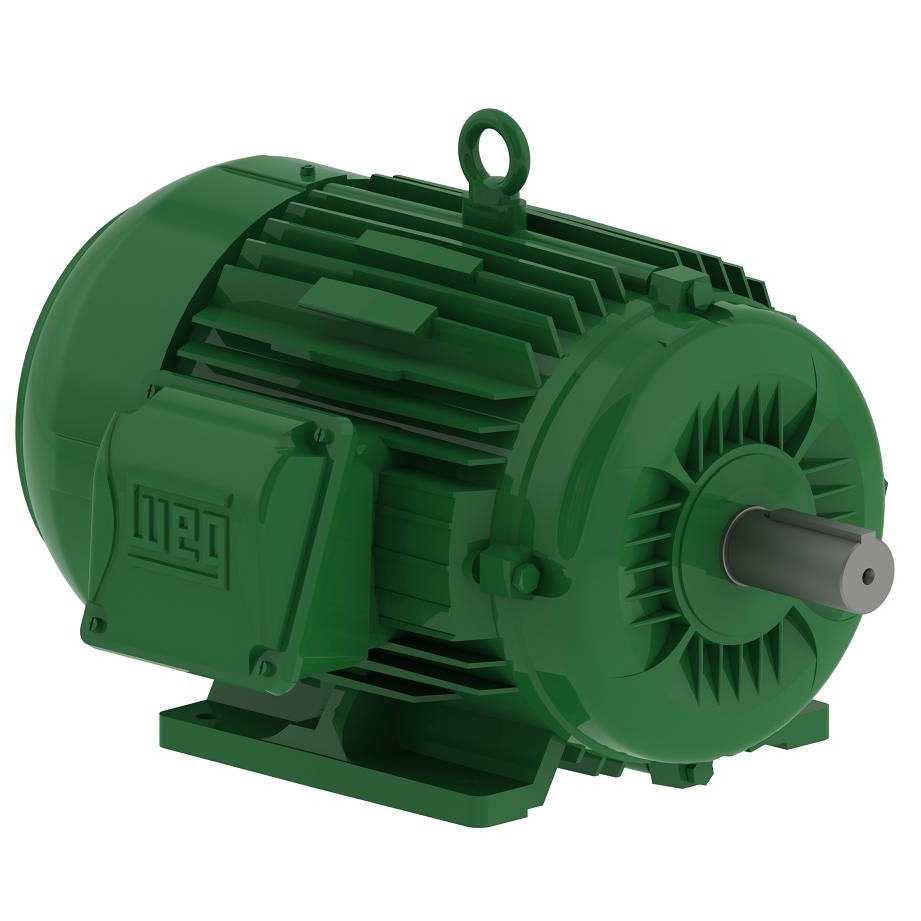

00118EG3E143T-W22 WEG 1HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118EG3E143T-W22

Selected accessories will also be added to cart

$516.20 / Each

Quantity:

IC411 - TEFC, IP55, 143T/145T Frame, 208-230/460/380VAC 50/60Hz 3 Phase, 12604113, Super Premium Efficiency, Cast Iron Frame, Foot Mounted, 7/8" Keyed Shaft

Electric Motors

Frame	143/5T
Output	1 HP (0.75 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1760 rpm
Slip	2.22 %
Rated voltage	230/460 V
Rated current	2.66/1.33 A
L. R. Amperes	23.9/12.0 A
LRC	9.0x(Code L)
No load current	1.54/0.770 A
Rated torque	2.98 ft.lb
Locked rotor torque	260 %
Breakdown torque	330 %
Locked rotor time	59s (cold) 33s (hot)

Moment of inertia (J)	0.1554 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	51.0 dB(A)
Approx. weight?	52.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
84.0	86.5	87.5

Power factor

50%	75%	100%
0.59	0.70	0.79

Frame	143/5T
Output	1 HP (0.75 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1455 rpm
Slip	3.00 %
Rated voltage	380 V
Rated current	1.59 A
L. R. Amperes	11.9 A
LRC	7.5x(Code J)
No load current	0.759 A
Rated torque	3.61 ft.lb
Locked rotor torque	210 %
Breakdown torque	240 %
Locked rotor time	52s (cold) 29s (hot)

Moment of inertia (J)	0.1554 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	52.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
85.5	86.5	86.5

Power factor

50%	75%	100%
0.64	0.75	0.83

Frame	143/5T
Output	1 HP (0.75 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	400 V
Rated current	1.49 A
L. R. Amperes	12.1 A
LRC	8.1x(Code K)
No load current	0.803 A
Rated torque	3.60 ft.lb
Locked rotor torque	240 %
Breakdown torque	280 %
Locked rotor time	52s (cold) 29s (hot)

Moment of inertia (J)	0.1554 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	52.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	87.5	87.5

Power factor

50%	75%	100%
0.61	0.72	0.81

Frame	143/5T
Output	1 HP (0.75 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	1.51 A
L. R. Amperes	13.0 A
LRC	8.6x(Code L)
No load current	0.836 A
Rated torque	3.60 ft.lb
Locked rotor torque	260 %
Breakdown torque	310 %
Locked rotor time	52s (cold) 29s (hot)

Moment of inertia (J)	0.1554 sq.ft.lb
Design	A
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	49.0 dB(A)
Approx. weight?	52.2 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
86.5	87.5	87.5

Power factor

50%	75%	100%
0.58	0.70	0.79

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Main terminal box hole	NPT 3/4"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 6002 207A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Steel
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	No-Without Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	9
