00118ET3H143T-W22 WEG 1 HP Electric Motor, 1800RPM

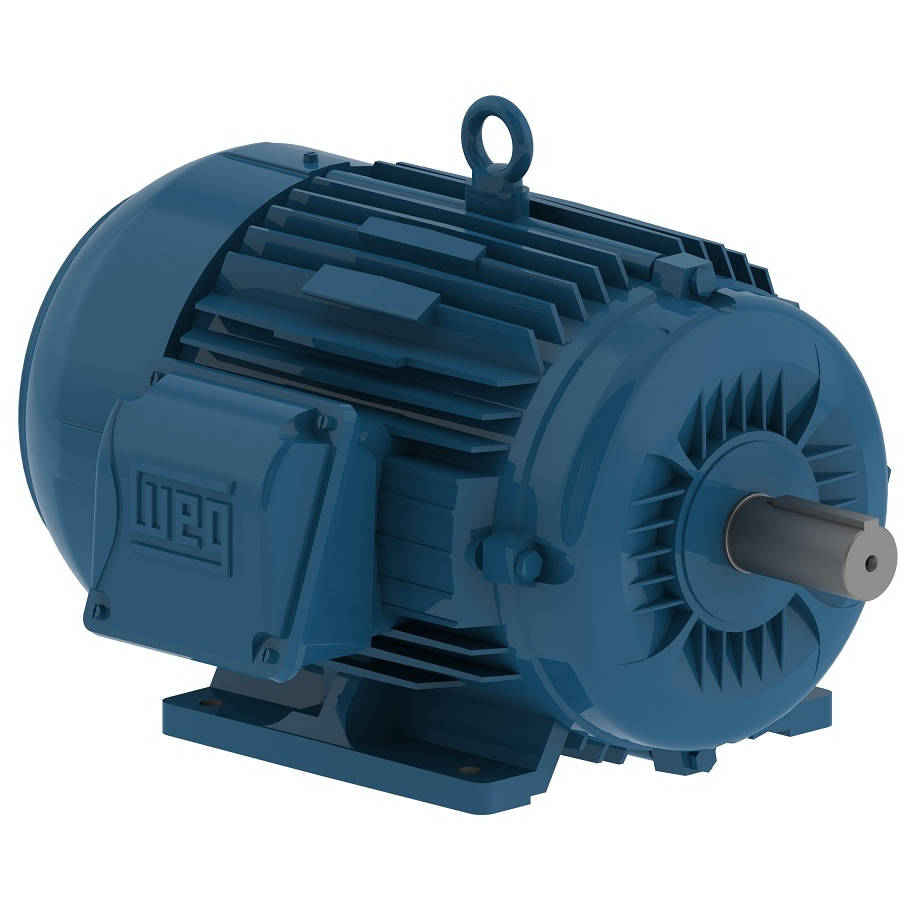

Enlarge Photo

Product ID: 00118ET3H143T-W22

00118ET3H143T-W22 WEG 1 HP Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118ET3H143T-W22

Selected accessories will also be added to cart
$469.03 / Each
Quantity:
TEFC-NEMA Pr, 12445607, 143/5T Frame, 575V, IC411-TEFC, Foot Mounted, Cast Iron, 7/8" Shaft

Electric Motors

Frame143/5T
Output1 HP (0.75 kW)
Number of Poles4
Frequency60 Hz
Rated speed1760 rpm
Slip2.22 %
Rated voltage575 V
Rated current1.18 A
L. R. Amperes9.88 A
LRC8.4x(Code L)
No load current0.752 A
Rated torque2.94 ft.lb
Locked rotor torque320 %
Breakdown torque350 %
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)0.1172 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?51.0 dB(A)
Approx. weight?44.9 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
80.0  84.0  85.5

Power factor

50%75%100%
0.55  0.68  0.75

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)


Grounding LugsSingle
Fan Cover materialRolled Steel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Application
Severe Duty
Enclosure
TEFC
Horsepower
1HP
Input Voltage
575VAC
Frame
143T
Frame
145T
