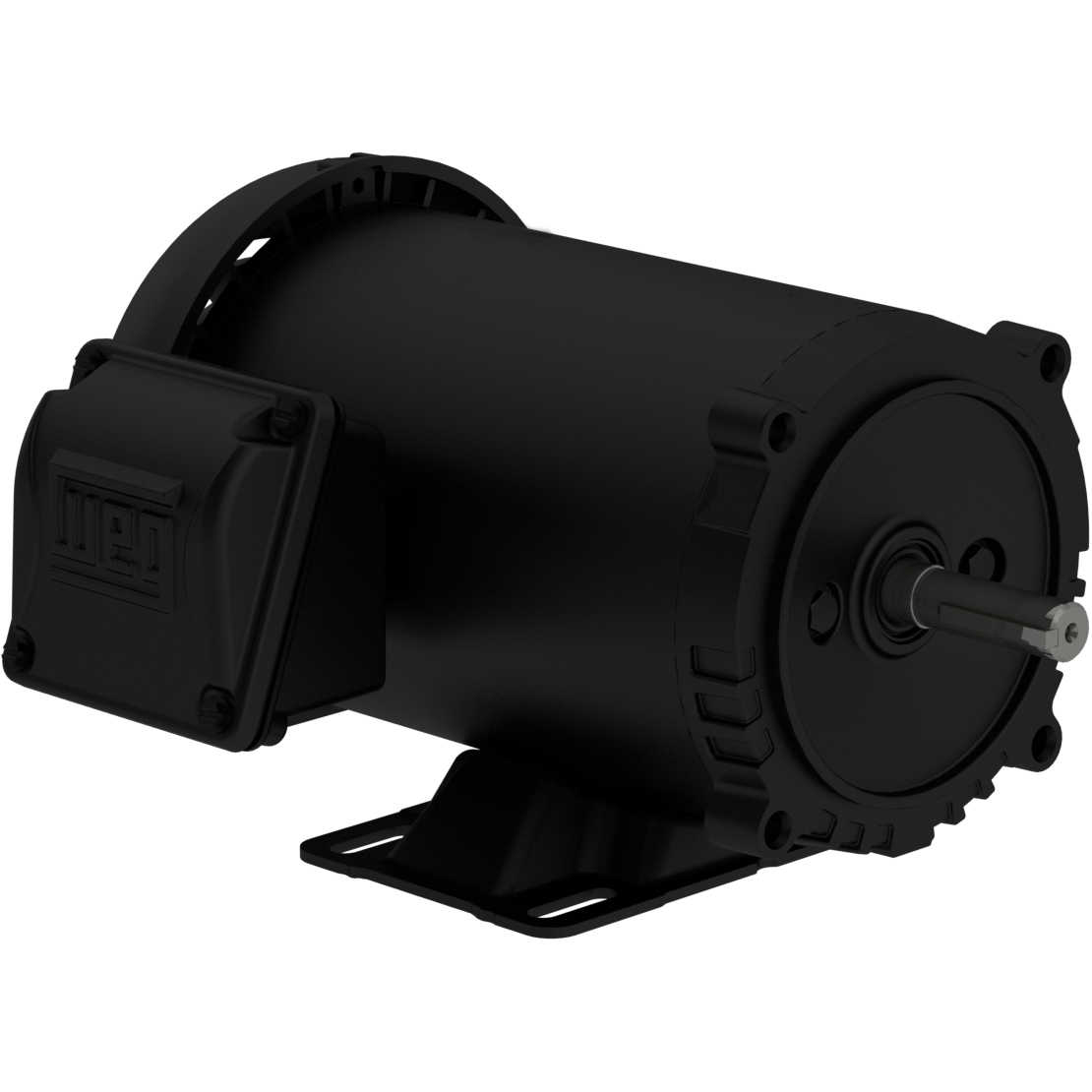

00118ET3H56C-S WEG 1HP General Purpose Electric Motor, 1800RPM
Enlarge Photo

Product ID: 00118ET3H56C-S

00118ET3H56C-S WEG 1HP General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118ET3H56C-S

Selected accessories will also be added to cart
$362.23 / Each
Quantity:
IC411 - TEFC, IP55, 56C Frame, 575VAC 60Hz 3 Phase, 14797808, C-Face, Foot Mounted, Rolled Steel, Premium Efficiency, 5/8" Keyed Shaft

Electric Motors

Frame56C
Output1 HP (0.75 kW)
Number of Poles4
Frequency60 Hz
Rated speed1765 rpm
Slip1.94 %
Rated voltage575 V
Rated current1.18 A
L. R. Amperes10.1 A
LRC8.6x(Code M)
No load current0.712 A
Rated torque2.98 ft.lb
Locked rotor torque280 %
Breakdown torque300 %
Locked rotor time34s (cold) 19s (hot)
Moment of inertia (J)0.1232 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?52.0 dB(A)
Approx. weight?37.3 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
82.5  84.0  85.5

Power factor

50%75%100%
0.52  0.66  0.75

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole0.881"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Resilient BaseWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Frame
56C
Enclosure
TEFC
Horsepower
1HP
Input Voltage
575VAC
