/Products/Electric Motors/3 Phase Stainless Steel/WEG 3-Phase Stainless Steel Electric Motors/Hydroduty/TENV, C-Face, Foot Mount/00118NT3EHDLT56C WEG 1HP Hydroduty Washdown Electric Motor, 1800RPM
Click Image to Expand

Product ID: 00118NT3EHDLT56C

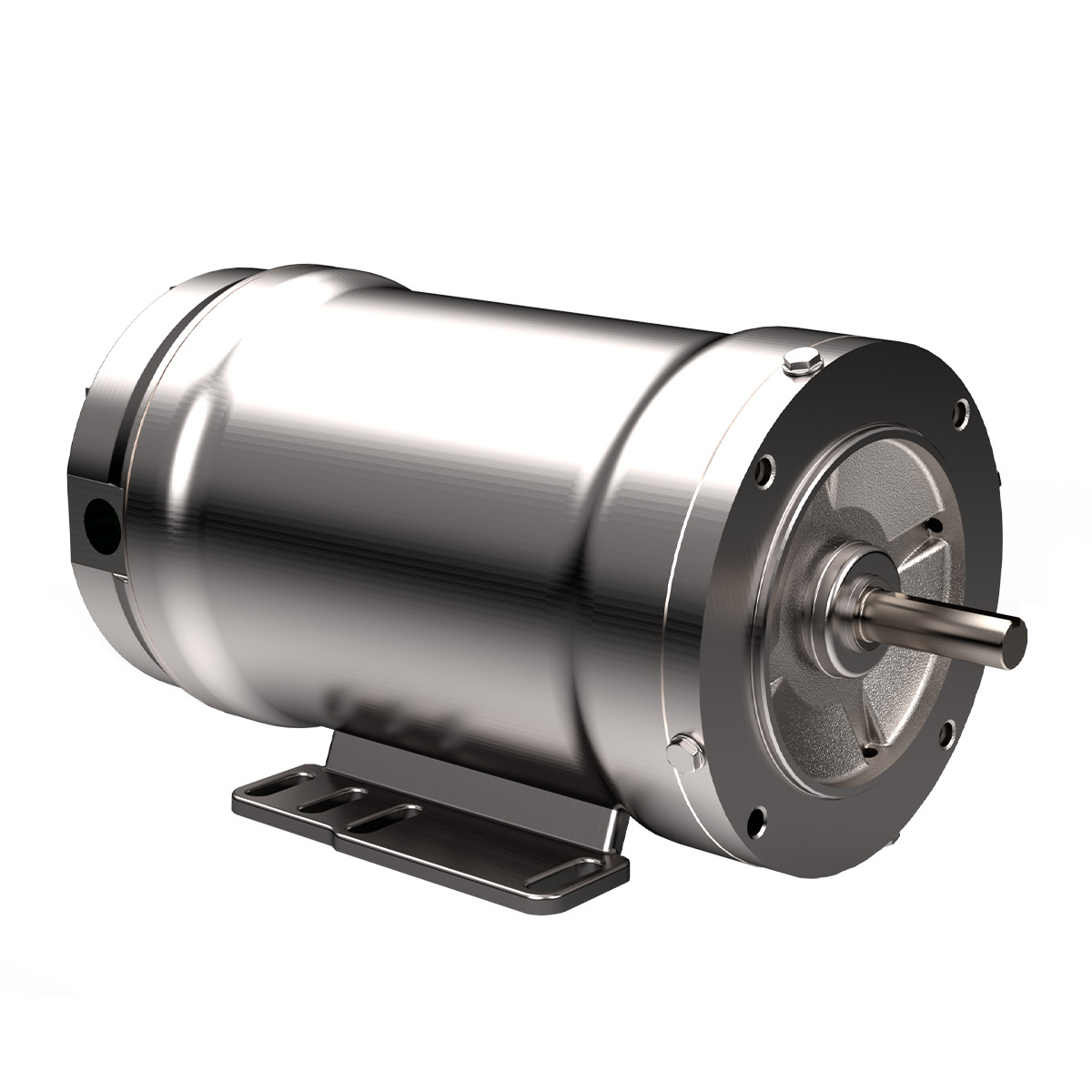

00118NT3EHDLT56C WEG 1HP Hydroduty Washdown Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 00118NT3EHDLT56C

Selected accessories will also be added to cart
$1,511.13 / Each
Quantity:
TENV, IP66, 56C Frame, 230/460VAC 3-Phase 50/60Hz, 14418942, 53178, C-Face, Foot Mounted, Stainless Steel, Premium Efficiency, Low Temperature
Accessories
Select any of the accessories below to purchase them with this inventory item:
Replaced by 1321007139

Specifications

Standard NEMA MG-1
Degree of Protection IP66
Mounting F-1
Flange C
Frame Material Stainless steel
Frequency 60/50 Hz
Output rating 1 HP
Enclosure TENV
Number of poles 4P
Motor Application HydroDuty
Mounting Foot-mounted
Efficiency NEMA Premium Efficiency
Terminal box¹ Left position
Frame 56C
Voltage 230/460 V
Synchronous speed 1800/1500 rpm

Promo Video

Documents

Type
Electric Motor
Speed
1725RPM
Frame
56C
Enclosure
TENV
Input Phase
3-Phase
Horsepower
1HP
Input Voltage
230VAC
Input Voltage
460VAC
